MikroTik RouterBOARD RB4011iGS+5HacQ2HnD 4x 14 GHz 10x Gigabit LAN SFP+ 24 5 GHz 802.11ac 4x4 MIMO L5
MIKROTIK | RB4011iGS+5HacQ2HnD-IN | 4752224002693
On stock 7 pcs.
Price of goods is 246.43 €.
Weight of goods is 1.87 Kg.
Actual in cart 0 pcs.

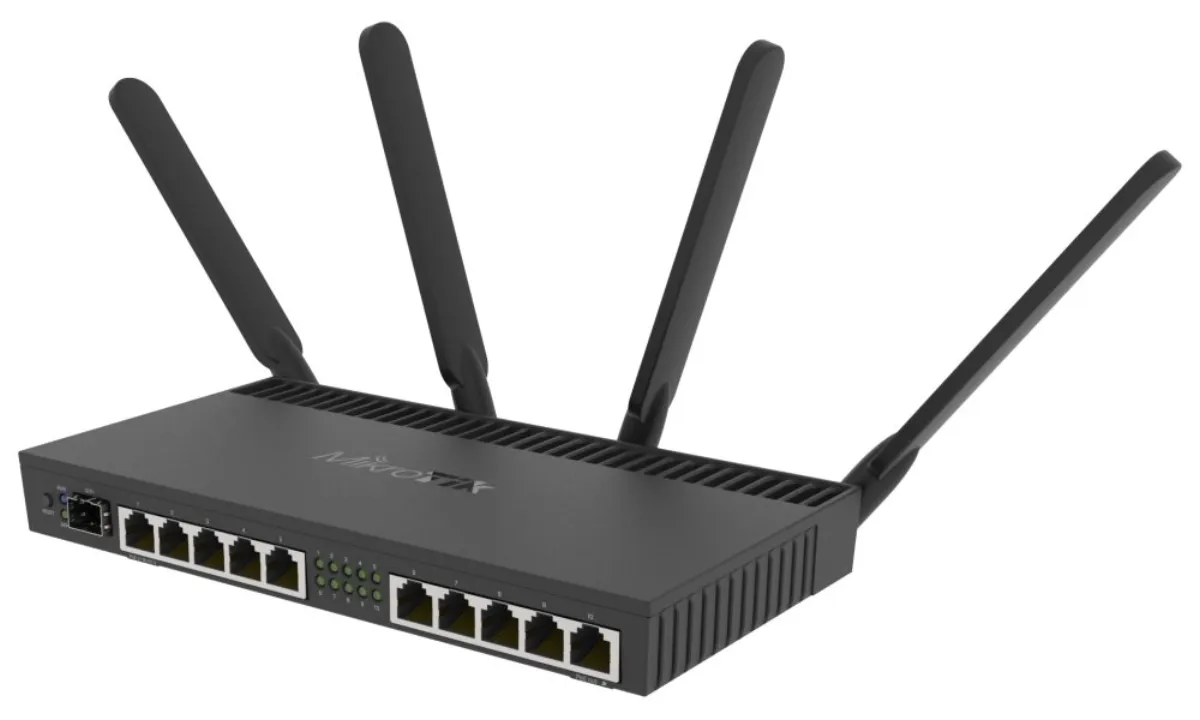

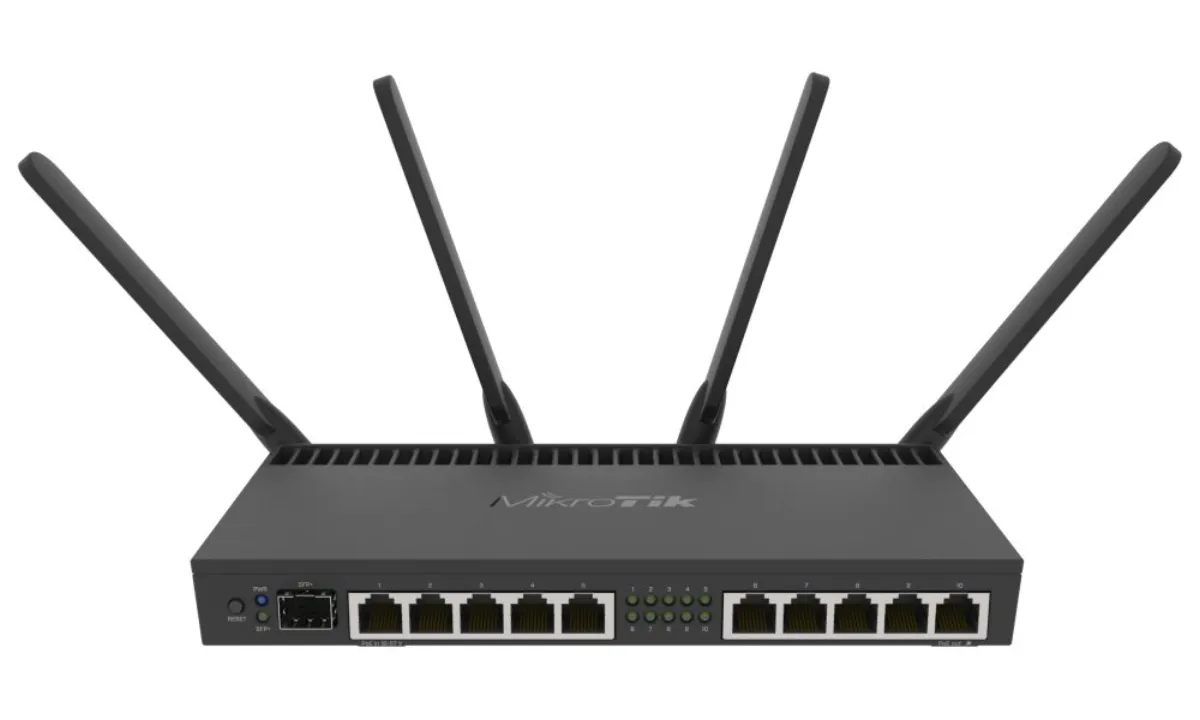

MikroTik RB4011iGS+5HacQ2HnD
RouterBoard RB4011iGS+5HacQ2HnD-IN with Annapurna Labs AL21400 4-core processor at 1.4 GHz frequency, integrated hardware acceleration, dual band Wi-Fi (2.4 and 5 GHz) with 4x4 MIMO support and ten LAN ports with gigabit speed and the possibility of expansion by a 10 Gbps module via an SFP+ port. RouterBoard is ideal for small and large businesses, homes and offices. It can route up to 2.5 Gbps, thanks to the integrated accelerator it has a throughput of up to 2 Gbps in the tunnel with robust AES-256-CBC + SHA256 encryption, and in switch mode it can transmit data speed up to 9.7 Gbit. It is thus ideal in combination with a 10 Gbps miniGBIC module, which can be used to expand the RouterBoard within the integrated SFP+ port. The RouterBoard has a miniPCI-e slot in which a 2.4 GHz card is inserted. This can possibly be exchanged for another one.
A big advantage is the support of the 802.11ac standard, which together with 4x4 MIMO technology enables wireless transmission at speeds of up to 1733 Mbps. It also supports the 2.4 GHz band with speeds of up to 300 Mbps. RouterBoard has external (fixed) 3 dBi antennas (4x 5 GHz, 2x dual band 2.4 GHz) and output power up to 33 dBm.
The RouterBoard has a passive PoE input on the first port (eth1) in the range of 18-57 V. On port 10 (eth10) it has a PoE output, which has the same voltage as the PoE input.
RB4011iGS+5HacQ2HnD-IN is the ideal model for:
- Inbound and outbound firewall
- VPN concentrator
- CAPsMAN server
- Advanced NAT
- Home AP with 2.4 and 5 GHz radio and support for transmission speed up to 1733 Mbps
- L2TP client/server tunnels, IPsec, OpenVPN, PPTP, STTP, PPPoE, EoIP and many more
- Simple and advanced speed limitation via Queues and service prioritization
- Dynamic routing BGP, OSPF, RIP, MPLS and more
- Termination of 1/10 Gbps optical path
- Switching and bridging
- IPv6 network
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
CPU
- Annapurna Labs AL21400 (4 core
- 1.4 GHz
RAM memory: 1 GB
Ports
- 10x Gigabit RJ-45 LAN
- 1x SFP+
- 1x RJ45 (console)
PoE support: yes
Standard: IEEE 802.11a/b/g/n/ac
Frequency band: 2.4 GHz / 5 GHz
Antenna: external 4x 3 dBi
Security
- AES-128/256-CBC + SHA1/256
- AES-128-GCM
Dimensions: 228 x 120 x 30 mm
| Name | Value | |
|---|---|---|
| Color | black | |
| Weight, brutto [kg] | 1,18 | |
| Dimension [mm] | 228 × 120 × 30 mm | |
| Minimum operating temperature [°C] | -20 | |
| Maximum operating temperature [°C] | 60 | |
| NAND [MB] | 512 | |
| Encryption | WEP, WPA, WPA2, 802.1X, MAC Address Filtering | |
| 4G/LTE support | No | |
| SIM slot | No | |
| License | L5 | |
| Power supply [V] | 12 - 57 | |
| Height [mm] | 30 | |
| Power supply min. [V] | 12 | |
| Antenna design | non-removable | |
| Gain [dBi] | 3 (2,4GHz), 3 (5GHz) | |
| Max. output power [dBm] | 33 | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Power supply max. [V] | 57 | |
| SFP+ count | 1 | |
| Consumption [W] | 23 | |
| The number of processor cores | 4 | |
| Processor | Alpine AL21400, 1,4 GHz | |
| Standards | 802.11a/b/g/n/ac | |
| Slots | 1x miniPCI-e | |
| Maximum performance [W] | 44 | |
| Depth [mm] | 120 | |
| Sensitivity [dBm] | -100 (1 Mbps) to -72 (MCS9) | |
| Wi-Fi standard | 802.11a/b/g/n/ac | |
| The default name | admin | |
| Transmission speed [Mbps] | 1733 | |
| Chipset | Atheros QCA9984 | |
| Width [mm] | 228 | |
| Operating mode | AP, Client, WDS, Bridge, WISP, Repeater | |
| Interface | LAN, SFP+ | |
| Port speed | 1 Gb/s | |
| PoE support | Yes | |
| Memory size [MB] | 1000 | |
| Firewall | Yes | |
| PoE input | pasive | |
| Design | freestanding | |
| PoE output | pasive | |
| PoE output count | 1 | |
| IPv6 support | yes, full | |
