MikroTik RouterBOARD RB951Ui-2HnD 128 MB RAM 600 MHz 5x LAN 1x USB MIMO (2x2) 2.4Ghz 802b g n 1x PoE incl. L4
MIKROTIK | RB951Ui-2HnD | 8592457163015
On stock 17 pcs.
Price of goods is 50.38 €.
Weight of goods is 0.406 Kg.
Actual in cart 0 pcs.

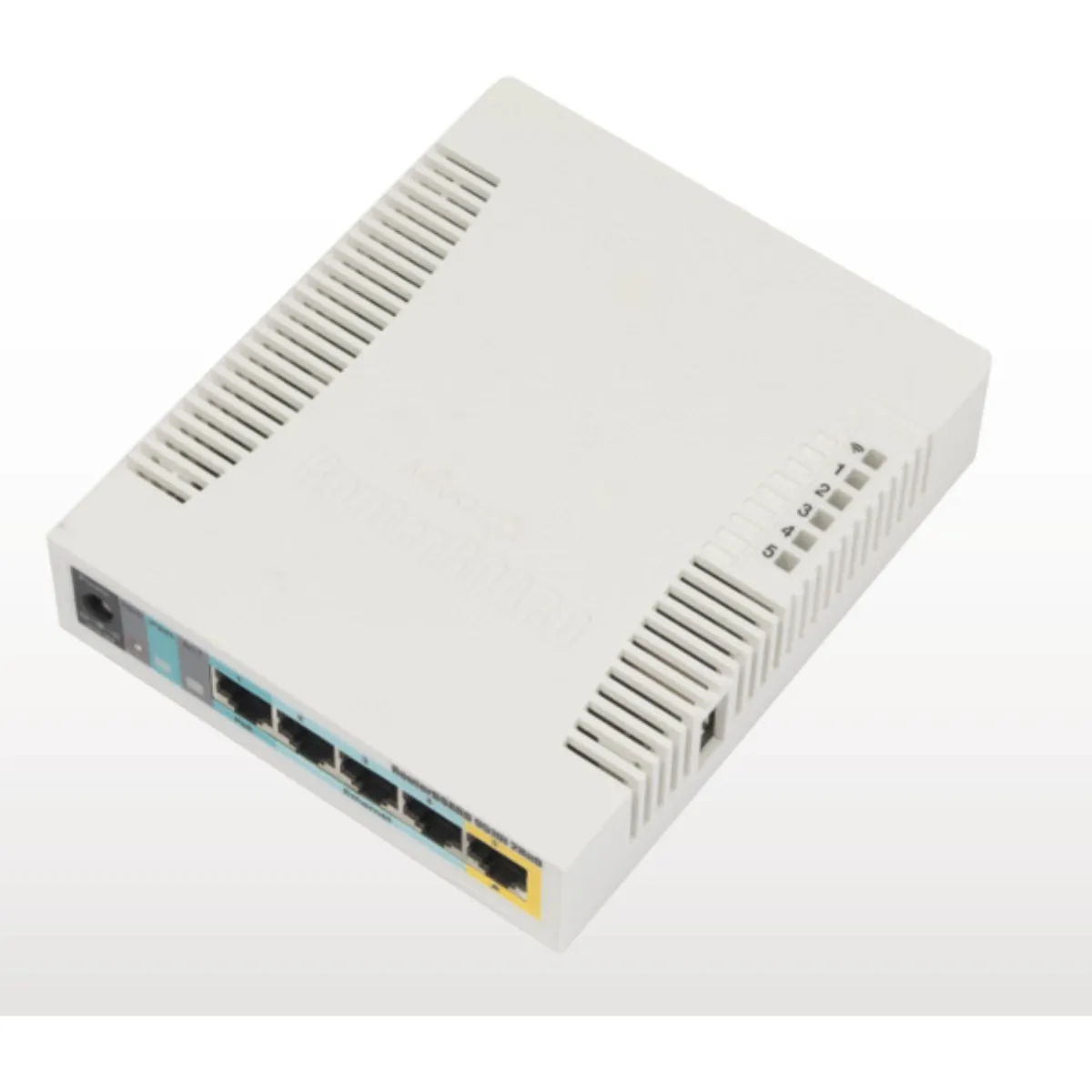

MikroTik RB951Ui-2HnD
RB951Ui-2HnD is based on a new series of RouterBoards with PoE output on Ethernet. This way, you can power other devices via the cable. A big advantage is the integrated powerful Wi-Fi card and USB port for connecting external storage or a 3G modem. This is a powerful RouterBoard suitable for home and office use. Compared to the RB751 model, it has both 2.5 dBi antennas integrated on the board with a transmission power of up to 30 dBm. The RouterBoard can be powered not only using the classic jack connector, but also via PoE (for this PORT 1 is intended, the other POE ports do not support power supply!).
The RouterBoard also has one PoE output marked in yellow, to which other devices can be connected and powered. The output voltage is the same as the used source or PoE power supply. Max output is 580 mA. The advantage of the unit is also a USB port, to which you can connect a USB disk or a 3/4G modem in case of failure of the main connectivity. Comes with cover and power supply included.
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
CPU frequency: 600 MH
Number of cores: 1
RAM memory: 128 M
Ports
- 5 x RJ-45 LAN
- 1 x USB 2.0
PoE support: yes
Standard: IEEE 802.11b/g/n
Frequency band: 2.4 Ghz
Antenna: internal 2.5 dBi
Dimensions: 113 x 138 x 29 mm
| Name | Value | |
|---|---|---|
| Interface | LAN | |
| PoE output | pasive | |
| IPv6 support | yes, full | |
| Weight, brutto [kg] | 0,23 | |
| Color | white | |
| Dimension [mm] | 113 × 138 × 29 mm | |
| Maximum operating temperature [°C] | 50 | |
| Port speed | 100 Mb/s | |
| Minimum operating temperature [°C] | -20 | |
| The number of processor cores | 1 | |
| PoE input | pasive | |
| USB 2.0 count | 1 | |
| Chipset | Atheros AR9344 | |
| Consumption [W] | 7 | |
| Depth [mm] | 138 | |
| Height [mm] | 29 | |
| Width [mm] | 113 | |
| Transmission speed [Mbps] | 300 | |
| Standards | 802.11b/g/n | |
| Memory size [MB] | 128 | |
| Default IP | 192.168.88.1 | |
| Encryption | WEP, WPA, WPA2, 802.1X, MAC Address Filtering | |
| Wi-Fi standard | 802.11b/g/n | |
| Wi-Fi frequency | 2400 MHz | |
| The default name | admin | |
| WPA2 security | Yes | |
| Antenna design | internal | |
| 4G/LTE support | No | |
| Operating mode | AP, Client, WDS, Bridge, WISP, Repeater | |
| License | L4 | |
| Processor | Atheros AR9344, 600 MHz | |
| NAND [MB] | 64 | |
| SIM slot | No | |
| Firewall | Yes | |
| Power supply max. [V] | 30 | |
| Power supply min. [V] | 8 | |
