MikroTik S-4554LC80D Gigabit MiniGBIC module SM 80km 1490nm1550nm (SFP)
MIKROTIK | S-4554LC80D | 8592457248033
Out of stock.
Price of goods is 69.28 €.
Weight of goods is 0.042 Kg.
Actual in cart 0 pcs.

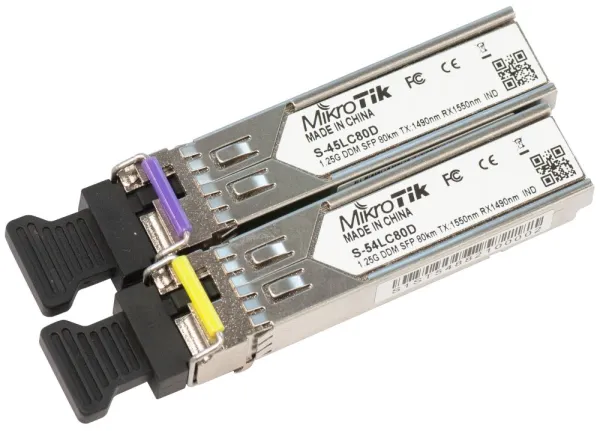

MikroTik S-4554LC80D
Save on the number of fibers used and use WDM technology, which enables two-way data transmission over one optical fiber. The module enables communication at a speed of up to 1.25 Gbps and at a distance of up to 80 km. The ideal solution for long backbone routes. The module is directly intended for RouterBoards from MikroTik, see Related Products. The module is powered directly from the device. Since the module transmits and receives on different wavelengths, it is supplied in pairs. The MiniGBIC is equipped with a holder for easy removal from the SFP slot. The module is designed for 1× LC connector.
Format: SF
Speed: 1.25 Gbps
Type: single mode
Distance: max. 80 km
Wavelength
- Tx: 1490 nm/ Rx: 1550 nm (S-45LC80D)
- Tx: 1550 nm/ Rx: 1490 nm (S-54LC80D) Connector: LC, grinding UPC
| Name | Value | |
|---|---|---|
| Color | silver | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 85 | |
| SFP module compatibility | MIKROTIK | |
| Transmit wavelength | 1550 nm | |
| Interface | SFP | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 80 km | |
| Optical connector type | LC | |
| Connector 2 | LC | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Design | WDM | |
