MSI B760 GAMING PLUS WIFI Intel B760 LGA1700 4x DDR5 2x M.2 HDMI DP WiFi ATX

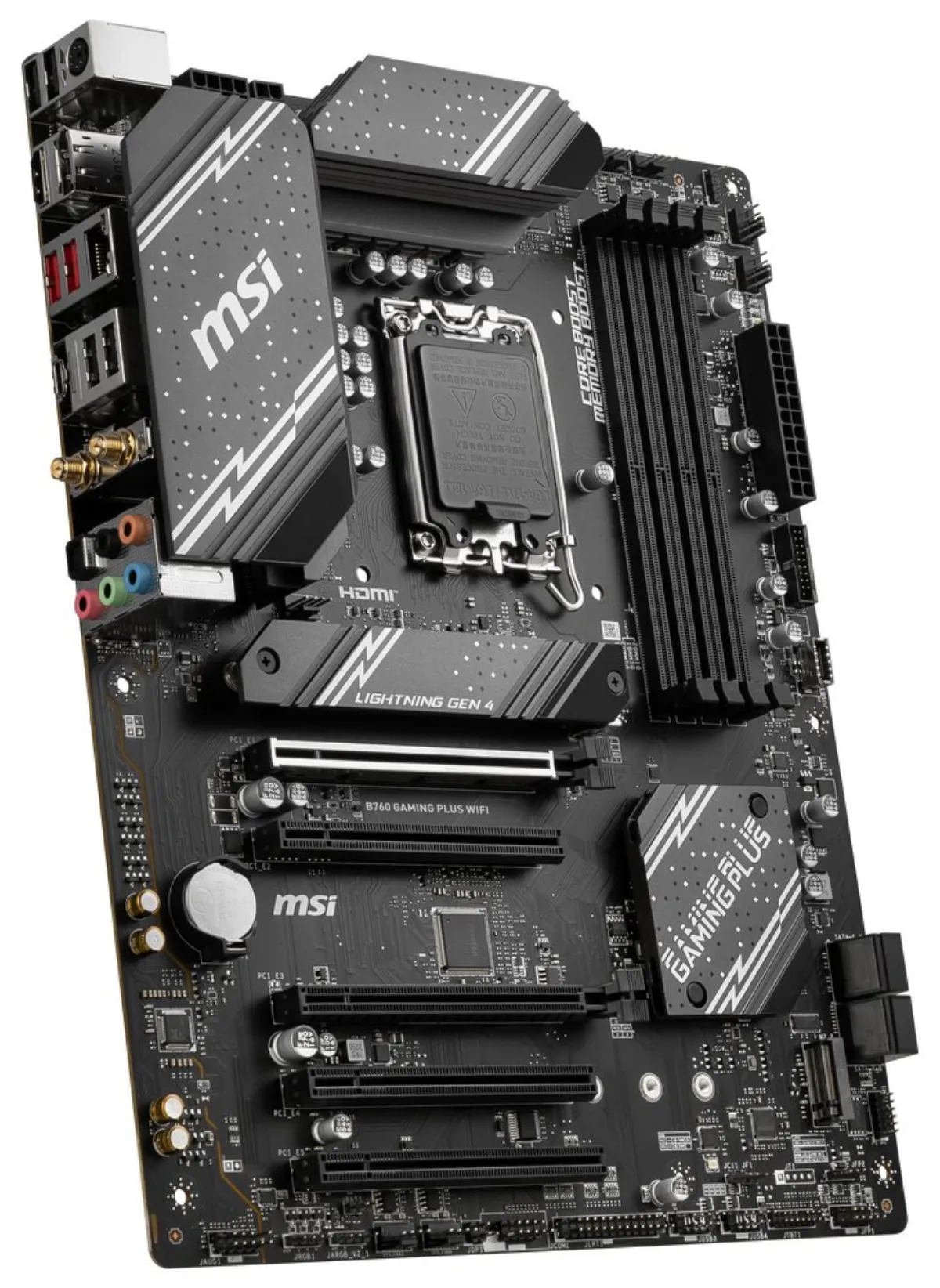

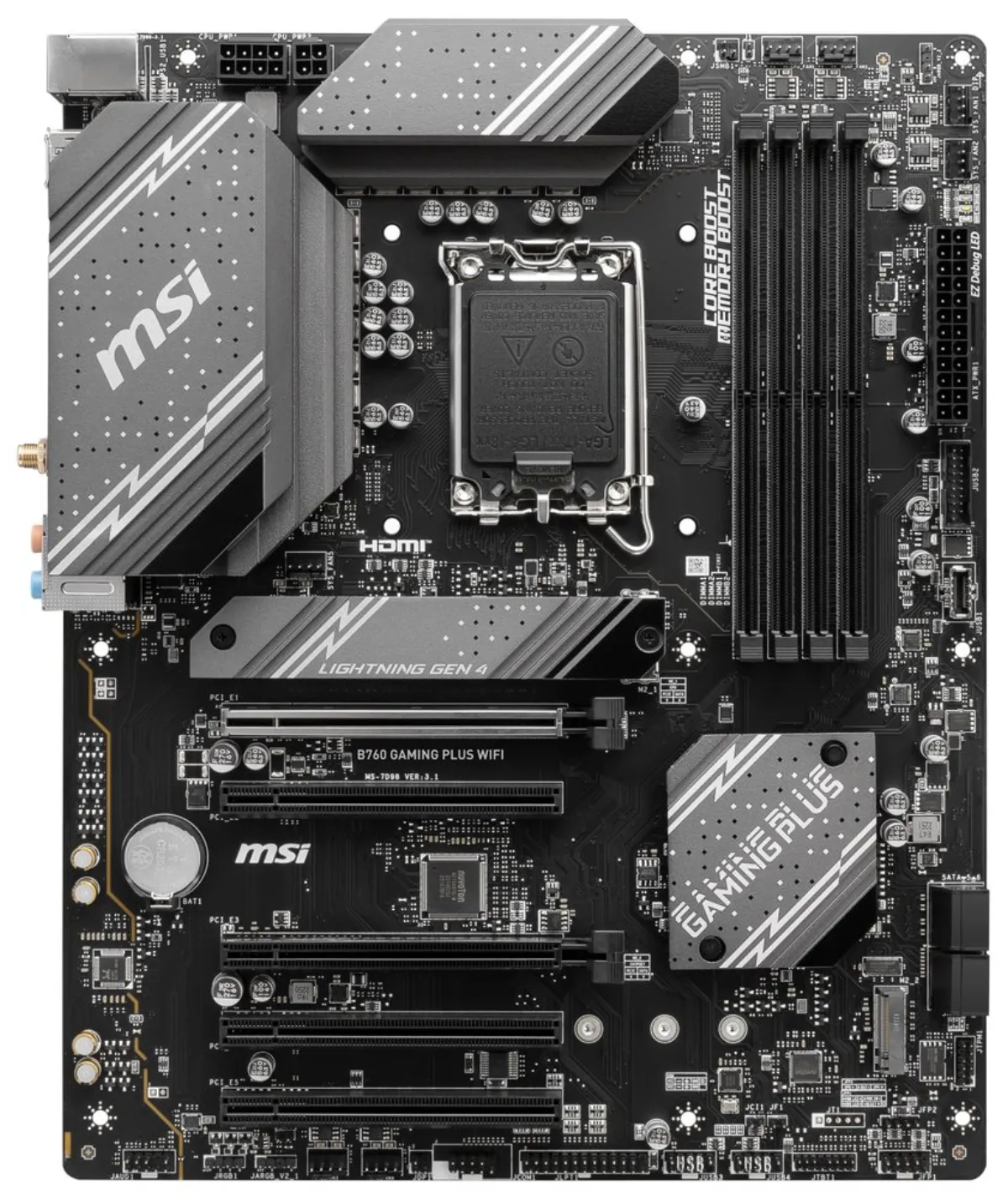

MSI B760 GAMING PLUS WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12., 13. and 14 generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 6800+ (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

• 1x PCIe 4.0 x16 slot
• 1× PCIe 4.0 x16 slot (supports x4 mode)
• 3x PCIe 3.0 x16 slot (supports x1 mode)

Graphic Design

• 1× HDMI 2.1 port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort 1.4 port, supporting a maximum resolution of 4K at 60 Hz

Storage

• 1× M.2 slot, M Key, for units of type 2242/2260/2280/22110 (PCIe 4.0 x4 mode)
• 4x SATA 6 Gb/s port
• 1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1× USB-C 3.2 Gen2 port on the back panel
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)
• 2x USB 3.2 Gen1 (USB 3.0) port available via the internal USB connector
• 1× USB-C 3.2 Gen1 port available via an internal USB connector
• 2x USB 3.2 Gen2 (USB 3.1) port on the back panel

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio
• S/PDIF output support

LAN

• 1× Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal connectors

• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1× 4pin ATX 12V power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling fan connector
• 5× 4pin system fan connector
• 2x front panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1× connector for TPM module (TPM 2.0 support)
• 1x parallel port connector
• 1x serial port connector
• 1× TBT connector (RTD3 support)
• 2× 3pin connector ARGB _V2 LED
• 1× 4pin RGB LED connector
• 1x Clear CMOS jumper
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen1 connector
• 4x EZ Debug LEDs
• 2× M.2 slot, M Key
• 4x SATA 6 Gb/s connector

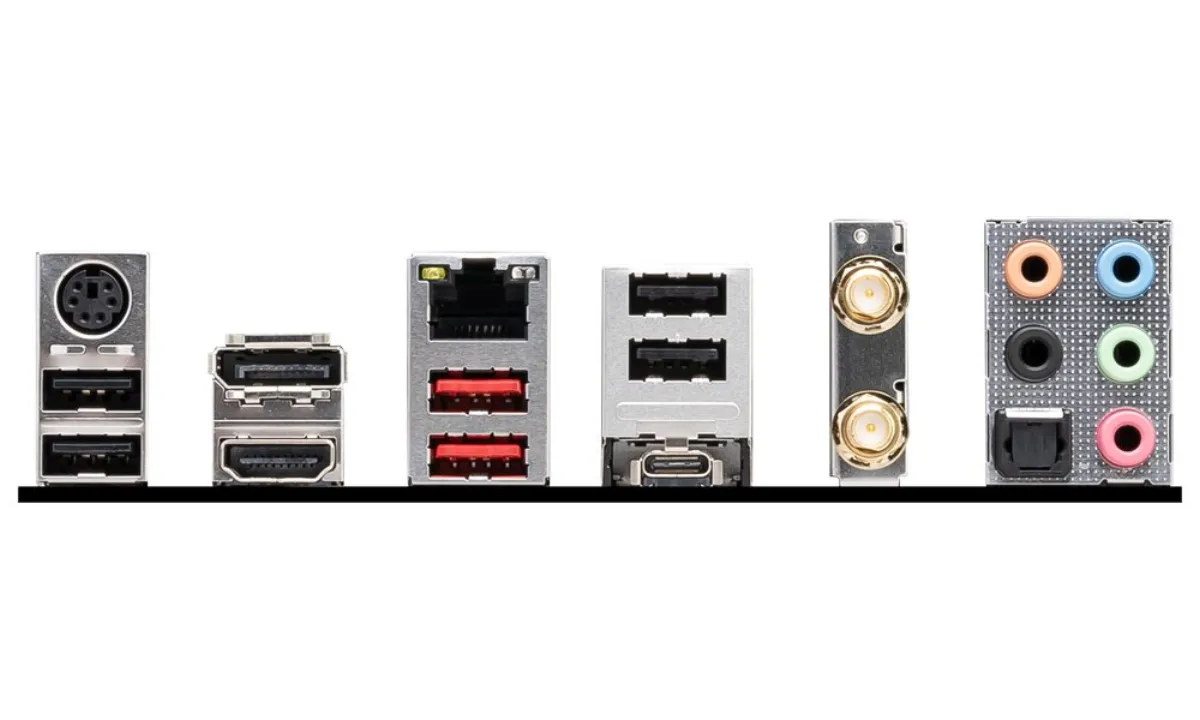

Rear panel ports

• 1× PS/2 keyboard and mouse port
• 1x DisplayPort
• 1x HDMI
• 4x USB 2.0
• 2x USB 3.2 Gen2 (USB 3.1)
• 1× USB-C 3.2 Gen2 (USB 3.1)
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 30.48 x 24.384 cm
• ATX format
