MSI MAG B650 TOMAHAWK WIFI AMD B650 AM5 4x DDR5 3x M.2 HDMI DP WiFi ATX

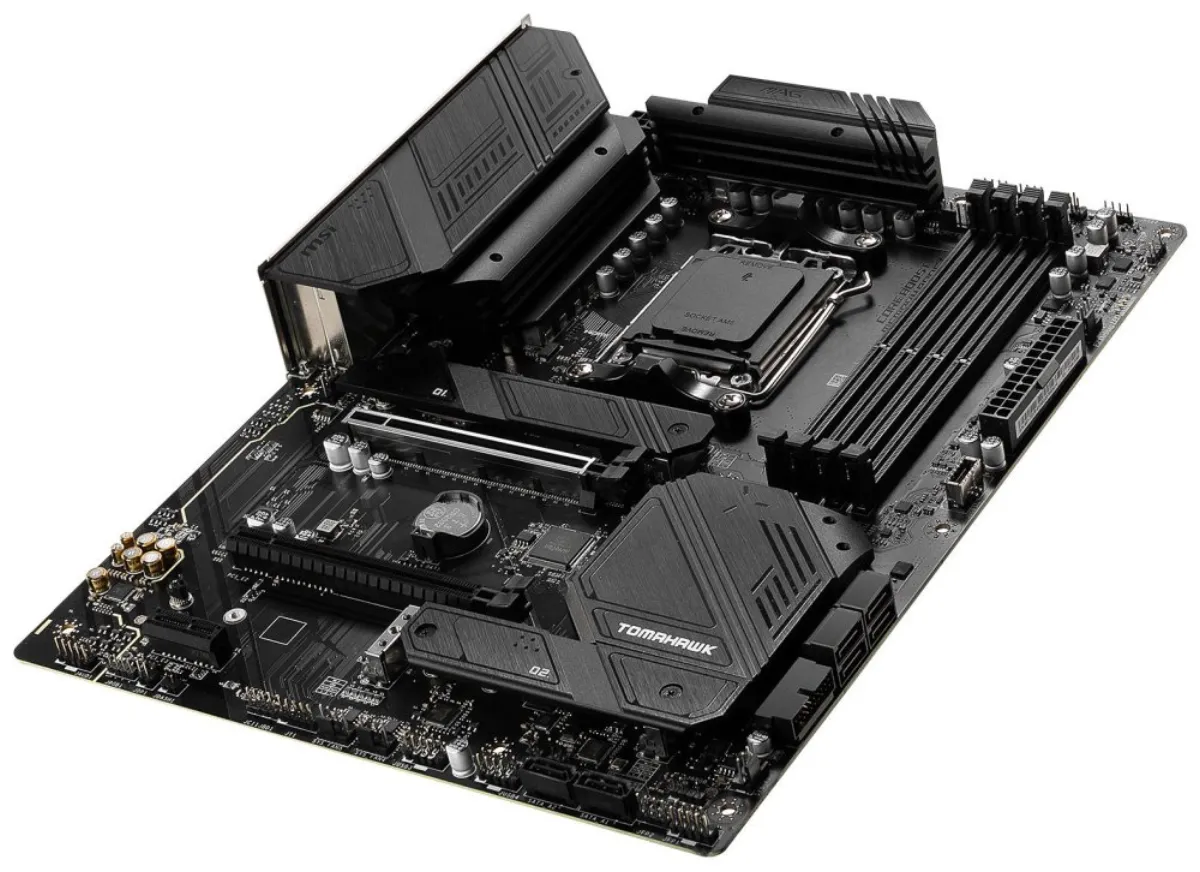

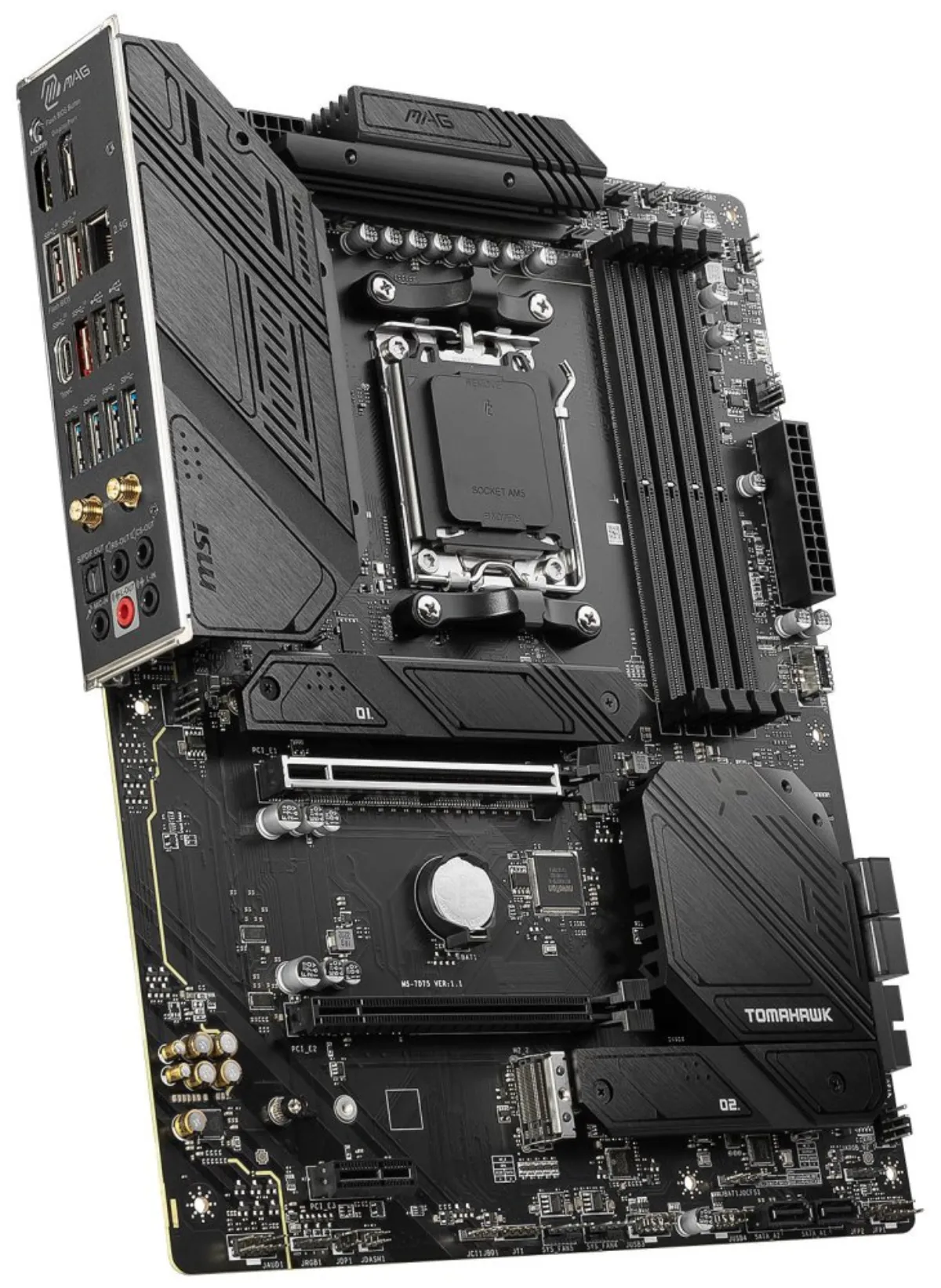

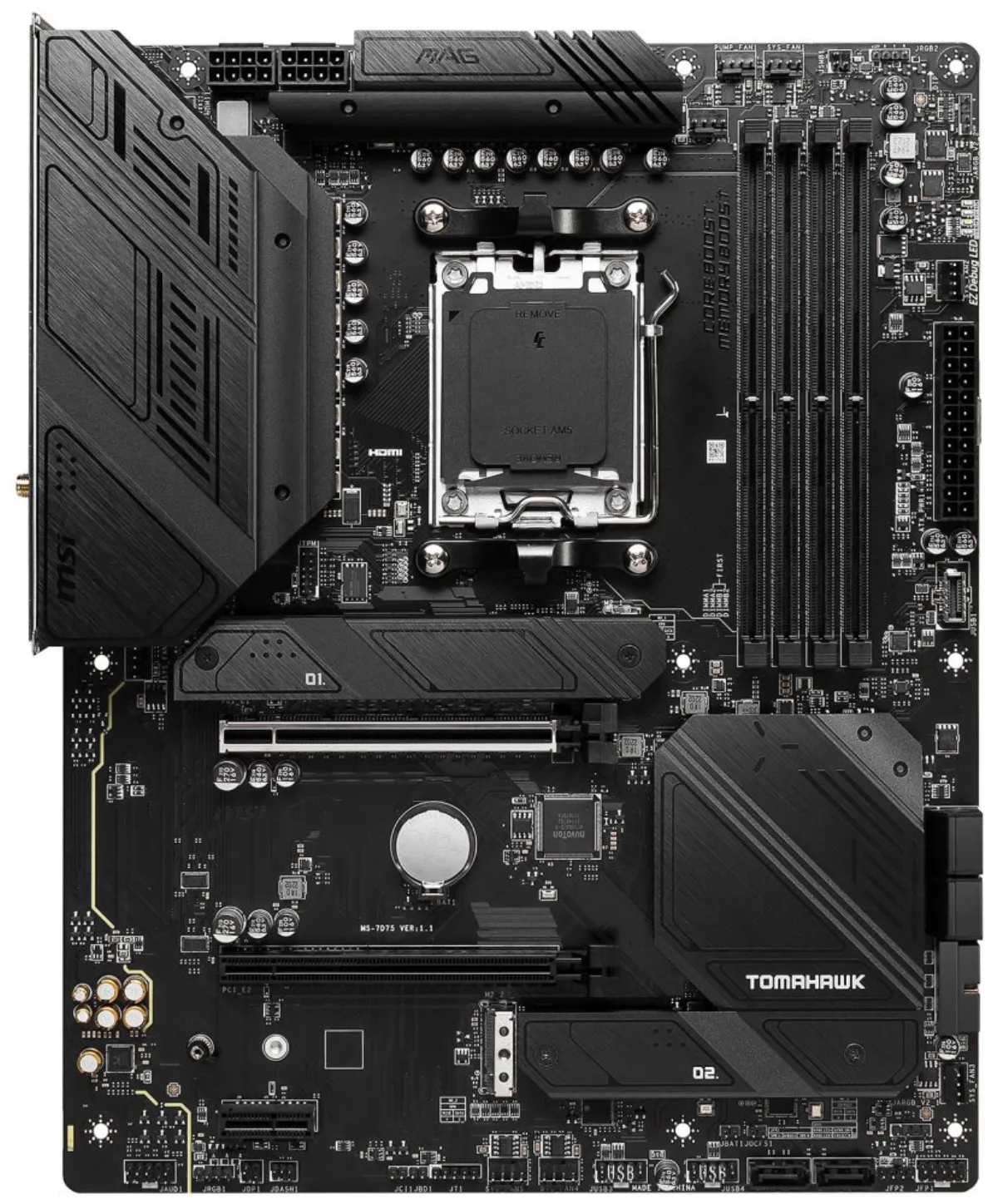

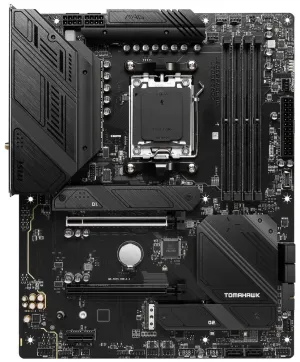

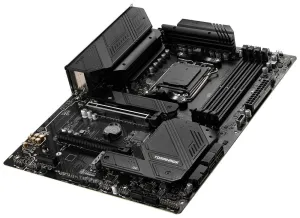

MSI MAG B650 TOMAHAWK WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000 series processors (socket AM5)

Chipset

• AMD B650

Memory

• 4x DDR5 memory slot, support up to 128 GB
• Support DDR5 6600+ (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 5000 (OC)/ 4800 MHz (EATER)
• Dual channel memory architecture
• Non-ECC support, no buffering
• ECC UDIMM support, unbuffered (non-ECC mode)

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1x HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1x DisplayPort port, supporting a maximum resolution of 8K at 60 Hz

Repository

• 2x M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 2x SATA 6Gb/s port (without RAID support)
• 1x M.2 slot, M Key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• RAID 0, RAID 1 and RAID 10 support for SATA drives
• RAID 0 and RAID 1 support for M.2 NVMe drives

USB

• 1x USB 3.2 Gen2x2 type C port on the back panel
• 1x USB 3.2 Gen2 type C port available via an internal USB connector
• 3x USB 3.2 Gen2 type A port on the back panel
• 6x USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 6x USB 2.0 ports (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC4080 Codec
• 7.1 channel High Definition Audio
• S/PDIF output support

HIND

• 1x Realtek RTL8125B 2.5Gigabit LAN controller

WLAN/ Bluetooth

• AMD Wi-Fi 6E RZ616
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Bluetooth 5.2

Internal Connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connector
• 3x M.2 slot, M Key
• 1x USB 3.2 Gen2 type C connector
• 1x USB 3.2 Gen1 (USB 3.0) connector (supports 2x USB 3.2 Gen1 port)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1x 4-pin CPU fan connector
• 1x 4-pin water cooling fan connector
• 6x 4-pin system fan connector
• 1x front panel audio connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x connector for TPM module
• 1x Tuning controller connector
• 2x 4-pin RGB LED connector
• 2x 3-pin connector ARGB _V2 LED
• 4x EZ Debug LEDs

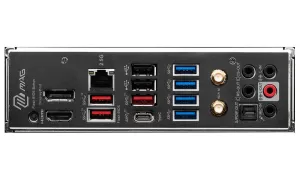

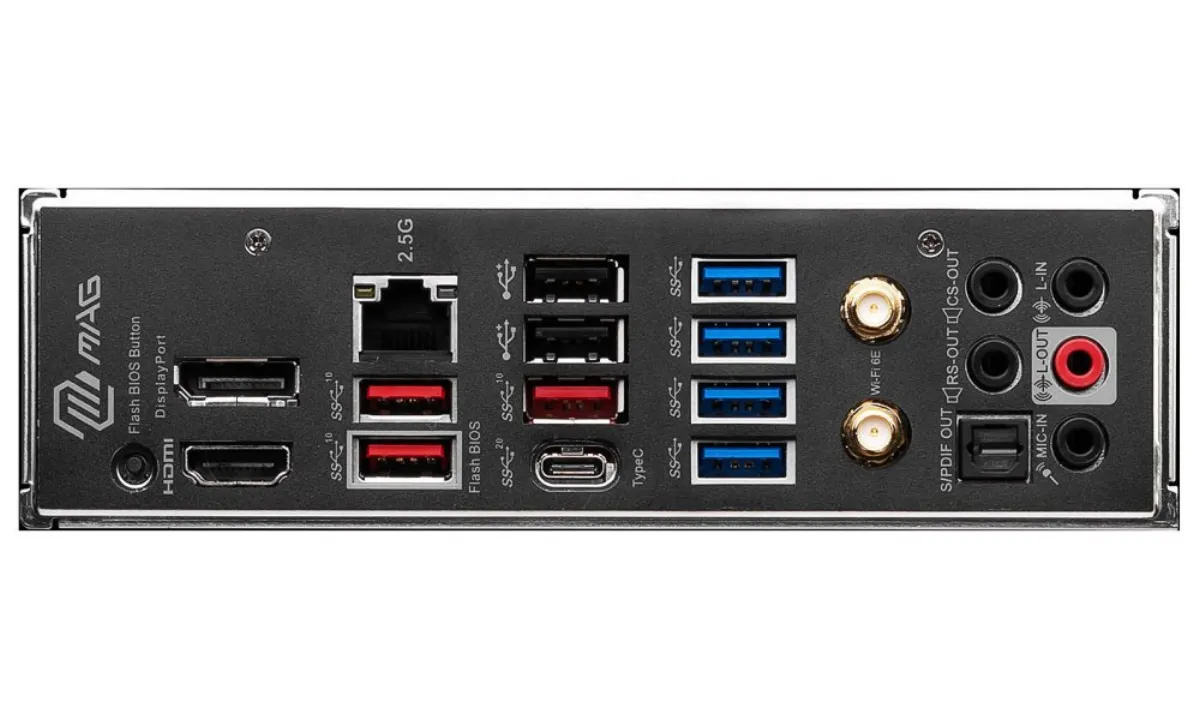

Rear Panel Connectors

• 1 x DisplayPort
• 1x HDMI
• 2x USB 2.0
• 4x USB 3.2 Gen1 (USB 3.0)
• 3x USB 3.2 Gen2 (USB 3.1 Gen2)
• 1x USB 3.2 Gen2x2 Type C
• 1x RJ-45
• 1x Flash BIOS button
• 1x optical S/PDIF output
• 2x Wi-Fi antenna connector
• 5x audio jack

Dimensions

• 30.4 x 24.3 cm
• ATX format
