MSI MAG B760M MORTAR WIFI II Intel B760 LGA1700 4x DDR5 3x M.2 HDMI DP USB-C WiFi mATX

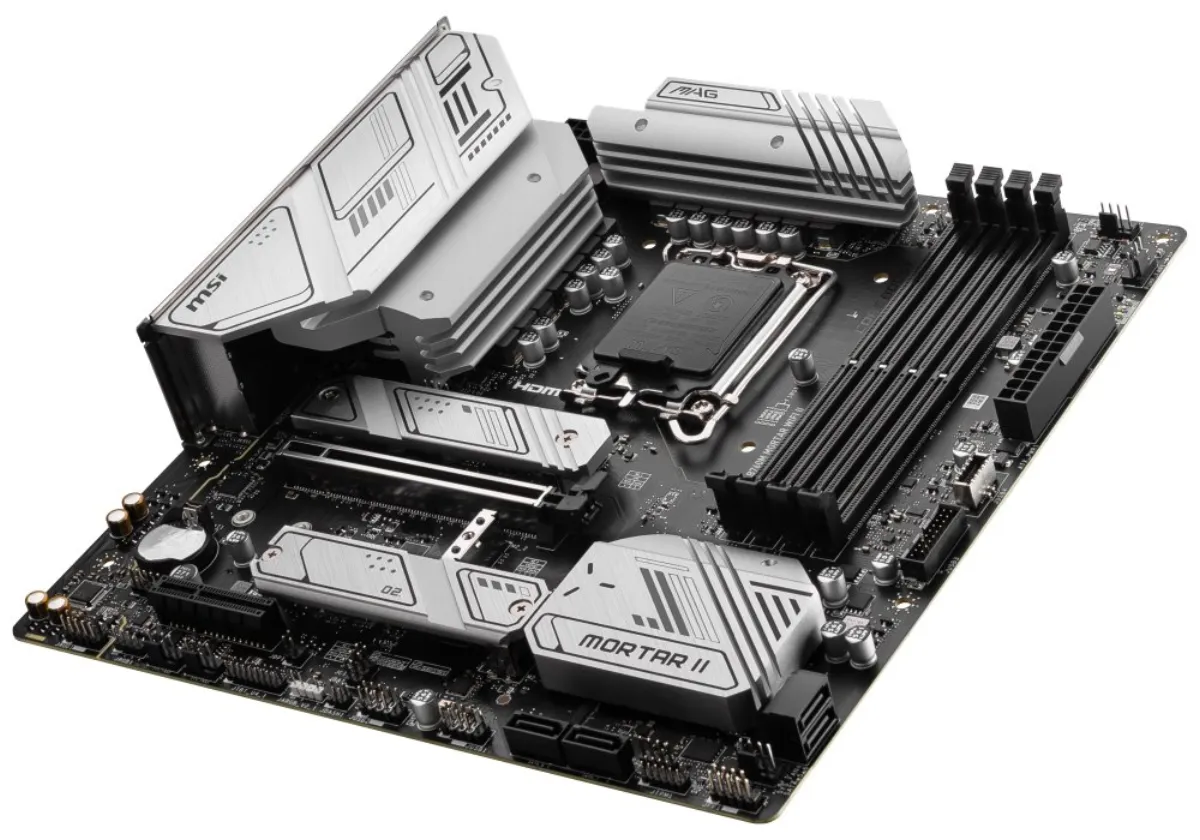

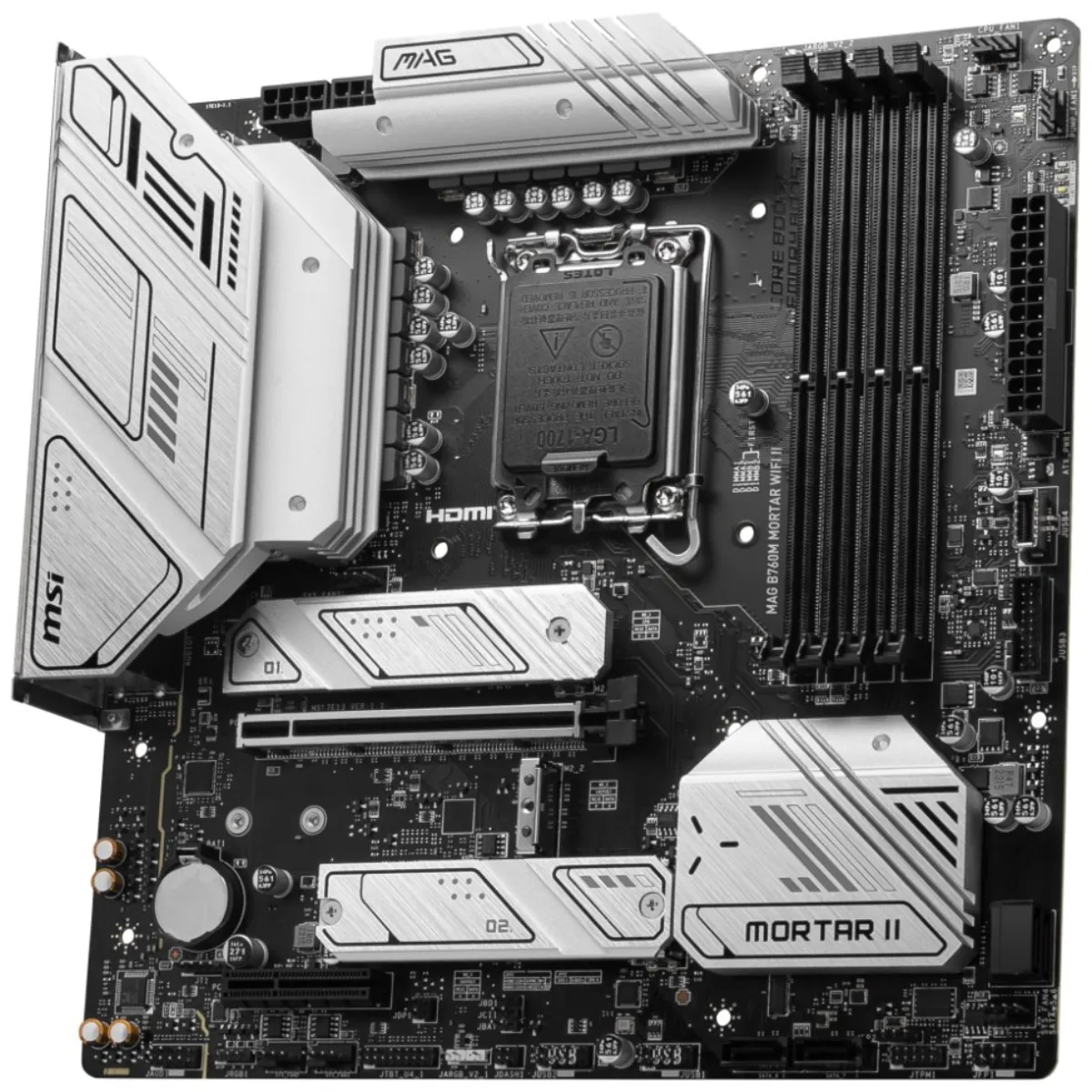

MSI MAG B760M MORTAR WIFI II

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12./13./14. generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) support

Slots

• 1x PCIe 5.0 x16 slot
• 1x PCIe 3.0 x4 slot

Graphic Design

• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort port, supporting a maximum resolution of 4K at 60 Hz

Storage

• 1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• 1× M.2 slot, M Key, for 2280 type units (SATA and PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2280/2260 type units (PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)
• 2× USB 3.2 Gen1 (USB 3.0) port available via internal USB connectors
• 3x USB 3.2 Gen2 port on the back panel
• 1× USB-C 3.2 Gen2 port available via an internal USB connector
• 1× USB-C 3.2 Gen2×2 port on the back panel

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek 2.5Gigabit LAN controller

WLAN/Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

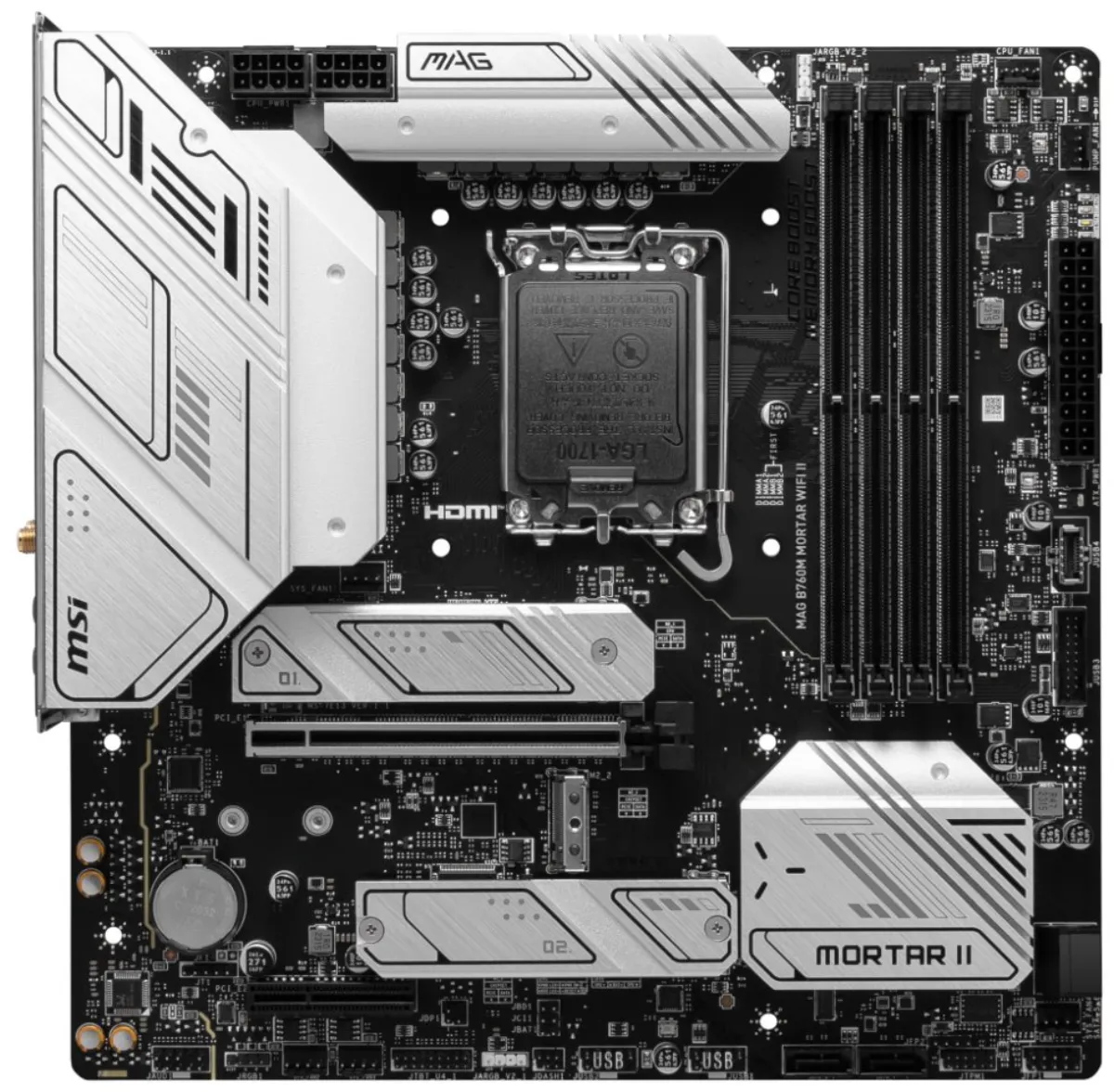

Internal connectors

• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling pump fan connector
• 4× 4pin system fan connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1x controller tuning connector
• 2× 3pin connector A-RAINBOW V2 (ARGB Gen2) LED
• 1× 4pin RGB LED connector
• 1× TPM connector (supports TPM 2.0)
• 3x M.2 slot, M Key
• 4x SATA 6 Gb/s connector
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2 (USB 3.1) connector
• 1x USB4 card connector
• 1x Clear CMOS jumper
• 4x EZ debug LEDs

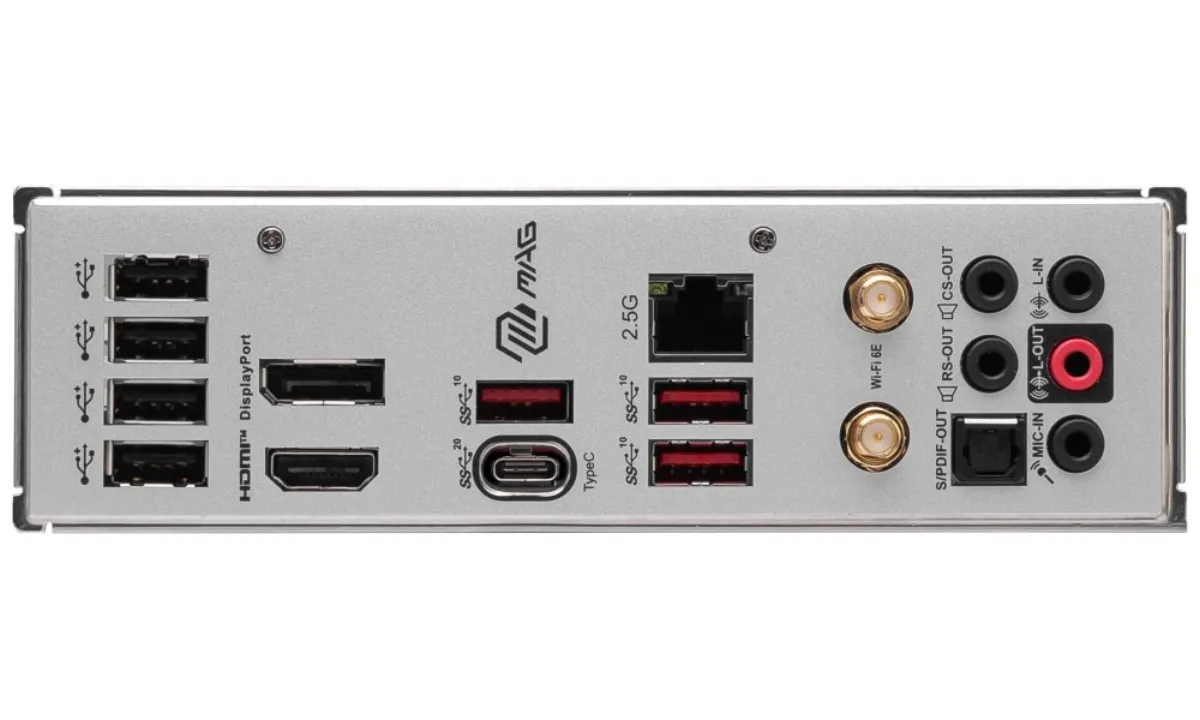

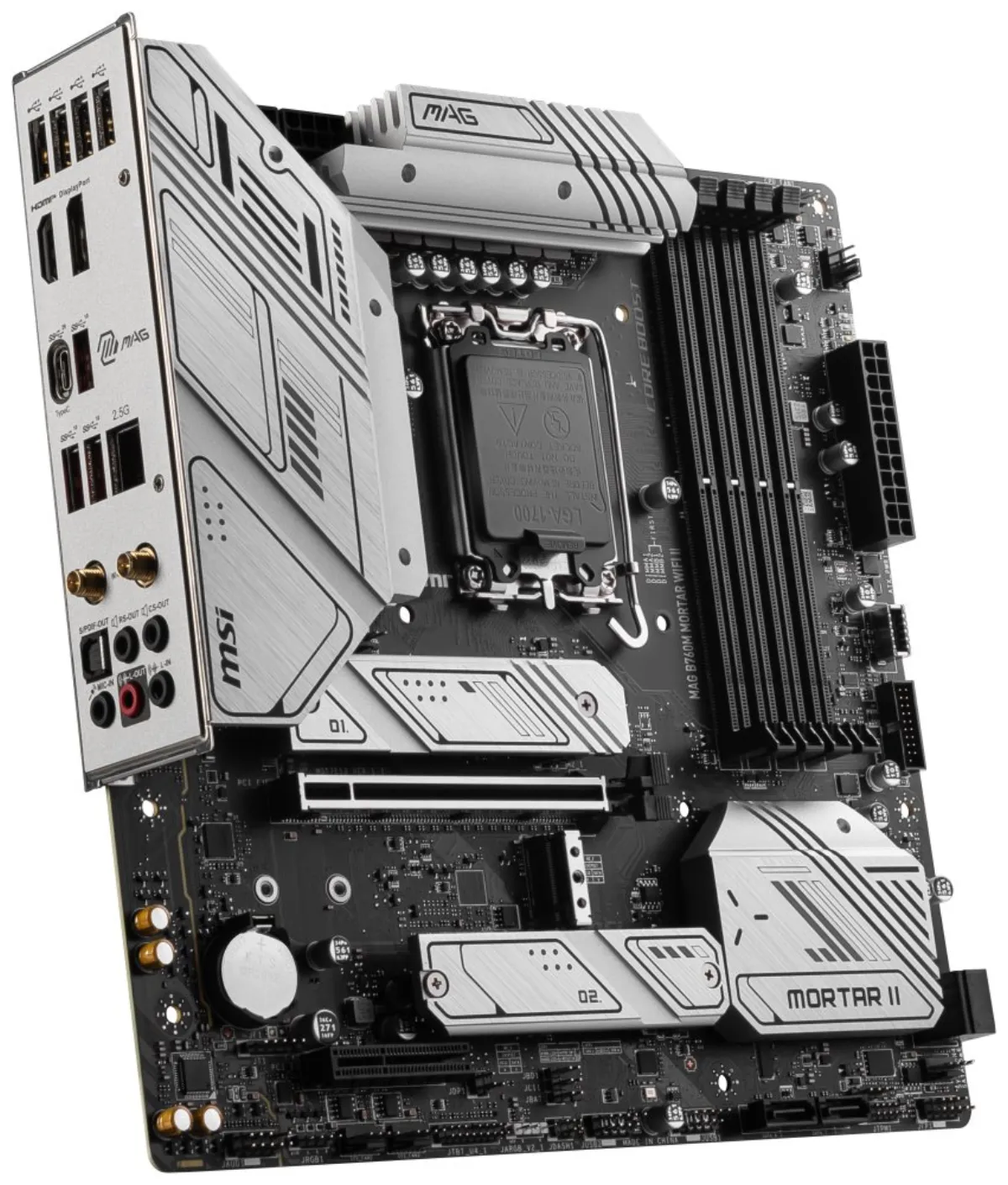

Rear panel ports

• 1x DisplayPort
• 1x HDMI
• 1x RJ-45
• 4x USB 2.0
• 3x USB 3.2 Gen2 (USB 3.1 Gen2)
• 1× USB-C 3.2 Gen2×2
• 2x Wi-Fi antenna connector
• 1x optical S/PDIF port
• 5x audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
