MSI MAG Z790 TOMAHAWK MAX WIFI Intel Z790 LGA1700 4x DDR5 4x M.2 HDMI DP USB-C WiFi ATX

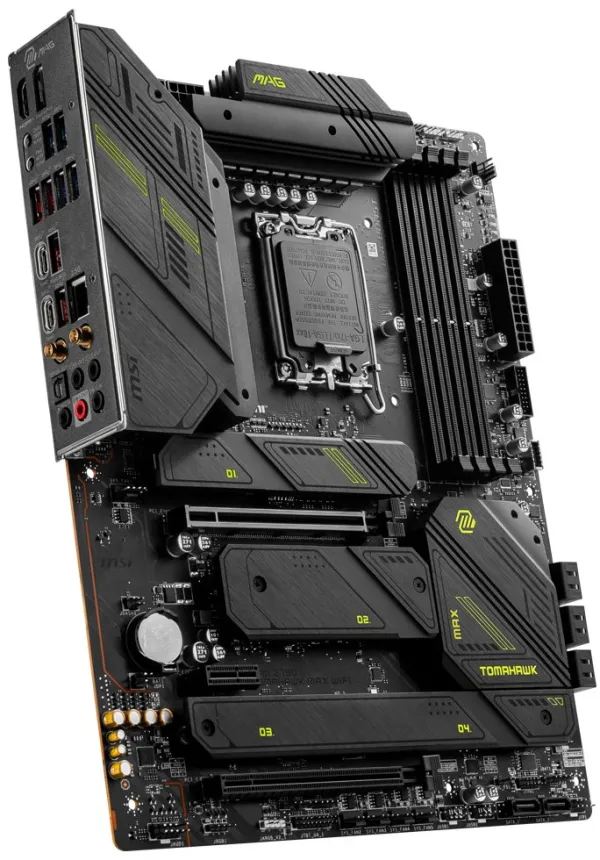

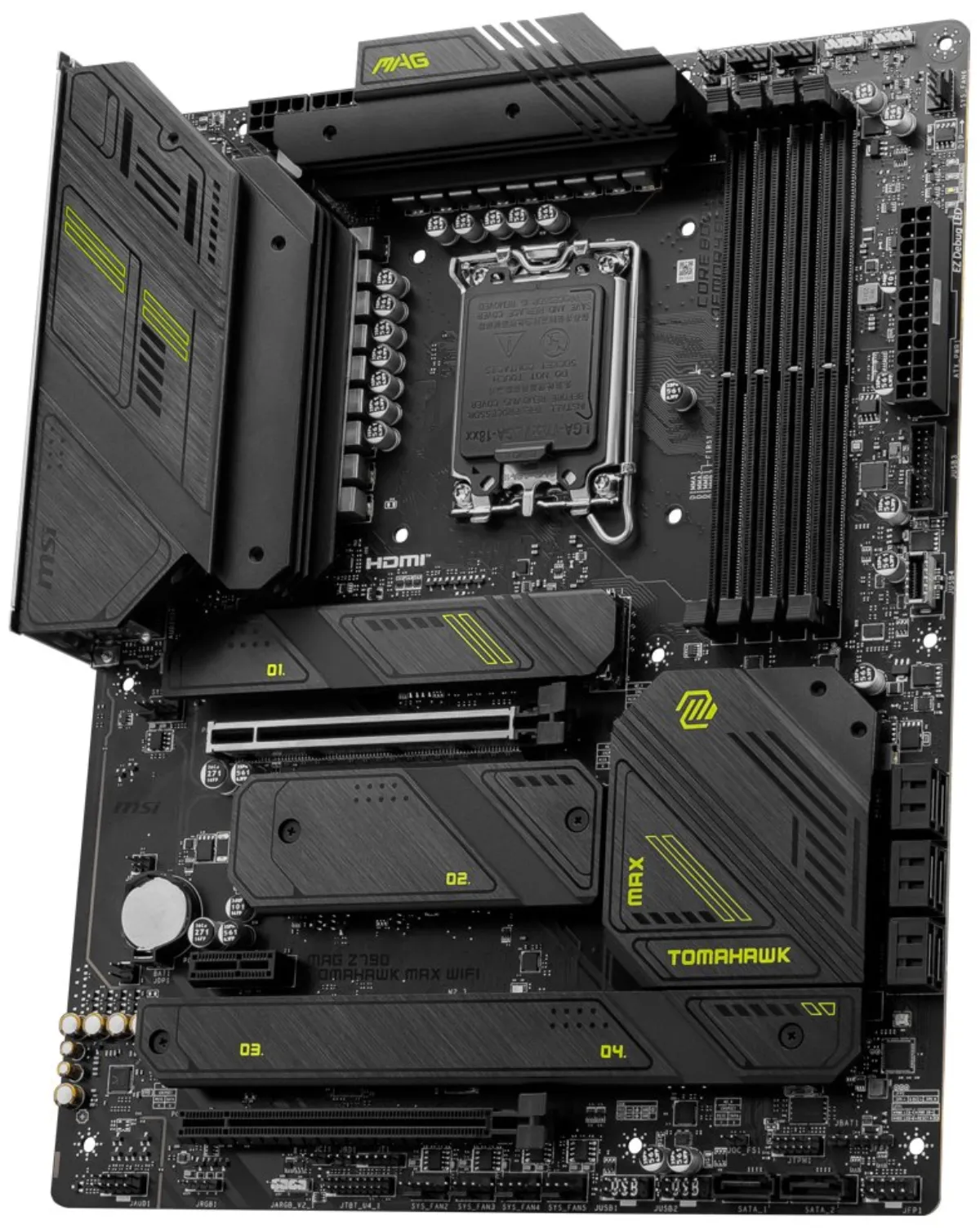

MSI MAG Z790 TOMAHAWK MAX WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12., 13. and 14 generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel Z790

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 7800+ (OC)/ 7600 (OC)/ 7400 (OC)/ 7200 (OC)/ 7000 (OC)/ 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

• 1x PCIe 5.0 x16 slot
• 1× PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 1× HDMI 2.1 port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort 1.4 port, supporting max. 8K resolution at 60 Hz

Storage

• 1× M.2 slot, M Key, for units of type 2260/2280/22110 (PCIe 5.0 x4 mode)
• 8x SATA 6 Gb/s port
• 1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 1× M.2 slot, M key, for 2260/2280 type units (PCIe 4.0 x4 mode)
• 1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA and M.2 NVMe drives

USB

• 1× USB-C 3.2 Gen2x2 port on the back panel
• 2x USB-C 3.2 Gen2 port (1 port on the back panel, 1 port available via the internal USB connector)
• 4x USB 3.2 Gen2 (USB 3.1) port on the back panel
• 6× USB 3.2 Gen1 (USB 3.0) port (4 ports on the back panel, 2 ports available via the internal USB connector)
• 4x USB 2.0 port available via internal USB connectors

Audio

• Realtek ALC4080 Codec
• 7.1-channel USB High Performance Audio
• S/PDIF output support

LAN

• 1× Intel 2.5Gigabit LAN controller

WLAN/Bluetooth

• Intel Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/be
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 5.8 Gbps
• Bluetooth 5.4

Internal connectors

• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling fan connector
• 6× 4pin system fan connector
• 2x system panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1× TBT connector (supports RTD3)
• 1x Tuning controller connector
• 3x 3pin connector ARGB _V2 LED
• 1× 4pin RGB LED connector
• 1× connector for TPM module (TPM 2.0 support)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen2 connector
• 1x USB4 card connector (supports RTD3)
• 4x EZ Debug LEDs

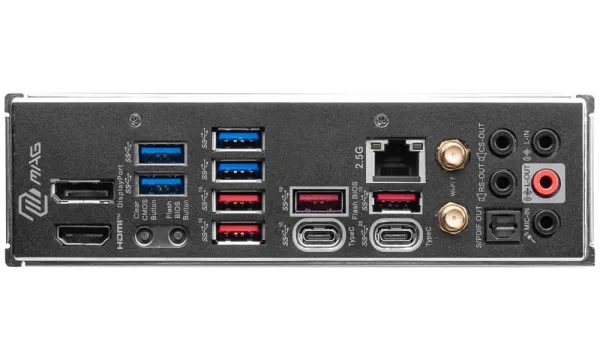

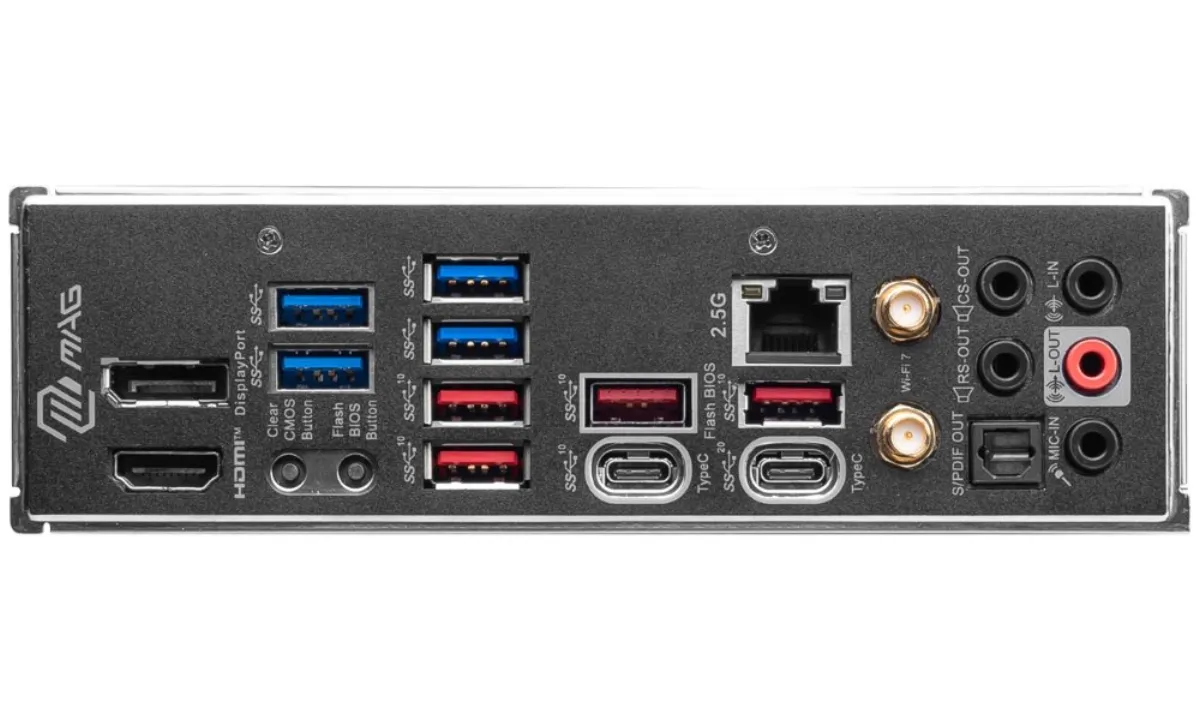

Rear panel ports

• 1x DisplayPort
• 1x HDMI
• 1x Clear CMOS button
• 1× Flash BIOS button
• 4x USB 3.2 Gen1 (USB 3.0)
• 4x USB 3.2 Gen2 (USB 3.1)
• 1× USB-C 3.2 Gen2
• 1× USB-C 3.2 Gen2x2
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 5x audio jack
• 1x optical S/PDIF output

Dimensions

• 30.48 x 24.384 cm
• ATX format
