MSI PRO B850-P WIFI AMD B850 AM5 4x DDR5 M.2 WiFi ATX

MSI PRO B850-P WIFI

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without using the corresponding processor, these outputs will be non-functional.

CPU

• Support for AMD Ryzen 7000, 8000 and 9000 series processors (AM5 socket)

Chipset

• AMD B850

Memory

• 4× DDR5 memory slot, support up to 256 GB
• Support DDR5 8200-5600 (OC) MT/s / 5600-4800 (JEDEC) MT/s
• 1DPC 1R max. speed up to 8200+ MT/s
• 1DPC 2R max. speed up to 6400+ MT/s
• 2DPC 1R max. speed up to 6400+ MT/s
• 2DPC 2R max. speed up to 4800+ MT/s
• CUDIMM support in Clock Driver bypass mode
• Dual-channel memory architecture
• Non-ECC support, unbuffered
• AMD EXPO support

Slots

• 1× PCIe 5.0 x16 slot
• Ryzen 9000/ 7000 series supports PCIe 5.0 x16
• Ryzen 8700/ 8600/ 8400 series supports PCIe 4.0 x8
• Ryzen 8500/ 8300 series supports PCIe 4.0 x4
• 2× PCIe 3.0 x16 slot (supports x1 mode)
• 1× PCIe 4.0 x16 slot (supports x4 mode)

Graphics

• 1× HDMI port, supporting max. 4K resolution at 60 Hz

Storage

• 1× M.2 _1 slot *, M Key, for type 2280/2260 drives (PCIe 5.0 x4 mode)
• 1× M.2 _2 slot, M Key, for type 22110/2280 drives (PCIe 4.0 x4 mode)
• 1× M.2 _3 slot, M Key, for type 2280/2260 drives (PCIe 4.0 x2 mode)
• 4× SATA 6 Gb/s port
• RAID 0 and RAID 1 support for M.2 NVMe drives
• *M2 _1 slot
• Ryzen 9000/ 7000 series supports PCIe 5.0 x4
• Ryzen 8000 series supports PCIe 4.0 x4 -**M2 _2 slot
• Ryzen 9000/ 7000 series supports PCIe 4.0 x4
• Ryzen 8700/ 8600/ 8400 series supports PCIe 3.0 x4
• Ryzen 8500/ 8300 series supports PCIe 3.0 x2

USB

• 8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)
• 5× USB 3.0 (1 port on the back panel, 4 ports available via internal USB connectors)
• 1× USB-C 3.0 available via internal USB connector
• 2× USB-C 3.1 port on the back panel
• 1× USB 3.1 port on the back panel

Audio

• Realtek ALC897 Codec
• 7.1-channel High Definition Audio

LAN

• 1× Realtek 8126VB 5Gigabit LAN Controller

WLAN/ Bluetooth

• AMD Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/be
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• MU-MIMO TX/RX support
• Bluetooth 5.4

Internal Connectors

• 1× 24pin ATX main power connector
• 2× 8pin ATX 12V power connector
• 1× 8pin PCIe power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling fan connector
• 4× 4pin system fan connector
• 2× front panel connector
• 1× intrusion detection connector
• 1× front panel audio connector
• 1× serial port connector
• 1× Tuning controller connector
• 3× 3pin A-RAINBOW V2 LED (ARGB Gen2) connector
• 1× 4pin RGB LED connector
• 1× connector for TPM module (supports TPM 2.0)
• 4× internal USB 2.0 connector
• 4× internal USB 3.0 connector
• 1× internal USB-C 3.0 connector
• 4× SATA 6 Gb/s connector
• 3× M.2 slot, M Key

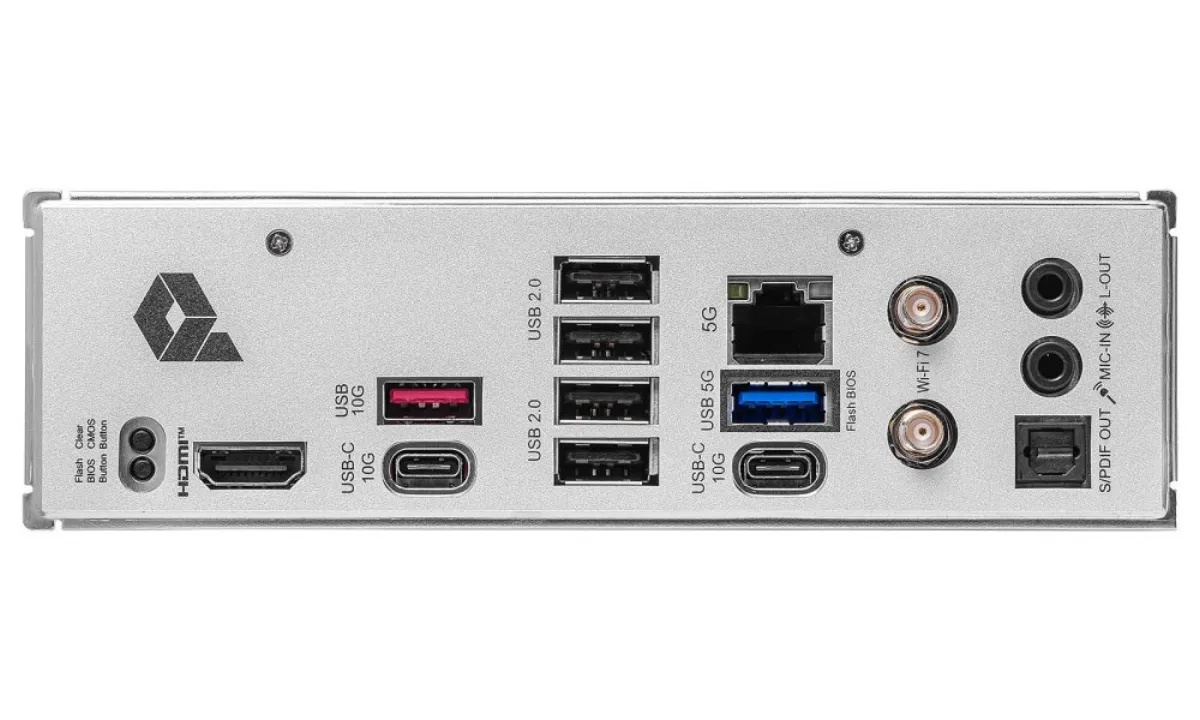

Connectors on the rear panel

• 1× Flash BIOS button
• 1× Clear CMOS button
• 1× HDMI
• 1× RJ-45
• 1× USB 3.2 Gen2 (USB 3.1)
• 2× USB-C 3.1
• 1× USB 3.2 Gen1 (USB 3.0)
• 4× USB 2.0
• 2× Wi-Fi antenna connector
• 2× audio jack
• 1× optical S/PDIF out

Dimensions

• 304.8 × 243.84 mm
• ATX format
