Planet BSP-115HP-5A Hybrid PoE solar switch 5x 1Gb 1x SFP 1x PoE++ 802.3bt 2x 802.3at 2x at passive -20~65°C

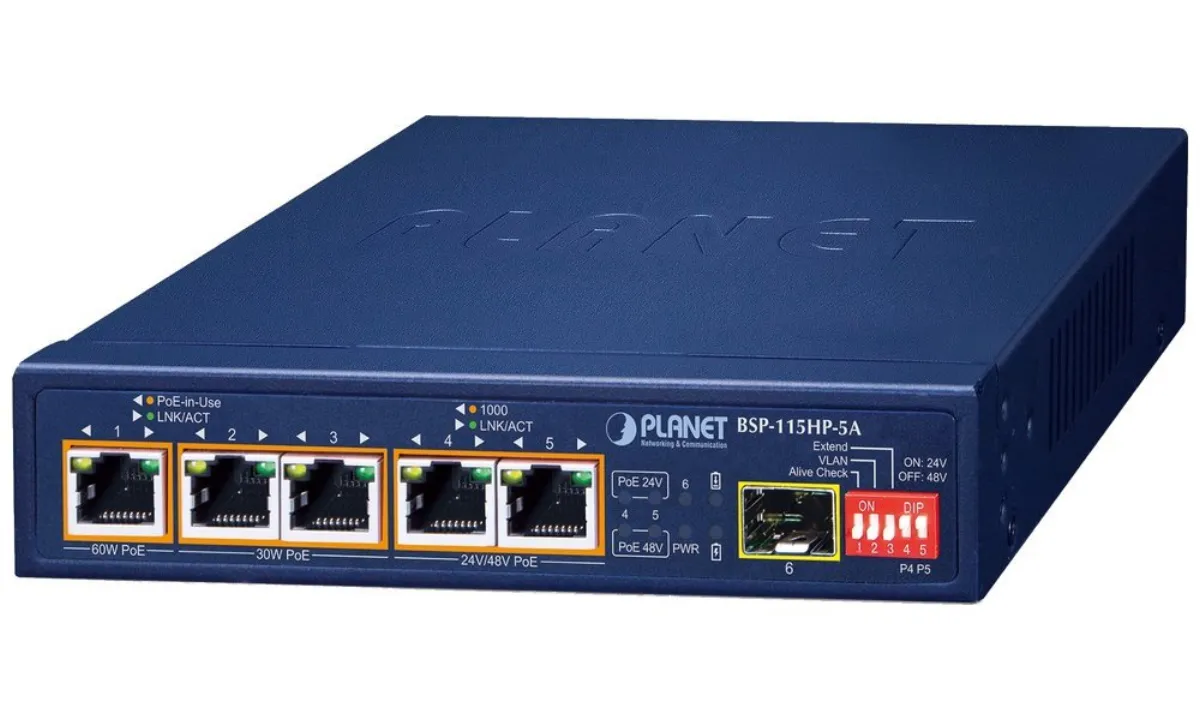

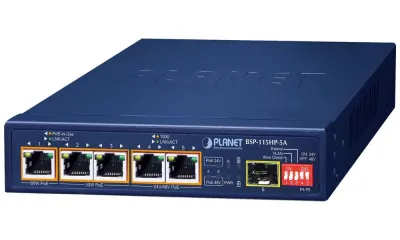

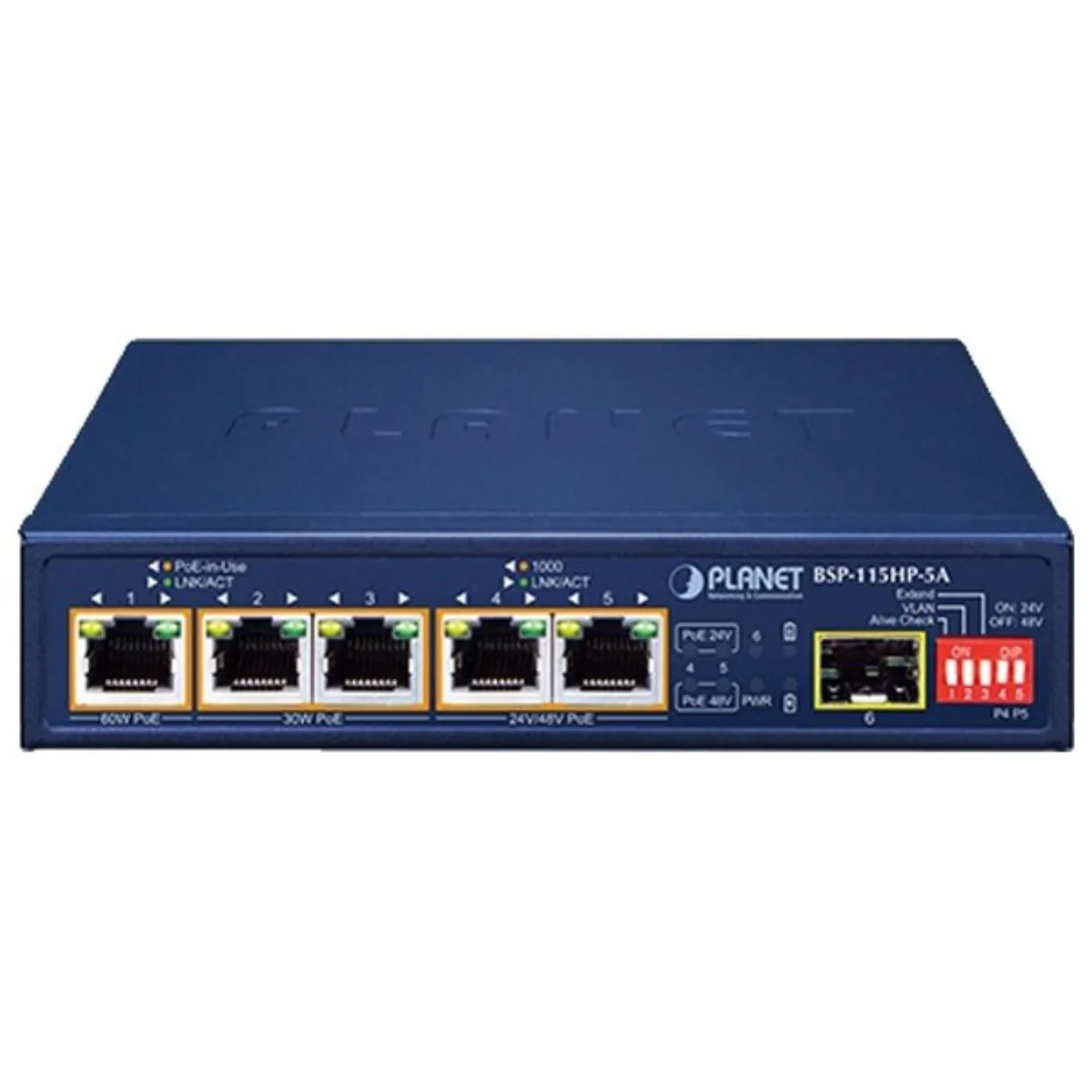

PLANET BSP-115HP-5A

Solar powered PoE switch with integrated MPPT controller offers 5x RJ-45 10/100/1000 Base-T with PoE power supply (1x PoE++ 802.3bt, 2x 802.3at, 2x 802.3 at or passive 24 V), 65 W PoE budget, DIP switch for switching modes and 1× SFP 100/1000 Base-X.

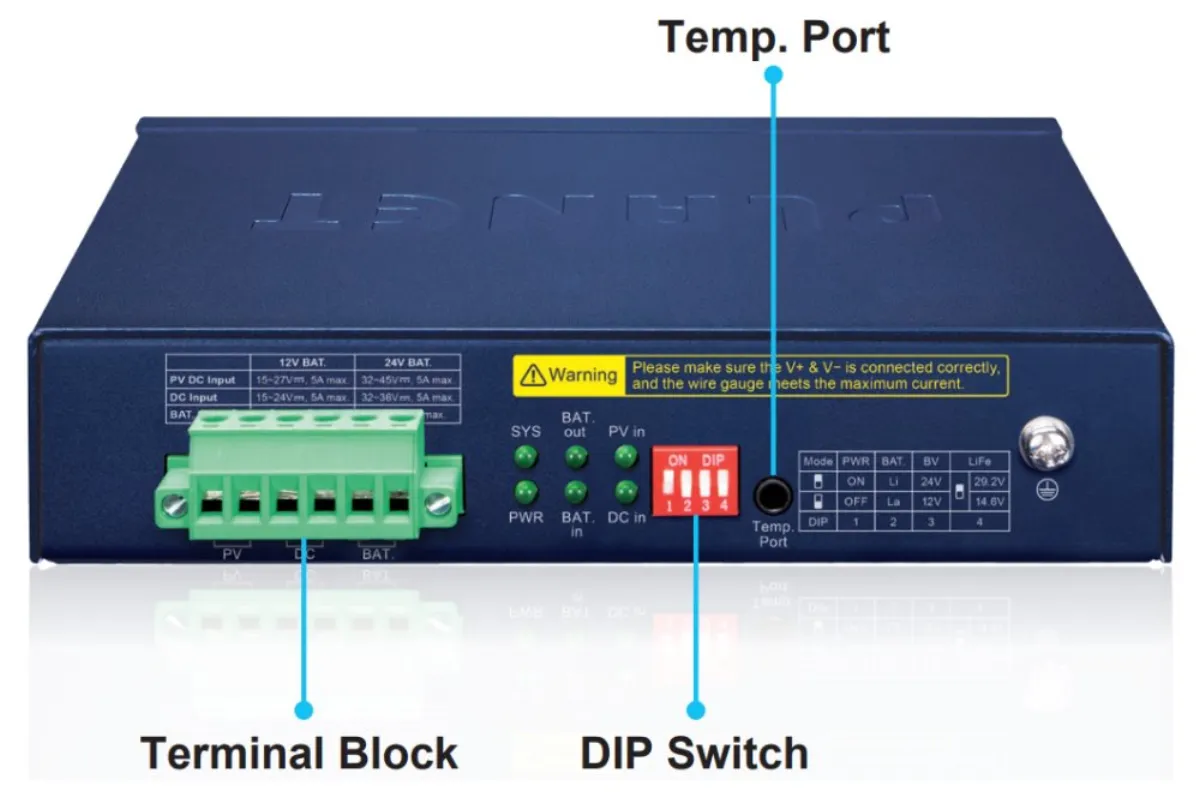

1/2 pins for PV (photovoltaic) panels + some types of generators (water or wind), pins 3/4 for DC power, pins 5/6 for battery charging/discharging. There is a DIP switch on the front to configure PoE and VLAN. The DIP switch on the back is then used to set battery type and voltage. ESD protection up to 4 kV (contact), up to 8 kV (air), temperature sensor (detection -20 to +100 °C), protection IP30 (metal housing), fanless, wall mounting or on the table, operating temperature -20 to +65 °C.

A solar PoE switch that supports the simultaneous use of solar (PV), DC and battery power. The energy obtained from the solar panel is stored in a battery with a voltage of 12 or 24 V. Then, when solar or DC power is not available, the battery is used to power the switch and connected devices.

This solution provides the possibility to power connected active devices, such as IP cameras, switches, converters or Wi-Fi units, all the time and without dependence on the power network. The application is therefore suitable for ensuring supervision in the environment of parks, forests, cottages or large agricultural and industrial areas. Thanks to the uninterrupted power supply, it can also be used as a means of building telecommunications points for local Internet providers.

Management of accumulators/batteries

• Supports lithium (Lithium, Li-Fe) and lead-acid (Lead-acid, Pb) batteries, optional
• Input power (PV IN): min. voltage 15-27 V DC (12 V battery), 32-45 V DC (24 V battery), max. current 5 A, power up to 135 W (for 12 V battery, 225 W for 24 V battery), support DC power supply 15-24 V (12V battery) or 32-36V (24V battery)
• MPPT (Maximum Power Point Tracking) charge controller
• Reverse current protection (prevents the reverse flow of electric current into the photovoltaic panel)
• Overcurrent protection and reverse polarity protection (for battery and charging electrodes)

Physical properties

Ports

• 1× RJ-45 10/100/1000 Base-T with PoE++
• 2x RJ-45 10/100/1000 Base-T with PoE+
• 2x RJ-45 10/100/1000 Base-T with PoE+ or 24 V (passive)
• 1× SFP Base-X

Memory

• 2K MAC addresses
• 2.5 Mb buffer

Throughput

• 12 Gbps bus
• operational 8.92 Mpps (64B)

Execution

• desktop
• on the wall

Power supply (switches)

• via photovoltaic panels (DC 15-45 V)
• from the battery (DC 12/24 V) or using the DC power supply (pin 3/4) 15-24 V (12 V battery) or 32-36 V (24 V battery)
• total power consumption up to 75.6 W (full load with PoE power supply)

Power requirements

• Solar panel: 15-27 V DC (12V battery), 32-45 V DC (24V battery)
• Batteries: 12/24 V, lithium (Lithium, Li-Fe) and lead batteries (Lead-acid, Pb)
• DC power supply: 15-24 V (12V battery) or 32-36 V (24V battery) Output power supply: 1× PoE++ RJ-45, 2× PoE+ RJ-45, 2× passive PoE or PoE+ RJ-45, 6-pin terminal block (1× input for PV panel, 1× power input/output for 12/ 24V battery, 1x input for DC power supply)

Protection

• ESD up to 4 kV contact
• 8 kV by air (ethernet)

Operating temperature: -20 to +65 °C

Dimensions: 159 x 142 x 34 mm

Weight: 690 g

PoE function

Total power output

• up to 65 W
• 802.3af/at/bt
• 802.3af/at
• passive PoE (24 V)

Number of injectors

• 1× to 60 W
• 2× up to 35 W
• 2x up to 25 W (at DC 24 V
• passive PoE) or up to 35 W (at DC 48 V
• active PoE)

Power type: End-span

Advanced features

• protection (circuit) against interference between ports
• automatic detection of powered equipment
• detection of the activity of powered devices, if there is no response, it can be restarted by disconnecting the power supply (PD alive check)
• Extended mode 10 Mb/s with a range of up to 250 m

Switch has a manual mode switch

• Alive check - Monitors the status of connected devices in real time, once the device becomes unresponsive, restore power to bring it back into operation.
• VLAN - Ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be avoided.
• Extend - Switch powers devices up to 250 m with a reduced throughput of 10 Mbps per port.
• PoE 24/48 V - Voltage switching on ports 4 and 5. It is about switching between 24V passive PoE and 48V active (PoE+ 802.3at).
