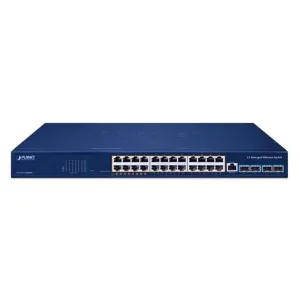

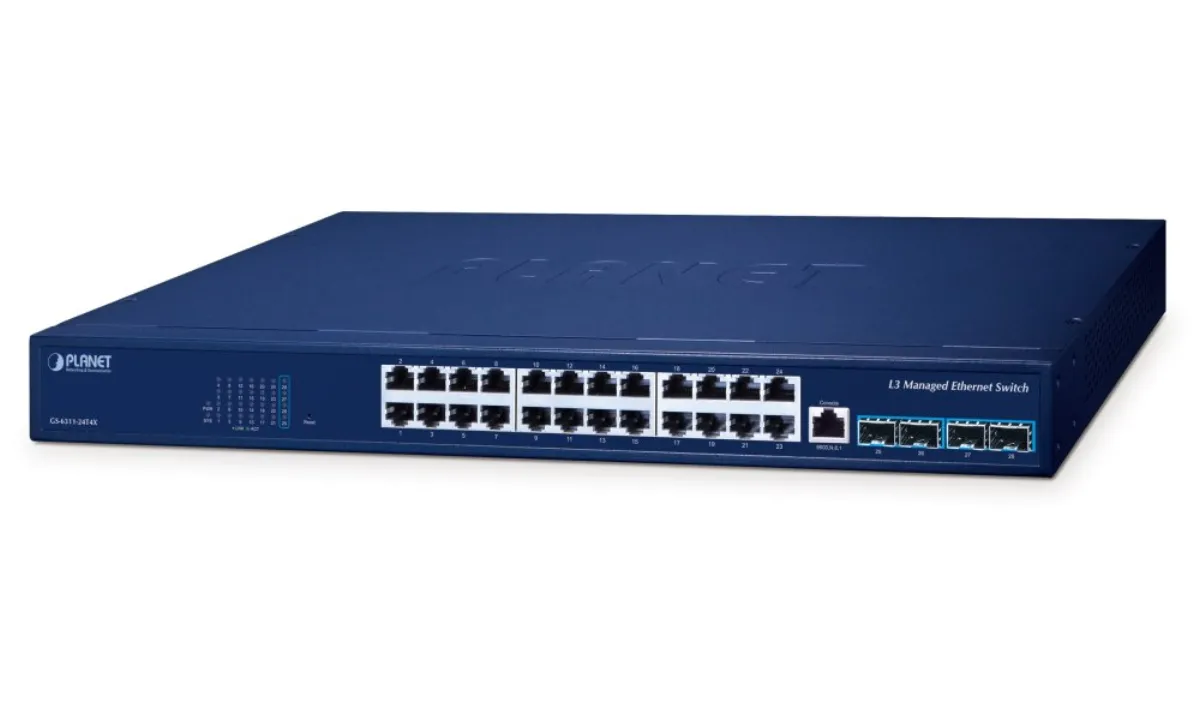

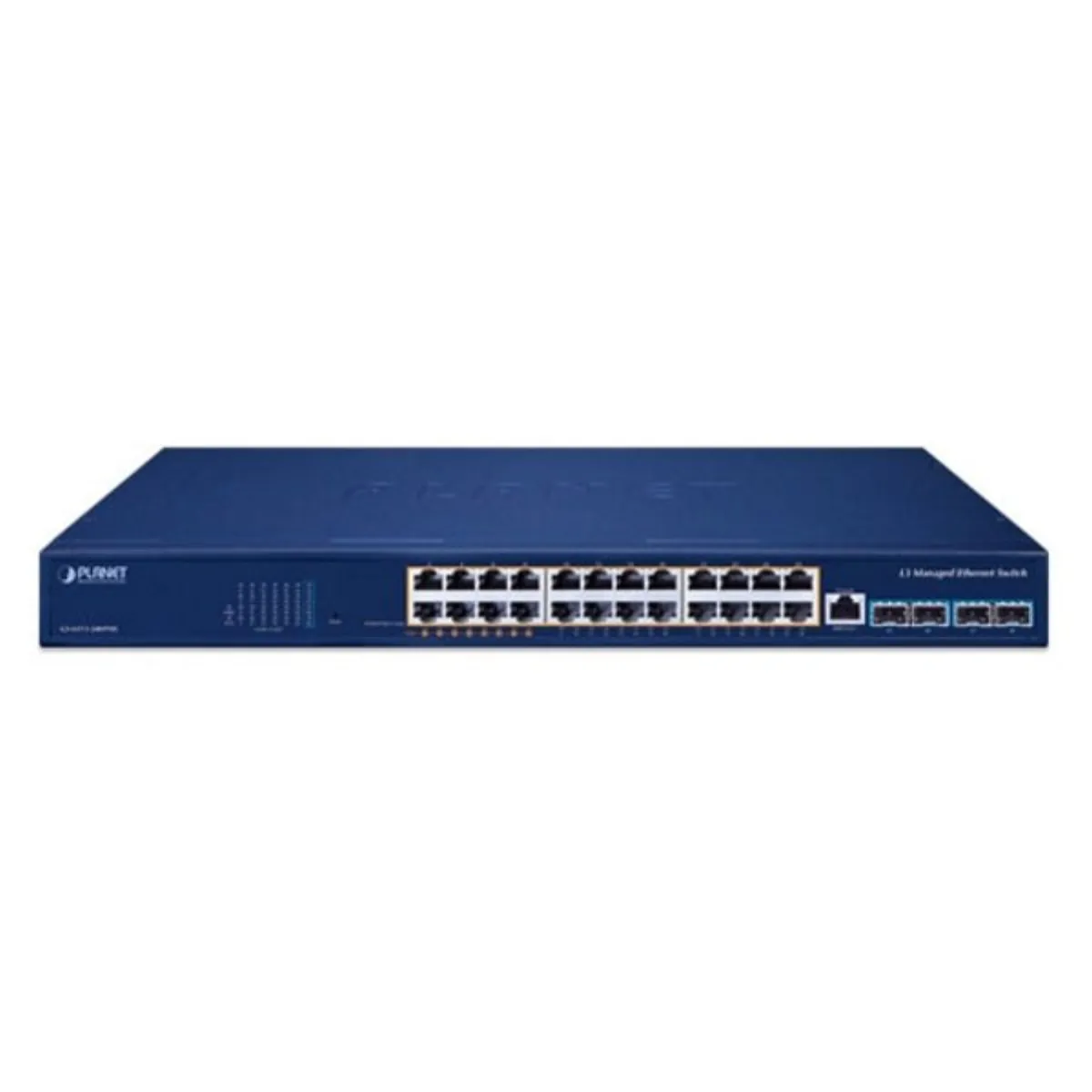

PLANET GS-6311-24T4X

State-of-the-art managed multiport 10 Gb/s switch with L3/L2 switching and security features

A fully manageable 10 Gb/s Ethernet switch designed to cover high bandwidth requirements (Wi-Fi 6/6E wireless access points, NAS, workstations, 10 Gb/s devices, etc.). It is equipped with 24 GbE RJ-45 ports and 4 10G SFP+ slots for optical modules. IPv4 hardware static routing feature on 3. layer, supports RIPv2 and OSPFv2, routing by VLAN, Spanning Tree protocol, link aggregation, QoS function, multicast, security (802.1x, TACACS+, RADIUS, VLAN, ACL, etc.), ERPS ring (ITU-T G .8032).

Distribution backbone switch for application in the most demanding data infrastructures, which has advanced network algorithms and security functions. It is intended for deployment in data centers, corporate companies, metropolitan networks, etc. Full throughput guarantees effective availability of the network or network resources for operations conducted or controlled through it. The switch is an L3 router with support for RIP and OSFP protocols, it has an advanced ACL (Access Control List) filter that allows traffic to be controlled based on MAC or IP address detection, TCP/UDP protocol, IP priority from traffic through the switch, authentication of physical ports can be set using the IEEE 802.1x RADIUS mechanism.

Ports

• 24x 10/100/1000BASE-T RJ-45
• 4× 10GBASE-SR/LR SFP+
• 1× RJ-45 serial (RS-232) console por

Memory

• 32k MAC addresses
• 512 MB of RAM
• 32 MB Flash

Throughput

• 128 Gbps bus
• operationally 95.23 Mpps

Transfer support: JumboFrame 12KB

IP protocol version

• IPv4
• IPv6

Design: rackmount 1U

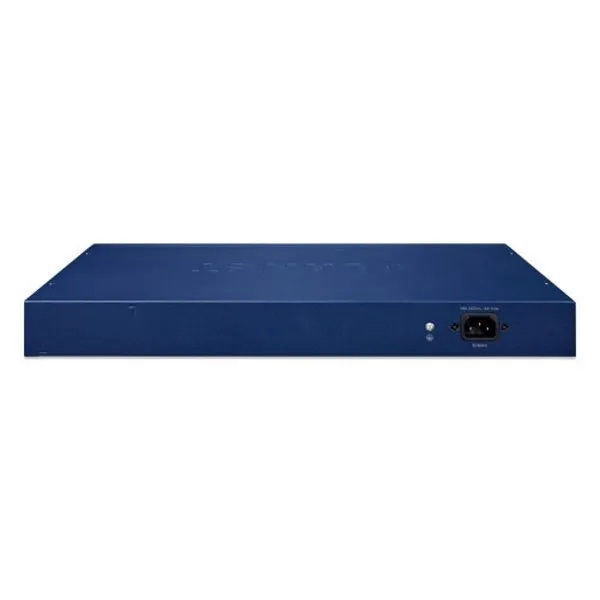

Power supply

• internal power supply AC 100-240 V (50/60 Hz)
• total power consumption max. 23.2 W

Protection: no

Operating temperature: 0 to +50 °C

Dimensions: 440 x 207 x 44 mm

Weight: 2742 g

Administration

• console
• Telnet
• Web
• SNMP v1/v2c/v3
• SSH v2
• TLS

Access control

• 802.1x
• TACACS+/RADIUS authentication
• IP-based ACL protocol
• MAC
• protocol
• IPv4/IPv6 DSCP and 802.1p priority

L3 routing

• RIPv1/v2
• OSPFv2
• static routing
• ICMPv6
• ND
• DNSv6

ACL filter and bonding

• IP ACL, traffic filtering according to IP address, protocol, port, TCP flags
• MAC ACL, traffic filtering according to MAC address, according to VLAN ID and combinations of priority flags

Prioritization of QoS traffic

• 8 level priority for switching
• traffic classification based on priority and WRR

VLAN support

• 802.1Q, up to 4000 VLAN groups
• 802.1ad Q-in-Q (VLAN stacking)
• Private VLAN Edge (PVE)
• Protocol-based VLAN
• MAC-based VLAN
• MVR (Multicast VLAN Registration)
• GVRP
• IP Subnet VLAN

Spanning Tree Protocol

• STP protocol, IEEE 802.1d Spanning Tree protocol
• RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
• MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol

Port mirroring

• RX
• TX
• both

Line aggregation

• IEEE 802.3ad LACP
• supports 64 trunk groups with 8 ports per trunk group

IP Multicast

• IGMP v1/v2/v3
• MLD v1/v2
• querier mode support
• up to 1024 groups

Authentication of connected devices

• IEEE 802.1x (RADIUS)
• TACACS+

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling diagnostics

• yes
• SFP-DDM (Digital Diagnostic Monitor)
