Planet GSD-1002M gigabit L2 L4 switch 8x TP 2x SFP DC PoE-in fanless

PLANET Technology | GSD-1002M | 4711605280082

On stock 9 pcs.

Price of goods is 117.73 €.

Weight of goods is 0.729 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

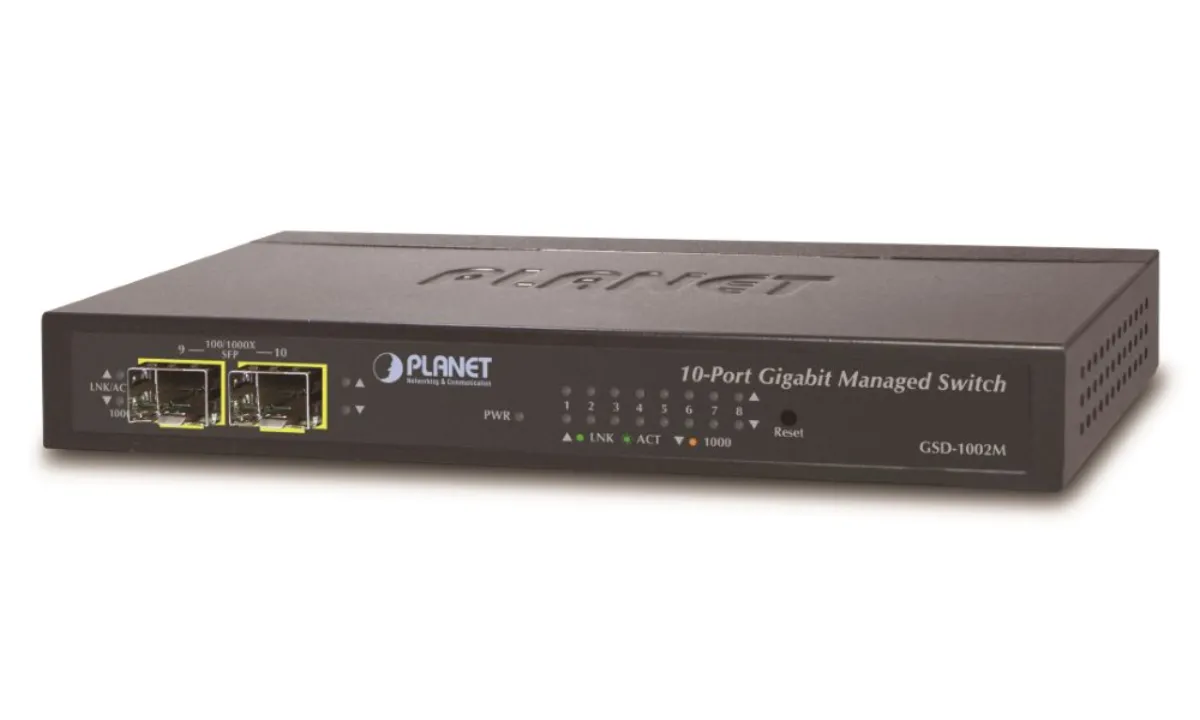

PLANET GSD-1002M

Managed switch with gigabit ports and dual power supply. 8x 1000Base-T ports, 2x 100/1000Base-X SFP(DDM) ports. Port shaper, VLAN 802.1Q, LACP link aggregation, QoS support, STP/RSTP/MSTP, RADIUS/TACACS+ client 802.1x, IGMPv3. IPv4/IPv6 support, Web/SNMP/Telnet management, cabling diagnostics, ESD protection, fanless, dual 12V or PoE power supply.

Switch for the implementation of end connections in FFTD networks or for installations where it is convenient to use PoE power with a possible backup with a second 12V power supply. Network traffic can be controlled using QoS even within VLAN networks, the speed on ports can be limited and end devices can be authenticated against the RADIUS/TACACS server, the internal ACL filter can be configured for access by known devices based on IP or MAC addresses. Installation is possible in a 10" switchboard, the device has ESD protection against overvoltage.

Ports

  • 8 x RJ-45 10/100/1000BASE-T
  • 2 x SFP 100/1000BASE-

Memory

  • 8k MAC addresses
  • buffer 512KB

Throughput

  • 20 Gbps bus
  • operational 14.8 Mpps (64B)

Transmission Support: JumboFrame 10K

IP protocol version

  • IPv4
  • IPv6

Execution: Desktop

Power supply

  • dual power supply 12V DC or PoE 802.3af/at
  • total power consumption up to 10.9W

Protection: ESD up to 6KV DC

Operating temperature: 0°C - 50°C

Dimensions: 191 x 86 x 26 mm

Weight: 396 g

Administration

  • Web
  • Telnet
  • SNMP SSH/SSL
  • SNMP v1
  • v2c
  • v3

Access Control: IP and MAC based ACL protocol

ACL filter and bonding

  • IP ACL, traffic filtering according to IP address, protocol, port, TCP flags
  • MAC ACL, traffic filtering according to MAC address, according to VLAN ID and combinations of priority flags

Prioritization of QoS traffic

  • 8 levels
  • traffic prioritization by port
  • DSCP in IP packet
  • 802.1p or 802.1Q tags

VLAN support

  • IEEE 802.1Q
  • up to 256 VLAN groups, 4094 VLAN IDs
  • Q-in-Q tunneling
  • Voice VLAN
  • Protocol VLAN
  • Private VLAN
  • GVRP

Spanning Tree Protocol

  • STP protocol, IEEE 802.1d Spanning Tree protocol
  • RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
  • MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol

Port mirroring

  • RX
  • TX
  • RX+TX
  • many-to-one

Line aggregation

  • IEEE 802.3ad LACP
  • 8 ports in 8 groups

Multicast IGMP

  • IGMP v2/v3
  • up to 256 groups
  • IGMP querier mode support

Authentication of connected devices

  • IEEE 802.1x
  • RADIUS
  • TACACS+ authentication
  • IP-MAC binding

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling Diagnostics: yes

Total power output

  • 30 W
  • IEEE 802.3af
  • IEEE 802.3a

Number of injectors: 1 x up to 30 W

Properties

NameValue
Input voltage [V]12 (DC)
Colorblack
Dimension [mm]191 × 86 × 26 mm
Indoor useYes
StackabilityNo
Port speed1 Gb/s
SPF count2
Outdoor useNo
Device power supplyexternal adapter
Bus capacity (GBps) [Gbps]20
Designfreestanding
OSI LayerL2+L4
PoE input802.3af/at
IGMPYes
