Planet HPOE-1200G PoE injector 12x 1Gb 802.3at 30 340W PING watchdog+scheduler
PLANET Technology | HPOE-1200G | 4711213688171
On stock 2 pcs.
Price of goods is 377.05 €.
Weight of goods is 5.16 Kg.
Actual in cart 0 pcs.

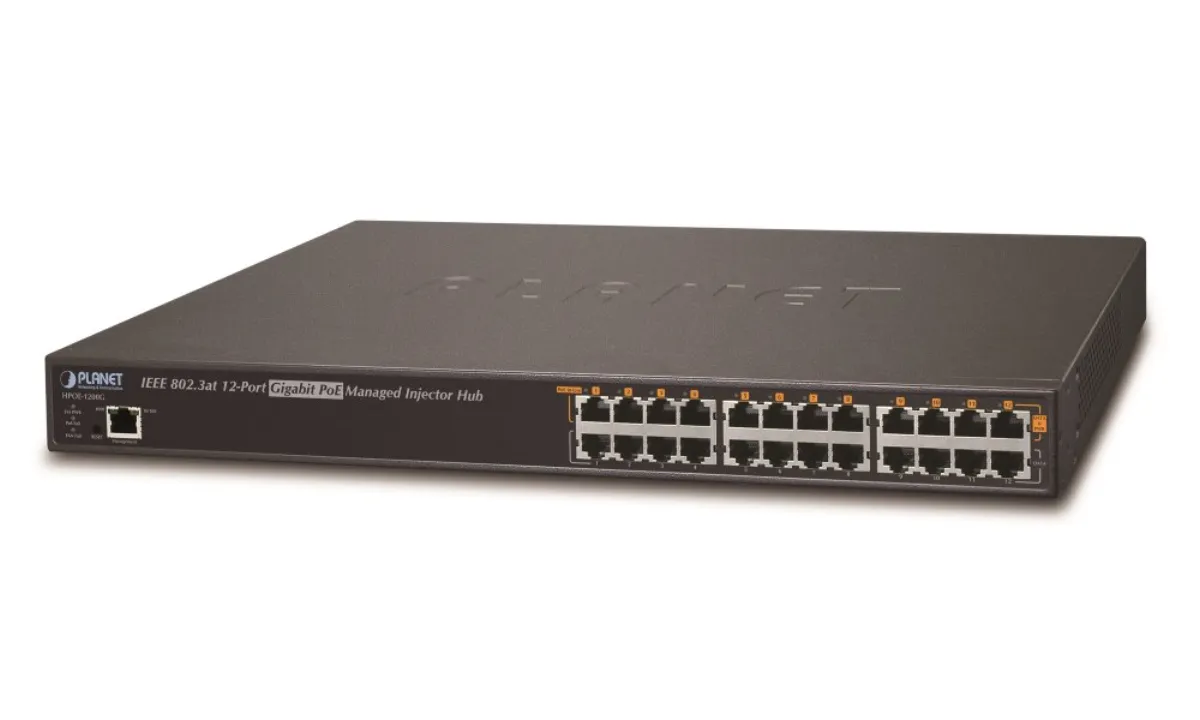

PLANET HPOE-1200G
12-port converter for power supply via Ethernet cable. Adds power to unused wires for 1000Base-T networks. Standard 802.3at. 12 data-in ports, 12 data+power out ports.
PoE (power over ethernet) HUB injector for powering devices via Ethernet according to IEEE 802.3af and multi-power devices IEEE 802.3at. It is designed to power devices such as PTZ or Speedome IP cameras, WiFi access points or VoIP phones. There are a total of 12 ports with a total output power of 340W, the injector is pass-through, the power is associated with the already existing Ethernet Cat5/5e/6 line.
Interface
- 24 x RJ-45 10/100/1000 Mbps : 12 x Data input
- 12 x PoE (Data + Power) outputs
Total power output
- up to 360 W
- IEEE 802.3at
- IEEE 802.3af
Port load capacity: up to 15.4 W
Power supply
- 100 - 240 V AC
- 50/60 Hz
- 6 A
Operating temperature: 0 to 50°C
Dimensions: 440 x 300 x 44 mm
Weight: 4.27 kg
| Name | Value | |
|---|---|---|
| PoE properties | scheduler | |
| Standard | 802.3at | |
| Device power supply | internal resource | |
| Outdoor use | No | |
| Port speed | 1 Gb/s | |
| PoE port count | 12 | |
