Planet IGS-500T 5x 1000Base-T DIN IP30 extended temperature range -40 to +75C ESD+EFT up to 6kV

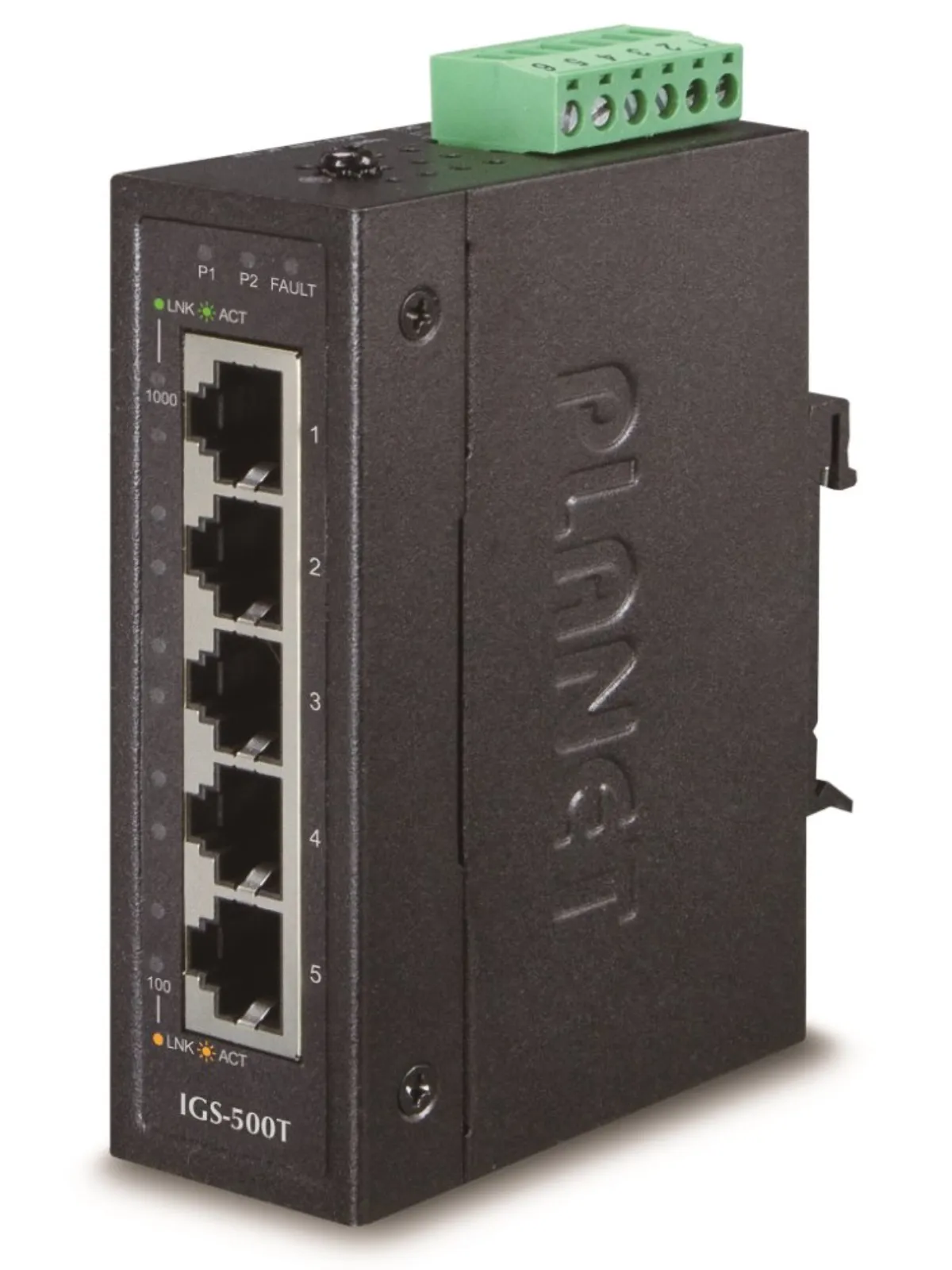

PLANET IGS-500T

5-port switch and converter for industrial applications. 5 1000Base-T ports. Possibility of redundant power supply in the range of DC 12-48V or AC 24V, aluminum case, protection IP30, working temperature -40~75°C. Overvoltage protection of LAN and power ports up to 6kV. Mounting on a DIN rail or directly on the wall.

Switches for industrial Ethernet are intended for demanding operating conditions with a large range of working temperatures, uncertain power supply and frequent shocks. The switches of the IGS series are easily installed on a standard DIN rail or directly on the wall and enable the deployment of the well-known Ethernet technology even in an industrial environment. They are also suitable for installation in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).

Physical properties

Ports: 5 x RJ-45 10/100/1000BASE-

Memory

• 4k MAC addresses
• buffer 1Mb

Throughput

• 10 Gbps bus
• operational 7.4 Mpps (64B)

Transmission Support: JumboFrame 9K

IP protocol version

• IPv4
• IPv6

Execution

• DIN rail
• on the wall

Power supply

• redundant source DC 12-48V or AC 24V
• total power consumption up to 3.6 W (source not included in the package)

Protection

• ESD up to 6kV
• protection against polarity reversal

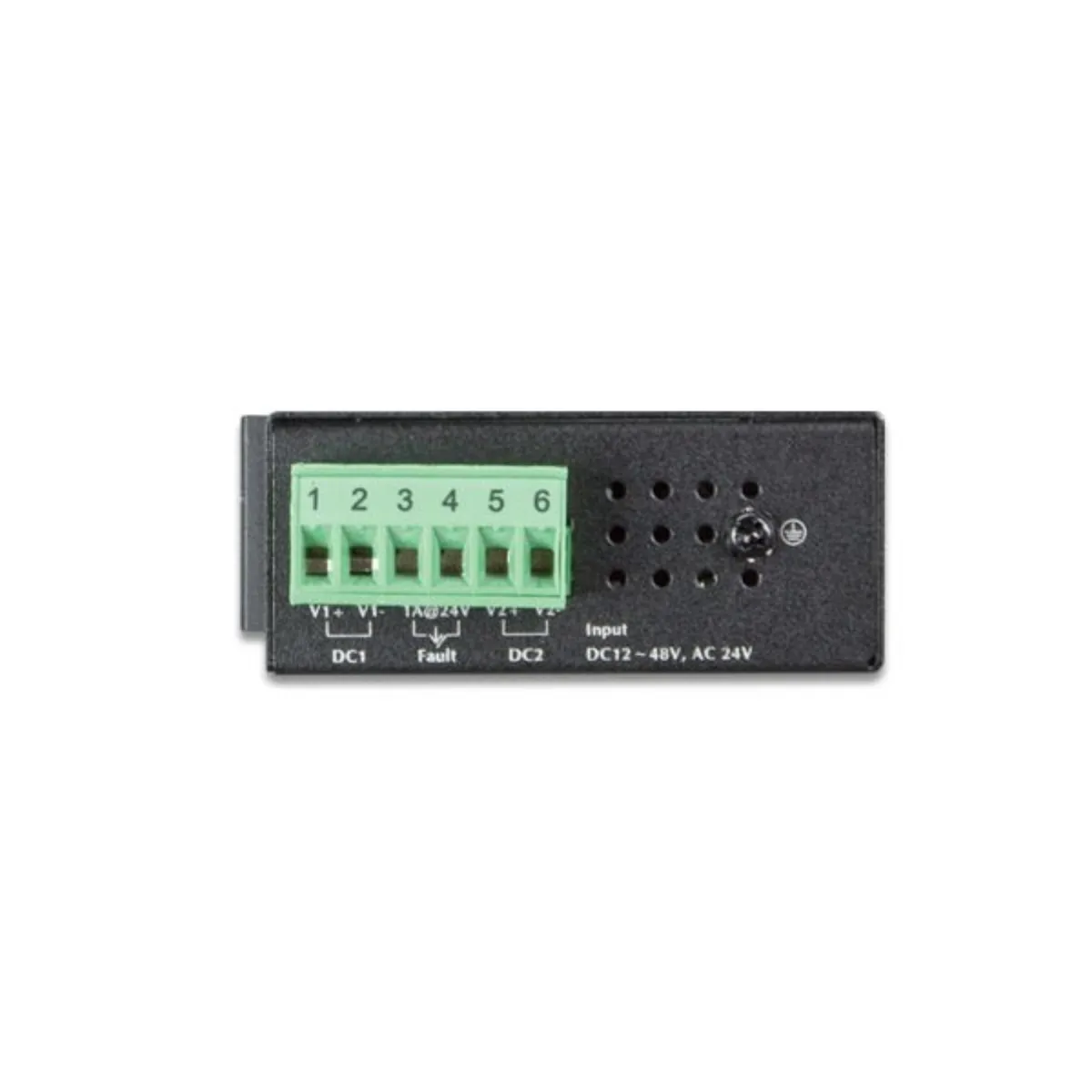

• power supply connection on the terminal board
• location on the side panel (does not interfere with wall mounting)

Operating temperature

• -40°C - 75°C
• humidity up to 95%

Dimensions: 104 x 70 x 30 mm

Weight: 252 g

Industrial properties

• the device is resistant to falling (IEC-60068-2-32) from a height of 75 cm on all impact parts
• the device is resistant to vibrations (IEC-60068-2-6)
• the device is resistant to overload short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
• electrical safety according to CE EN-60950

EMC Electronic compatibility (EMI)

• ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia devices

EMC Immunity Requirements (EMS)

• ČSN EN 55024 A1:2015 - Information technology equipment
• ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia devices
• ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
• ČSN EN 61000-4-3 A2:2010 - Radiated high-frequency electromagnetic field
• ČSN EN 61000-4-4:2012 - Fast electrical transients/groups of EFT impulses
• ČSN EN 61000-4-5:2014 - Shock impulse and overvoltage
• ČSN EN 61000-4-6:2013 - Resistance to interference propagated by conduction, induced by high-frequency fields
• ČSN EN 61000-4-8:2009 - Magnetic field of mains frequency
• ČSN EN 61000-4-11:2004 - Short-term voltage drops, short interruptions and slow voltage changes
