Planet IGS-801M 8x 1000Base-T DIN IP30 -10 to 60°C ESD+EFT up to 6kV Web SNMP VLAN STP

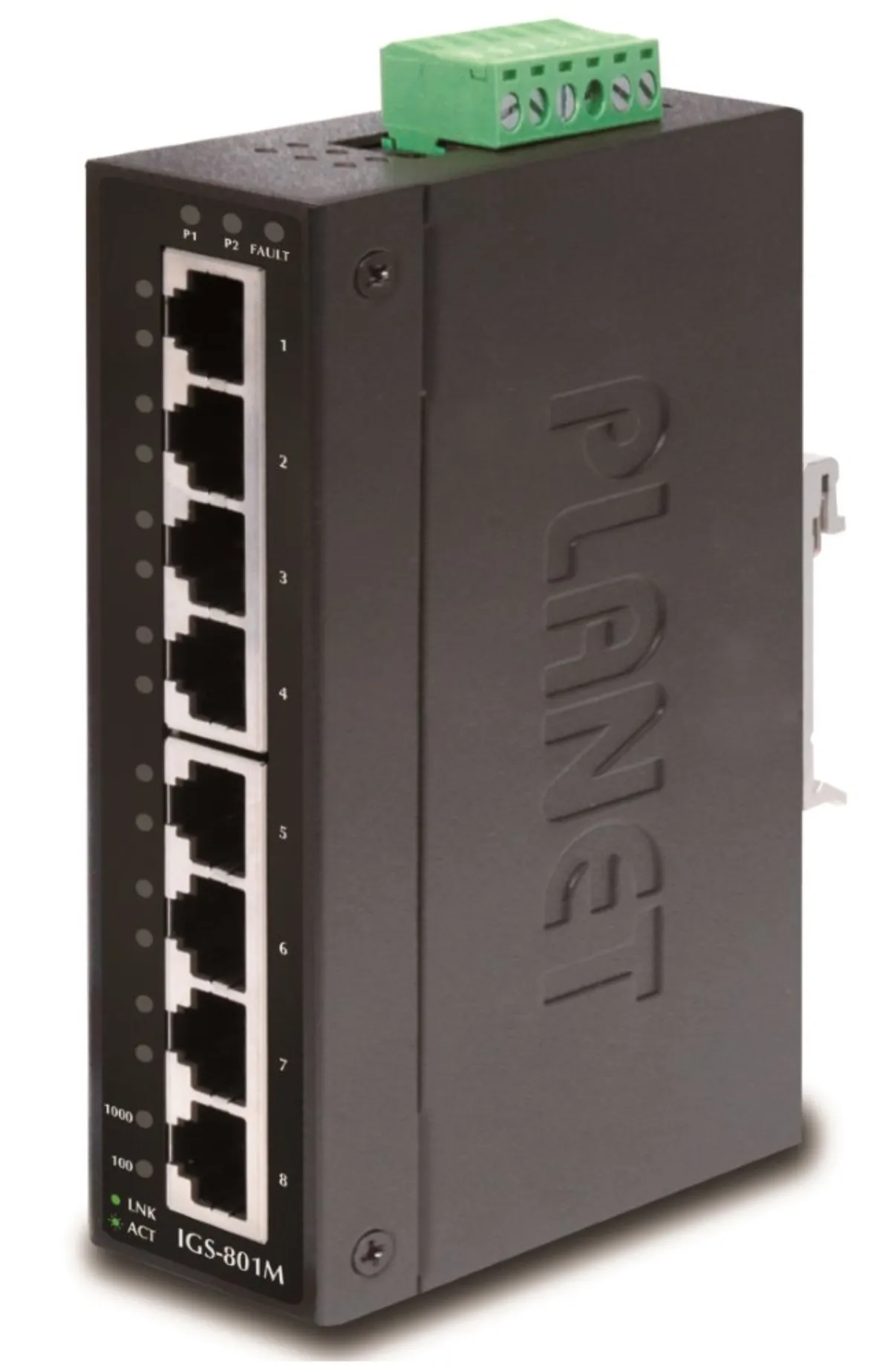

PLANET IGS-801M

8-port 1000Base-T managed switch and converter for industrial applications. Data link redundancy with 300ms recovery. Web//SNMP management, 64 VLAN 802.1Q networks, Spanning Tree, IEEE 802.3ad LACP line aggregation. Possibility of redundant power supply in the range of 12-48V DC, protection IP30, aluminum case, working temperature -10~60°C. Overvoltage protection of LAN and power ports up to 6kV. Mounting on a DIN rail or directly on the wall. Intelligent switches for industrial Ethernet are intended for demanding operating conditions with a wide range of working temperatures, uncertain power supply and frequent shocks. At the same time, they provide excellent multiple interconnection capabilities to achieve system interconnection robustness with very low recovery time.

The IGS-801M is equipped for redundancy, in addition to the well-known Spanning Tree method (whose recovery time is in the order of seconds), especially the specialized "Redundant ring" function, which has a recovery time and finding a new path of up to 300ms.

The switches of the IGS series are easily installed on a standard DIN rail or directly on the wall and enable the deployment of the well-known Ethernet technology even in an industrial environment. They are also suitable for installation in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications).

Physical properties

Ports: 8 x RJ-45 10/100/1000BASE-

Memory

• 8k MAC addresses
• buffer 4.1 Mb

Throughput

• 16 Gbps bus
• operational 11.9 Mpps (64B)

Transmission Support: JumboFrame 10K

IP protocol version

• IPv4
• IPv6

Execution

• DIN rail
• on the wall

Power supply

• 12-48V DC redundant
• connection possible from two different sources (not included in the package)
• total power up to 10W

Protection

• ESD up to 6kV
• switching alarm relay (24V/1A) in case of primary power failure

Operating temperature: -40°C - 75°C

Dimensions: 135 x 87 x 32 mm

Weight: 472 g

Administration functions

Administration

• Telnet
• Web
• SNMP SSH/SSL
• SNMP v1
• v2c
• v3

Access control

• IP and MAC based ACL protocol
• 123 rules

ACL filter and bonding

• IP ACL, traffic filtering according to IP address, protocol, port, TCP flags
• MAC ACL, traffic filtering according to MAC address, according to VLAN ID and combinations of priority flags

Prioritization of QoS traffic

• 8 levels
• traffic prioritization by port
• DSCP in IP packet
• 802.1p or 802.1Q tags

VLAN support

• IEEE 802.1Q
• up to 256 VLAN groups, up to 4094 VLAN IDs
• Q-in-Q tunneling
• Voice VLAN
• Protocol VLAN
• Private VLAN
• GVRP

Spanning Tree Protocol

• STP protocol, IEEE 802.1d Spanning Tree protocol
• RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
• MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol

Port mirroring

• RX
• TX
• RX+TX
• many-to-one

Line aggregation

• IEEE 802.3ad LACP
• 8 ports in 8 groups

Multicast IGMP

• IGMP v2/v3
• up to 256 groups
• IGMP querier mode support

Authentication of connected devices

• IEEE 802.1x
• RADIUS
• TACACS+ authentication

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices) Cabling diagnostics: yes

Industrial properties

• the device is resistant to falling (IEC-60068-2-32) from a height of 75 cm on all impact parts
• the device is resistant to vibrations (IEC-60068-2-6)
• the device is resistant to overload short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
• electrical safety according to CE EN-60950

EMC Electronic compatibility (EMI)

• ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia devices

EMC Immunity Requirements (EMS)

• ČSN EN 55024 A1:2015 - Information technology equipment
• ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia devices
• ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
• ČSN EN 61000-4-3 A2:2010 - Radiated high-frequency electromagnetic field
• ČSN EN 61000-4-4:2012 - Fast electrical transients/groups of EFT impulses
• ČSN EN 61000-4-5:2014 - Shock impulse and overvoltage
• ČSN EN 61000-4-6:2013 - Resistance to interference propagated by conduction, induced by high-frequency fields
• ČSN EN 61000-4-8:2009 - Magnetic field of mains frequency
• ČSN EN 61000-4-11:2004 - Short-term voltage drops, short interruptions and slow voltage changes
