Planet IGT-815AT converter 1x 100 1000Base-T1x SFP 100 1000-X ESD+EFT IP30 -40 to 75°C small size

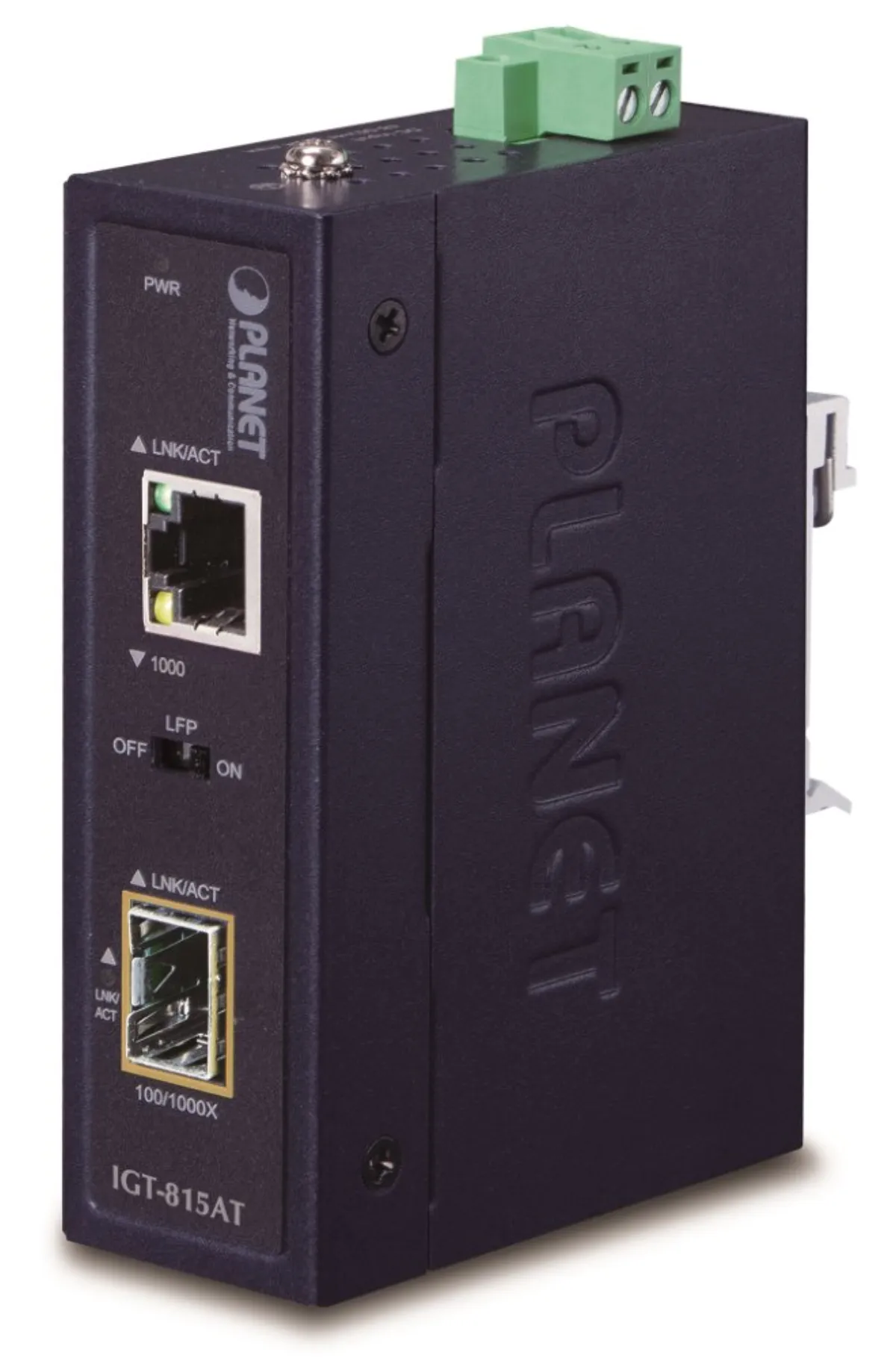

PLANET IGT-815AT

Industrial converter for easy transition between metallic and optical lines ( 100/1000Base-X to 10/100/1000Base-T). The converter is intended for industrial and FTTH/FTTC/FTTB applications. Power supply in the range 9-48 V DC, protection IP30, metal case, extended working temperature -40 to +75 °C. Overvoltage ESD protection up to ±6 kV (±8 kV air). Installation on a DIN rail or directly on the wall.

Devices for industrial Ethernet are intended for demanding operating conditions with a large range of working temperatures and frequent shocks. The converter is easily installed on a standard DIN rail or directly on the wall and enables the deployment of the well-known Ethernet technology even in an industrial environment. It is also suitable for installations in outdoor cabinets with large fluctuations in operating temperatures (typically wireless and MAN ISP applications of the FTTH type).

Physical properties

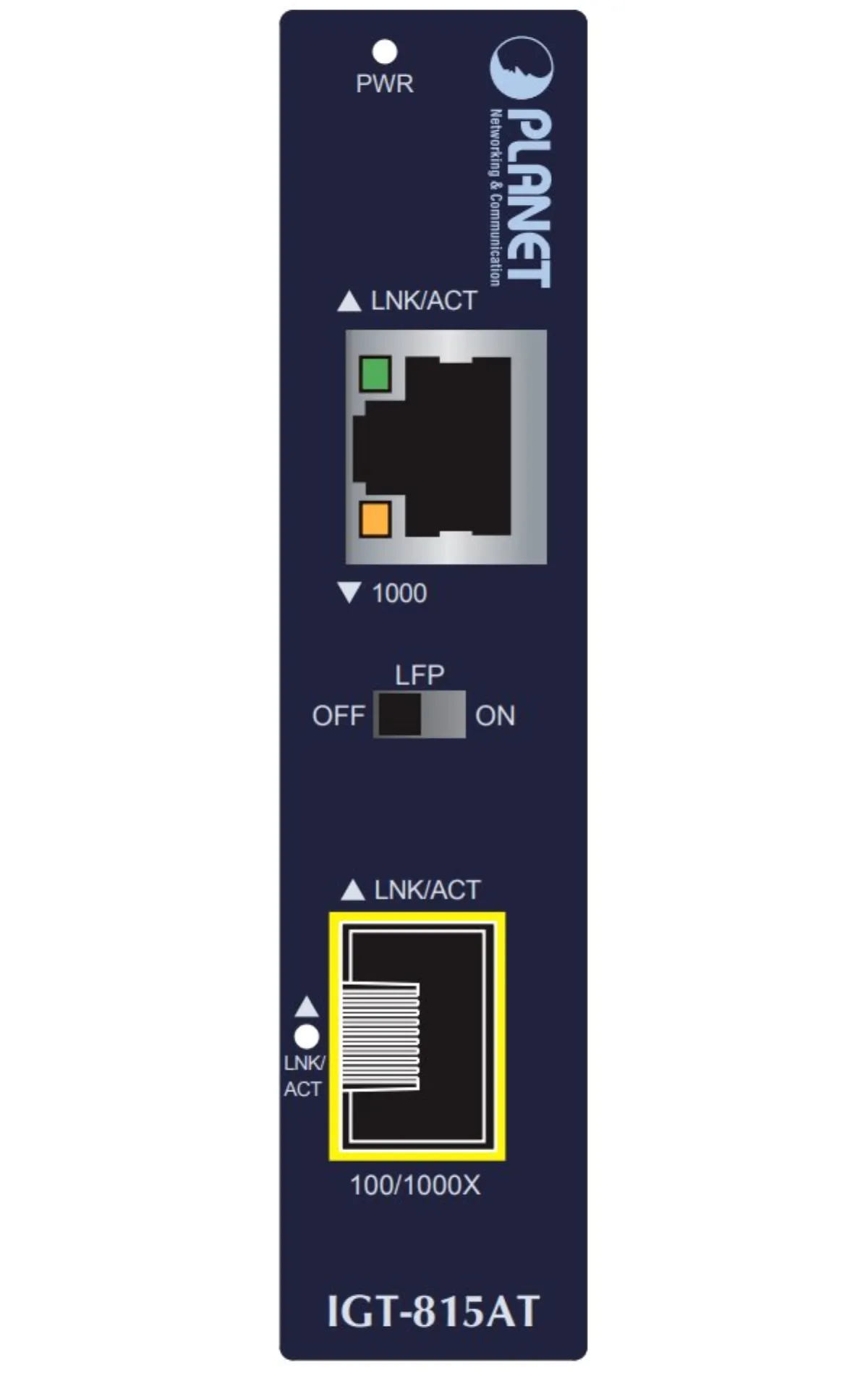

Ports

• 1 x RJ-45 10/100/1000Base-T
• 1 x SFP 1000Base-SX/LX/B

Transmission support: Frame 9KB

Execution

• DIN rail
• on the wall

OAM support: no

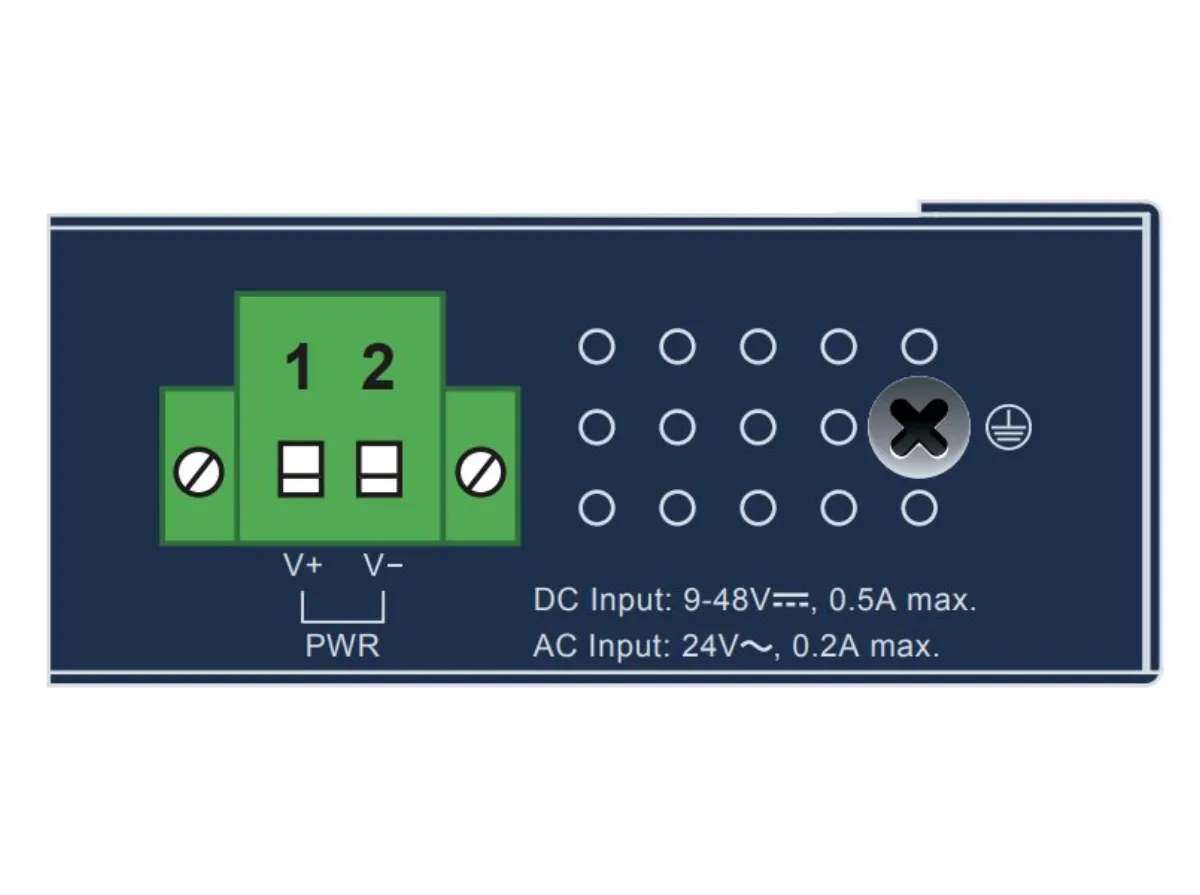

Power supply

• source 9-48V DC
• total power consumption up to 1.98 W (source not included in the package)

Protection

• ESD by air up to 8 kV
• contact up to 6 kV
• protection against polarity reversal

Operating temperature: -40 to 75°C

Dimensions: 104 x 70 x 30 mm

Weight: 251 g

Chassis installable: no

Industrial properties

• the device is resistant to falling (IEC-60068-2-32) from a height of 75 cm on all impact parts
• the device is resistant to vibrations (IEC-60068-2-6)
• the device is resistant to overload short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
• electrical safety according to CE EN-60950

EMC Electronic compatibility (EMI)

• ČSN EN 55032:2015+AC 2016 - Electromagnetic compatibility of multimedia devices

EMC Immunity Requirements (EMS)

• ČSN EN 55024 A1:2015 - Information technology equipment
• ČSN EN 55035:2017 - Electromagnetic compatibility of multimedia devices
• ČSN EN 61000-4-2:2008 - Electrostatic discharge ESD
• ČSN EN 61000-4-3 A2:2010 - Radiated high-frequency electromagnetic field
• ČSN EN 61000-4-4:2012 - Fast electrical transients/groups of EFT impulses
• ČSN EN 61000-4-5:2014 - Shock impulse and overvoltage
• ČSN EN 61000-4-6:2013 - Resistance to interference propagated by conduction, induced by high-frequency fields
• ČSN EN 61000-4-8:2009 - Magnetic field of mains frequency
• ČSN EN 61000-4-11:2004 - Short-term voltage drops, short interruptions and slow voltage changes
