Planet IPOE-162 PoE injector IEEE802.3at 30W Gigabit DIN IP30 -40~75°C 12-48VDC

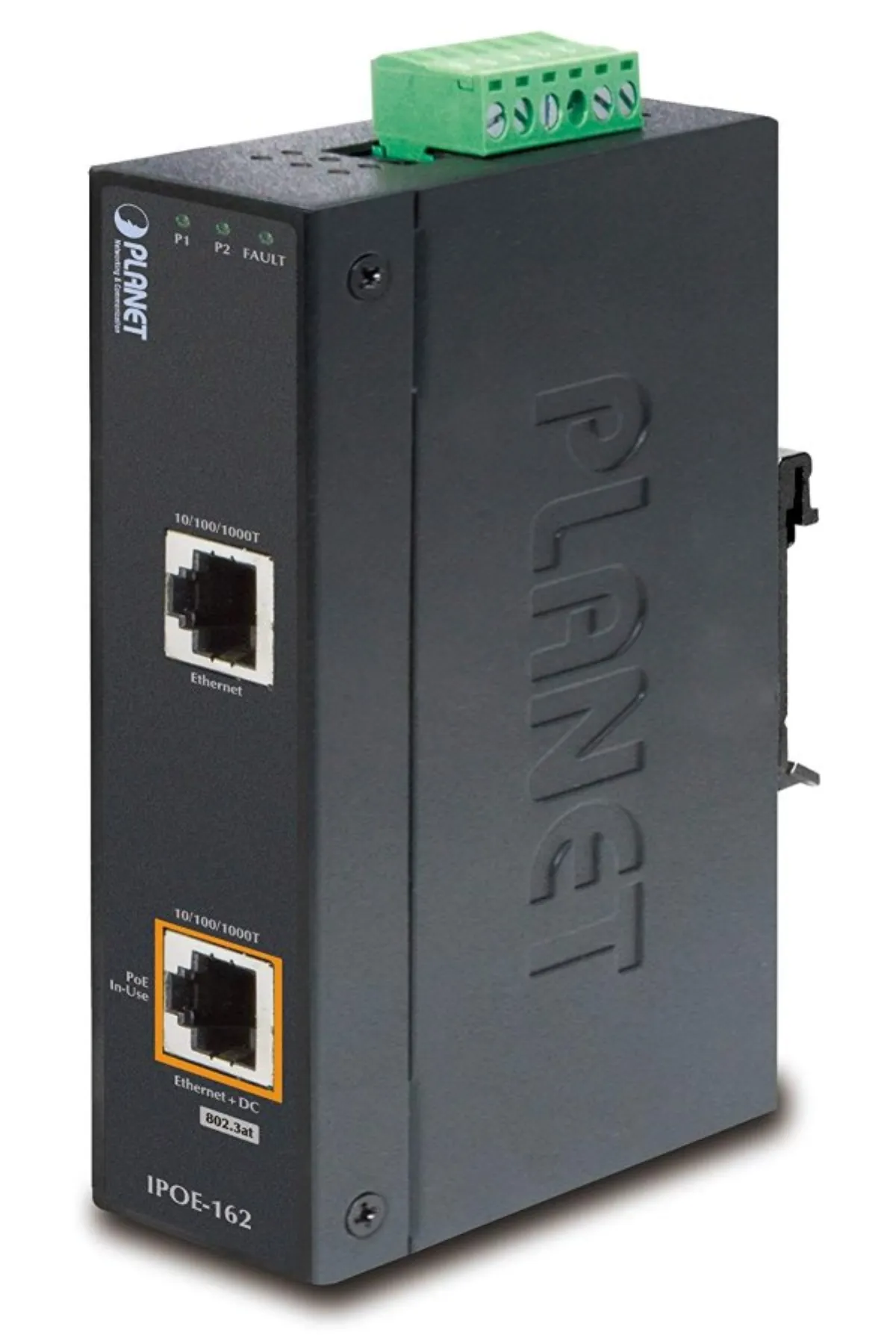

PLANET IPOE-162

Industrial injector for power supply via Ethernet cable, standard IEEE 802.3at up to up to 30 W power, also works on Gigabit connection. Protection IP30, aluminum housing, working temperature -40 to +75 °C, mounting on a DIN rail or directly on the wall.

Industrial "Power over Ethernet Injector" IEEE 802.3at with a maximum load of 30W for powering devices via Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or WiFi access points. The injector has an increased load compared to the IEEE 802.3af standard (15.4 W), making it ideal for applications of camera systems and VoIP telephone networks. PoE power supply can also be implemented on gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T. The injector is backward compatible with the previous generation IEEE 802.3af. The output voltage of the POE-161S splitter can be selected as 5V SS or 12V SS. The IEEE 802.3at standard device detects itself whether it is connected and capable of being powered from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.

Interface

• 2x RJ-45 10/100/1000 Mbps: 1x Data input
• 1x PoE (Data + Power) output

Total power output

• up to 30 W
• IEEE 802.3at

Port load capacity: up to 30 W

Power supply: DC 12-48 V or AC 24 V (power source not included)

Operating temperature: -40 to +75 °C

Dimensions: 135 x 87.8 x 32 mm

Weight: 473 g
