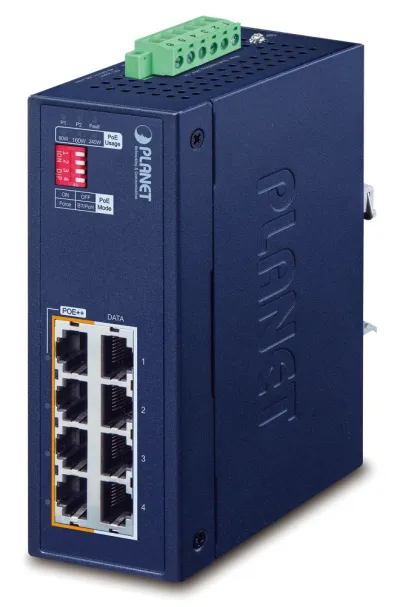

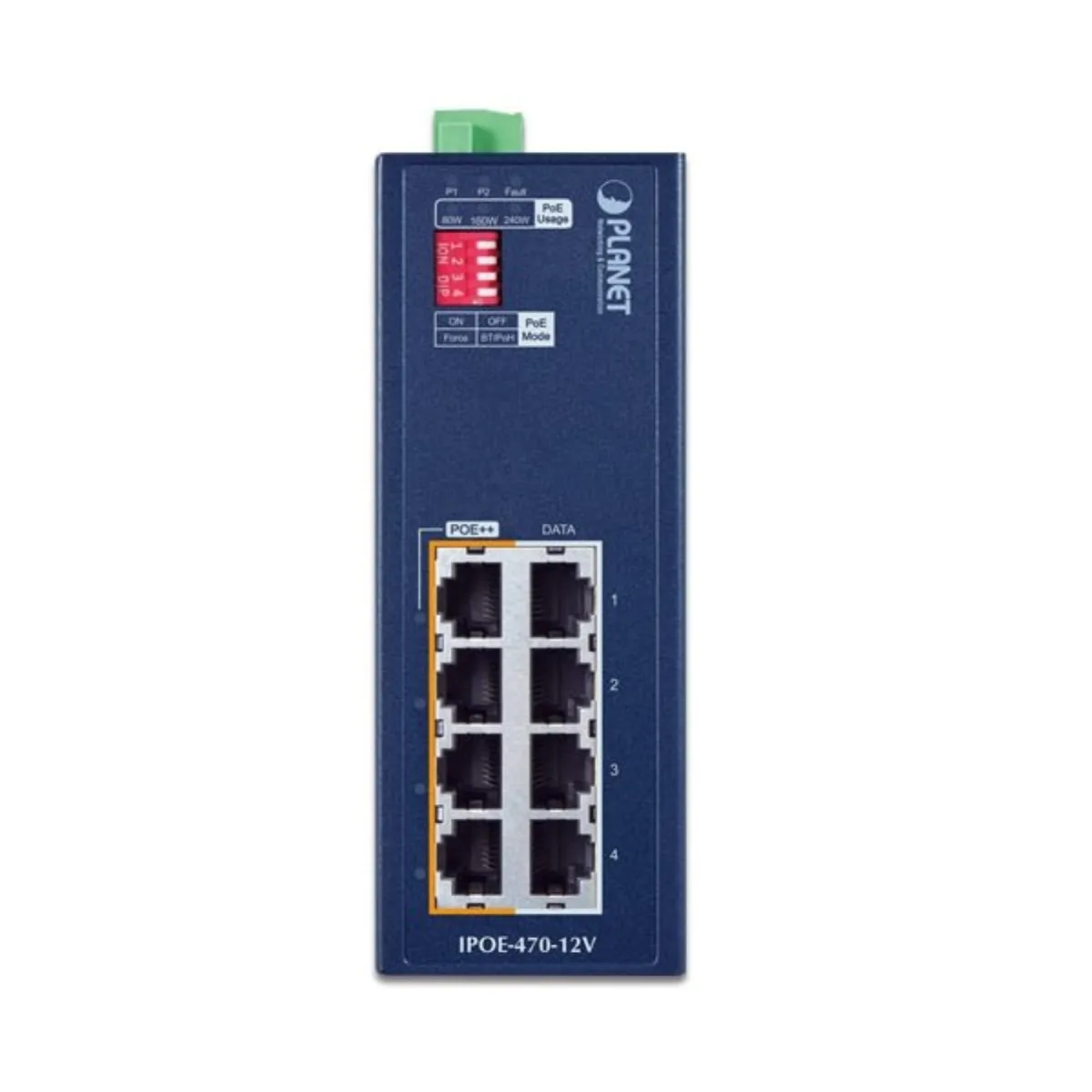

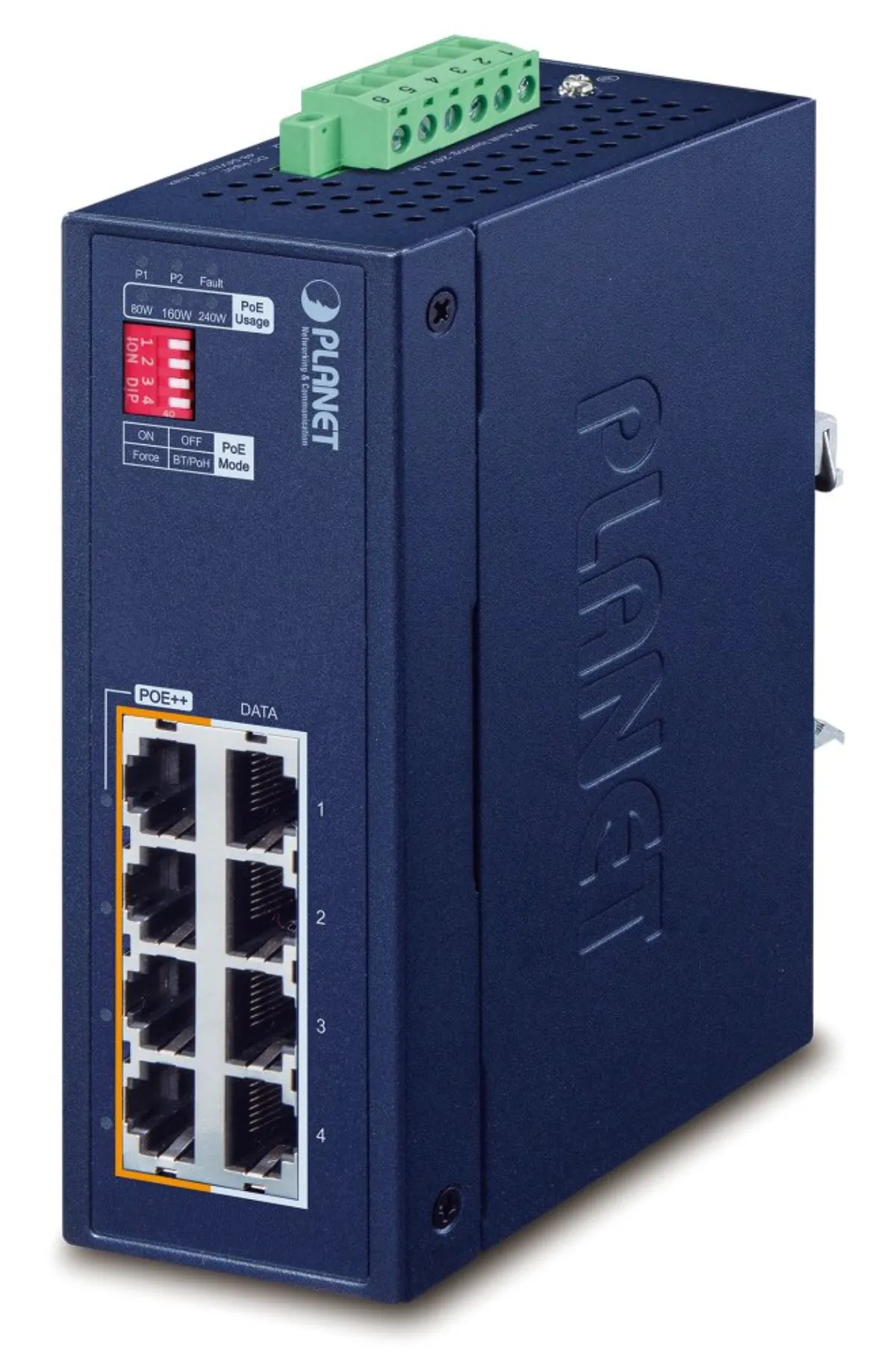

PLANET IPOE-470-12V
Industrial injector for power supply via Ethernet cable, standard IEEE 802.3bt PoE++/PoH up to 240 W. Protection IP30, metal case, working temperature -40 to +75 °C, mounting on a DIN rail or directly on the wall, ESD protection up to 6 kV, overvoltage protection up to 6 kV, DIP switch, support for PoH power supply up to 95 W/port (Power over HDBaseT), redundant power supply DC 12-54 V.
Industrial "Power over Ethernet Injector" IEEE 802.3bt + PoH (Power over HDBaseT) with a maximum load of 240 W for powering devices via Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices, POS (point of sale), kiosks, PoE lighting or Wi-Fi access points.
The injector has an increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications of camera systems and VoIP telephone networks. The injector is backwards compatible with the previous generation IEEE 802.3at. An IEEE 802.3bt device detects itself if it is connected and capable of being powered from Ethernet. Devices powered in this way are also protected against damage due to incorrect connections.
Interface
- 8x RJ-45 10/100/1000Base-T (4x data input
- 4x PoE+data output
Total power output
- up to 240 W
- IEEE 802.3bt PoE++
- PoH (Power over HDBaseT)
Load capacity of ports
- up to 240 W when powered by DC 48-54 V
- up to 120 W when powered by DC 24-47 V
- up to 60 W when powered by DC 12-23 V
- max. 90 W/port - 802.3bt PoE++
- max. 95 W/port - PoH
- max. 60 W/port - Force mode
- max. 36 W/port - 802.3at PoE+

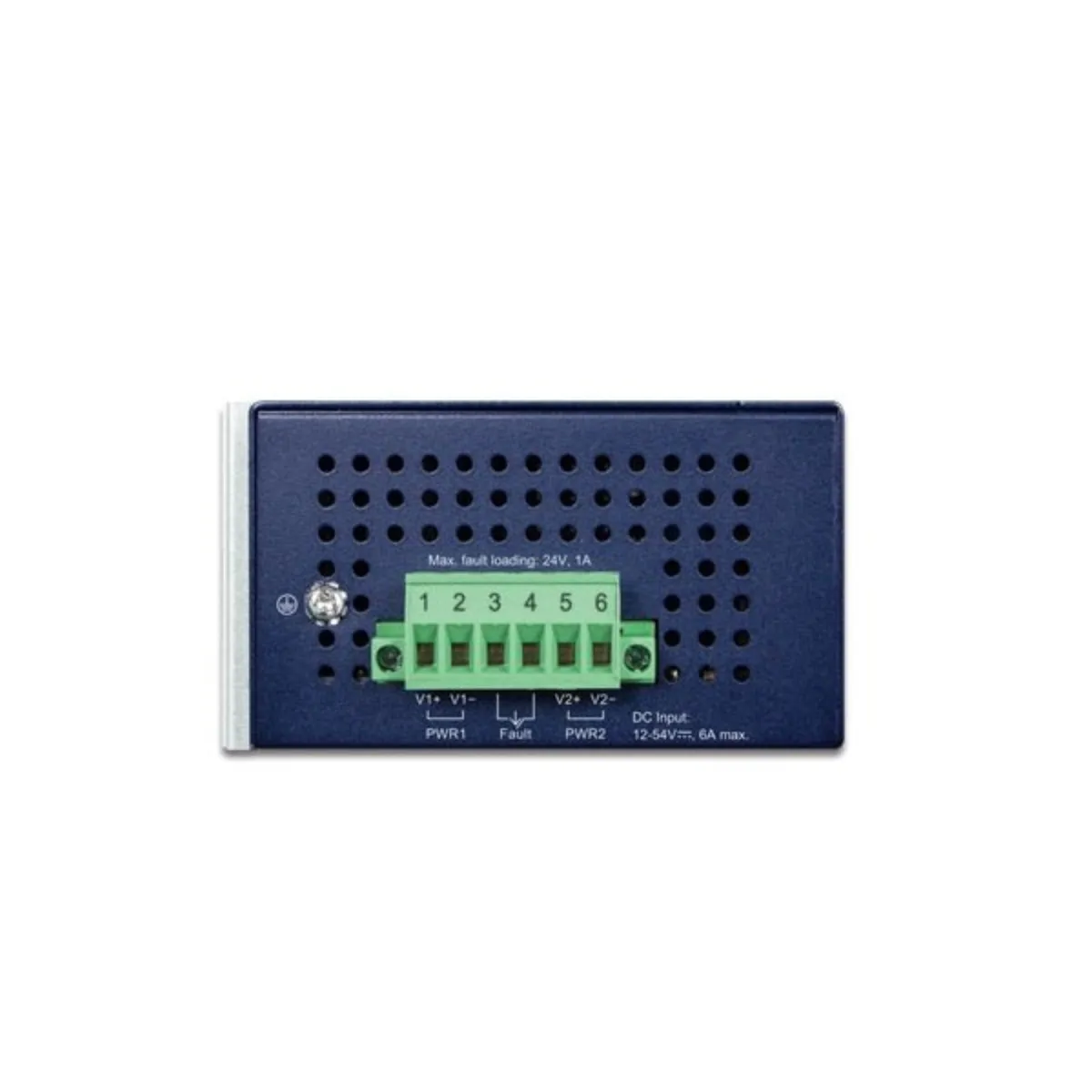

Power supply
- DC 12-54 V
- redundant (the source is not included in the package)
Operating temperature: -40 to +75 °C
Dimensions: 135 x 87.8 x 50 mm
Weight: 679 g
Industrial properties
- the device is resistant to falling (IEC-60068-2-32) from a height of 75 cm on all impact parts
- the device is resistant to vibrations (IEC-60068-2-6)
- the device is resistant to overload short-term acceleration 50g, long-term 4g, (IEC-60068-2-27)
- electrical safety according to CE EN-60950
| Name | Value | |
|---|---|---|
| Color | blue | |
| Weight, brutto [kg] | 0,679 | |
| Dimension [mm] | 135 × 87,8 × 50 mm | |
| Outdoor use | No | |
| PoE port count | 4 | |
| Standard | PoH PD (95W) | |
| Port speed | 1 Gb/s | |
| LAN | Yes | |
| Device power supply | redundant | |
| Design | on the wall | |
| PoE support | Yes | |
| MODBUS support | No | |
