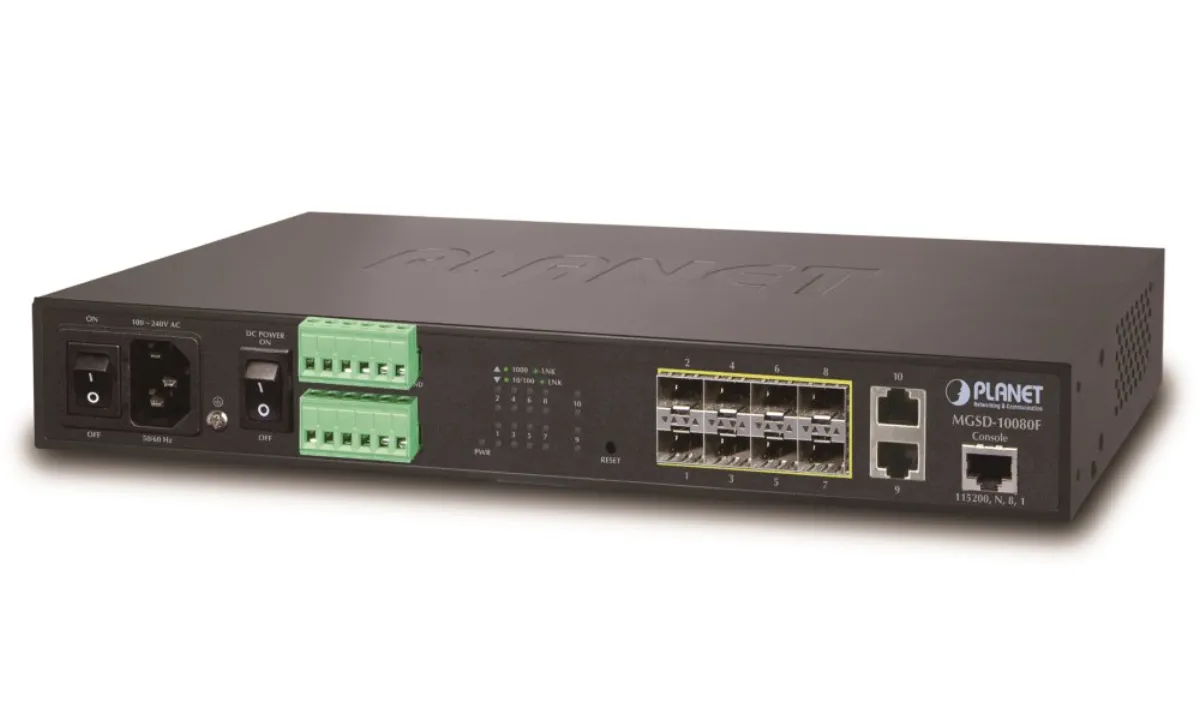

Planet MGSD-10080F Metro switch 8x SFP(DDM) 2x 1Gb RJ45AC+DC DI O SNMPv3 fanless
PLANET Technology | MGSD-10080F | 8592457134909
Price of goods is 337.71 €.
Weight of goods is 2.237 Kg.
Actual in cart 0 pcs.
b>PLANET MGSD-1008F
Administerable IPv4/IPv6 switch, 8x positions for SFP modules (dual-speed, Fast Ethernet and Gigabit SFP modules can be applied, SFP-DDM support), 2x 1000Base-T RJ-45 shared, 2x DI+2x DO. VLAN 802.1Q 255 networks, IGMPv3, QoS, LACP, STP/RSTP/MSTP, DHCP Snooping, Shaper, IP+MAC binding, 802.1x RADIUS, IP/MAC-ACL, SNMP v1/v2/v3, SSH/SSL, support IPv6/IPv4, ERPS Ring - data transfer recovery time is less than 10ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching). Rackmount, fanless, dual AC+DC power supply.
A manageable SFP optical switch designed for applications in the field of large-scale networks, telecommunications and for Internet service providers ISP or IPTV television. Its physical and durable construction predetermines it for direct installation in route or terminal switchboards. The device is operable in the temperature range of -10 to 60°C, it can be powered redundantly, it has a digital I/O interface and all ports are accessible from the front panel.
Management of the switch is possible through IPv4 and IPv6 protocols, SNMPv3 and securely on the SSL/SSH encrypted layer. The function includes suitable for integration in data centers or for connection and secure operation of end users, it is possible to control traffic based on QoS, filter and authorize access via ACL (Access Control List), physically activate ports based on authentication on a RADIUS server by the IEEE protocol 802.1x.
Ports
- 2 x RJ-45 10/100/1000BASE-T
- 8 x SFP 1000BASE-SX/LX/BX/FX
- 1 x RJ-45 (RS-232) console port
- 2 x DI
- 2 x D
Memory
- 8k MAC addresses
- 4Mb buffer
Throughput
- 20 Gbps bus
- operational 14.8 Mpps (64B)
Transfer Support: JumboFrame 9KB
IP protocol version
- IPv4
- IPv6
Design: rackmount 1U
Power supply
- internal power source 100-240V/50-60Hz AC
- dual with -36V to -72V DC
- total power consumption up to 11.2W
Protection: no protection
Operating temperature: -10 - 60°C
Dimensions: 330 x 155 x 43.5 mm
Weight: 1661 g
Administration functions
Administration
- console
- Telnet
- Web
- SNMP SSH/SSL
- SNMP v1
- v2c
- v3
Access control
- IP and MAC based ACL protocol
- 123 rules
ACL filter and bonding
- IP ACL, traffic filtering according to IP address, protocol, port, TCP flags, DSCP
- MAC ACL, traffic filtering according to MAC address, according to VLAN ID and combinations of priority flags
Prioritization of QoS traffic
- 8 levels
- traffic prioritization by port
- DSCP/ToS in IP packet
- 802.1p or 802.1Q tags
Port shaper settings in the range of 500Kbps - 1000Mbps
VLAN support
- IEEE 802.1Q
- up to 255 VLAN groups, up to 4094 VLAN IDs
- Q-in-Q tunneling
- Private VLAN Edge (PVE)
- MAC-based VLAN
- Protocol-based VLAN
- Voice VLAN
- Multicast VLAN Registration
Spanning Tree Protocol
- STP protocol, IEEE 802.1d Spanning Tree protocol
- RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
- MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
Port mirroring
- RX
- TX
- both
Line aggregation
- IEEE 802.3ad LACP
- 8 ports in 5 groups
Multicast IGMP
- IGMP v1/v2/v3
- up to 255 groups
- IGMP querier mode support
Authentication of connected devices
- IEEE 802.1x (RADIUS) - IP+MAC binding
- VLAN + MAC binding
DHCP Snooping: yes (blocking foreign DHCP servers)
LLDP: yes (automatic detection of the type of connected devices)
Cabling Diagnostics: yes
Name | Value | |
---|---|---|
Input voltage [V] | 36 - 60 (DC) | |
Color | black | |
Dimension [mm] | 330 × 155 × 43,5 mm | |
Minimum operating temperature [°C] | -10 | |
Maximum operating temperature [°C] | 60 | |
Total number of ports | 10 | |
SNMPv3 | Yes | |
Conformity | FCC Part 15 Class A, CE | |
RJ-45 console management | 1 | |
MicroSD card support | No | |
SFP/FX port count | 8 | |
Port speed | 1 Gb/s | |
Fanless | Yes | |
Outdoor use | No | |
Device power supply | redundant | |
Bus capacity (GBps) [Gbps] | 20 | |
Design | rack 19" | |
OSI Layer | L3 static (L2+) | |
PoE input | No |
