Planet MGSW-28240F Metro L3 switch 24x SFP(DDM) 4x SFP+ 4x 1Gb RJ54 AC+DC DI O Web SNMPv3 IGMPv3

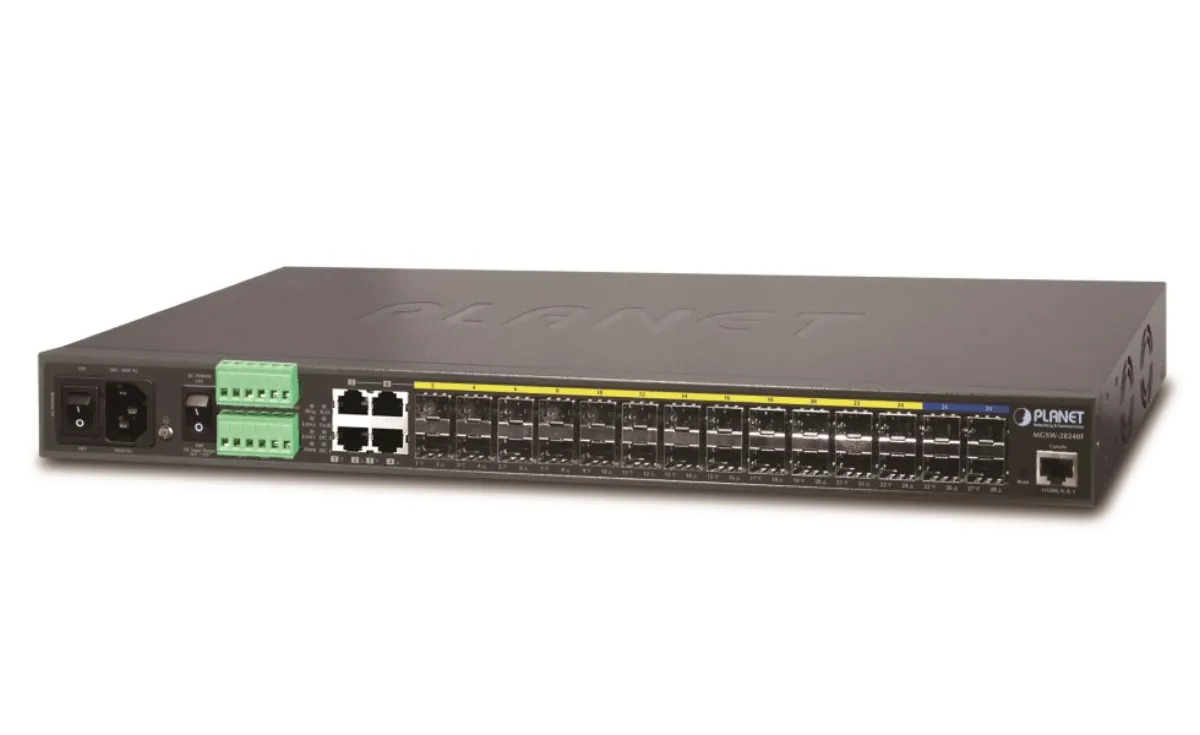

PLANET MGSW-28240F Subway

Administerable IPv4/IPv6 switch, 24x SFP 100/1000BASE-X or 100BASE-FX, 4x SFP+ 10GbBASE-SR/LR or 1000BASE-SX/LX/BX, 4x RJ-45 10/100/1000BASE-T, 2x DI+2x DO, diagnostics support DDM for SFP. VLAN 802.1Q 255 networks, IGMPv3, QoS, LACP, STP/RSTP/MSTP, DHCP Snooping, Shaper, IP+MAC binding, 802.1x RADIUS, IP/MAC-ACL, SNMP v1/v2/v3, SSH/SSL, support IPv6/IPv4, ERPS Ring - data transfer recovery time is less than 10ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching). Rackmount 19"/1U, dual AC+DC power supply.

Metropolitan SFP ten-gigabit optical switch designed for applications in the field of large-scale networks, telecommunications and for Internet service providers ISP or IPTV television. Its physical and durable construction predetermines it for direct installation in route or terminal switchboards. The device is operable in the temperature range of -10 to 60 °C, it can be powered redundantly, it has a digital I/O interface and all ports are accessible from the front panel.

Management of the switch is possible through IPv4 and IPv6 protocols, SNMPv3 and securely on the SSL/SSH encrypted layer. The function includes suitable for integration in data centers or for connection and secure operation of end users, it is possible to control traffic based on QoS, filter and authorize access via ACL (Access Control List), physically activate ports based on authentication on a RADIUS server by the IEEE protocol 802.1x.

Ports

• 24 x SFP 100/1000BASE-X or 100BASE-FX
• 4 x SFP+ 10GbBASE-SR/LR or 1000BASE-SX/LX/BX
• 4 x RJ-45 10/100/1000BASE-T
• 2 x digital input
• 1 x RJ-45 (RS-232) console serial port

Memory

• 16k MAC addresses
• 32 Mb buffer

Throughput

• 128 Gbps bus
• operational 95.2 Mpps (64B)

Transmission Support: JumboFrame 10K

IP protocol version

• IPv4
• IPv6

Design: rackmount 1U

Power supply

• internal dual source AC 100 - 240 V/50 - 60 Hz
• DC 36 - 60 V
• total power consumption up to 38.7 W

Protection

• ESD up to 6 KV DC
• EFT up to 6 KV DC

Operating temperature: -10°C - 60°C

Dimensions: 440 x 200 x 44.5 mm

Administration functions

Administration

• console via RS232
• Telnet
• Web
• SSHv2
• SSL
• TLS
• SNMP v1
• v2c
• v3

Access control

• IP and MAC based ACL protocol
• up to 256 rules

L3 static routing

• 128 rules
• 128 VLAN interfaces
• OSPFv2

Prioritization of QoS traffic

• 8 levels
• traffic prioritization according to 802.1p
• DSCP/ToS in IP packet
• or 802.1Q VLAN tags

Port shaper settings in the range of 100 Kbps - 1000 Mbps

VLAN support

• IEEE 802.1Q
• up to 256 VLAN groups, up to 4096 VLAN IDs
• Private VLAN Edge (PVE)
• Q-in-Q tunneling
• Private VLAN Edge (PVE)
• MAC-based VLAN
• Protocol-based VLAN
• Voice VLAN
• IP Subnet-based VLAN
• Multicast VLAN registration
• GVRP

Spanning Tree Protocol

• STP protocol, IEEE 802.1d Spanning Tree protocol
• RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
• MSTP protocol, IEEE 802.1s Rapid Spanning Tree protocol

Port mirroring

• TX
• RX
• TX+RX
• multiple ports to one

Line aggregation

• IEEE 802.3ad LACP
• 16 ports in 14 groups

Multicast IGMP

• IGMP v1/v2/v3
• up to 255 groups
• IGMP querier mode support

Authentication of connected devices: IEEE 802.1x (RADIUS)

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling Diagnostics: yes

Electromagnetic compatibility (EMC)

• ČSN EN 61000-6-4 - Emissions - Industrial environment
• ČSN EN 61000-6-2 - Resistance for industrial environments
