Planet POE-163 PoE injector IEEE802.3at 30W 1000Base-T for wall
PLANET Technology | POE-163 | 4711213689345
On stock 6 pcs.
Price of goods is 33.47 €.
Weight of goods is 0.387 Kg.
Actual in cart 0 pcs.

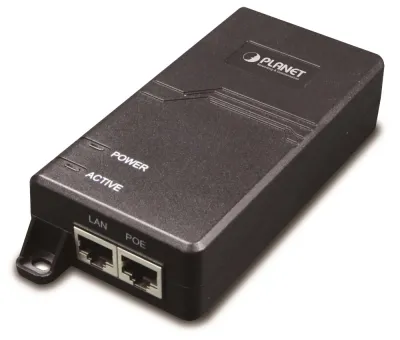

PLANET POE-163
Gigabit converter for power supply via Ethernet cable. Part for powering remote devices of the 802.3at standard (injector) up to 30W. It is installed on a wall or on a table. Internal power supply.
"Power over Ethernet Injector" IEEE 802.3at with a maximum load of 30W for powering devices via Ethernet. Designed for use with PTZ cameras, touch monitors, VoIP devices or WiFi access points. PoE power supply can also be implemented on gigabit Ethernet, supports IEEE 802.3 / 802.3u / 802.3ab, 10/100/1000Base-T.
The injector is backward compatible with the previous generation IEEE 802.3af. If the powered device does not have the possibility to be powered by means of PoE IEEE802.3at, then you will need a splitter. If you have a device that can be powered via PoE 802.3af/802.3at, you only need POE-163.
Interface
- 2 x RJ-45 10/100/1000 Mbps: 1 x Data input
- 1 x PoE output (Data + Power
Total power output
- up to 30 W
- IEEE 802.3at
Port load capacity: up to 30 W
Power supply: 52 - 56V DC
Operating temperature: 0 to 50°C
Dimensions: 115 x 62.5 x 31 mm
Weight: 185 g
| Name | Value | |
|---|---|---|
| Standard | 802.3at | |
| Device power supply | internal resource | |
| Outdoor use | No | |
| Port speed | 1 Gb/s | |
| PoE port count | 1 | |
