Planet POE-171A-60 Ultra PoE injector 802.3bt to 60W 1000Base-T desktop
PLANET Technology | POE-171A-60 | 4711605283410
On stock 1 pcs.
Price of goods is 100.59 €.
Weight of goods is 0.856 Kg.
Actual in cart 0 pcs.
PLANET POE-171A-60

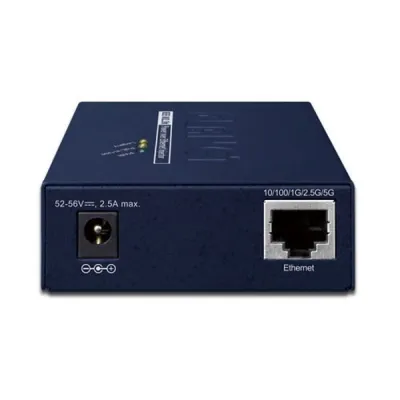

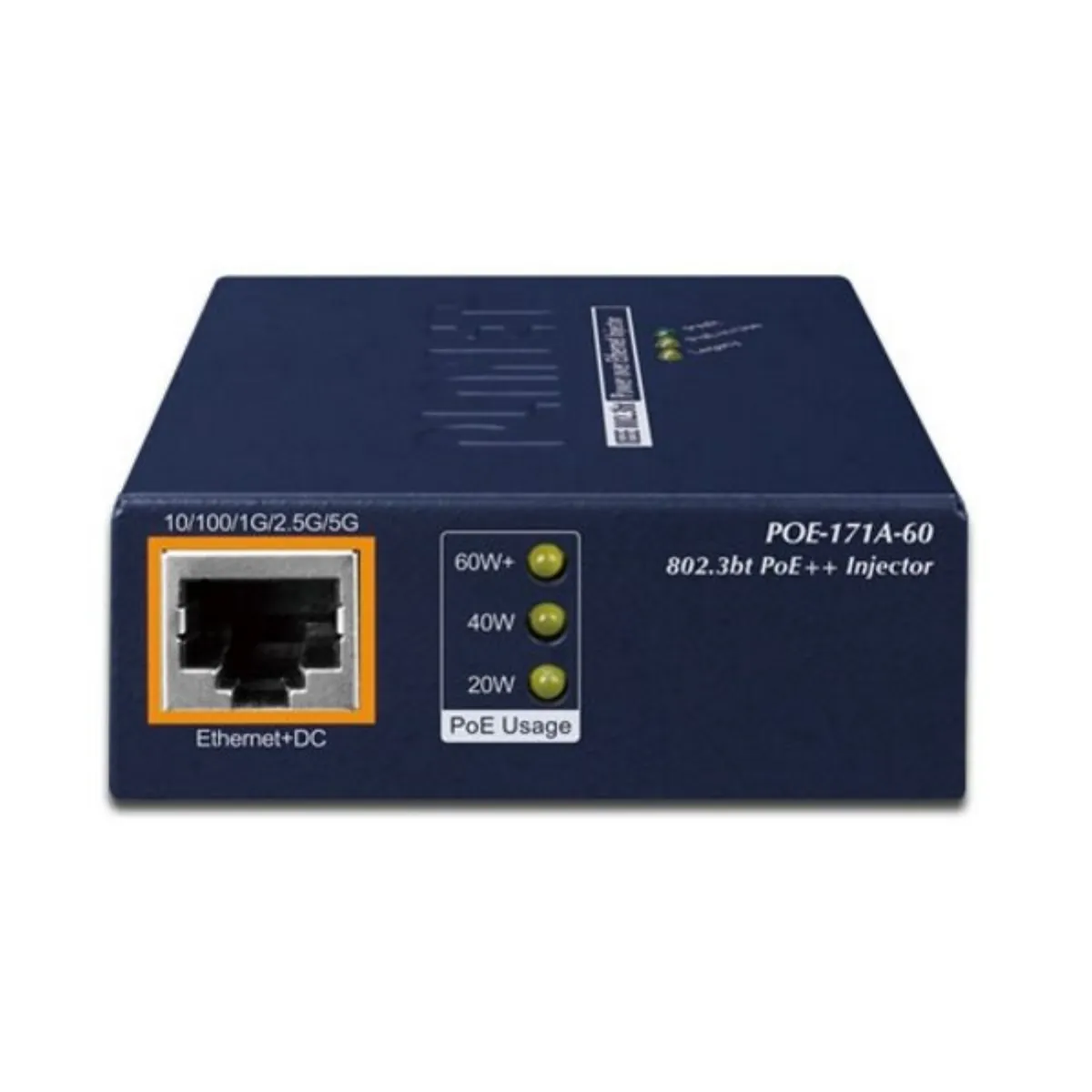

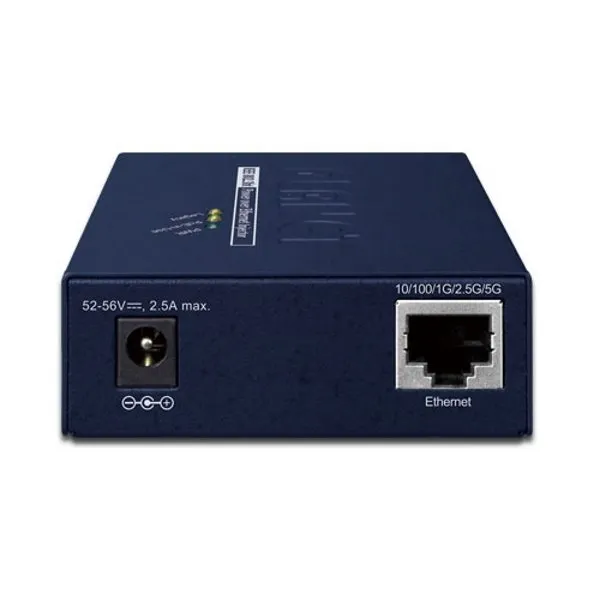

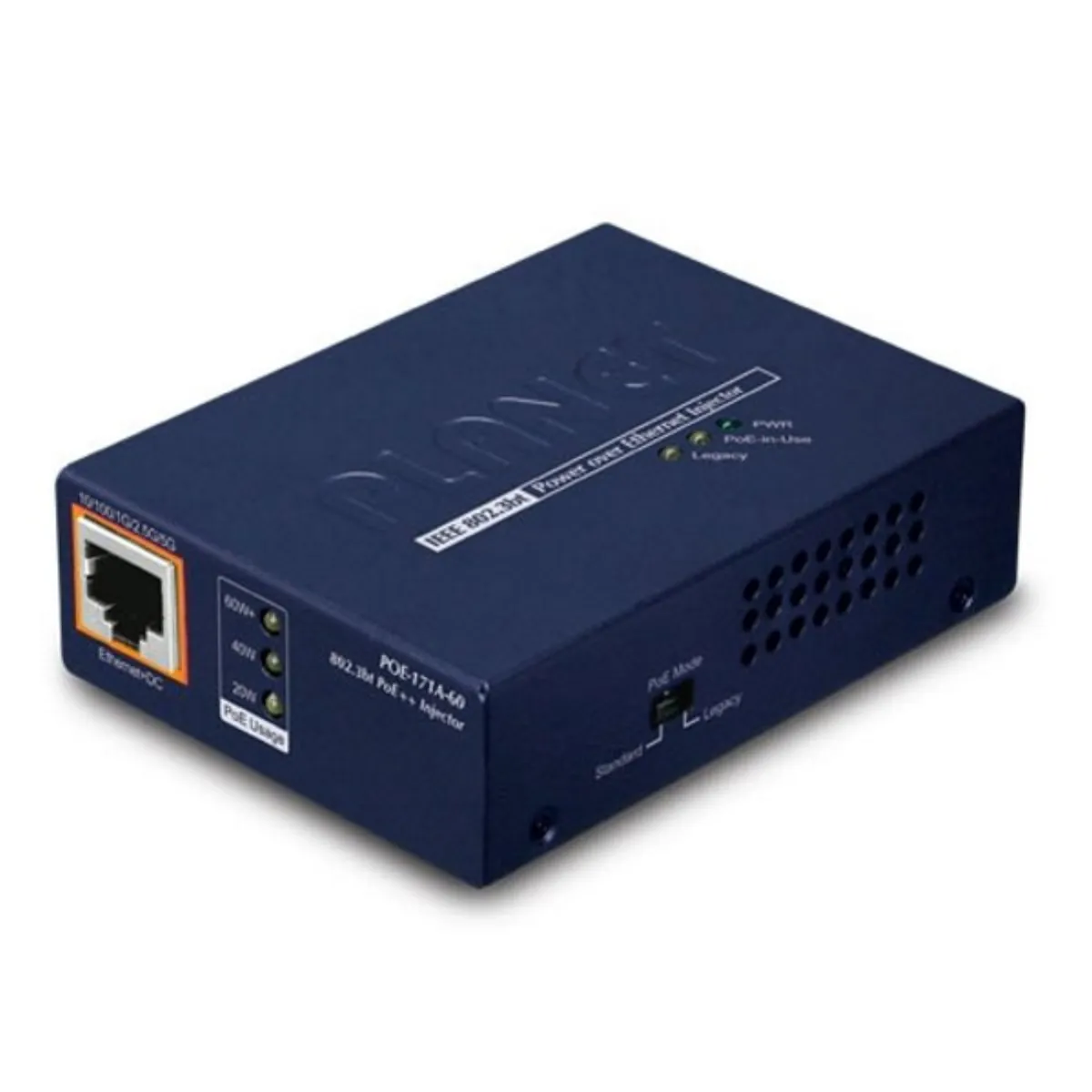

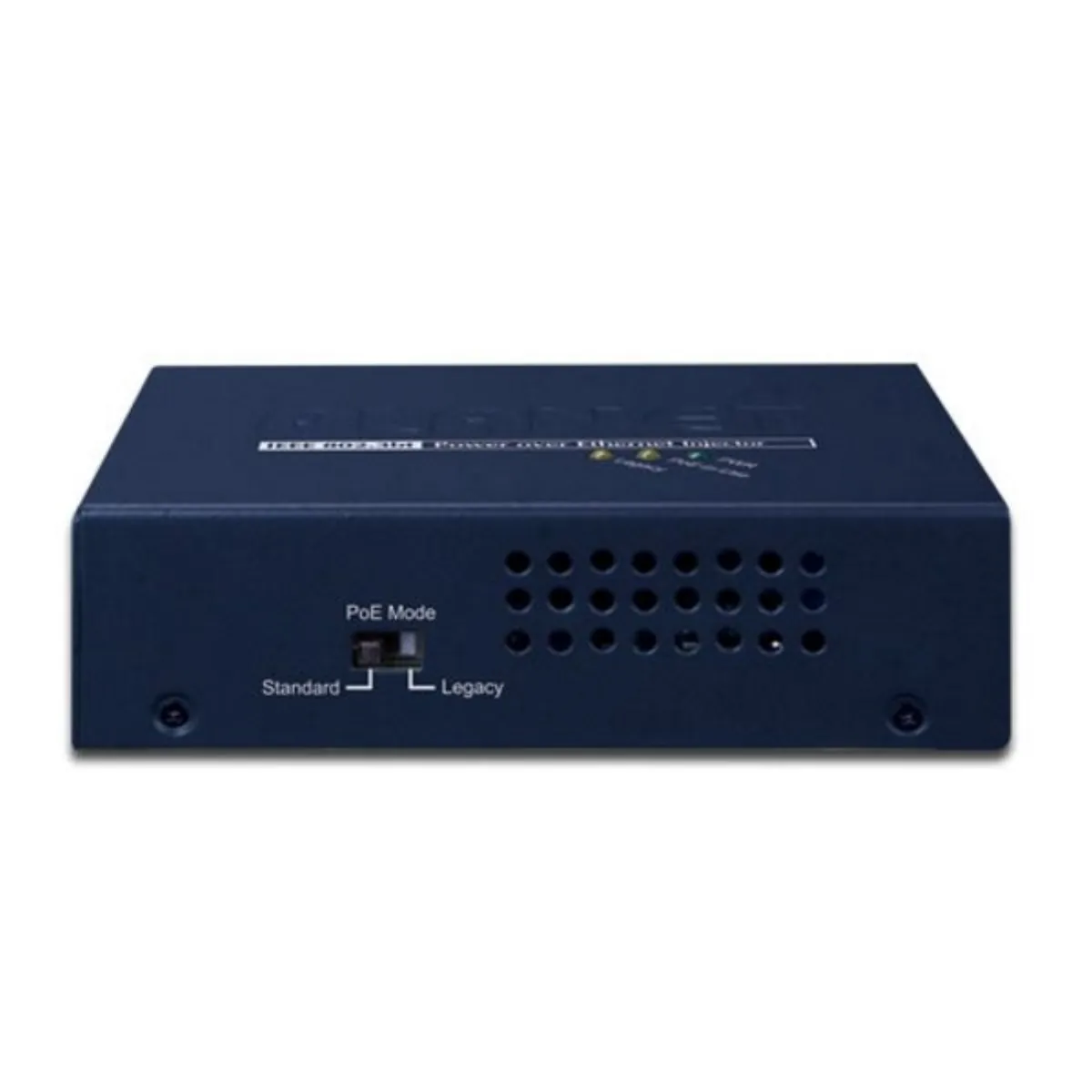

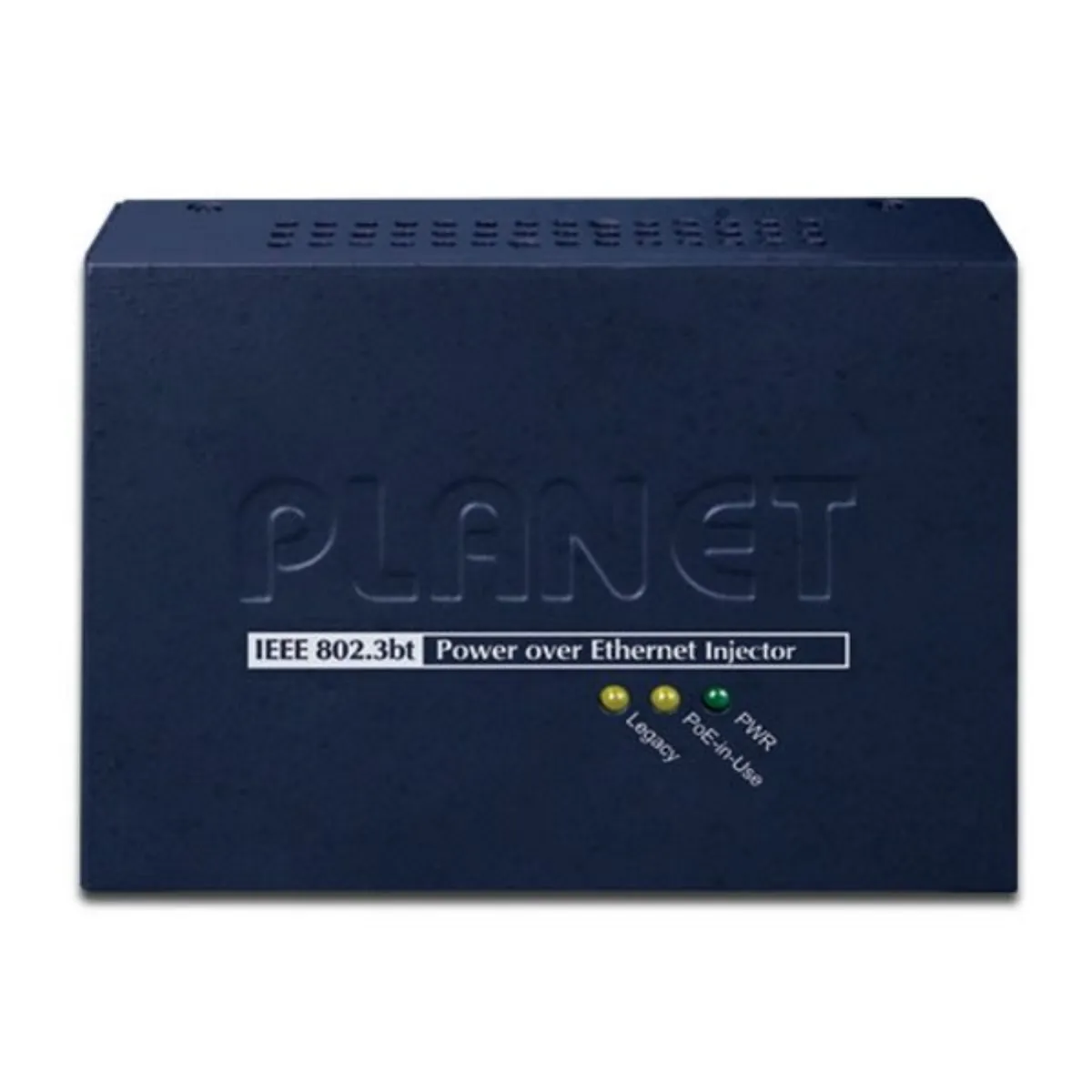

Single-port PoE injector for power supply via Ethernet cable according to IEEE 802.3bt up to 60 W. It has two 10M / 100M / 1G / 2.5G / 5GBASE-T RJ-45 copper interfaces to handle extremely large amounts of data transfer. End and Mid-span. Backwards compatible with PD IEEE 802.3af/at. Desktop or chassis, external power supply DC 52-56 V.
It is designed specifically for the increasing demands of power consumption by devices such as PTZ cameras, all-in-one computers, or other network devices requiring sufficient power supply.
The PoE-171A-60 transmits data with 56V DC power via twisted pair as a 60-watt PoE injector, and the attached POE-172S hub separates digital data and power into three selectable outputs (12V/ 19V/ 24V DC) with a distance of up to 100 meters .
Interface
- 2 x RJ-45 10/100/1000 Mbps: 1 x Data input
- 1 x PoE (Data + Power) output
Total power output
- up to 60 W
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3bz
- IEEE 802.3bt
- IEEE 802.3at
- IEEE 802.3af
Port load capacity: up to 60 W
Power supply
- 52-56 V DC
- max. 1.4 A
Operating temperature: 0 to 50 °C
Dimensions: 94 x 70.3 x 26.2 mm
Weight: 200 g
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,2 | |
| Dimension [mm] | 94 × 70,3 × 26,2 mm | |
| Standard | 802.3bt | |
| Outdoor use | No | |
| Port speed | 5 Gb/s | |
| PoE port count | 1 | |
| Design | freestanding | |
