Planet PoE switch 8x1Gb 2.5Gb + 1xSFP+ 10Gb VLAN PoE 802.3at 120W
PLANET Technology | MGS-910XP | 8592457247470
Price of goods is 153.42 €.
Weight of goods is 2.431 Kg.
Actual in cart 0 pcs.

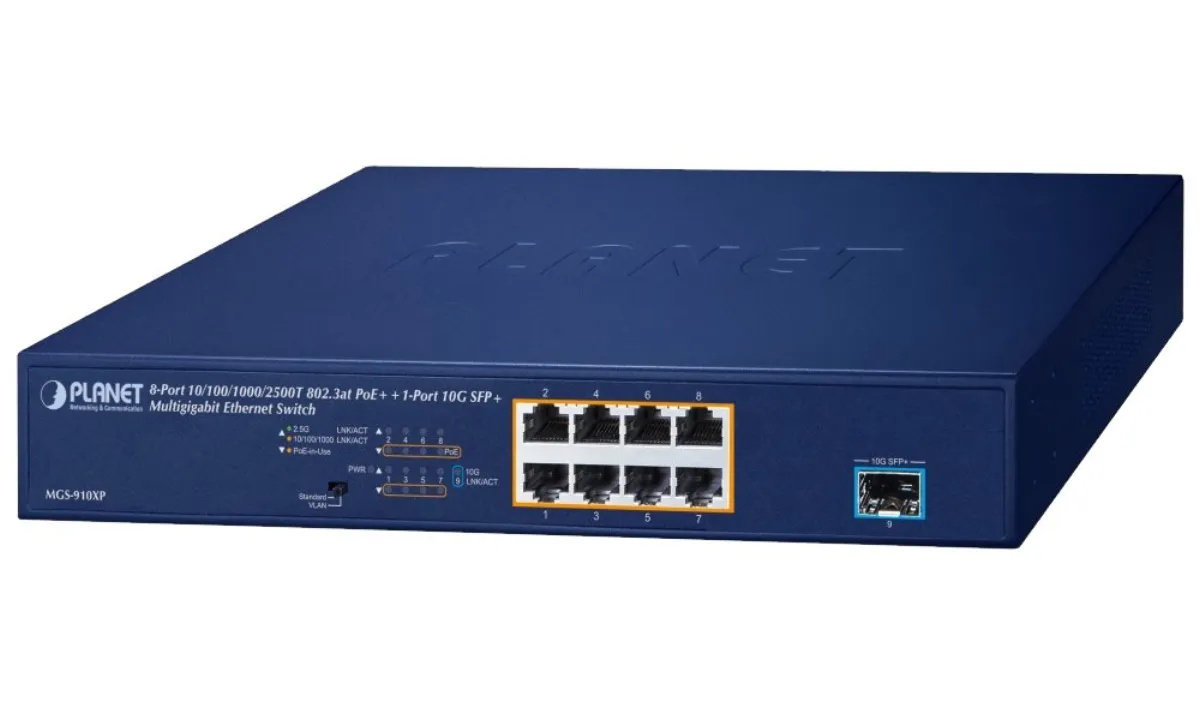

PLANET MGS-910XP
Unmanaged multi-gigabit PoE+ switch, 8× 10/100/1000/2500 Base-T RJ-45 with injectors 802.3af/at, 1× 10G Base-X SFP+, power supply up to 120 W. LED indication of the use of PoE ports, DIP switch for switching Standard/VLAN mode, power saving mechanisms according to IEEE 802.3az.
Gigabit switch with PoE+ (Power over Ethernet) ports for centralized power supply of devices via Ethernet such as IP cameras, Wi-Fi elements or VOIP phones and with the option of connecting to the infrastructure using an optical SFP+ port. The design of the device is suitable both for installation in home or office spaces and for applications in local switchboards. The output power of the PoE ports is regulated depending on the power input of the powered devices by EEE (Energy-Efficient Ethernet) mechanisms according to IEEE 802.3az.
Switch has a manual mode switch
- Standard - works like a normal switch.
- VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be avoided.
Ports
- 8× 10/100/1000/2500 Base-T RJ-45
- 1× 10G Base-X SFP
Memory: 4k MAC addresses
Throughput
- 60 Gbps bus
- operational 44.64 Mpps (64B)
Transfer support: JumboFrame 12 KB
Design: rack 1U
Power supply
- internal power supply AC 100-240 V (50-60 Hz)
- total power consumption up to 6.6 W
Protection
- surge protection up to 6 kV
- ESD up to 8 kV
Operating temperature: 0 to +50 °C
Dimensions: 280 x 180 x 44 mm
Weight: 1.739 kg
PoE function
- 120 W
- IEEE 802.3af
- IEEE 802.3a
Number of injectors: 8× to 32 W
Power type: End-span
Advanced features
- protection (circuit) against interference between ports
- automatic detection of powered equipment
| Name | Value | |
|---|---|---|
| Color | blue | |
| Input voltage [V] | 100 - 240 (AC) | |
| Dimension [mm] | 280 × 180 × 44 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 50 | |
| PoE support | Yes | |
| SFP+ count | 1 | |
| Standard | 802.3at | |
| MicroSD card support | No | |
| Device power supply | internal resource | |
| Conformity | CE, FCC | |
| OSI Layer | L2 | |
| PoE output | 802.3af/at | |
| Port speed | 2,5 Gb/s + 10 Gb/s | |
| PoE properties | PD alive | |
| Bus capacity (GBps) [Gbps] | 60 | |
| Management | No | |
| PoE output count | 8 | |
| Design | rack 19" | |
