Planet SGS-6310-24T4X L3 switch 24x1Gb 4x10Gb SFP+ HW IP stack VSF Cluster switch

PLANET SGS-6310-24T4X

Stackable managed L3 switch, 24x RJ-45 10/100/1000 Base-T, 4x 10G SFP+ Base-SR/LR, 1x RJ-45 (RS-232) console port . IPv4/IPv6 static routing on 3. layer, dynamic routing using RIP (Routing Information Protocol) or OSPF (Open Shortest Path First), virtual and HW stacking, ERPS Ring - data transfer recovery time is less than 10 ms (ITU-T G.8032 ERPS Ethernet Ring Protection Switching). Q-in-Q, VLAN, Multiple Spanning Tree, MSTP, MLD, LACP, IGMP, QoS, LLDP, ACL - Access Control List, DHCP Snooping, IP Source Guard, Dynamic ARP, SNMP, 802.1x, RADIUS/TACACS+, SFP - DDM (Digital Diagnostic Monitor). Management - console/Telnet/web/SNMP v1/v2c, support SSH v1/v2, TLS v1.2 and SNMP v3, capacity 128 Gbps, routing 95.23 Mpps, Rackmount 19" (1U), fanless design (without fans), power supply AC 100-240 V (50/60 Hz).

• Hardware Stacking - virtualization into one logical volume/system, 10G SFP+ interface, stack management using one IP address, support of up to 8 hardware units
• IP routing - supports RIP v1/v2 and OSPF v2 (IPv4) + RIPng and OSPFv3 (IPv6), VRRP v1/v3 protocols for redundant routing deployment, route redistribution, hardware VLAN routing

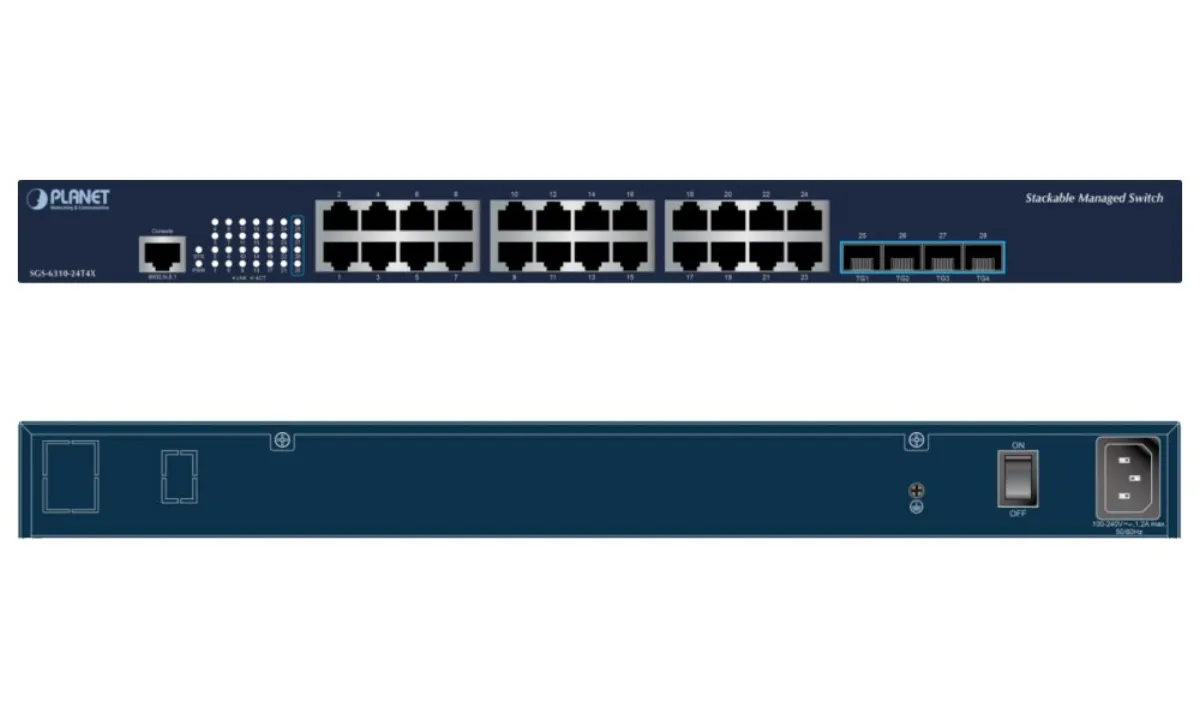

Ports

• 24x RJ-45 10/100/1000 Base-T
• 4x SFP+ 10G Base-SR/LR (backwards compatible with 1000 Base-SX/LX/BX)
• 1x RJ-45 (RS-232) console por

Memory

• 16k MAC addresses
• buffer 1.5 MB

Throughput

• 128 Gbps bus
• operational 95.23 Mpps (64b)

Transfer Support: JumboFrame 9KB

IP protocol version

• IPv4
• IPv6

Design: rackmount 1U

Power supply

• source AC 100-240 V (50/60 Hz)
• total power consumption up to 35 W

Protection: no

Operating temperature: 0 to +50 °C

Dimensions: 440 x 180 x 44 mm

Weight: 2600 g

Administration

• console via RJ-45
• Telnet
• Web
• SNMP v1/v2c + SSH v1/v2 support
• TLS v1.2 and SNMP

Access Control: ACL protocol based on IP/MAC or time

L3 routing

• yes
• static and dynamic routing

ACL filter and bonding

• IP ACL, traffic filtering by IP address
• MAC ACL, traffic filtering according to MAC address
• Time ACL, traffic filtering by time

Prioritization of QoS traffic

• 8 priority queues on all ports
• traffic prioritization according to IEEE 802.1p and according to ToS/DS in the IP packet
• CAR
• HQoS
• MAC/IP/TCP/UDP
• IPv4/IPv6 DSCPs
• supports strict priorities and Weighted Round Robin (WRR) policies
• Tail-Drop
• WRED
• flow monitoring and traffic profiling

VLAN support

• VLAN with 802.1Q tags, up to 4K VLAN groups
• 802.1ad Q-in-Q tunneling (VLAN stacking)
• GVRP for VLAN management
• Private VLAN Edge (PVE)
• Protocol based VLAN
• MAC based VLAN
• VLAN with IP subnet (subnet)

Spanning Tree Protocol

• STP protocol, IEEE 802.1d Spanning Tree protocol
• RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
• MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol
• BPDU and root guard support

Port mirroring

• RX
• TX
• RX+TX
• many to one
• one to one

Line aggregation

• IEEE 802.3ad LACP/static trunk
• 64 groups with 8 ports per group

Multicast IGMP

• IGMP v1/v2/v3 snooping
• IGMP querier mode support
• MLD v1 support
• MVR support
• up to 1024 multicast groups (IPv4 + IPv6)

Connected device authentication: AAA TACACS+ and IPv4/IPv6 authentication over RADIUS (port/MAC based 802.1x access control + RADIUS/TACACS authentication)

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling diagnostics

• yes
• SFP-DDM (Digital Diagnostic Monitor)
