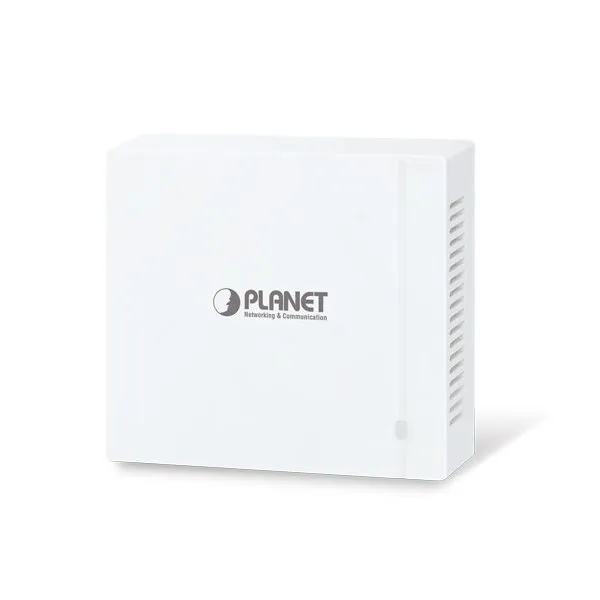

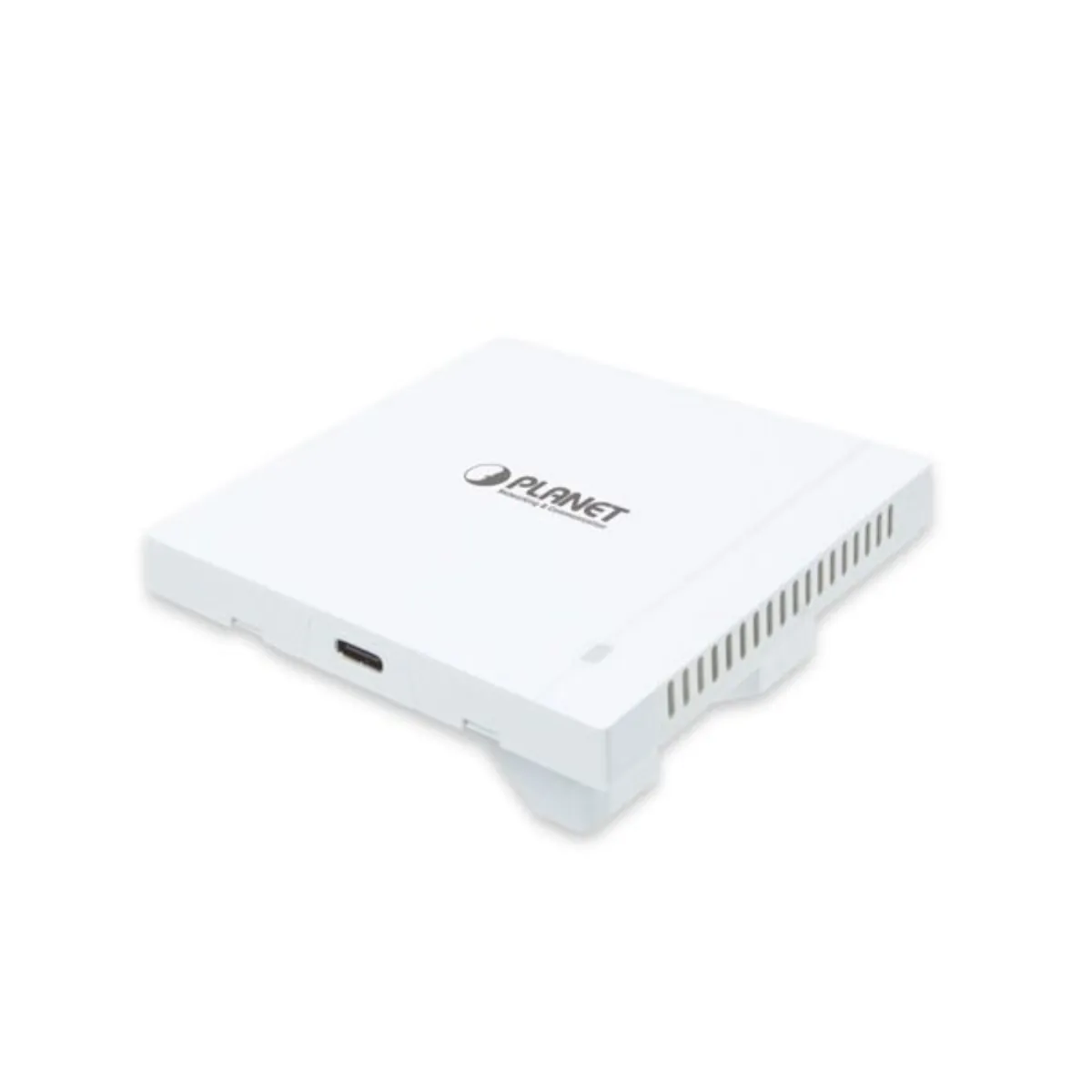

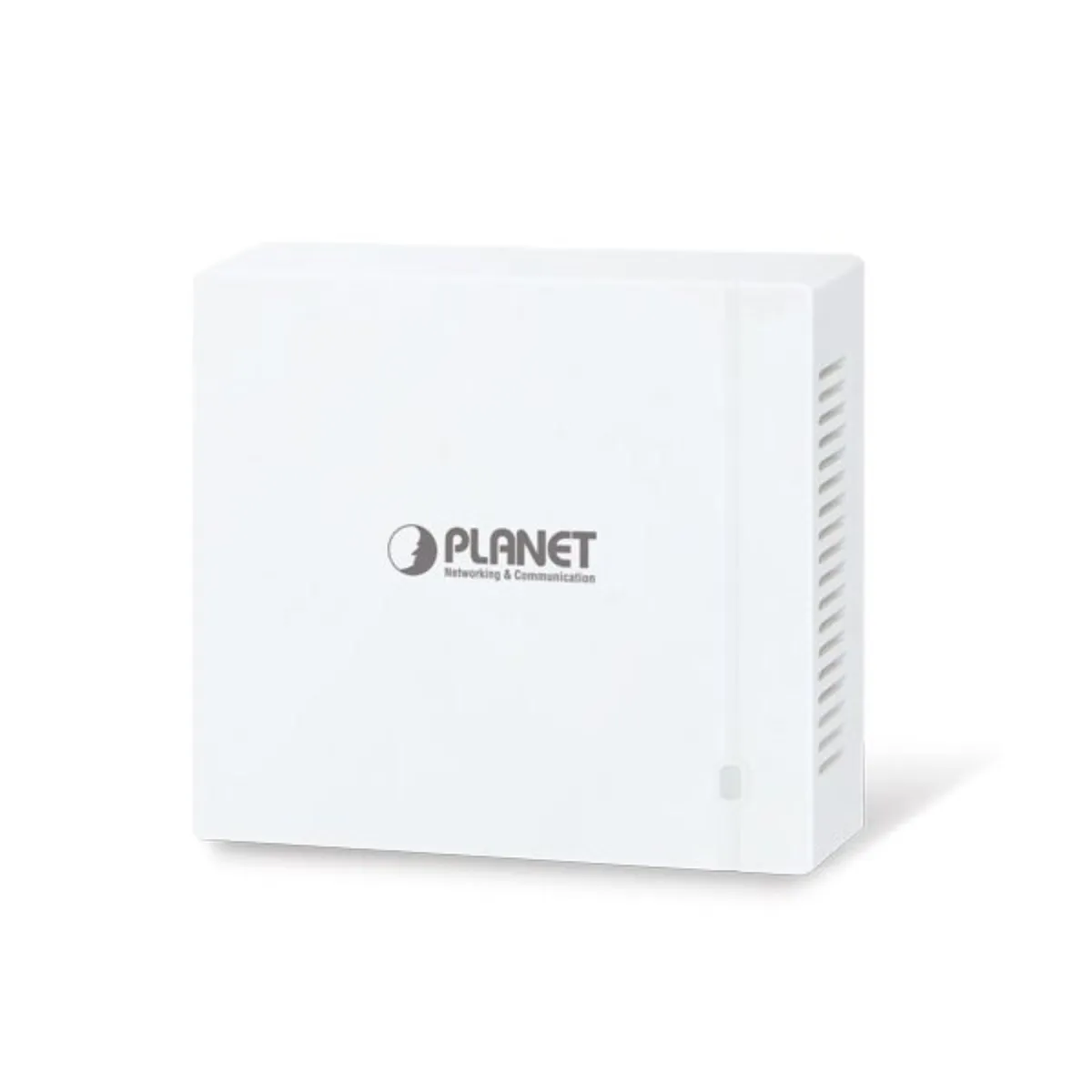

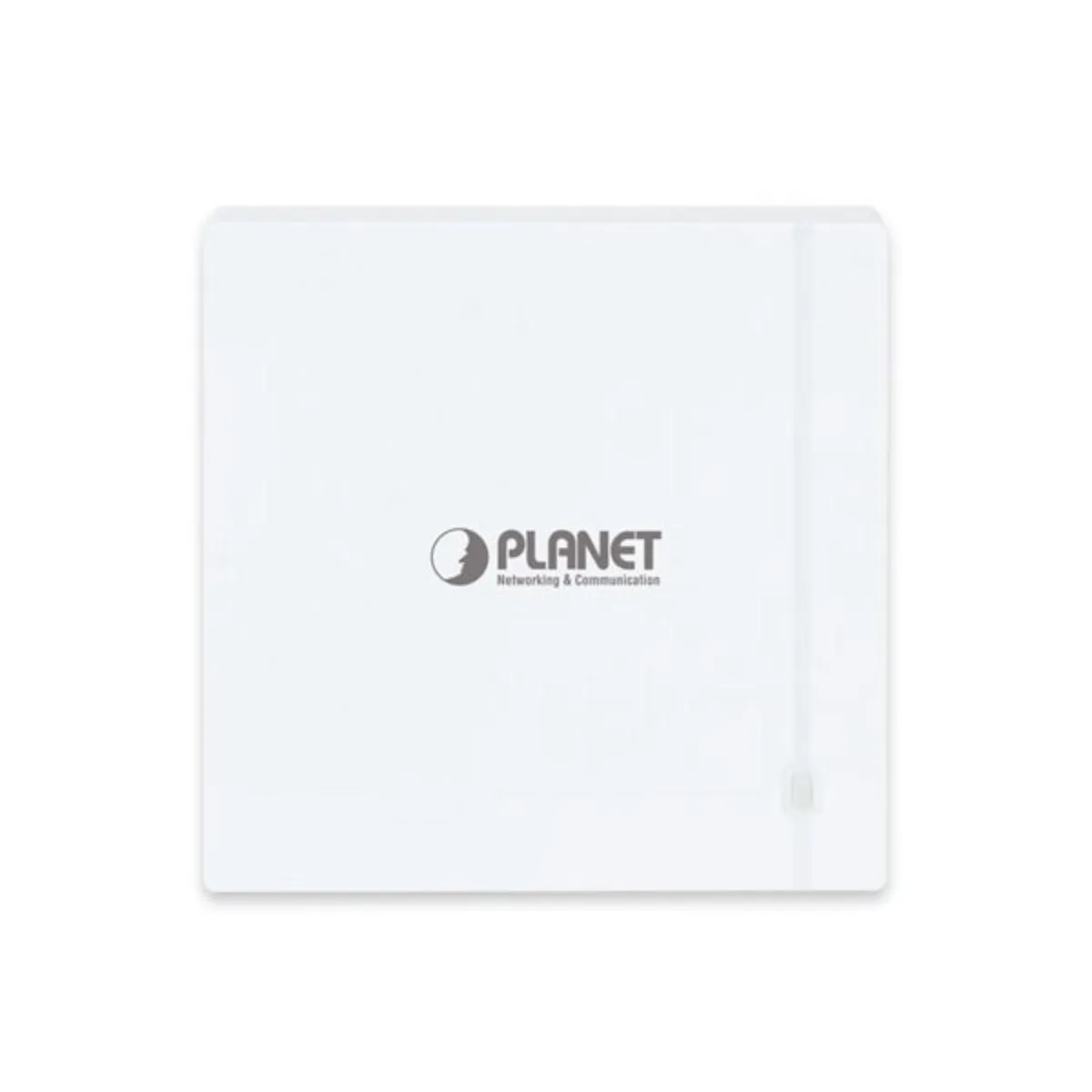

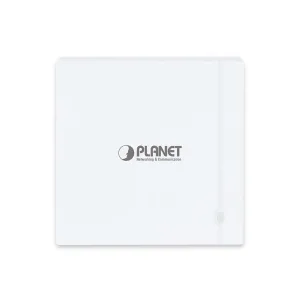

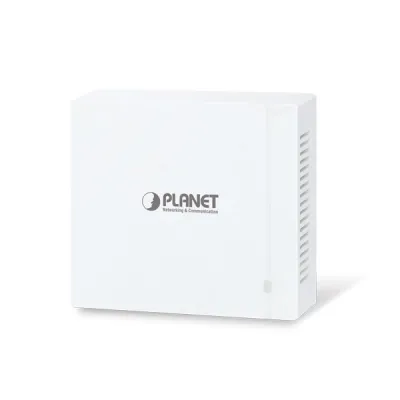

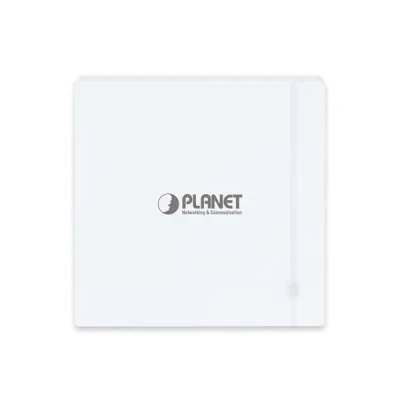

PLANET WDAP-W1800AXU

Dual-band Wi-Fi 6 (802.11ax) access point with support for central management via NMS controller. It works on the 2.4 GHz and 5 GHz frequency of the 802.11a/b/g/n/ac/ax standard and therefore offers a speed of up to 1800 Mbps. Four integrated antennas with a gain of 2 dBi and 802.11ax support are enough for complete coverage of office or other premises. Advanced security thanks to encrypted data transfer according to WPA/WPA2/WPA3 protocols effectively prevents eavesdropping by unauthorized users. The unit is powered via PoE+ 802.3at and has a 5 V (0.5 A) USB-C charging port, e.g. for a phone or other device.

Key properties

• Compliant with IEEE 802.11a/b/g/n/ac/ax wireless technology
• 802.11ax 2T2R architecture with transmission speed up to 1800 Mb/s (600 Mb/s in the 2.4 GHz band and 1200 Mb/s in the 5 GHz band)
• PoE+ 802.3at power supply + USB Type C port (5 V; 0.5 A) for charging
• High output power with multiple adjustable transmission power regulation
• Multiple operating modes: AP, Gateway and Repeater
• Support OFDMA, MU-MIMO, Beamforming and BSS Coloring functions
• WMM (Wi-Fi multimedia) gives higher priority to multimedia transmitted over the wireless network
• Terminal roaming support with 802.11k, 802.11v and 802.11r
• WPA3 encryption support
• 802.1Q port VLAN, IP/port/MAC/URL filtering, DoS, SPI firewall, DMZ, port forwarding
• Bandwidth control by IP address to increase network stability
• PLANET controller support
• PLANET DDNS/Easy DDNS, Captive Portal, RADIUS Server/Client
• PLANET Smart Discovery Utility, NMS and CloudViewer for management
• Possible monitoring of the router with the CloudViewer mobile application

Properties

Wi-Fi standard and transmission support: IEEE 802.11a/b/g/n/ac/ax with speed up to 1800 Mb/

Ports

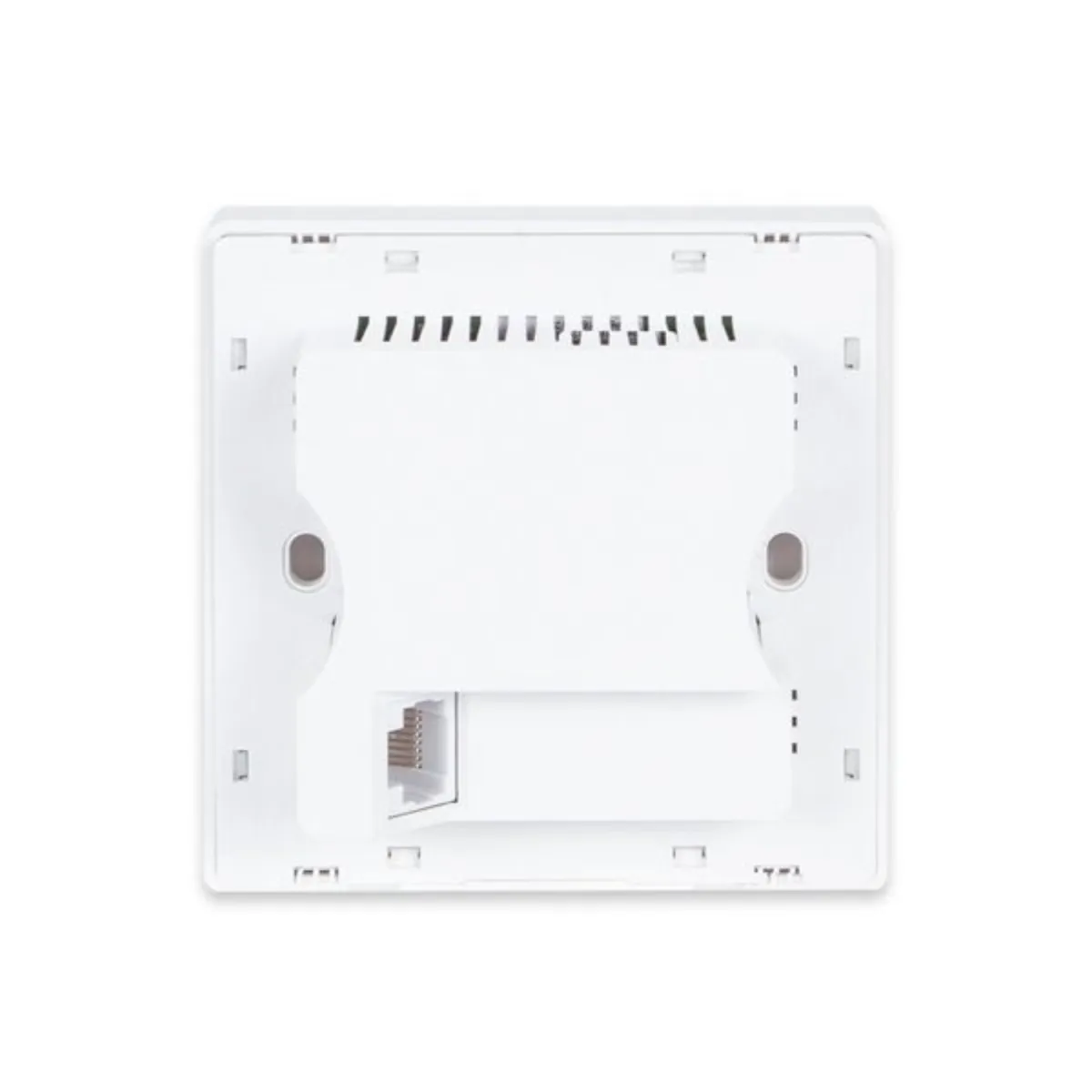

• 1x GbE RJ-45 (LAN/WAN)

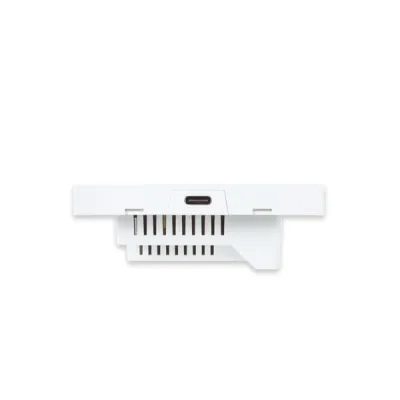

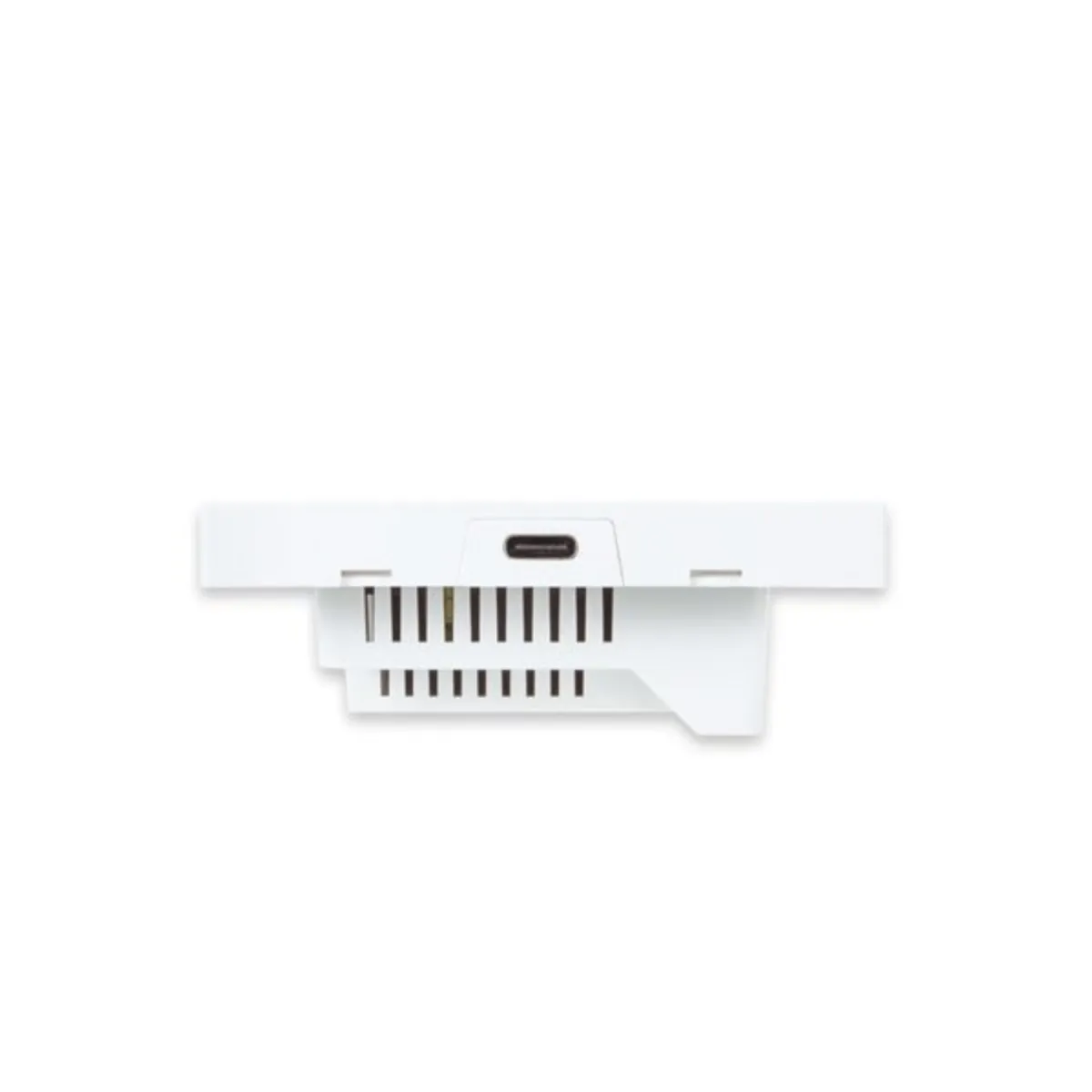

• 1x USB type C (charging)

Antenna

• integrated
• 4x 2 dBi

Operating frequency: 2.4 GHz and 5 GHz

Security

• WPA
• WPA2
• WPA3 (Personal
• AES
• TKIP
• AES+TKIP
• Enterprise)

Wireless modes

• Access point
• gate
• repeater

Transmission speed: 1800 Mbps (600 Mbps 2.4 GHz + 1200 Mbps 5 GHz)

Transmission power

• up to 19 dBm (EIRP)
• up to 20 dBm (FCC)

Power supply

• PoE+ 802.3at (DC 48 V (0.5 A))
• power consumption up to 14 W

Dimensions: 86 x 86 x 35 mm

Weight: 140 g

2.4 GH

• FCC: 2412-2462 MHz
• ETSI: 2412-2472 MHz

5 GHz

• FCC: 5180-5240 MHz, 5745-5825 MHz
• ETSI: 5180-5700 MHz

Wi-Fi standard

• IEEE 802.11a/b/g/n/ac/ax
• 802.11k
• 802.11v
• 802.11r

LAN standard

• IEEE 802.3 10Base-T
• 802.3u 100Base-TX
• 802.3ab 1000Base-T
• IEEE 802.3x flow control

Multiple SSIDs

• yes
• 8 (4/transmitter)

VLAN support

• yes
• IEEE 802.1Q
• SSID to VLAN mapping (up to 4 SSIDs)

Maximum number of clients

• 150 (recommended 100
• depending on use)

ACL (access control list) and MAC filters: MAC address filtering

Internal diagnostics (PING): no
