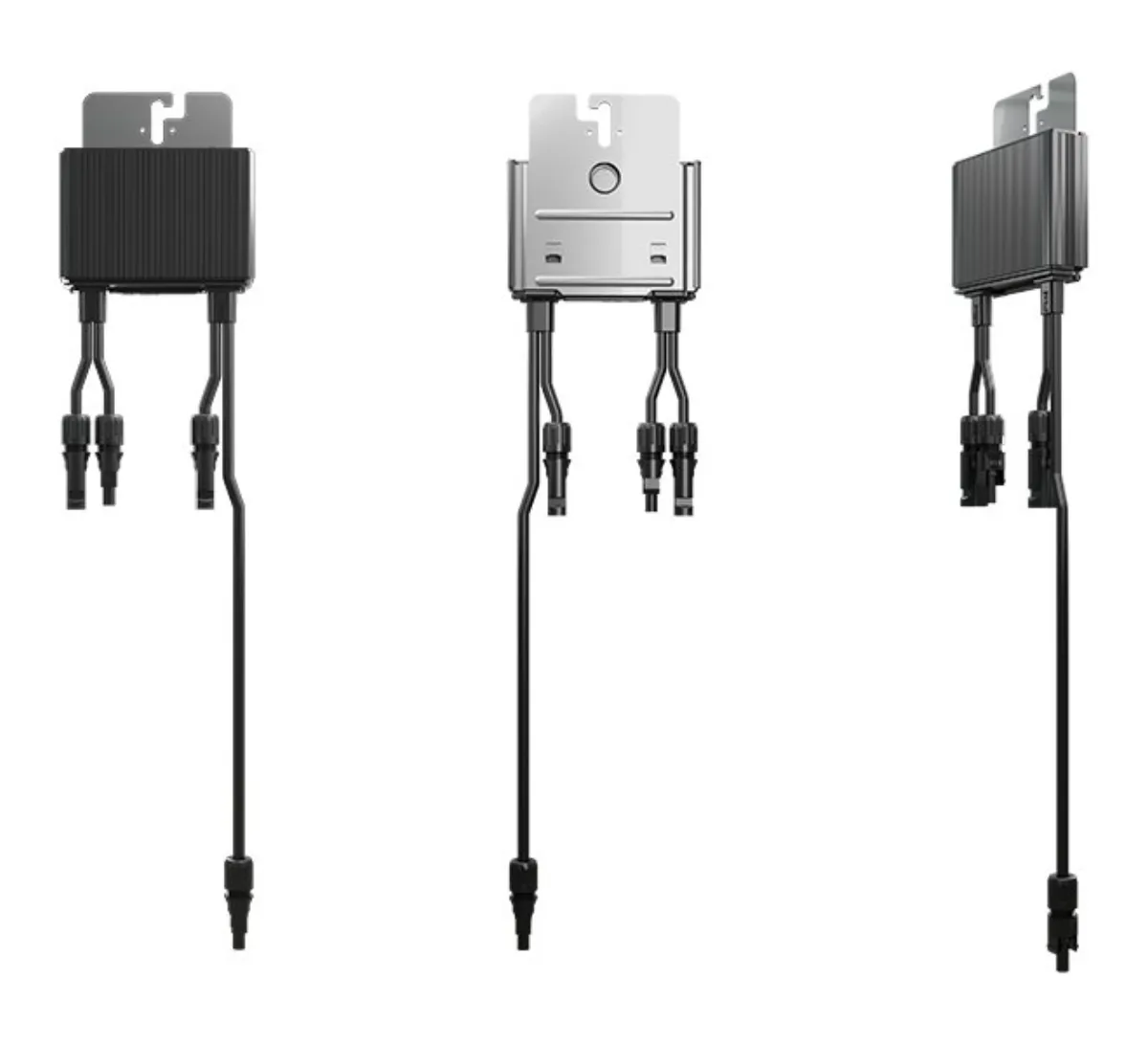

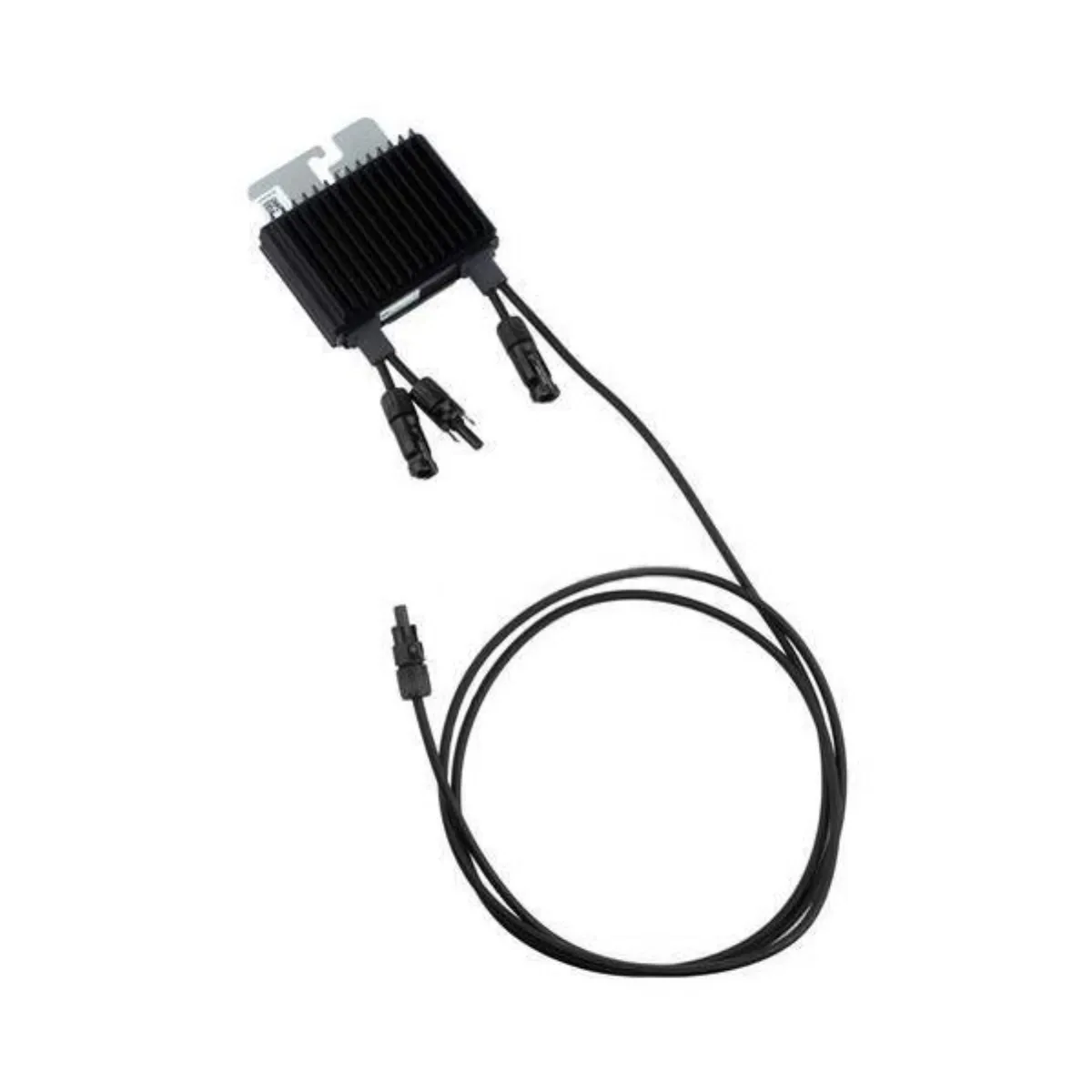

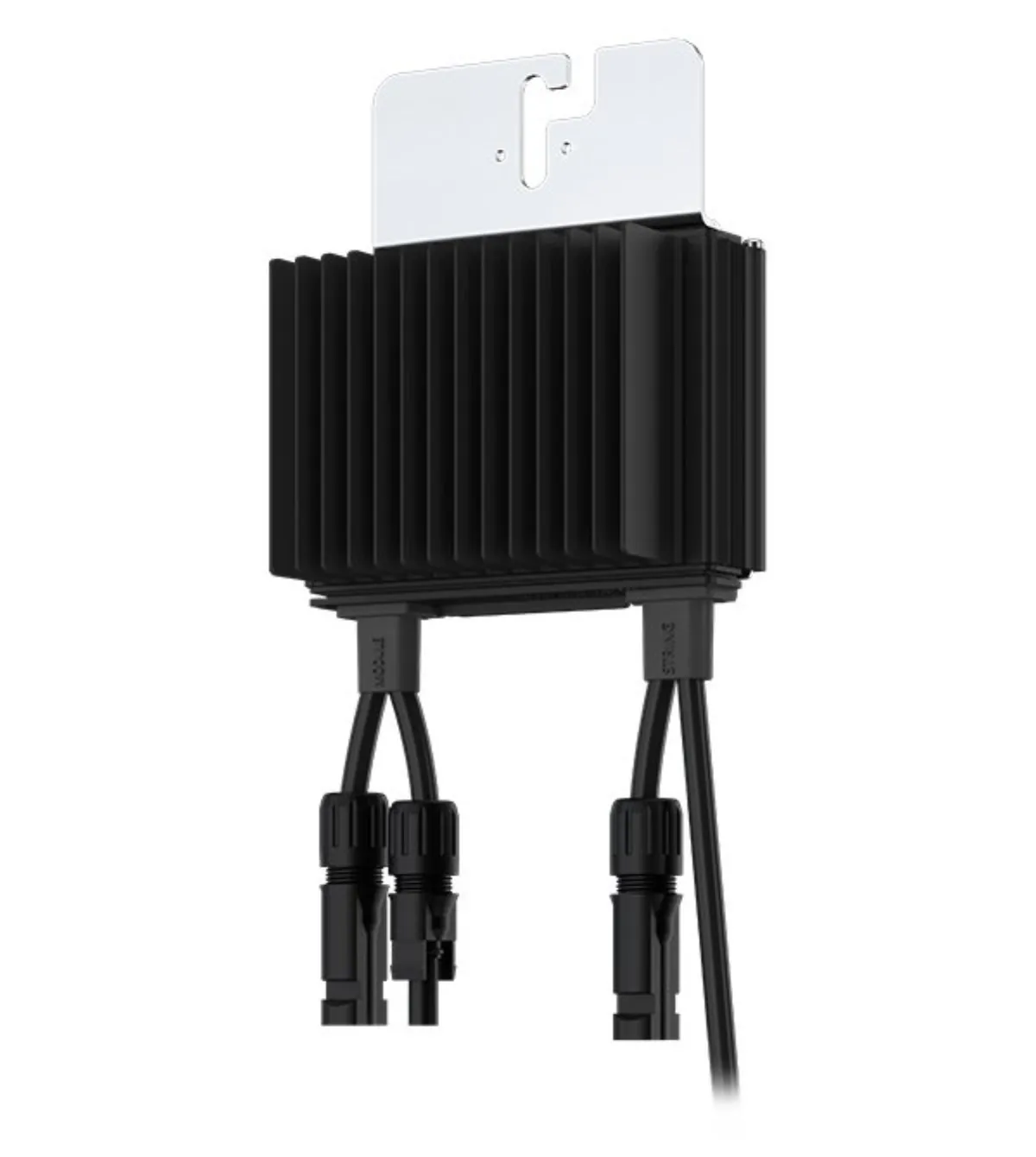

SolarEdge S500B-1GM4MRM Optimizer panels up to 500W MPPT 125-105V

SolarEdge S500B-1GM4MRM

SolarEdge S500B Power Optimizer for solar panels up to 500W with high voltage and/or shorter strings. Optimizers help you get the most out of your SolarEdge PV system.

Advantages of SolarEdge optimizers

• Maximum performance at panel level
• The entire string is not affected by shading
• Continuous monitoring of MPP
• Monitoring is possible on the basis of individual panels
• Higher performance with shading and different orientations
• Panels of different performance classes can be combined without loss
• Detects abnormal behavior of photovoltaic connectors, prevents possible safety problems

Features of S500B optimizers

• Working range MPPT 12.5-105 V
• Panels up to 500 W
• 15 A max. short-circuit current
• Easy installation thanks to the MC4 connection
• Input cable 0.1 m
• Output cable 2.3 m
• The SafeDC function automatically reduces the voltage to 1V per panel in the event of a fault
• Easy mounting on the substructure using a hammer head screw
• Compatible with all SolarEdge inverters
• It is not allowed to mix S and P series performance optimizers in new installations
• Min. 6 optimizers per string for single-phase inverters
• Min. 14 optimizers per string for three-phase inverters
• Min. 14 optimizers per string for three-phase inverters and 277/480 V network

Losses of entire string power due to shielding or different orientation are a thing of the past with SolarEdge power optimizers. With panel-level MPP tracking, each panel is controlled independently, allowing the string to deliver the maximum power available. S500B optimizers are characterized by simple installation and maximum performance can be realized with them

Rated DC input power: 500

Absolute Max Input Voltage (Voc) 125V

MPPT Operating Range: 12.5 - 105V

Maximum short-circuit current (Isc) of the connected PV panel: 15 A

Input and output connectors: MC4

Efficiency: 98.6% (max. 99.5%)

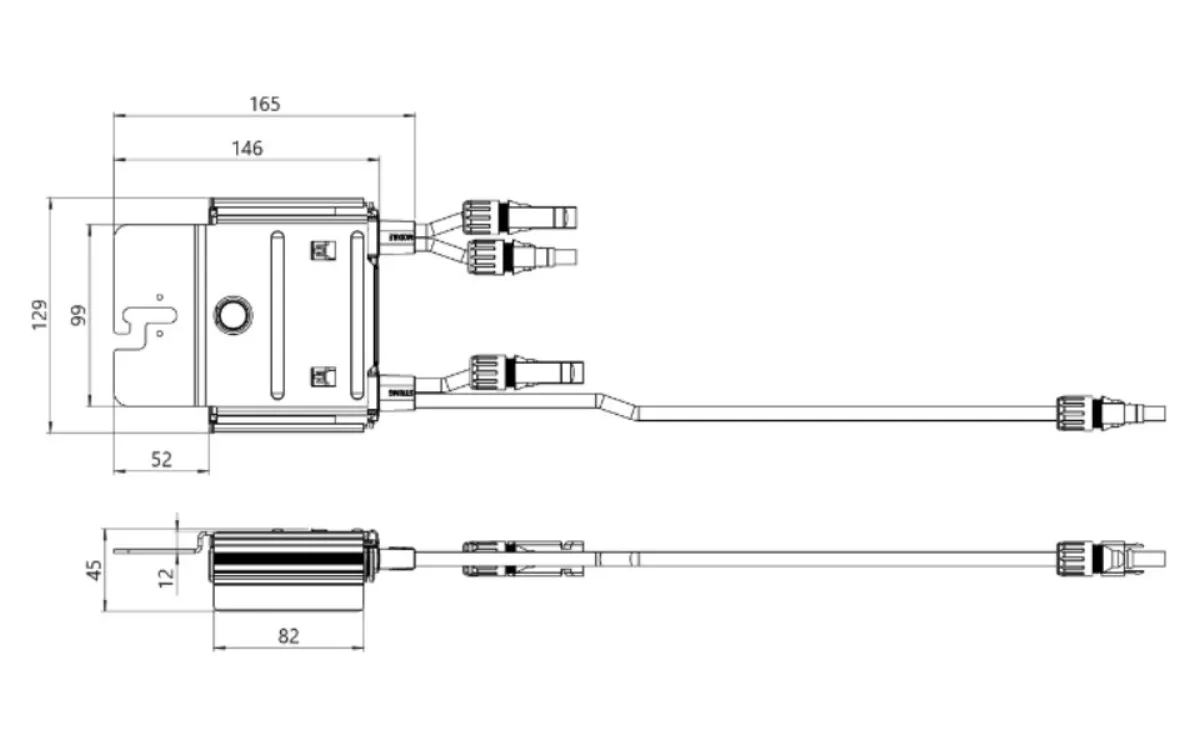

Dimensions: 165 x 129 x 45 mm

Weight: 790 g
