Solarix cabinet SOHO LC-18 with rails 2U 4U and 11U 550x550x150mm gray RAL 7035

Solarix switchboard SOHO LC-18

The modern wall-mounted Solarix LC-18 data switchboard is intended for the installation of network cabling elements of a smaller scale, or for the installation of telecommunication distribution elements.

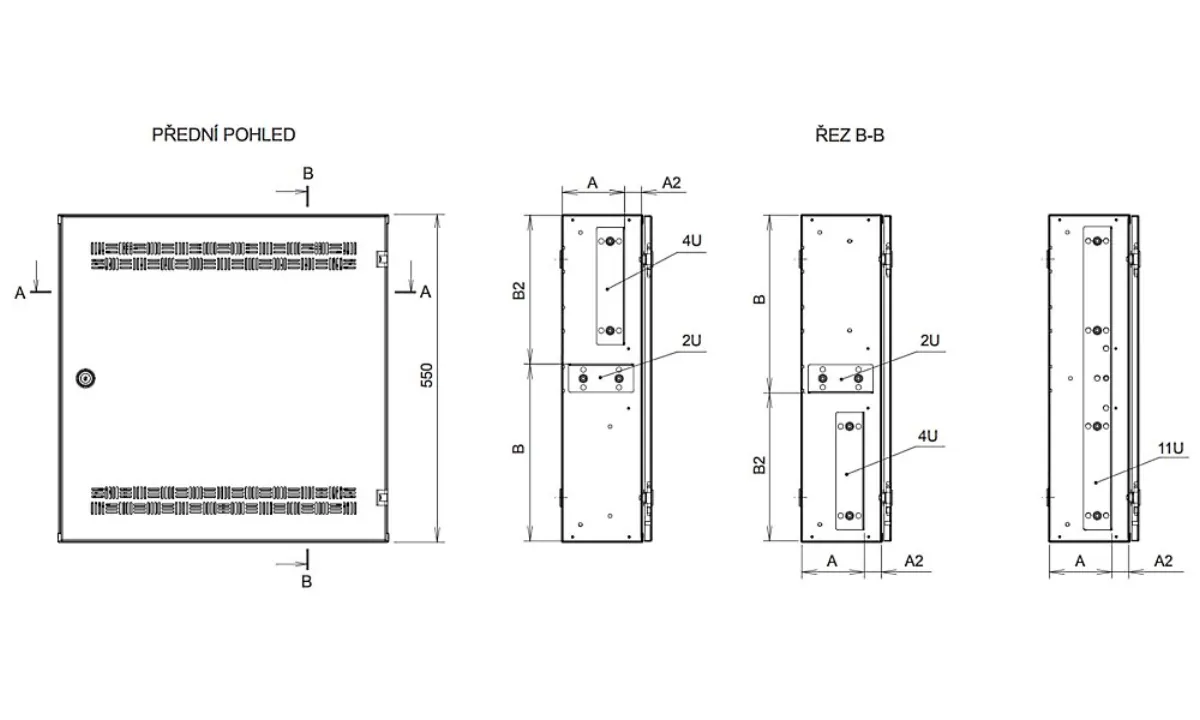

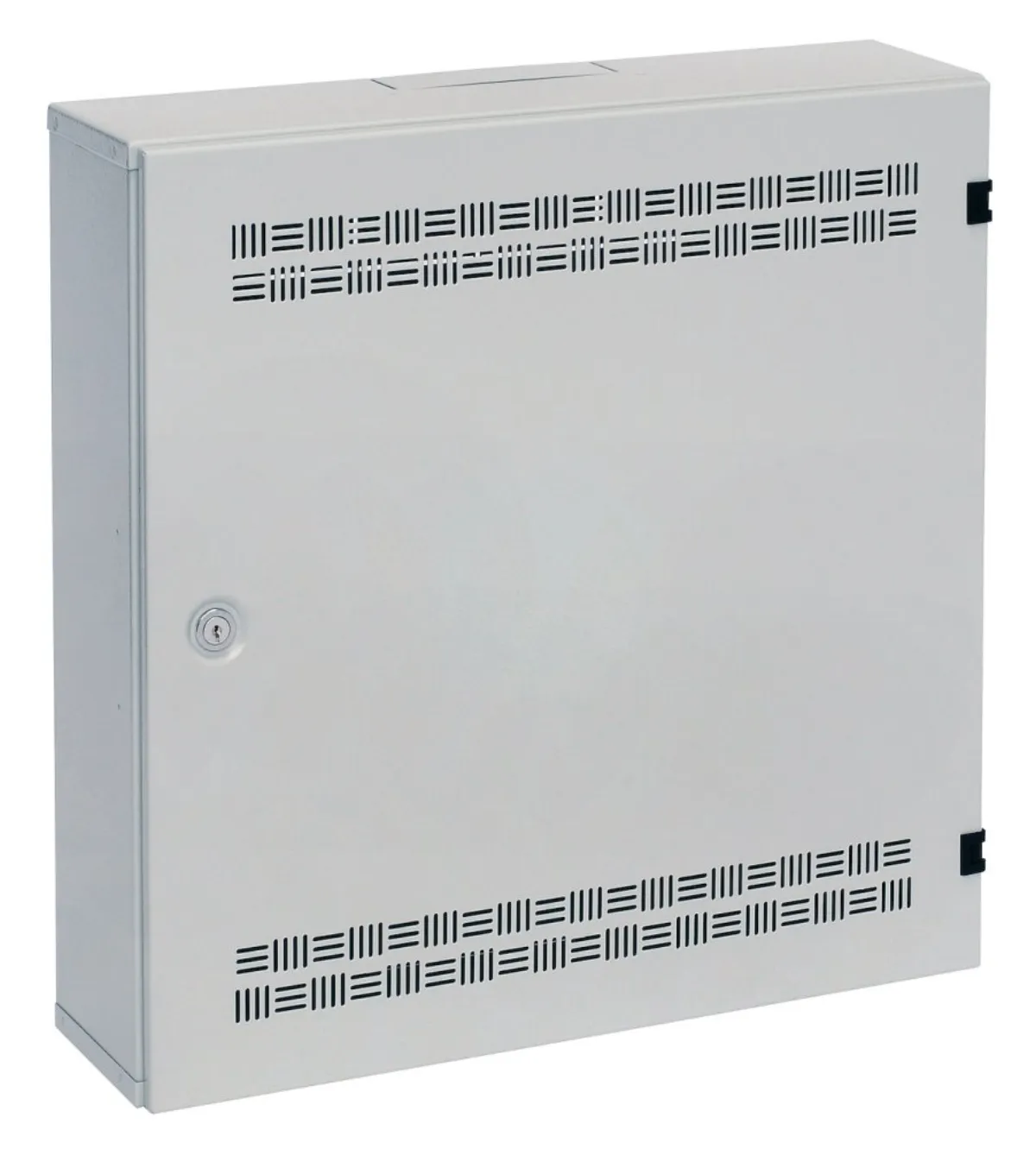

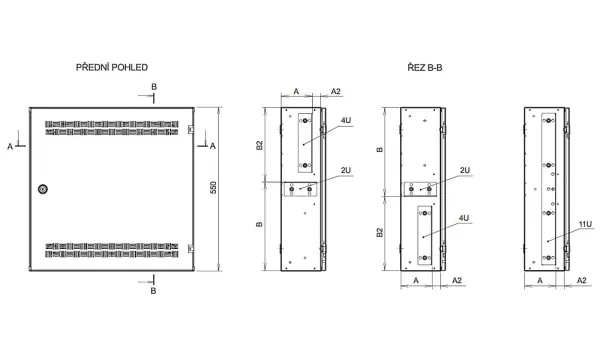

The Solarix LC-18 switchboard consists of a skeleton that is characterized by great strength and rigidity. From the front, the cabinet is equipped with a metal door with two hinges and a metal lock with a patent key. These sheet metal doors are supplemented with perforations, for passive ventilation of the equipment located in the switchboard. Cable entry is possible through pre-prepared holes in the back and in all walls of the cabinet. In the rear part of the switchboard, there are holes for mounting on the wall. 19" frames have dimensions of 4U and 11U in the vertical direction and 2U in the horizontal direction. Holes are prepared on the case and frame, which determine the positions during assembly. The frame fits the door, then the door opening angle is approx. 110°, or the door is pushed out of the frame, then the door opening angle is 180°.

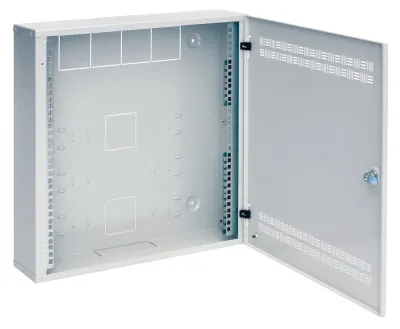

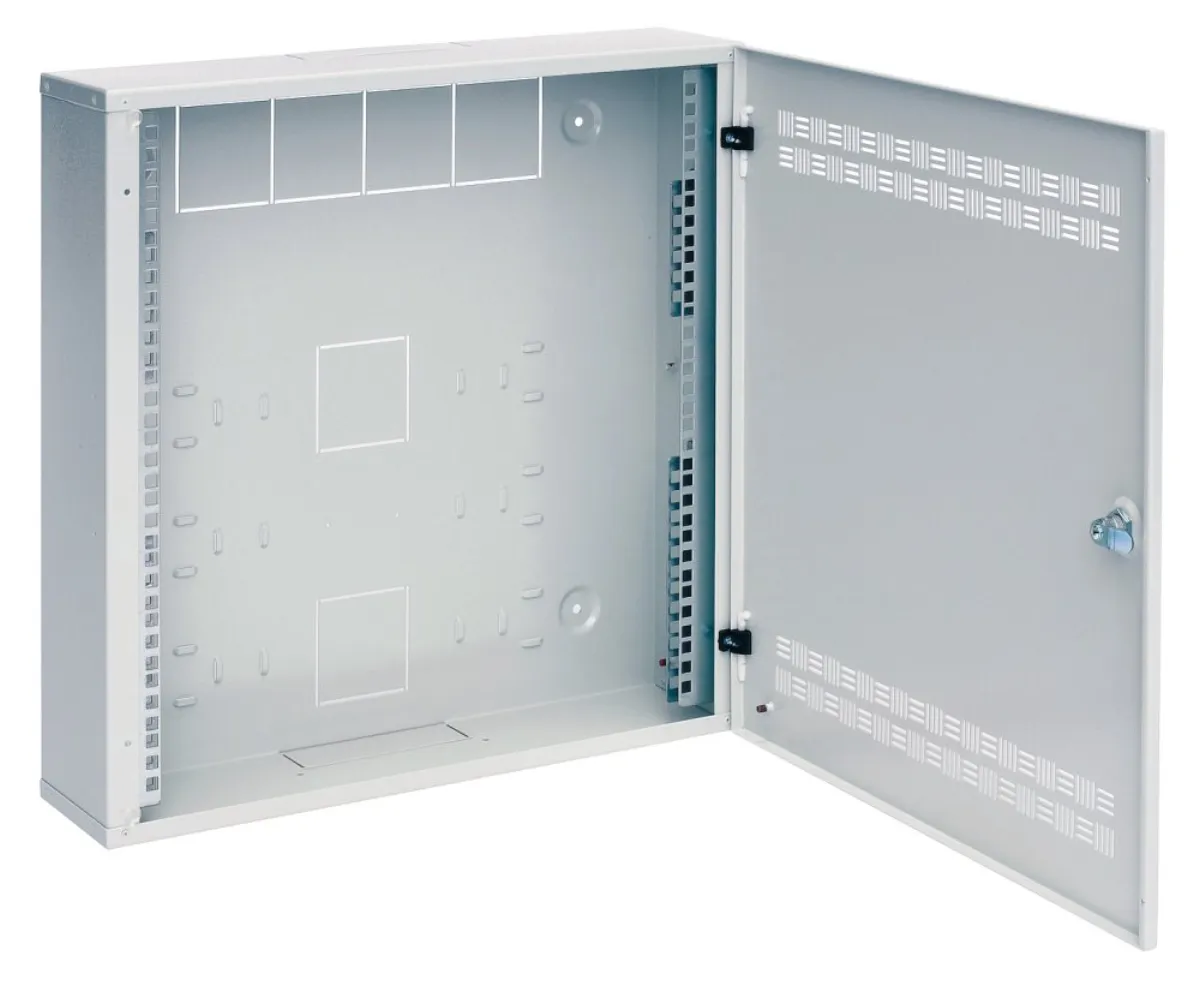

• supplied with 3 pairs of vertical 19" rails for mounting 2U, 4U and 11U devices
• the door can be opened at an angle of 180°, it is possible to choose right or left closing
• front perforated door with 1-point patent key lock
• cable penetrations in the lower, upper and rear parts

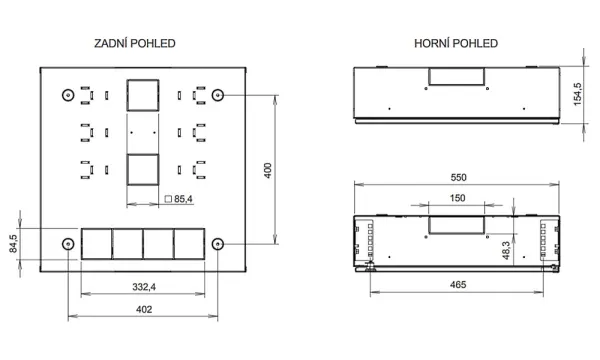

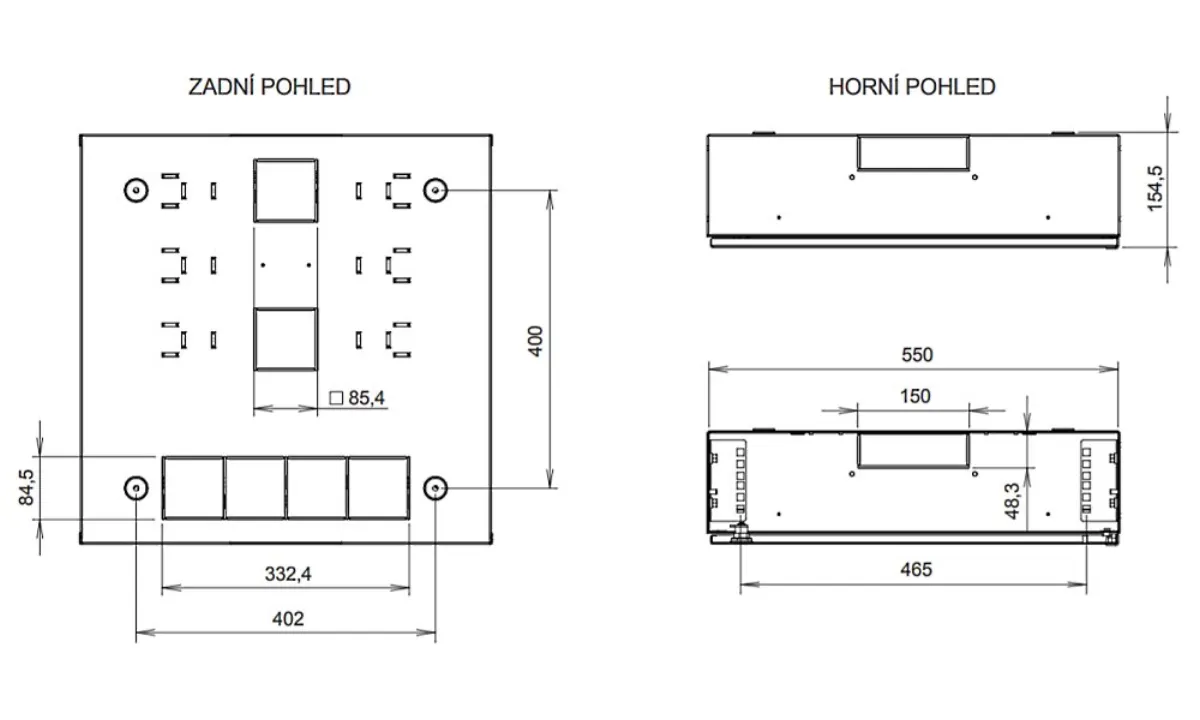

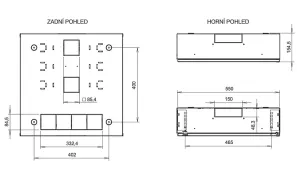

• in the back part, 4 holes with a diameter of 6.5 mm for wall mounting
• grounding cable connecting the cabinet body to the door
• load capacity 30 kg
• degree of protection: IP20

Cabinet format: 19"

Degree of protection: IP20

Dimensions: 550 x 550 x 150 mm
