Solarmi AC DC circuit breaker 40A for photovoltaics OEZ LTN-40D-1 class. D DC disconnector
XTEND Solarmi | LTN-40D-1 | 8590125416784
On stock 1 pcs.
Price of goods is 21.09 €.
Weight of goods is 0.166 Kg.
Actual in cart 0 pcs.

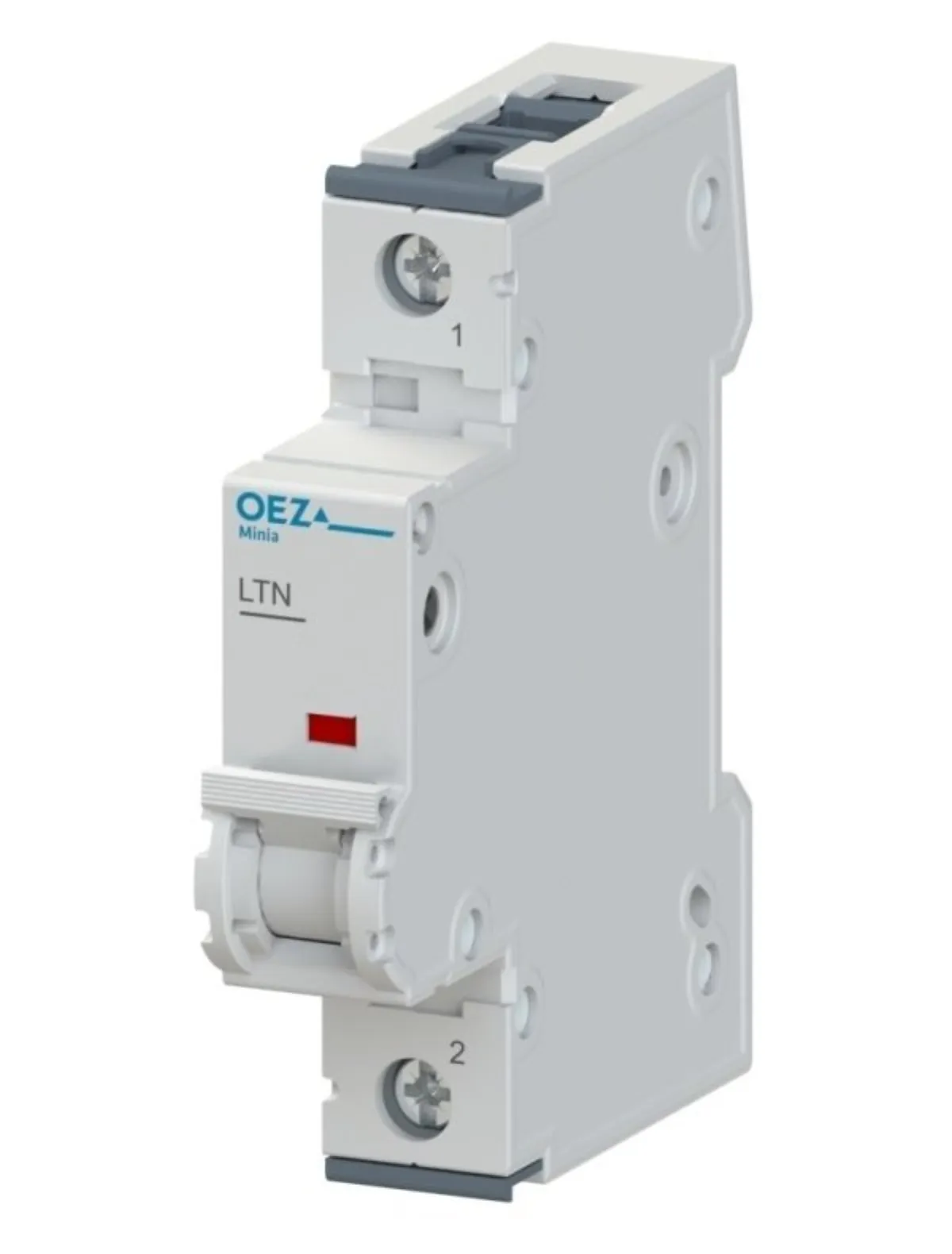

Xtend Solarmi LTN-40D-1
1-pole circuit breaker (characteristic D) for reliable protection of cables and lines against overload and short circuits in circuits with higher short-circuit currents and breaking capacity of 10 kA.
- Designed for the protection of photovoltaic devices such as GridFree inverters
Characteristics of D
- for securing the wiring of electrical circuits with devices
- which cause high current surges. Short circuit release set to (10 ÷ 20) In (14 ÷ 28 for DC).).
- Breaking capacity: 10 kA according to ČSN EN 60 898
- Nominal voltage: 230/400 V
- Protection (with connected wires): IP20
Easy to connect: Double clamp with a solid partition in the middle and a captive screw. It allows the connection of the wire and the connecting strip from both sides of the device
Security
- The clamps are equipped with sliding plastic caps
- which increase protection against dangerous contact.
Connection: Interconnection of circuit breakers with LFE/LFN and OLI/OLE circuit breakers with a connecting strip above and below.
Mounting/dismounting on/from the “U” rail
- The latches enable very quick assembly and disassembly
- by hand without the need for tools. Ejecting/replacing a circuit breaker from a series of devices connected by a busbar above or below without interrupting adjacent circuits
- respectively without having to remove the bar.
Trip characteristic: D
Coverage: IP20
Short-circuit breaking capacity: 10 kA
AC voltage: 230/400 V
Rated current: 40 A

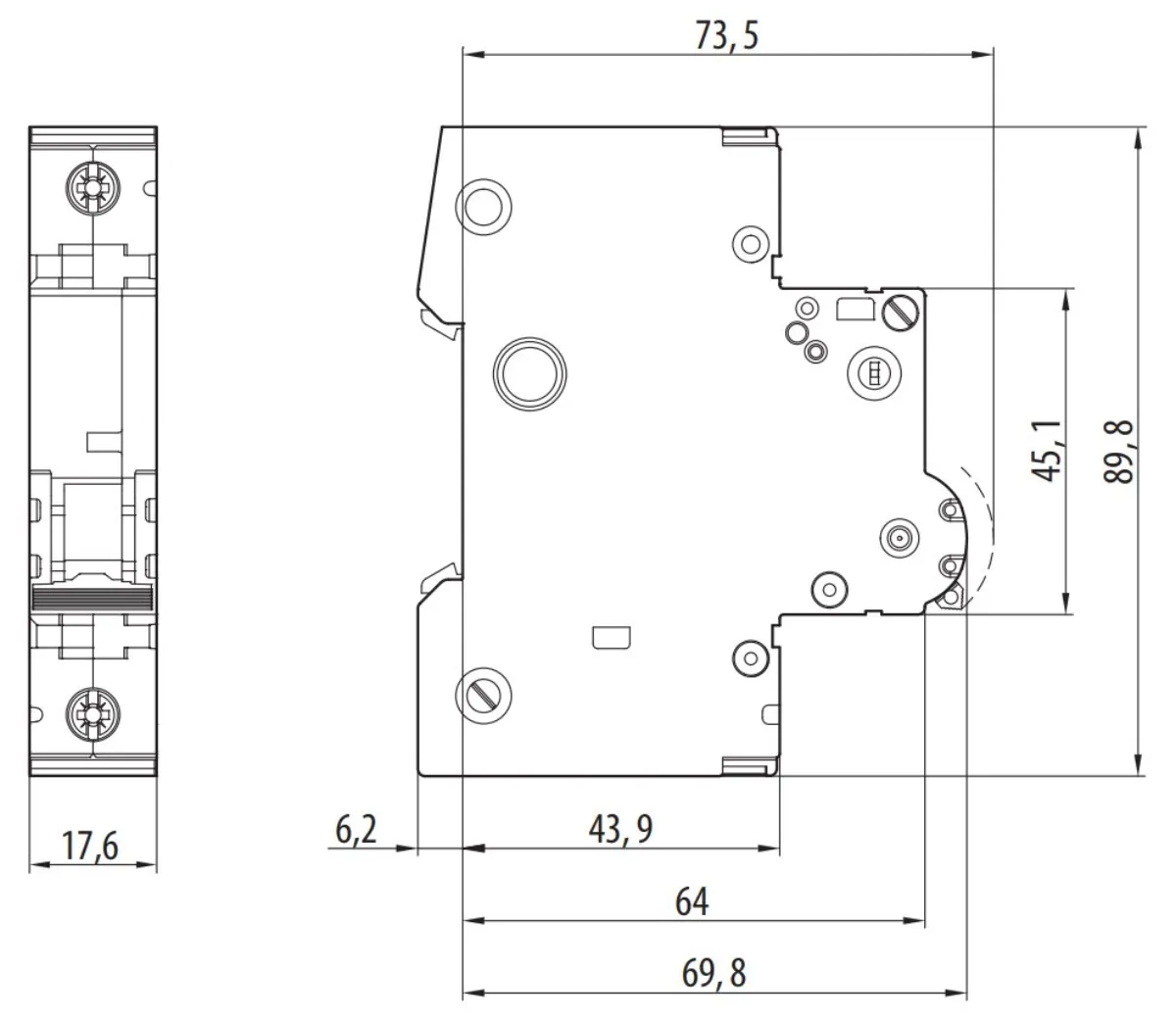

Dimensions: 89.8 x 76 x 17.6 mm
Name | Value | |
---|---|---|
Weight, brutto [kg] | 0,187 | |
Dimension [mm] | 89,8 × 76 × 17,6 mm | |
Maximum operating temperature [°C] | 55 | |
Minimum operating temperature [°C] | -25 | |
Voltage frequency | 50/60 | |
Maximum input current [A] | 40 | |
Degree of coverage | IP20 | |
Connector | terminal block |
