Solarmi SCKVM10-200 combi screw for fixing sol. corrugated roof panel M10 200mm
XTEND Solarmi | SIC-HB | 8592457169727
On stock 49 pcs.
Price of goods is 3.64 €.
Weight of goods is 0.12 Kg.
Actual in cart 0 pcs.
Xtend Solarmi SCKVM10-200

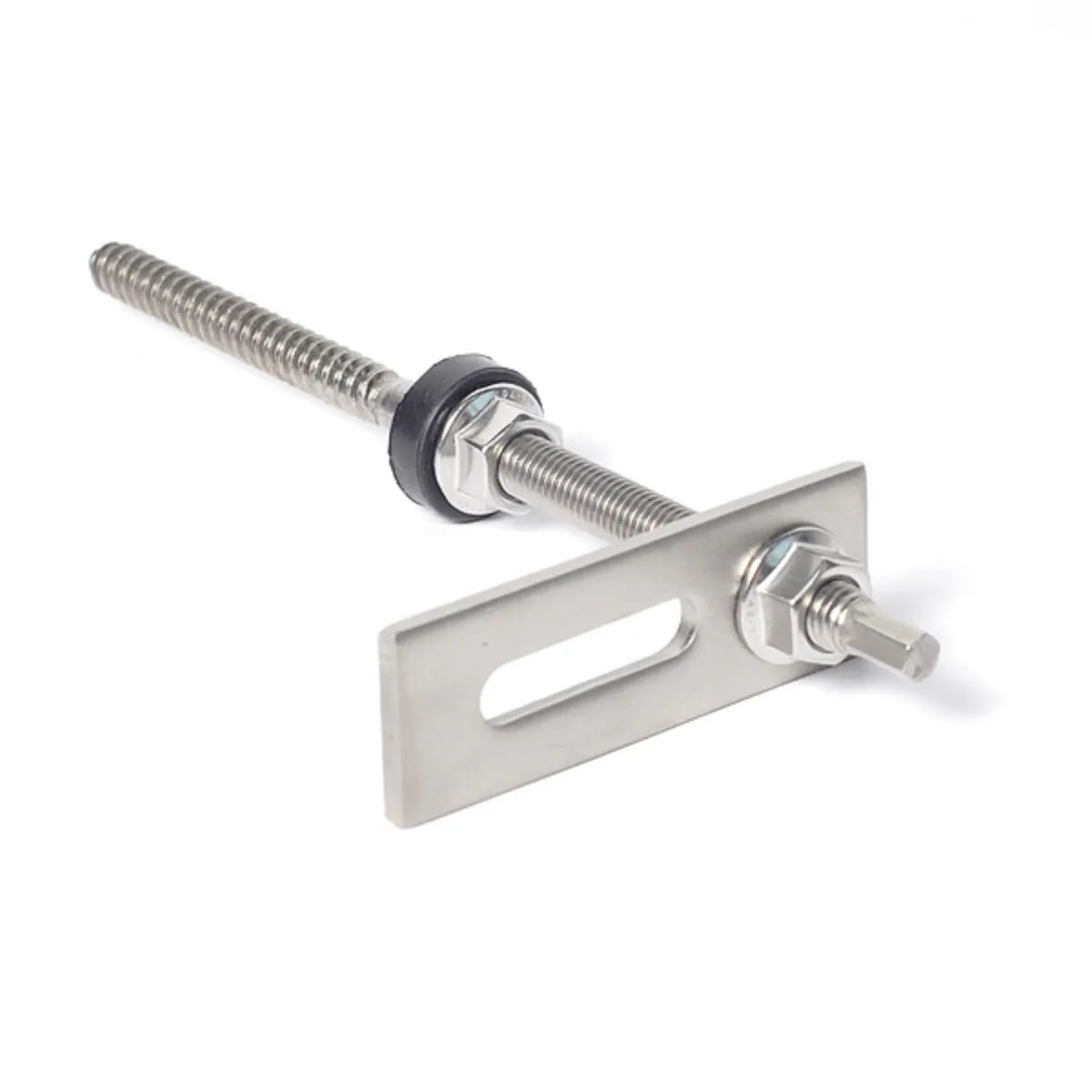

The combination screw is used for attaching solar panels to roofs made of corrugated sheet, Eternite or trapezoidal sheet or even flat sheet metal roofs. The galvanized combination screw consists of a screw part for screwing into the roof beam and an M10 threaded part for adjusting the height of the profile for attaching the solar panel. The delivery includes the profile itself with dimensions of 85x30x5 mm, which enables universal setting and simple assembly of the solar panel.
Between the part of the screw and the screw there is a rubber seal to prevent the penetration of moisture under the roof covering. For the proper functioning of the seal, a spacer nut with a washer is used, which must be consistently tightened so that the seal adheres to the covering. The Kombibrut can be attached directly to the frame of the solar panel.
Name | Value | |
---|---|---|
Weight, brutto [kg] | 0,24 | |
Height [mm] | 200 | |
Width [mm] | 10 |
