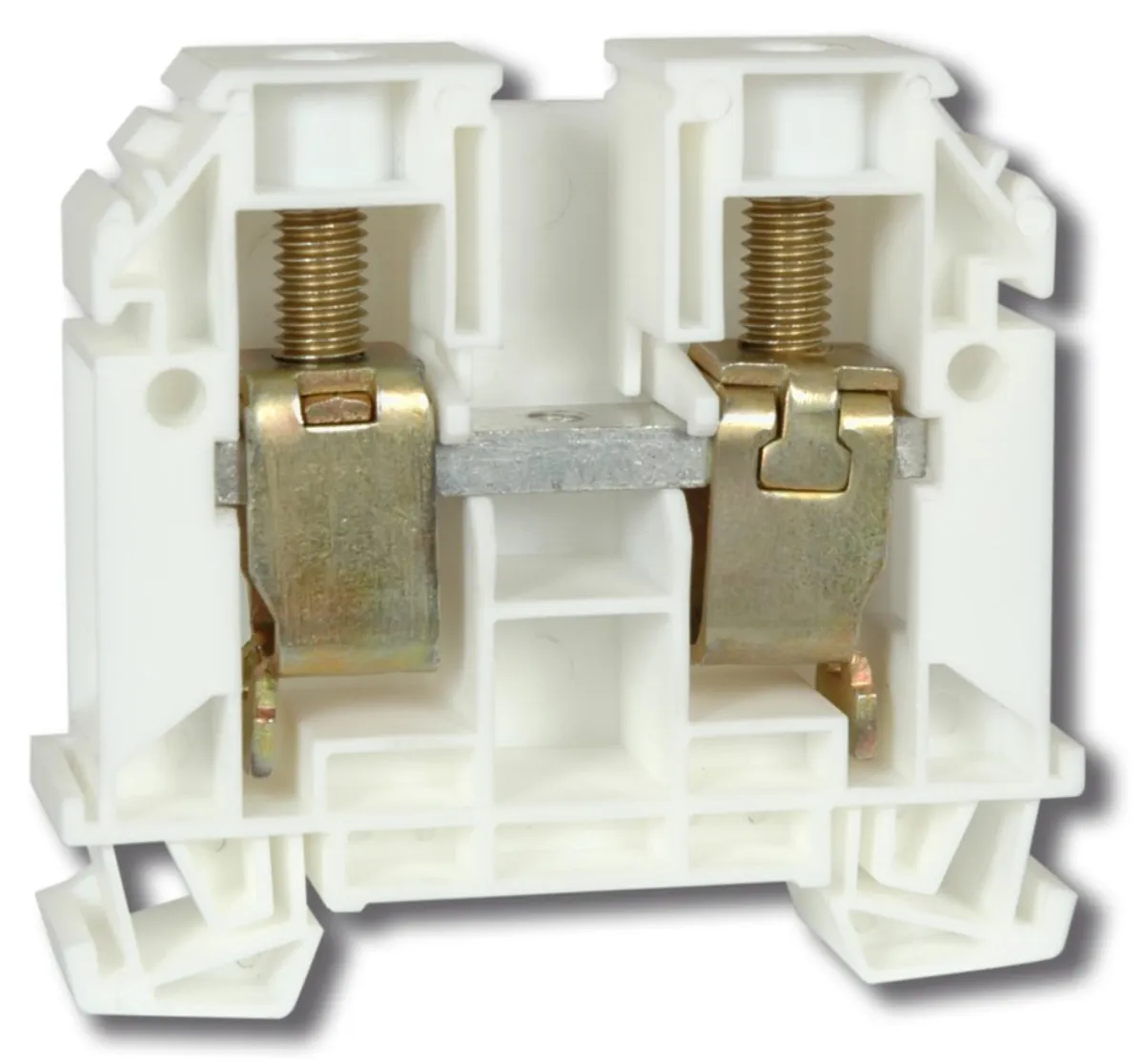

Solarmi series clamp RSA 35 A on DIN rail white

Xtend Solarmi series terminal RSA 35 A

Series RSA clamps are intended for all segments of the electrotechnical industry for connecting small and low voltage electrical circuits with copper, possibly aluminum conductors. Terminals can be marked with continuous tapes, a marking profile or caps with warning symbols. Various types of jumpers are available for the purposes of general connection, polarity distribution or power energy. For a simple voltage check to various checks (e.g. continuity, dielectric, etc.) there are measuring sockets on offer. Clamps can be applied according to ČSN 33 2000-5-51 ed. 3 in an environment with external influences AB 7, AF 2. The series terminals RSA 2.5 A to RSA 35 A are verified by climate test up to the ambient temperature -40 to +105 °C. The terminals generally have IP 20 protection (RSA 35 A and RSA 70 A have IP 10).

• Connectable cross-section of fine stranded wire without press end - 4 to 35 mm2
• Connectable single-wire conductor cross-section - 2.5 to 35 mm2
• Connectable multi-wire conductor cross-section - 4 to 50 mm2
• Mounting method - DIN rail 35 mm (TH 35)
• Insulating material flammability class according to UL 94: V0 (self-extinguishing plastic - halogen-free)
• Standards: EN 60947-1 and 60947-7-1

In all types, a heat-treated steel clamp with a galvanic surface treatment is used for reliable clamping of rigid or flexible copper or possibly aluminum conductors (when using aluminum conductors in clamps, proceed according to technical information TNI 37 0606). Flexible conductors do not need to be terminated with a sleeve.

Nominal cross-section: 35 mm

Rated current: 125 A

Rated insulation voltage: 1000V

Short-term withstand current: 4200 A

Electronic type connection: threaded connection

Coverage: IP10

Dimensions: 65 x 58.9 x 16.5 mm

Operating temperature: -40 to +105 °C

Material

• plastic
• PA 6 (V0)

For the RSA 35 A type, to achieve IP 20 protection, additional accessories must be used - a side cap if no wire is connected in the terminal or a wire with a cross-section of 10 mm2 or smaller is connected - otherwise the terminal has IP 10 protection.
