Spindle 500W ER11 complete set
Hanpose | HANPOSE-SPINDLE-500
On stock 8 pcs.
Price of goods is 105 €.
Weight of goods is 1.5 Kg.
Actual in cart 0 pcs.
Spindle motor
Powerful 500W spindle motor is air cooled. Operating voltage is 100VDC. Up to 12000rpm - regulated. Torque 550mN.m. Insulation resistance is over 2 megohms, dielectric strength: 400V. Motor Length: 200mm, High precision spindle run out 0.01-0.03.

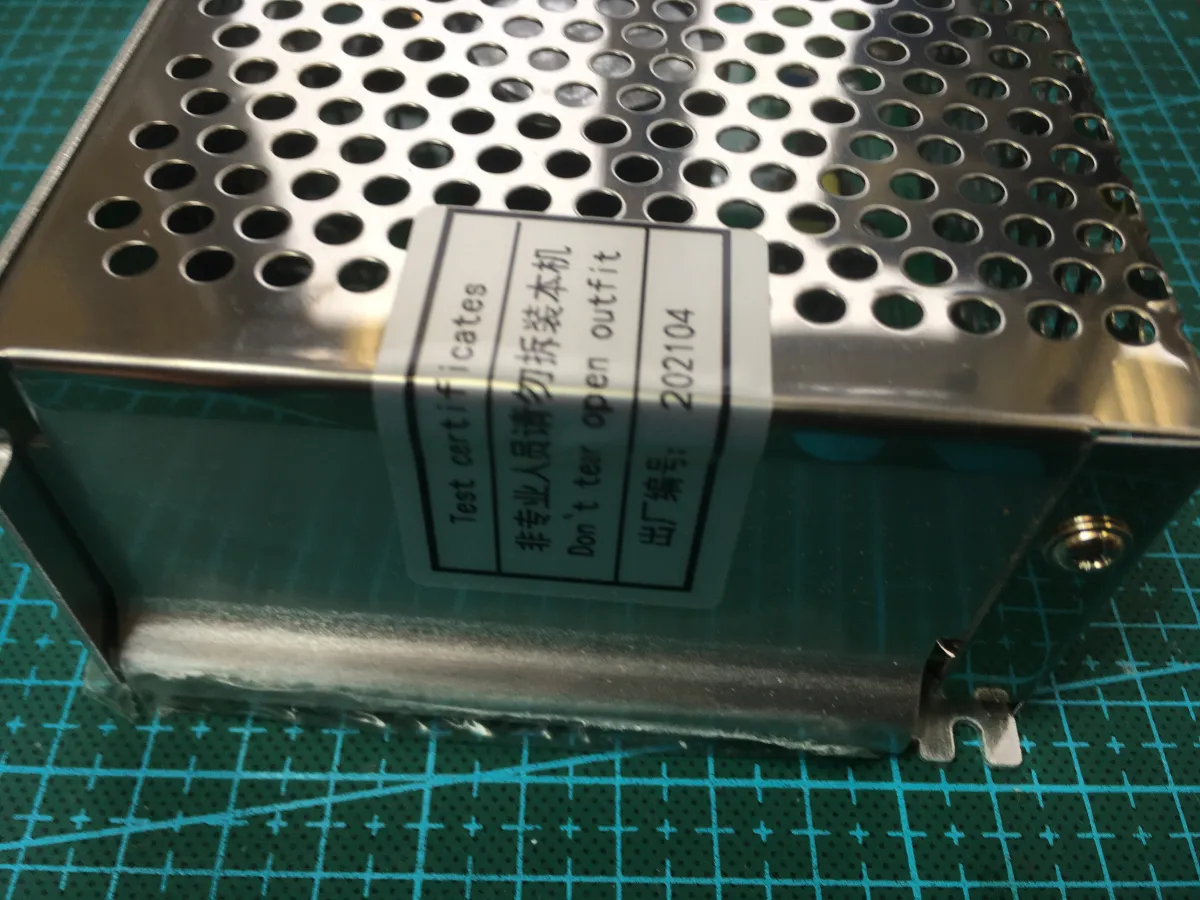

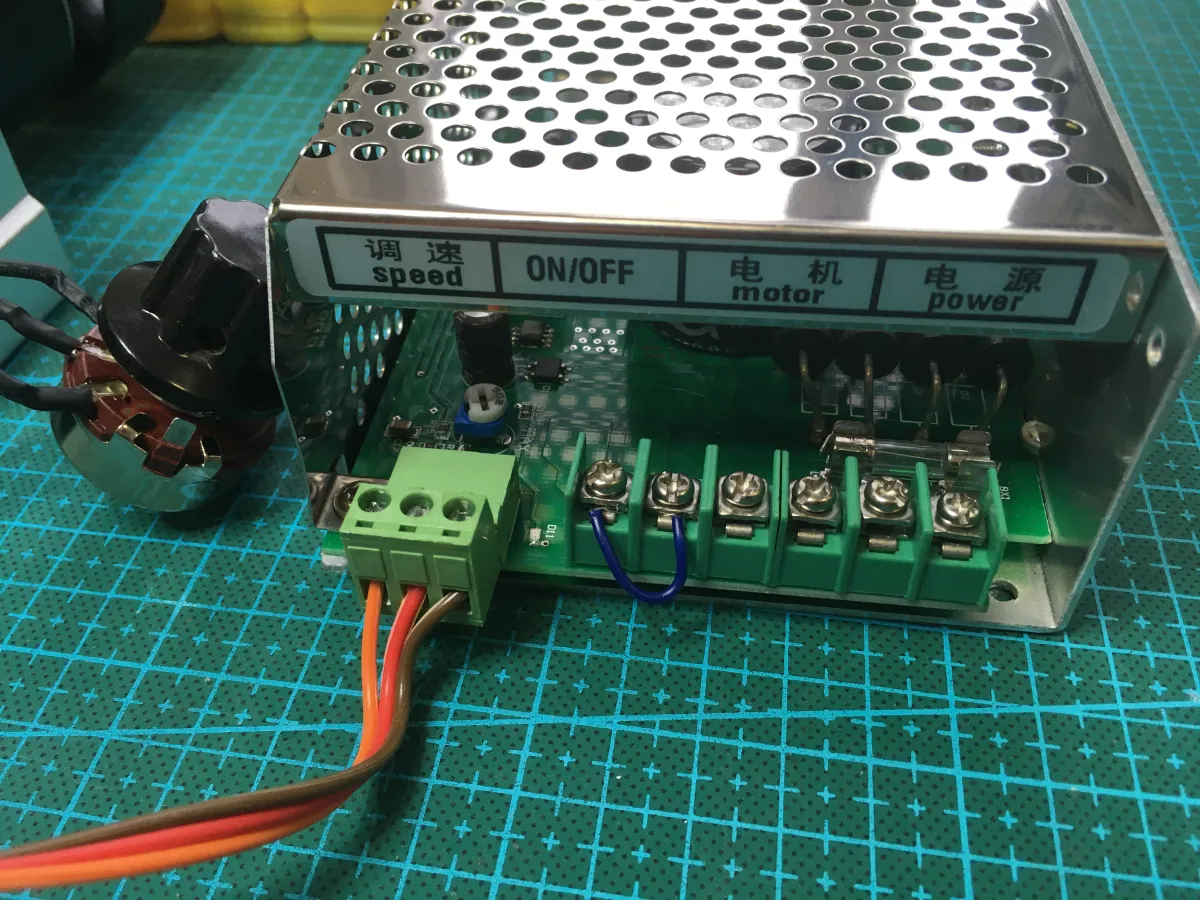

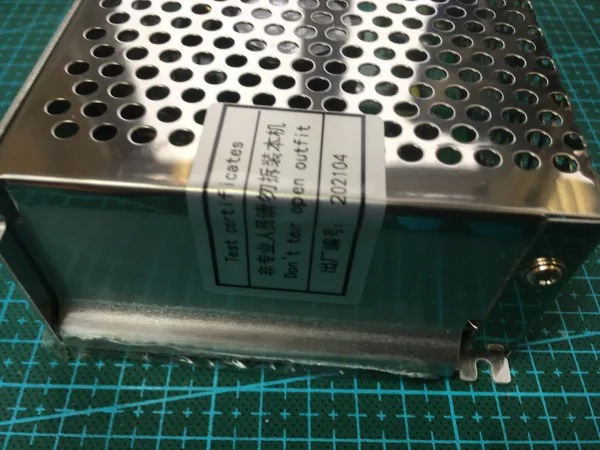

Speed governor

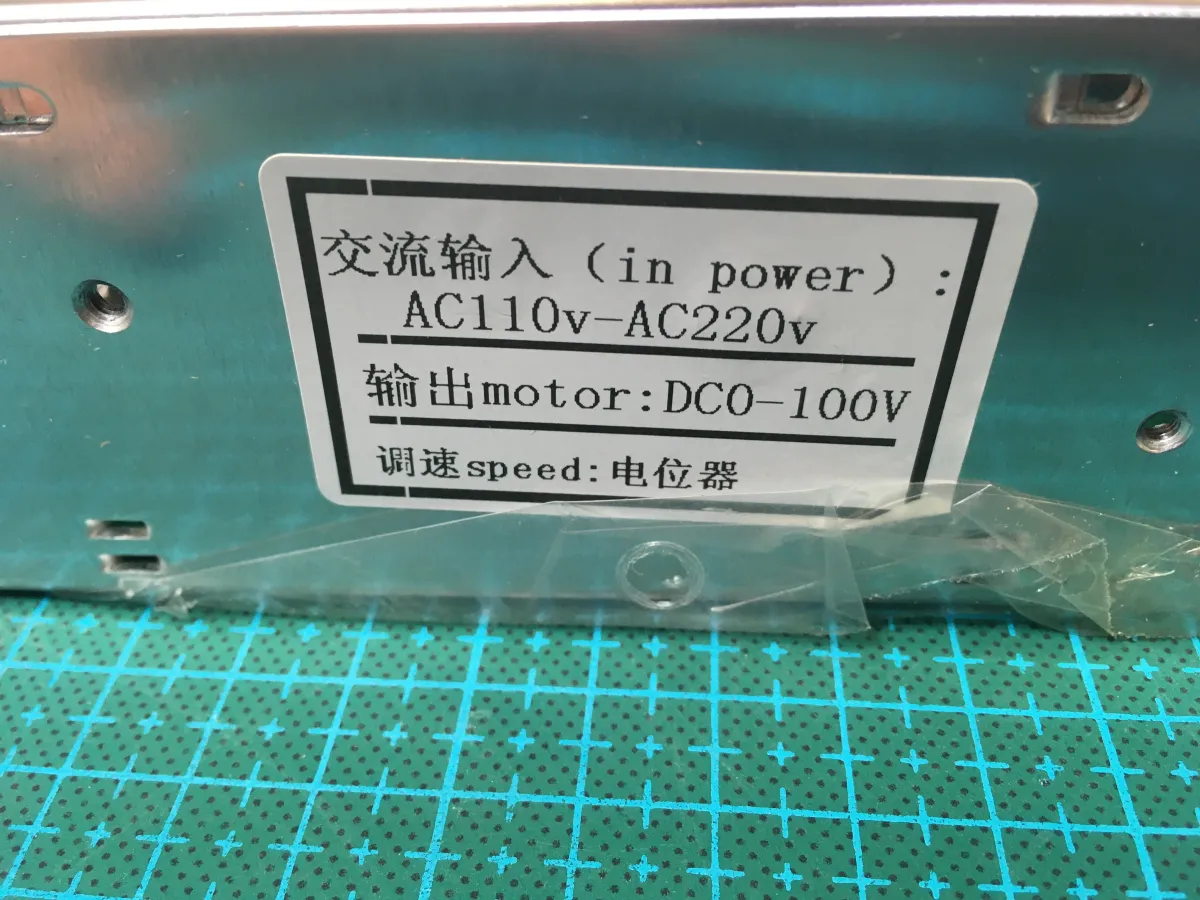

Input voltage: AC110V/220V, 50/60Hz. Output current peak: 6A. Output voltage: DC0-100V. Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard
Mouting bracket
Made of high quality cast aluminum, this spindle motor bracket clamp is strong and durable. Diameter: 52mm, Chuck portion length: 45MM, Chuck portion diameter: 16mm.

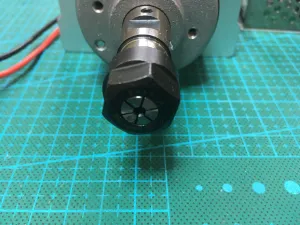

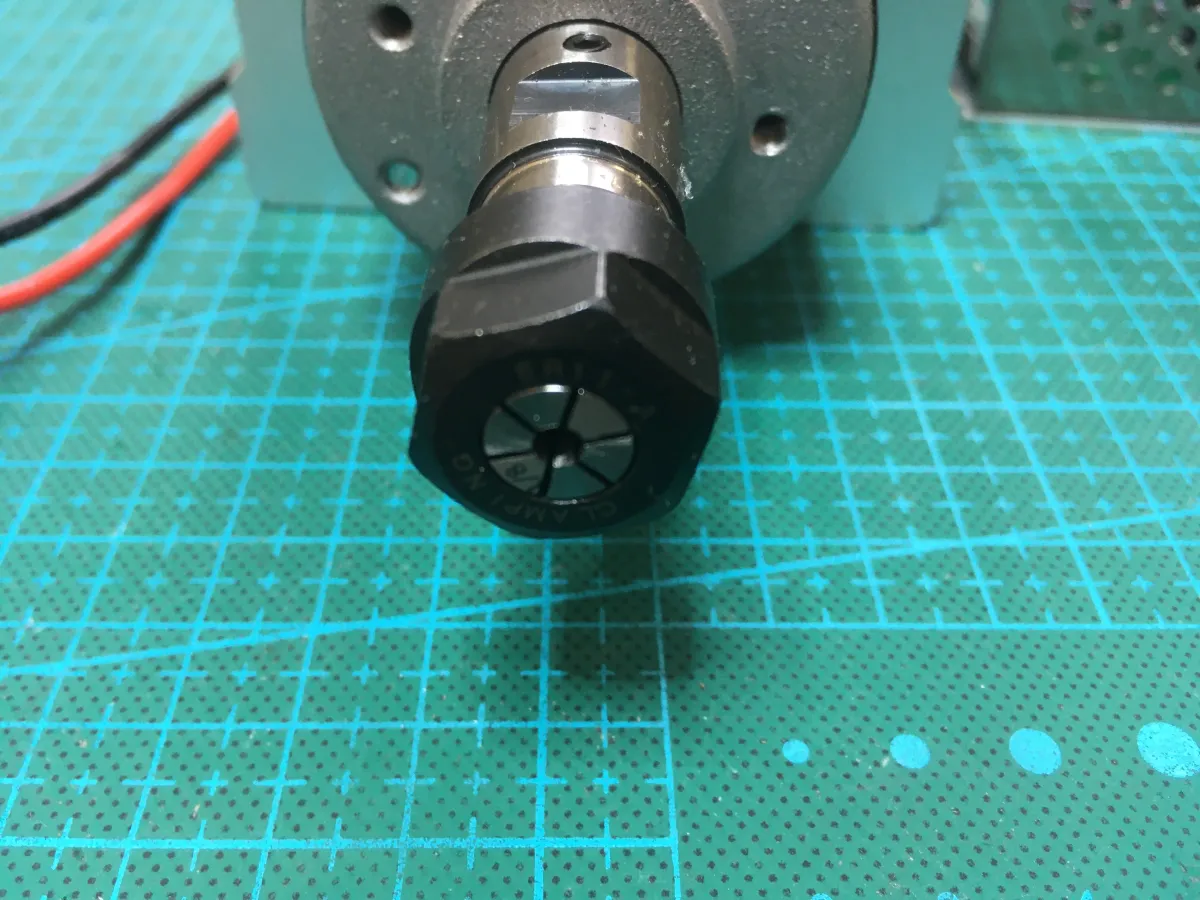

ER11 collet chuck

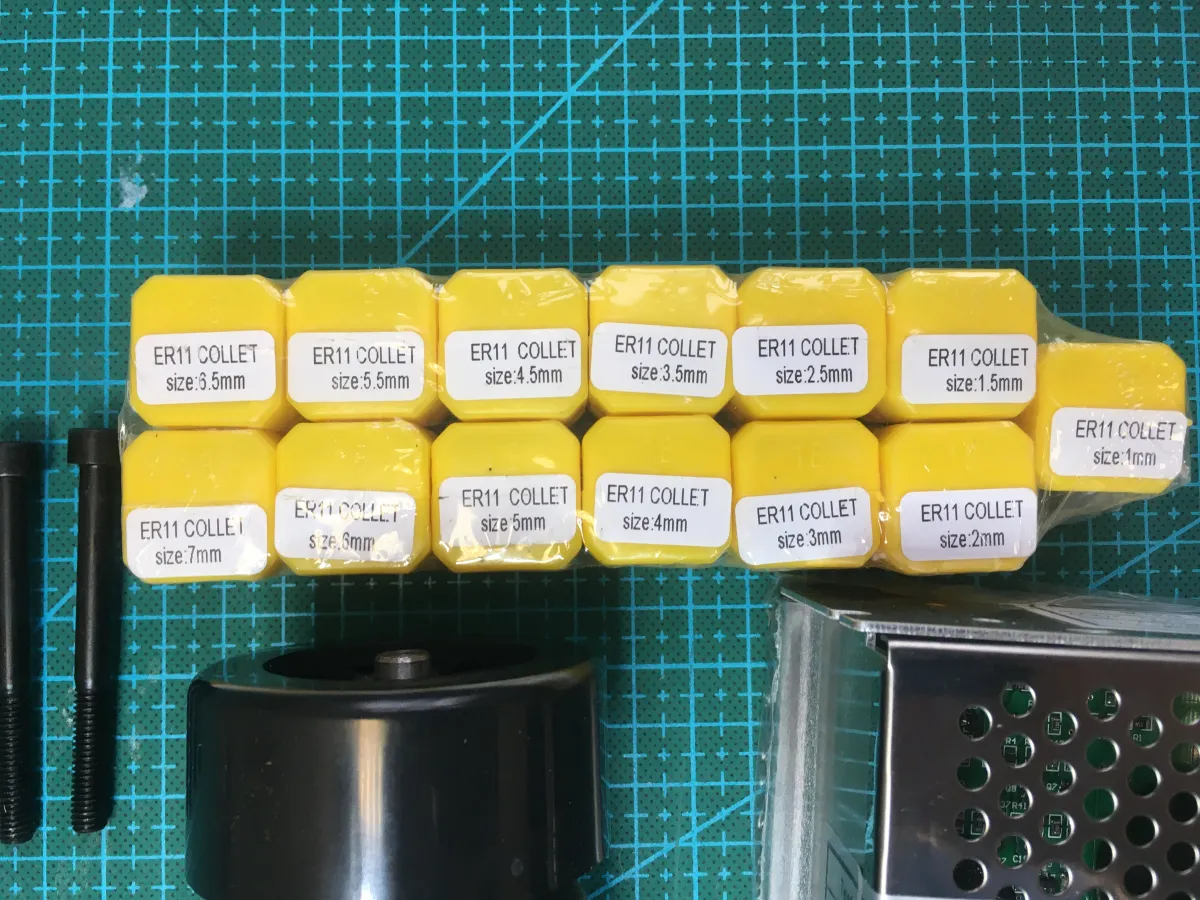

13Pcs ER11 Collet Set Gripping Range: 1mm to 7mm (1mm, 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm). Run-out tolerance 0.01mm. For CNC milling Lathe Tool & Work holding Engraving machine.

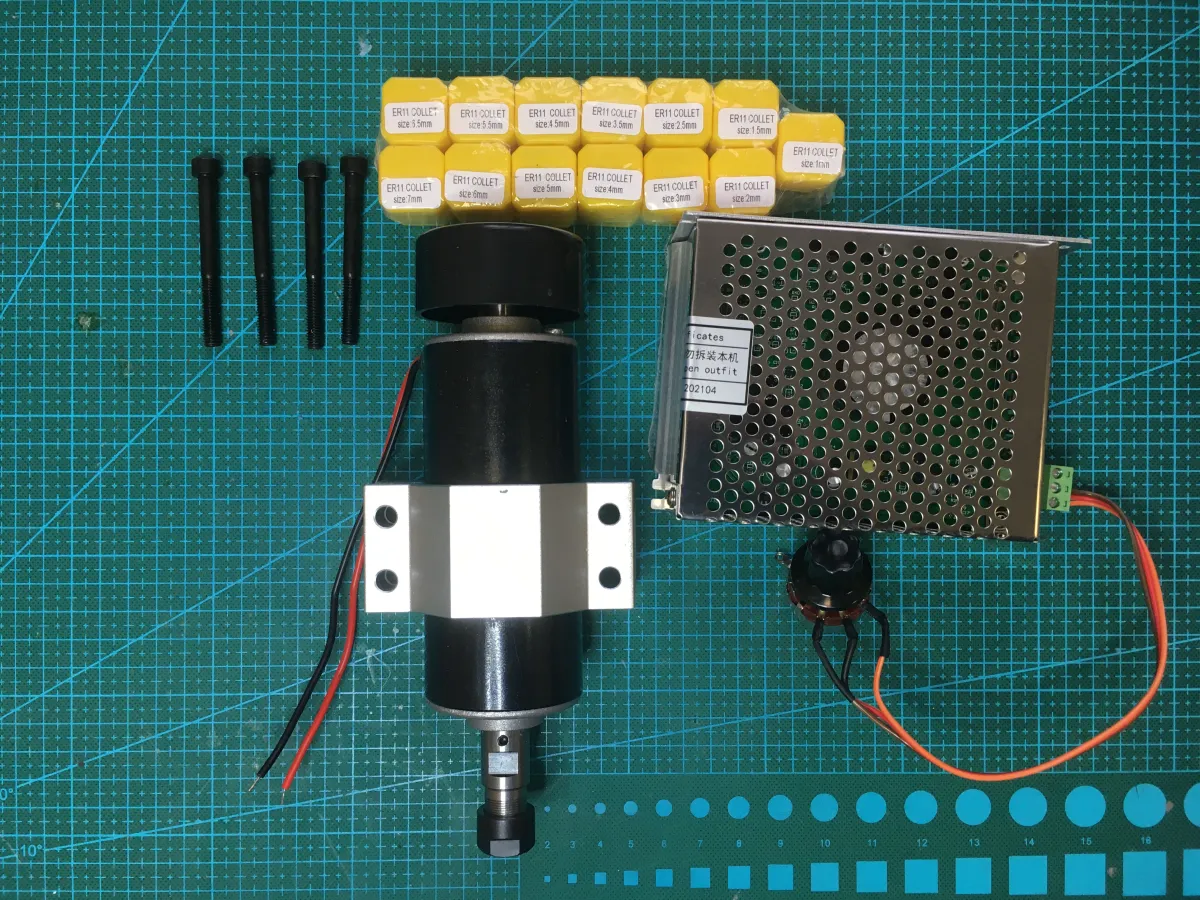

Packaging
- 500W Air-Cooled Spindle Motor
- AC110V/220V Speed Governor
- 52mm Mount bracket
- 13 x ER11 collect

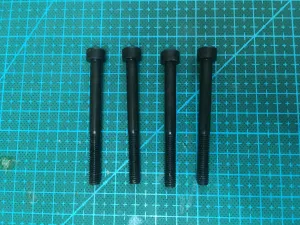

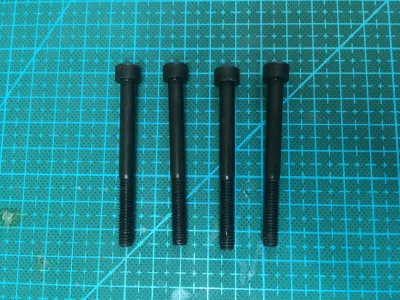

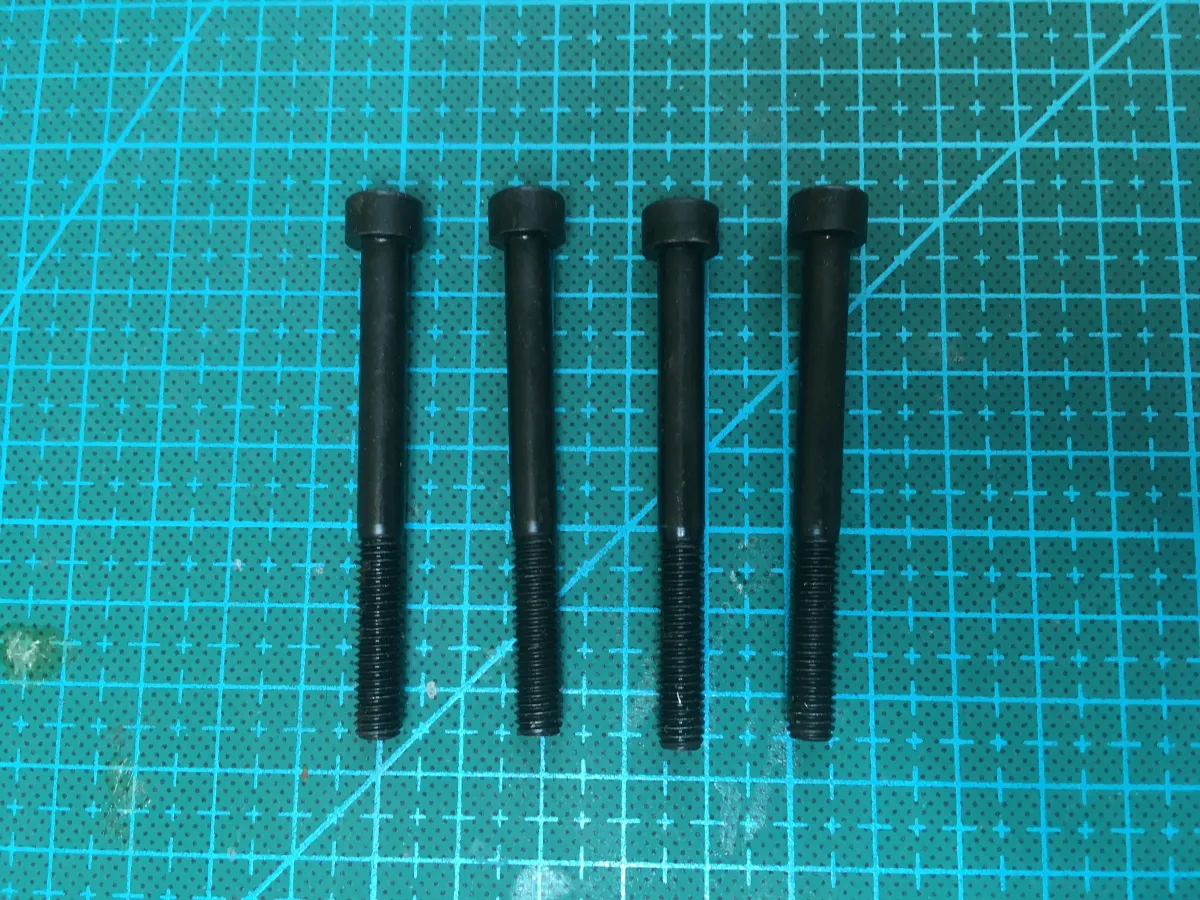

- 4 x Screws
