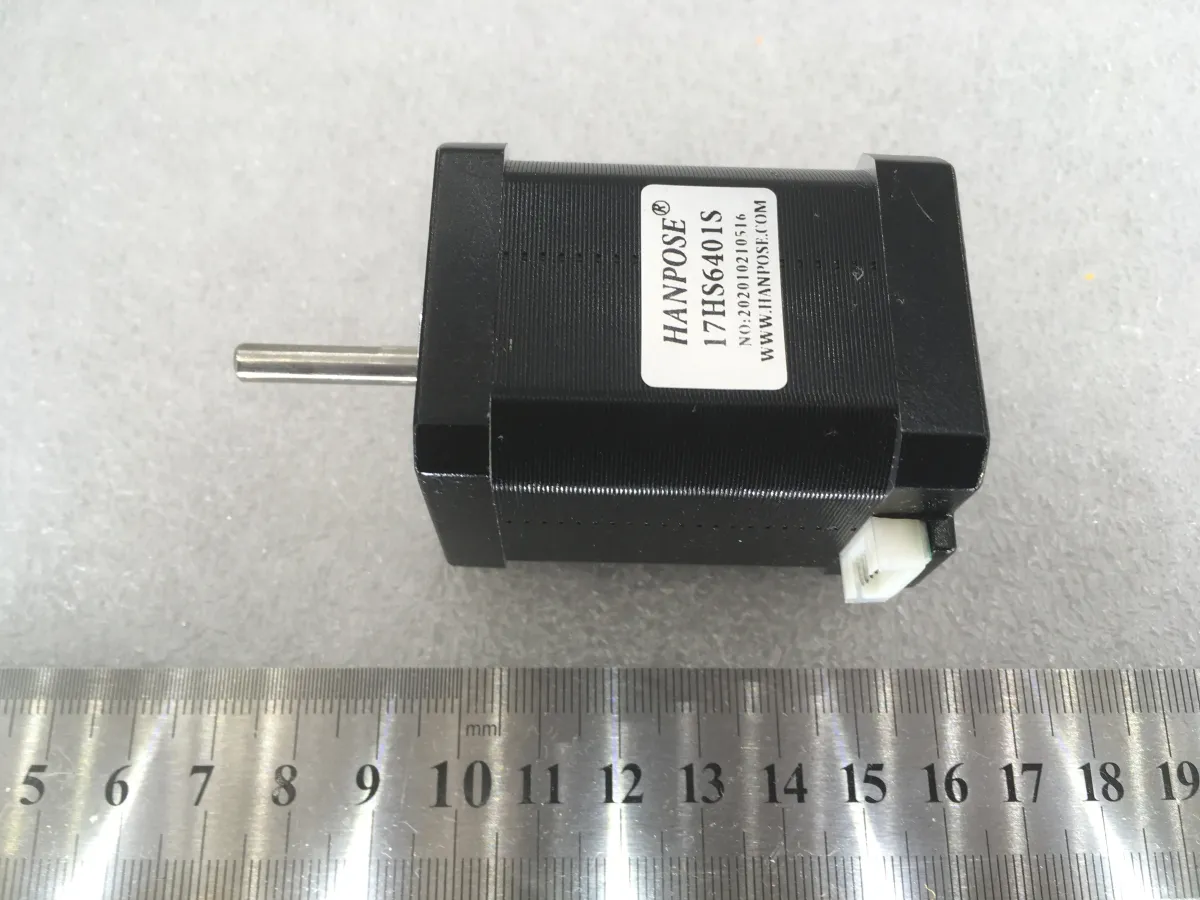

Stepper motor 42BYGH60P170S 17HS6401S
Hanpose | HP-17HS6401S
On stock 6 pcs.
Price of goods is 20.24 €.
Weight of goods is 0.471 Kg.
Actual in cart 0 pcs.
The PCB board is strengthened in the motor, and the unique stator technology is adopted, ensure that the stator teeth of the motor are ground uniformly and cleanly, and the internal control accuracy is high. The speed is stable and accurate without losing step during the working process.
The surface of the motor rotor is coated with imported epoxy resin, which seals the rotor as a whole and is cured at high temperature. After the rotor is processed by abrasion, machining residues such as iron pins are not easy to appear in the tooth grooves. The motor is stable even after long-term use. There is no risk of jamming.
The motor has high overall stability, uniform rotation speed and low noise.
| Name | Value | |
|---|---|---|
| Dimension [mm] | 42.3×42.3×85 | |
| Input voltage [V] | 12 | 24 |
| Axle diameter [mm] | 5 | |
| Front axle length [mm] | 23 | |
| Phases | 2 | |
| Step [°] | 1.8 | |
| Steps per rotation | 200 | |
| Current per phase [A] | 1.7 | |
| Phase resistance [Ω] | 1.5 | |
| Phase inductance [mH] | 2.8 | |
| Holding torque [N.cm] | 70 | |
| Detent torque [N.cm] | 3.2 | |
| Rotor inertia [g.cm²] | 72 | |
