Teltonika RUT901 industrial LTE router with Ethernet backup 1x WAN 3x LAN LTE Cat4 3G 2G Wi-Fi
TELTONIKA | RUT901000000 | 4779051840823
On stock 10 pcs.
Price of goods is 183.69 €.
Weight of goods is 0.63 Kg.
Actual in cart 0 pcs.

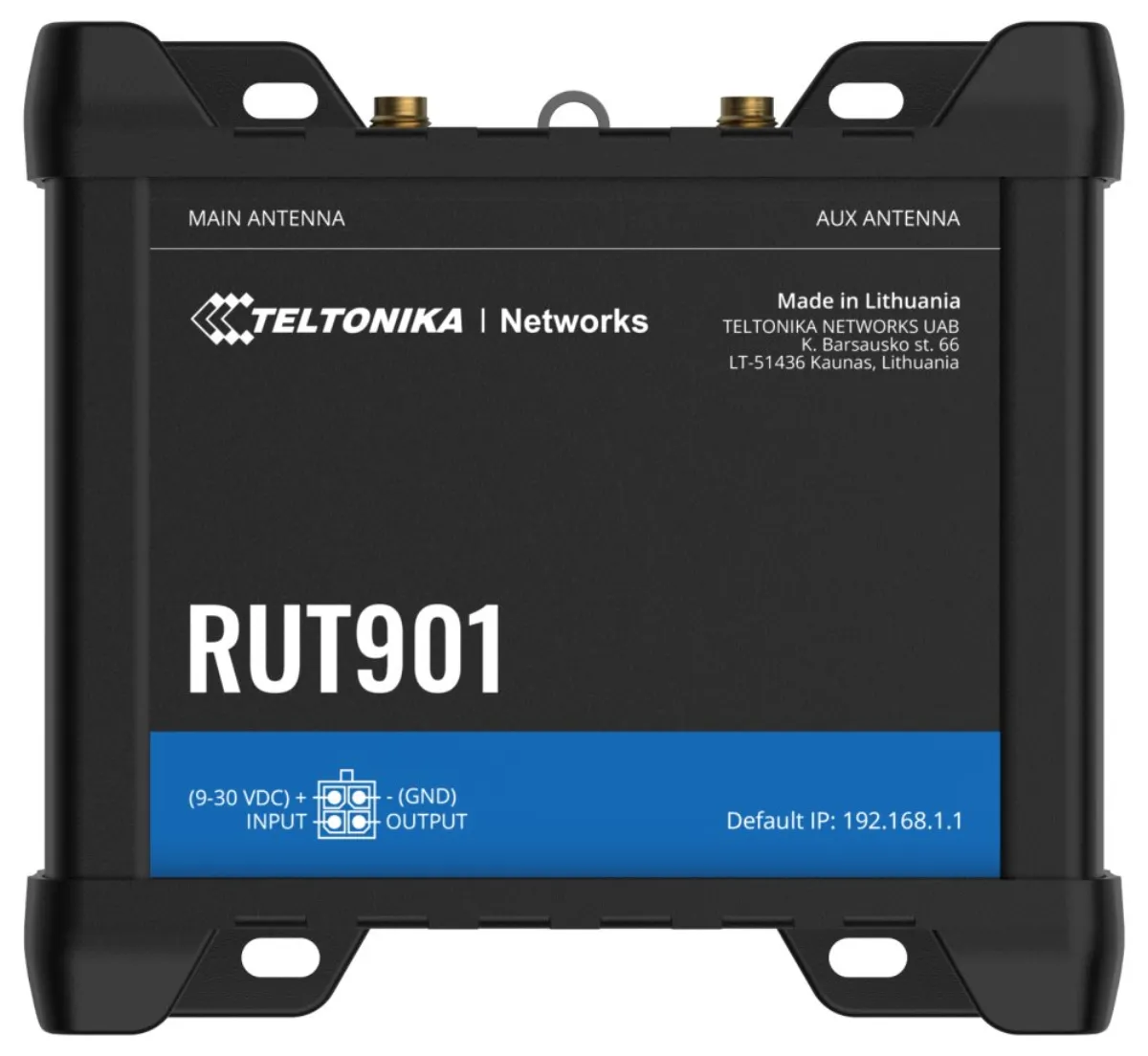

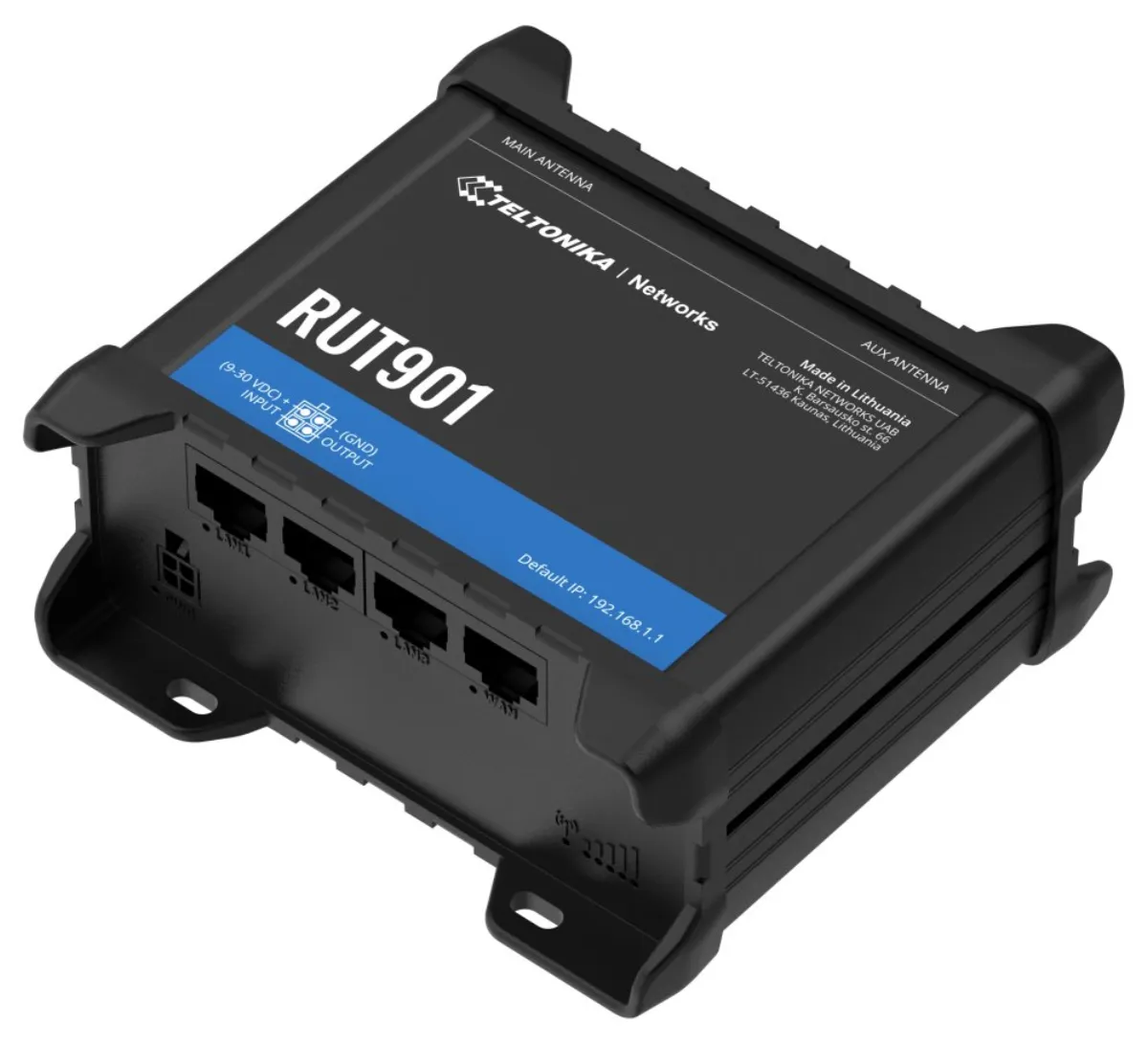

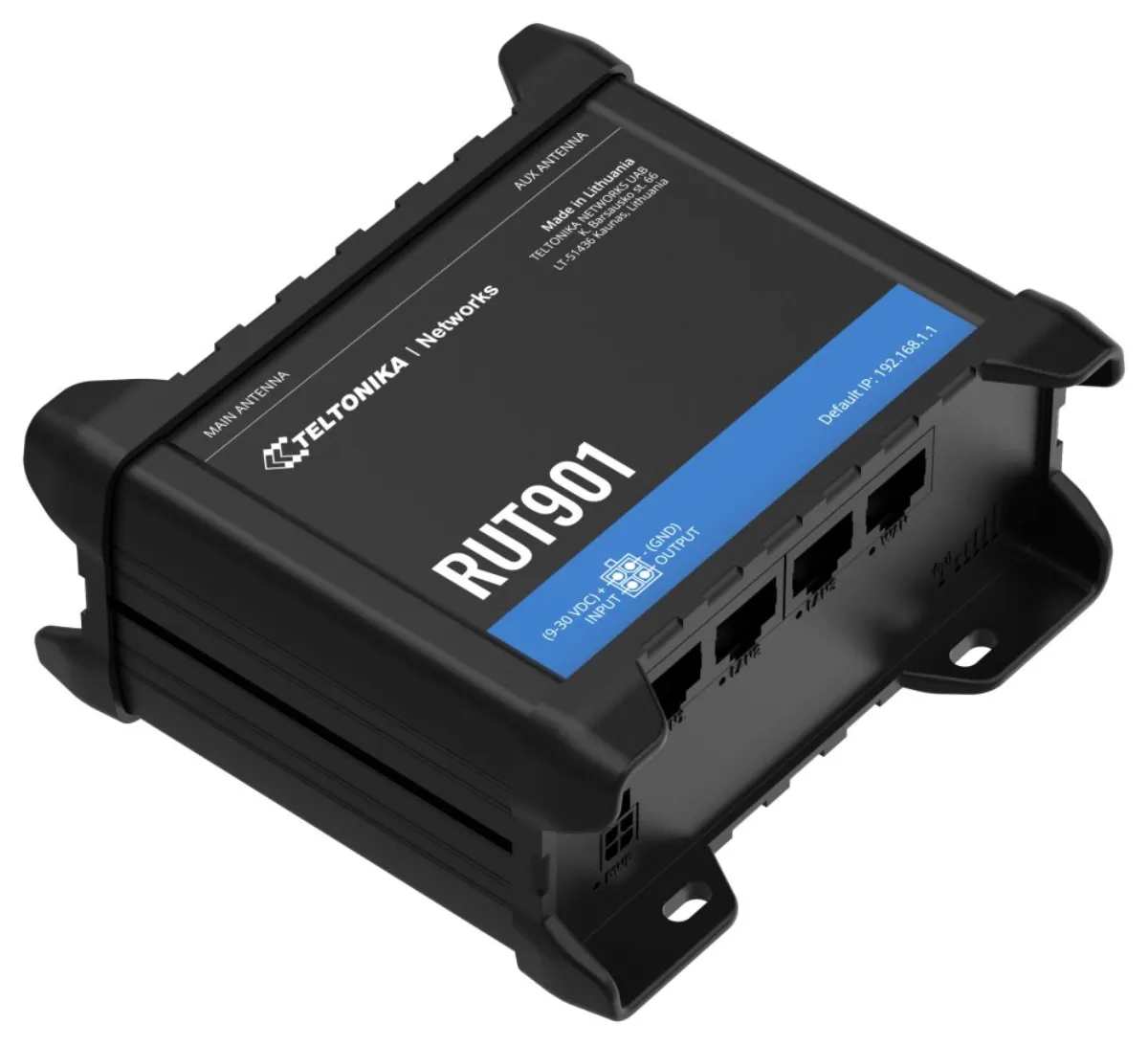

Teltonics RUT901
Industrial mobile router (router) that provides a reliable connection in demanding conditions of the industrial sector (automation, transport, production, etc.). RUT901 brings the top functions of its predecessors RUT950 and RUT951. The device ensures high performance, provides automatic WAN switching to an available backup connection, thereby guaranteeing network continuity and eliminating outages.
Connection
- 4G/LTE (Cat 4)
- 3G
- 2G2G
- Wi-Fi: wireless access point with Hotspot function
Dual SIM
- automatic failover feature
- backup WAN network and other switching options
Protocols
- Support for many protocols including MQTT
- Modbus TCP and DNP3P3
Wi-Fi standard: IEEE 802.11b/g/
Data transfer speed
- 4G (LTE) - up to 150 Mbps
- 3G - up to 21 Mbps
- 2G - up to 236.8 kbps
Antenna
- 2× SMA connector (LTE)
- 2× RP-SMA connector (Wi-Fi)

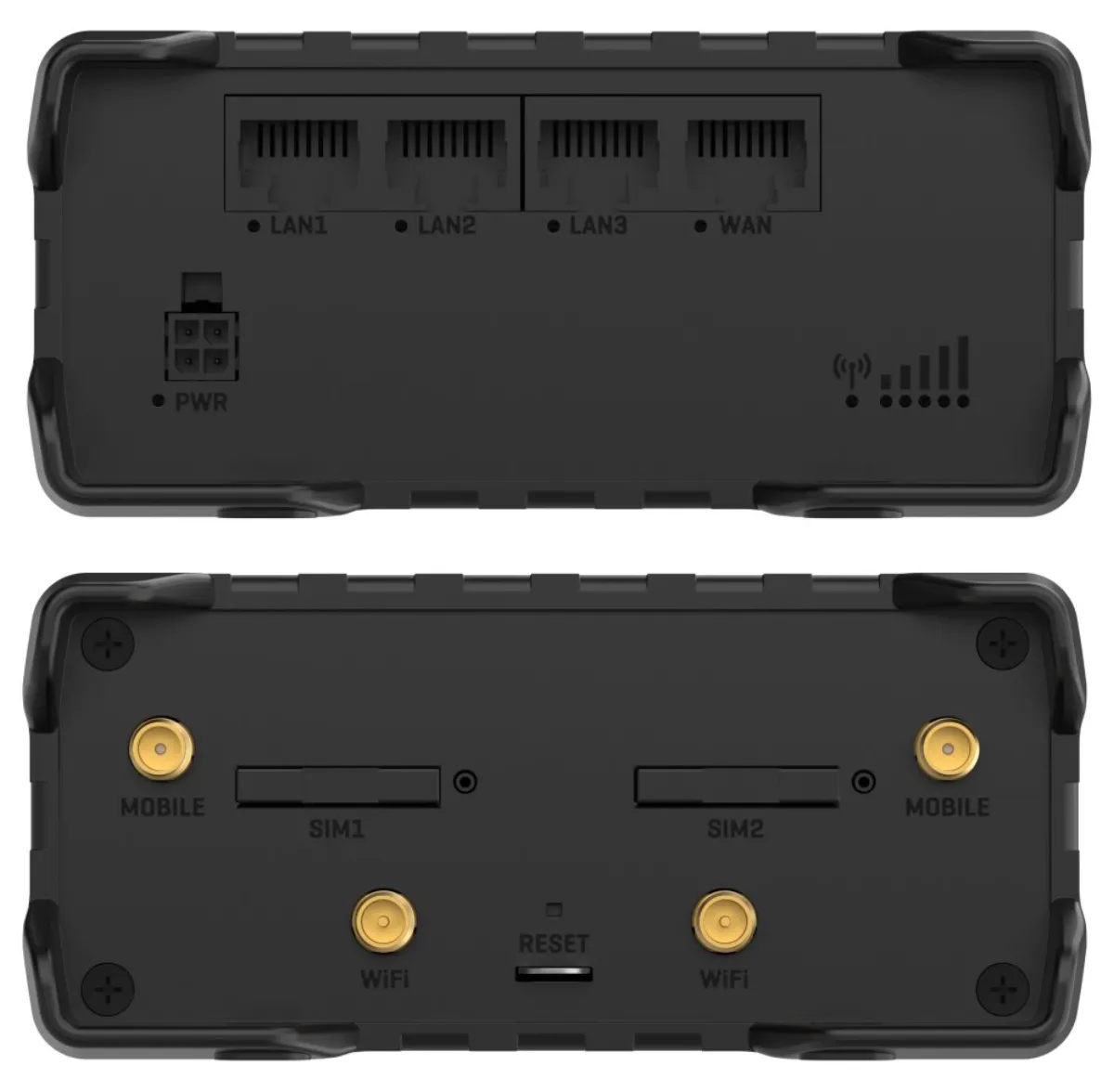

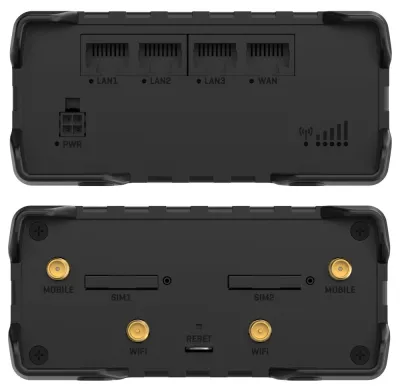

Ports
- 4x RJ-45 (3x LAN
- 1× WAN)
- 2× SIM slot (mini SIM
- 2FF format)
PoE support
- yes
- passive PoE
Power supply: DC 9-30 V (4pin industrial connector)
Dimensions: 110 x 100 x 50 mm
| Name | Value | |
|---|---|---|
| Interface | LAN, WAN, Wi-Fi, 2G, 3G, 4G/LTE | |
| Gigabit LAN | No | |
| Weight, brutto [kg] | 0,297 | |
| Color | black | |
| Dimension [mm] | 110 × 100 × 50 mm | |
| Maximum operating temperature [°C] | 75 | |
| Port speed | 100 Mb/s | |
| Minimum operating temperature [°C] | -40 | |
| Design | freestanding | |
| Outdoor use | No | |
| Conformity | CE/RED, UKCA, EAC, UCRF, EN, ESD, EFT, EN IEC | |
| Connector | 4× RJ-45, 2× SIM, 1× 4pin | |
| Consumption [W] | 7 | |
| Transmission speed [Mbps] | 150 (LTE) | |
| Number of connectable antennas | 4 | |
| Standards | 802.11b/g/n, 802.11e, 802.3, 802.3u | |
| Memory size [MB] | 128 | |
| Default IP | 192.168.1.1 | |
| Encryption | WPA-PSK/WPA2-PSK Mixed Mode, WPA2-PSK, WPA2-EAP, WPA2-EAP/WPA3-EAP Mixed Mode, WPA3-EAP, WPA2-PSK/WPA3-SAE Mixed Mode, WPA3-SAE, OWE; AES-CCMP, TKIP | |
| Power supply [V] | 9 - 30 (DC) | |
| Wi-Fi standard | 802.11b/g/n | |
| Wi-Fi frequency | 2400 MHz | |
| Default password | admin01 | |
| The default name | admin | |
| Antenna design | removable | |
| Indoor use | Yes | |
| Operating mode | AP, STA | |
| Processor | MediaTek MIPS 24KEc, 580 MHz | |
| NAND [MB] | 16 | |
| Output to ext. the antenna | Yes | |
| LTE/4G/5G [Mbps] | 150 | |
| Power supply max. [V] | 30 | |
| Power supply min. [V] | 9 | |
| Degree of coverage | IP30 | |
| Ethernet [Mbps] | 100 | |
