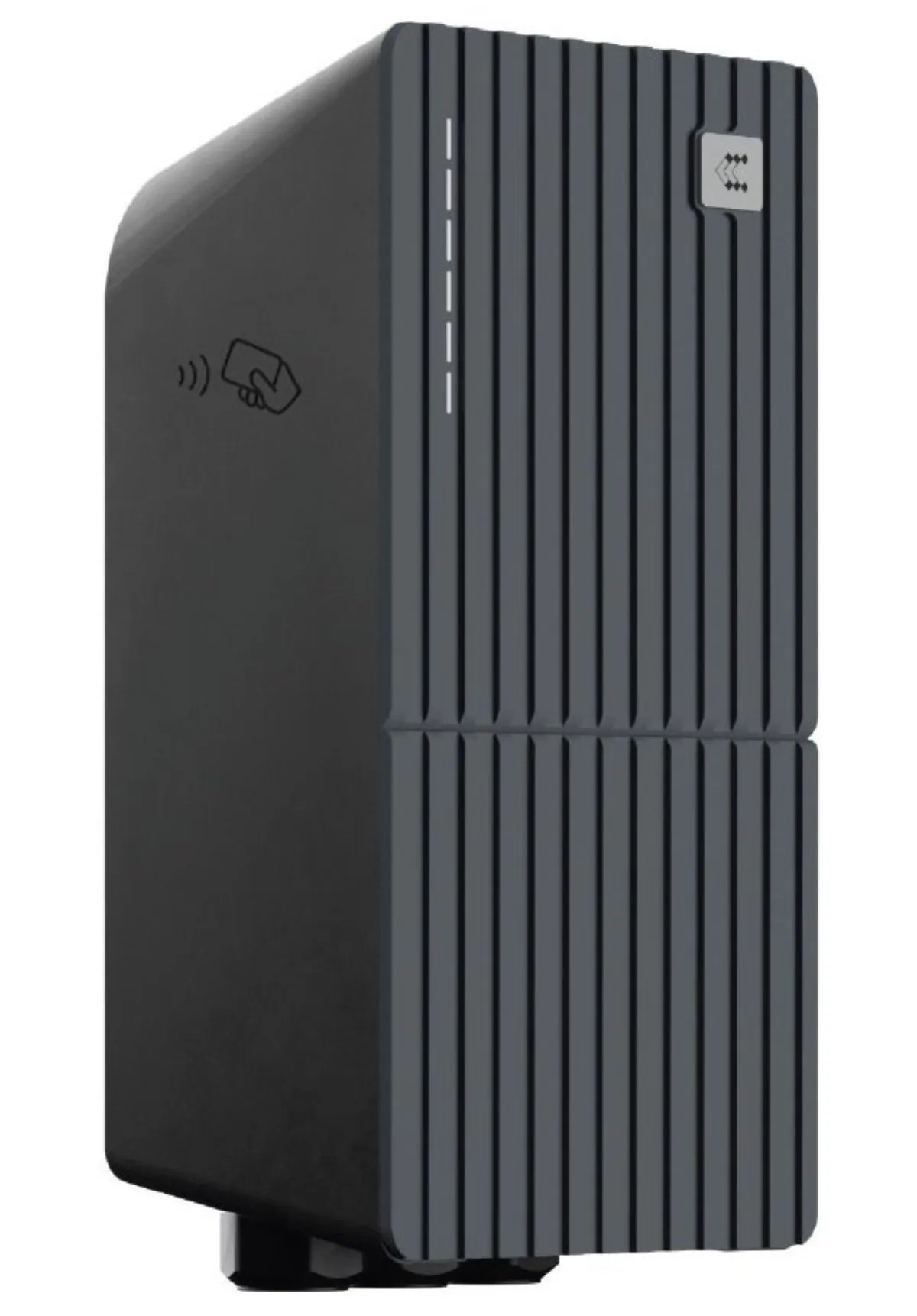

Teltonika TeltoCharge EVC1100P4011 Charging station for electric cars 11kW 3P Type2 socket
TELTONIKA | EVC1100P4011 | 4772218000122
On stock 1 pcs.
Price of goods is 463.67 €.
Weight of goods is 3.368 Kg.
Actual in cart 0 pcs.
Teltonics TeltoCharge EVC1100P4011
Charging station in an elegant design can charge electric cars and plug-in hybrid vehicles with an output of up to 11 kW. The station is equipped with a number of functions, the possibility of control via Ethernet and Wi-Fi with OCPP 1.6 support, or via Modbus/RS-485. Authorization by RFID (NFC) card or via Bluetooth in smartphone application. The application also allows convenient configuration and management of the charger, monitoring the charging status and live statistics, including energy consumption. Cooperation with a photovoltaic power plant brings broad flexibility and cost optimization thanks to the intelligent use of solar energy. In the case of multiple charging stations, the dynamic control system distributes the available power between the charging points in such a way that the network is not overloaded. Protection IP55 and IK10 guarantees that it can withstand even the most demanding outdoor conditions.
This model offers connection using an IEC 62196 Type 2 socket.
Power: 11 hp
Input voltage: 3× 400 V (option 1× 230 V)
Input current: up to 16 A
Output: IEC 62196 Type 2
Surge protector: no
Coverage category
- IP55
- IK10
Operating temperature: -30 to +50 °C
Dimensions: 341 x 170 x 97 mm
Weight: 2.8 kg
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 2,8 | |
| Input voltage [V] | 400 (AC) | |
| Color | gray - black | |
| Dimension [mm] | 341 × 170 × 97 mm | |
| Output voltage [V] | 230/400 (AC) | |
| Maximum operating temperature [°C] | 50 | |
| Minimum operating temperature [°C] | -30 | |
| Display | No | |
| Operating temperature min./max. [°C] | -30/+50 | |
| Output power [W] | 11000 | |
| Degree of coverage | IP55 | |
| Performance [kW] | 11 | |
