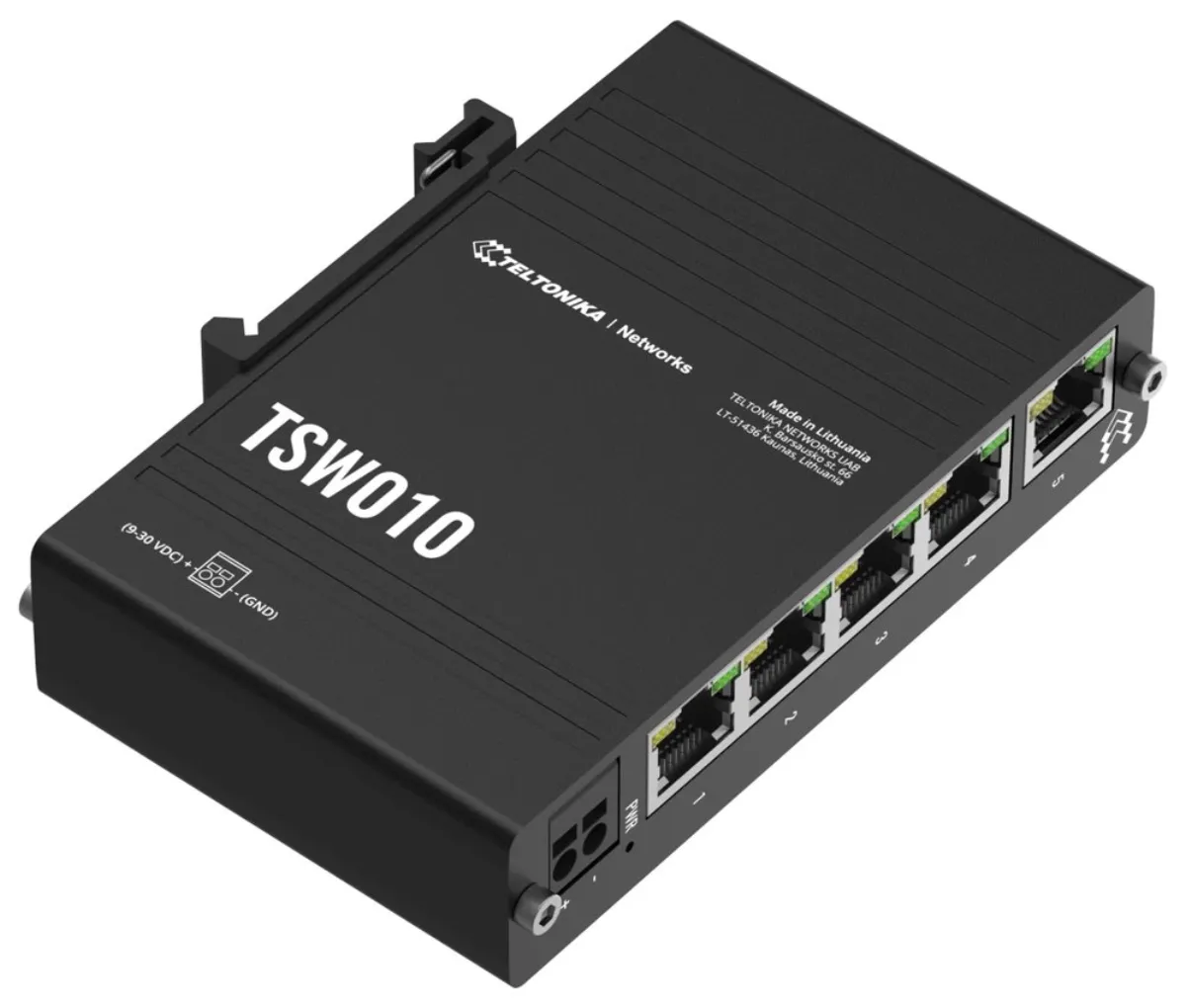

Teltonika TSW010 industrial unmanaged switch 5x 10 100 without power source
TELTONIKA | TSW010000000 | 4779051840274
On stock 8 pcs.
Price of goods is 23.62 €.
Weight of goods is 0.23 Kg.
Actual in cart 0 pcs.
Teltonics TSW010
Industrial switch without management offering five RJ-45 ports (10/100 Mbps). Easy to use with no configuration or installation required. Possibility of passive PoE power supply. The Switch has a built-in DIN rail mount. Switching capacity reaches up to 1 Gbps. The MAC address table has a capacity of 2K and Jumbo frames of 2 KB are supported.
- All LAN ports support automatic MDI/MDIX switching.
- Support for IEEE 802.3i, 802.3u, 802.3x and 802.3az standards.

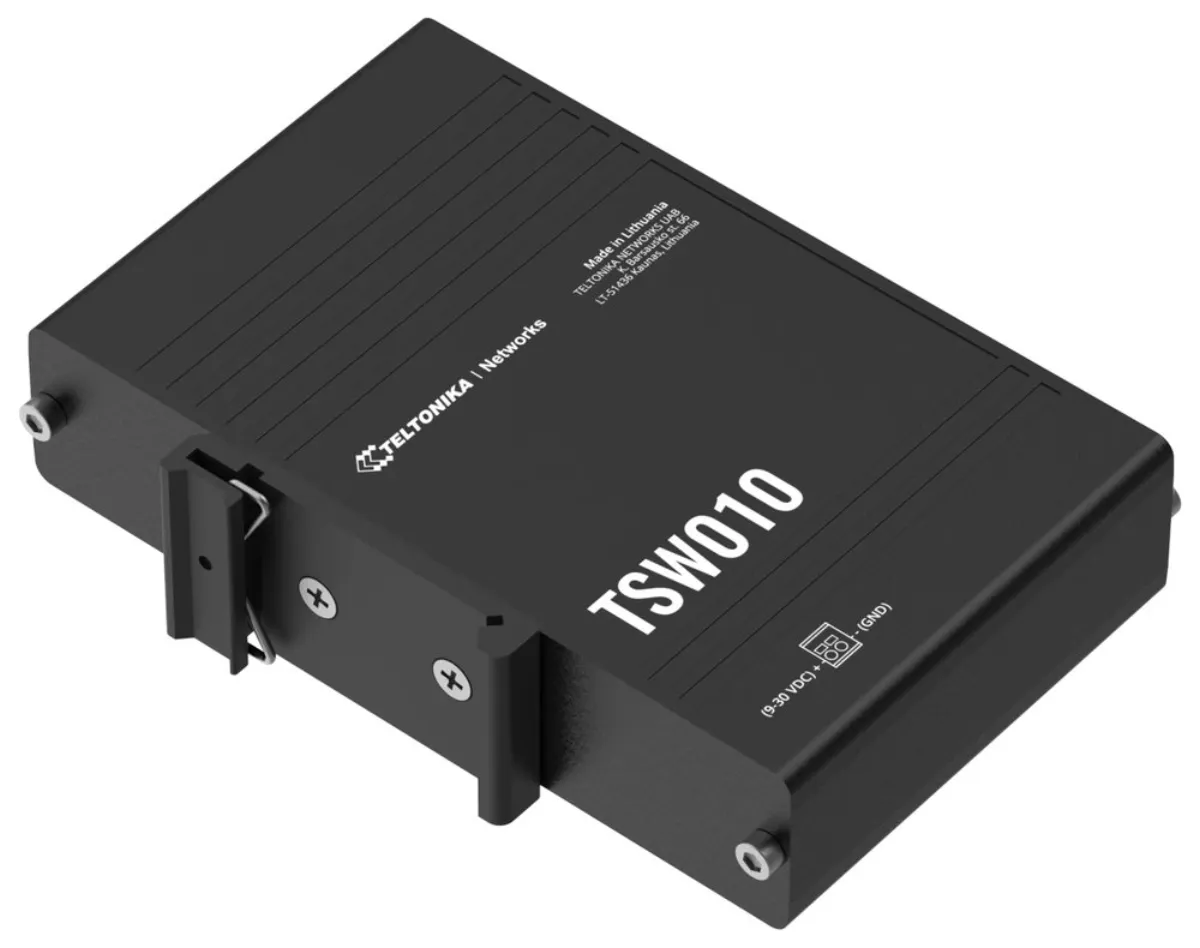

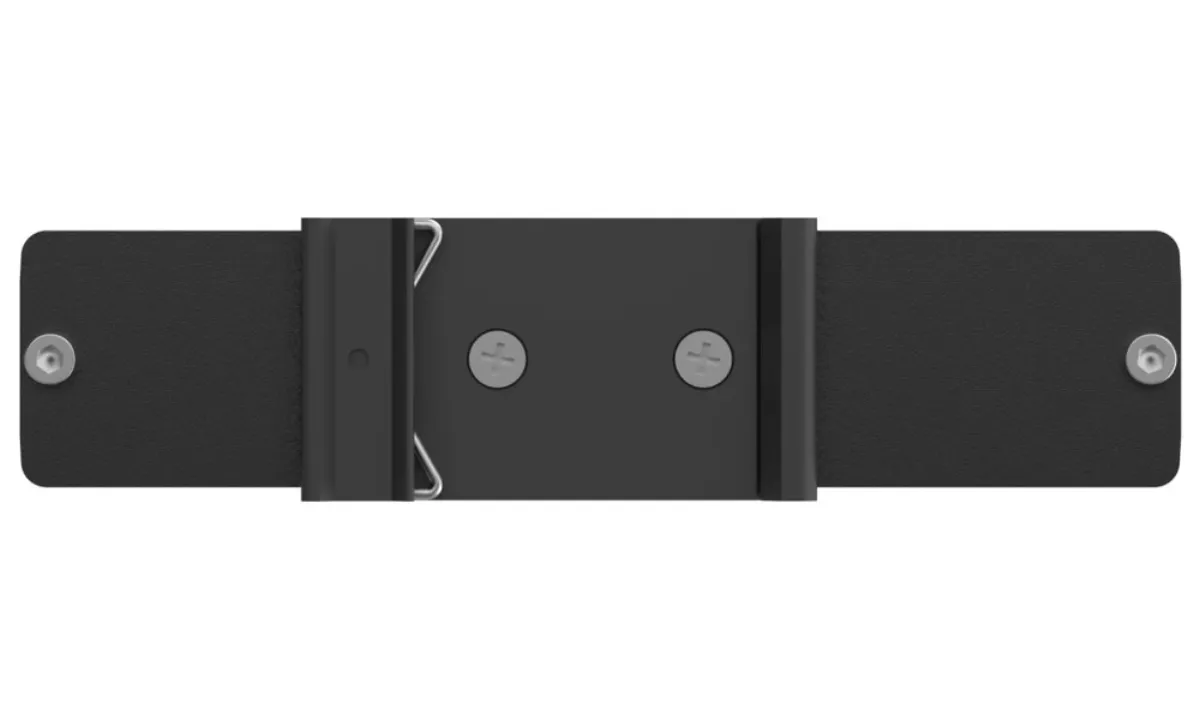

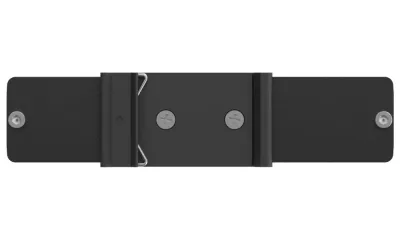

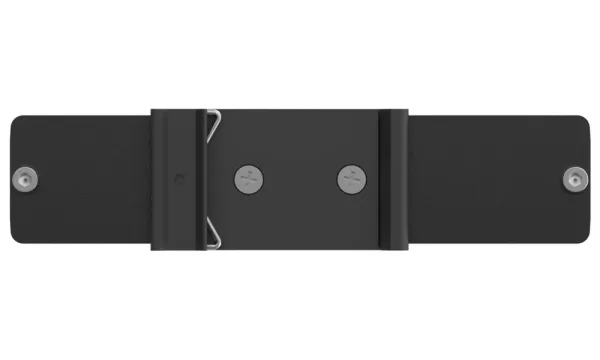

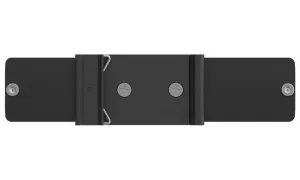

- Integrated DIN rail holder (no additional accessories required).
- Possibility of passive PoE power supply
- 2-pole industrial power input for flexible use.
- Low power consumption 0.3W when idle, max 0.9W.
- Compact design with a light weight of only 146.5 g.

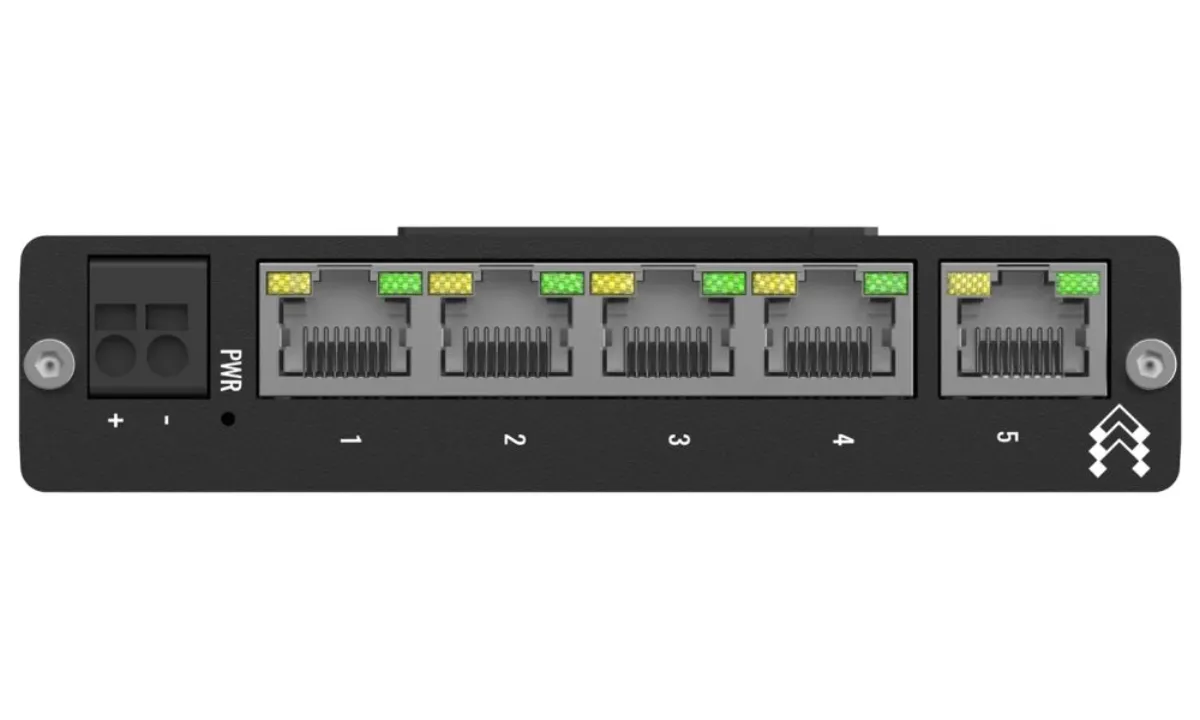

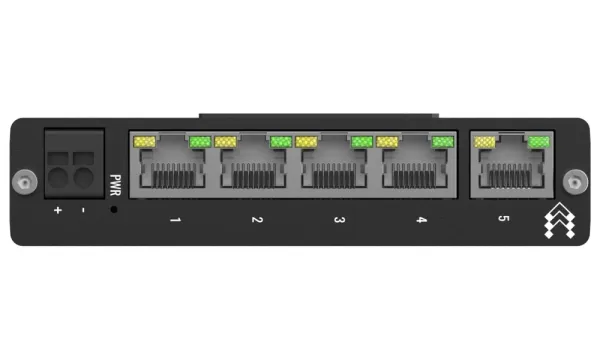

Number of ports: 5x RJ-45 10/100 Mb/
PoE
- yes
- passive PoE DC 9-30 V
Switch capacity: 1 Gbps
Power: DC 9-30V or PoE (LAN1 port) (power adapter not included)
Dimensions: 113.1 x 80.5 x 27.4 mm
Attention
- Passive PoE (LAN1 port) is not compatible with IEEE802.3af, 802.3at and 802.3bt standards.
- IEEE 802.3af-2003: the power supply will damage the device because it is not rated for the input voltage of the PoE standard.
- IEEE 802.3at: cannot power other devices via Ethernet.
| Name | Value | |
|---|---|---|
| Color | black | |
| Input voltage [V] | 9 - 30 (DC) | |
| Dimension [mm] | 113,1 × 80,5 × 27,4 mm | |
| PoE output | No | |
| Bus capacity (GBps) [Gbps] | 1 | |
| Port speed | 100 Mb/s | |
| Device power supply | external adapter | |
| OSI Layer | L2 | |
| Design | DIN rail | |
| MicroSD card support | No | |
| PoE support | Yes | |
| Minimum operating temperature [°C] | -40 | |
| Fanless | Yes | |
| PoE input | pasive | |
| Maximum operating temperature [°C] | 75 | |
| Conformity | CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, SDPPI (POSTEL), Kenya, REACH, RoHS, WEEE | |
| Degree of coverage | IP30 | |
