Teltonika TSW030 industrial unmanaged switch 8x 10 100 without power source

TELTONIKA | TSW030000000 | 4779051841431

On stock 5 pcs.

Price of goods is 39.31 €.

Weight of goods is 0.28 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

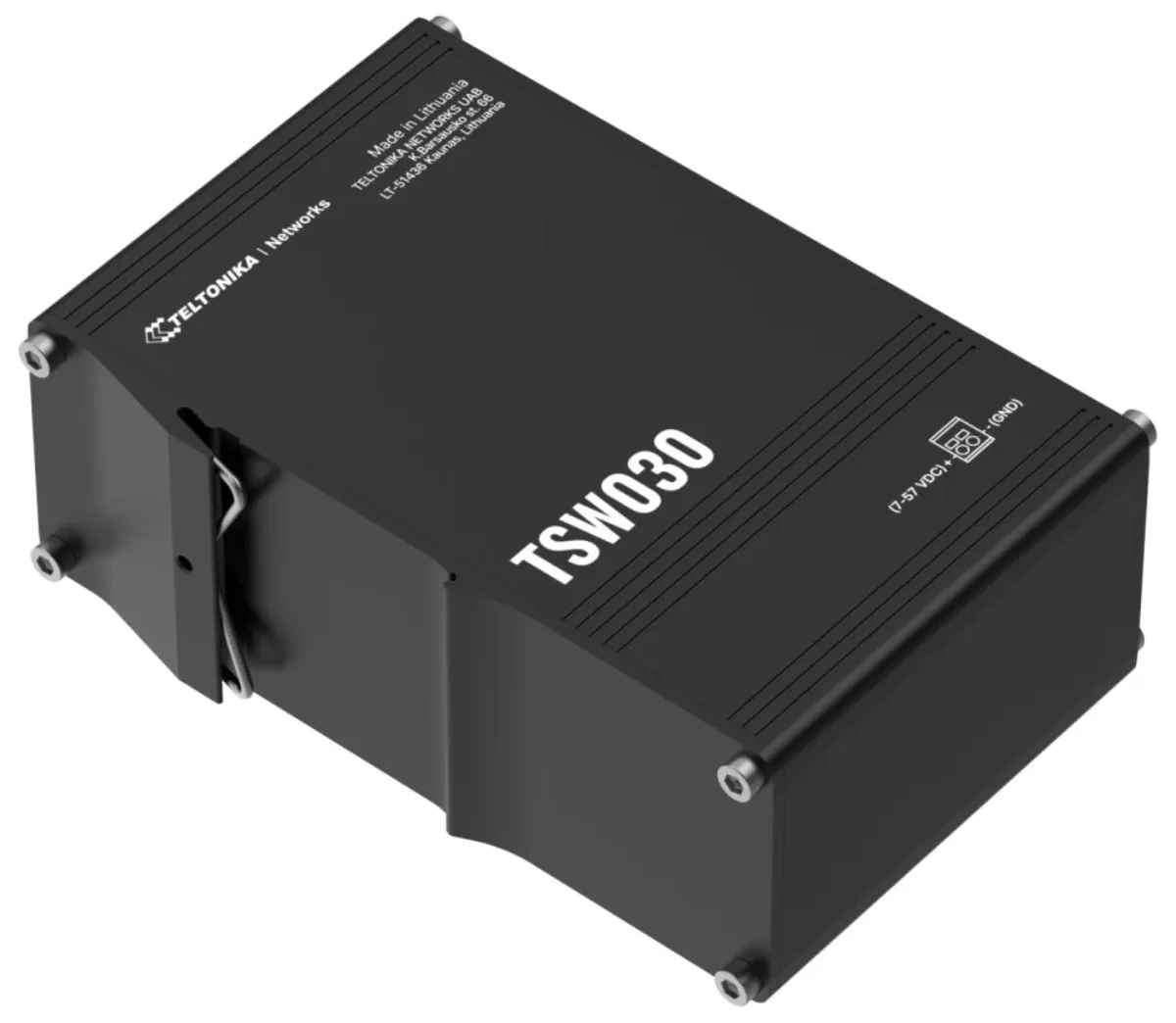

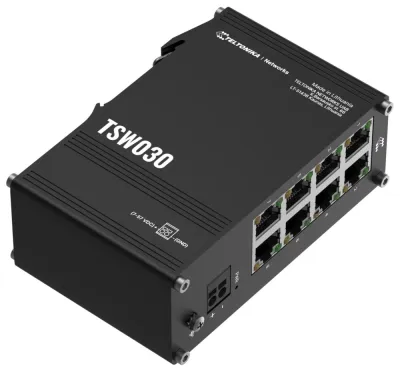

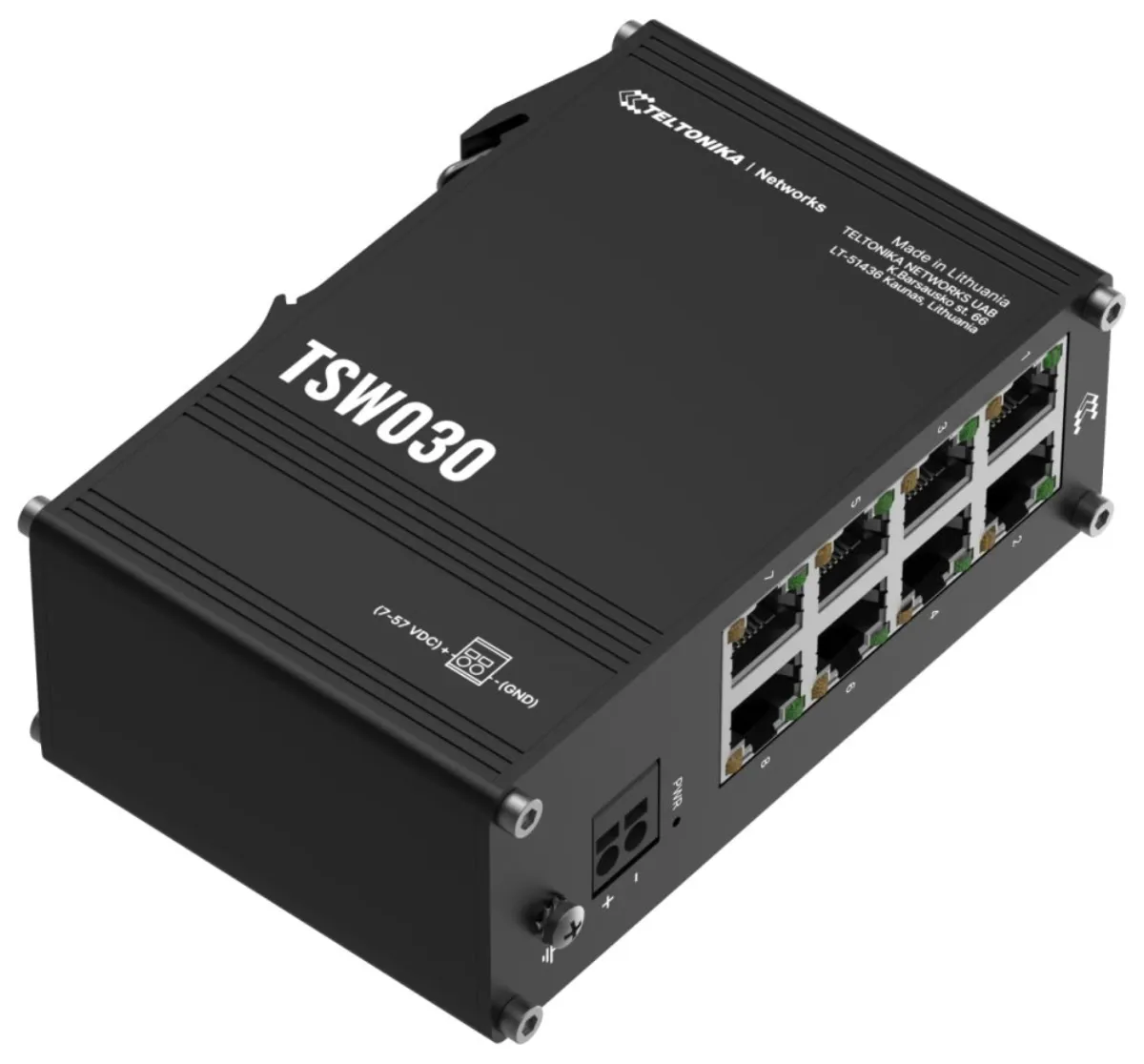

Teltonics TSW030

Industrial switch without management offering eight RJ-45 ports (10/100 Mbps). Easy to use with no configuration or installation required. The Switch has a built-in DIN rail mount. Switching capacity reaches up to 20 Gbps. The buffer has a capacity of 128 KB, the table of MAC addresses is 2K, and Jumbo frames of 9 KB are supported.

  • All LAN ports support automatic MDI/MDIX switching.
  • Support for IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az standards.

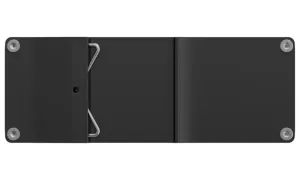

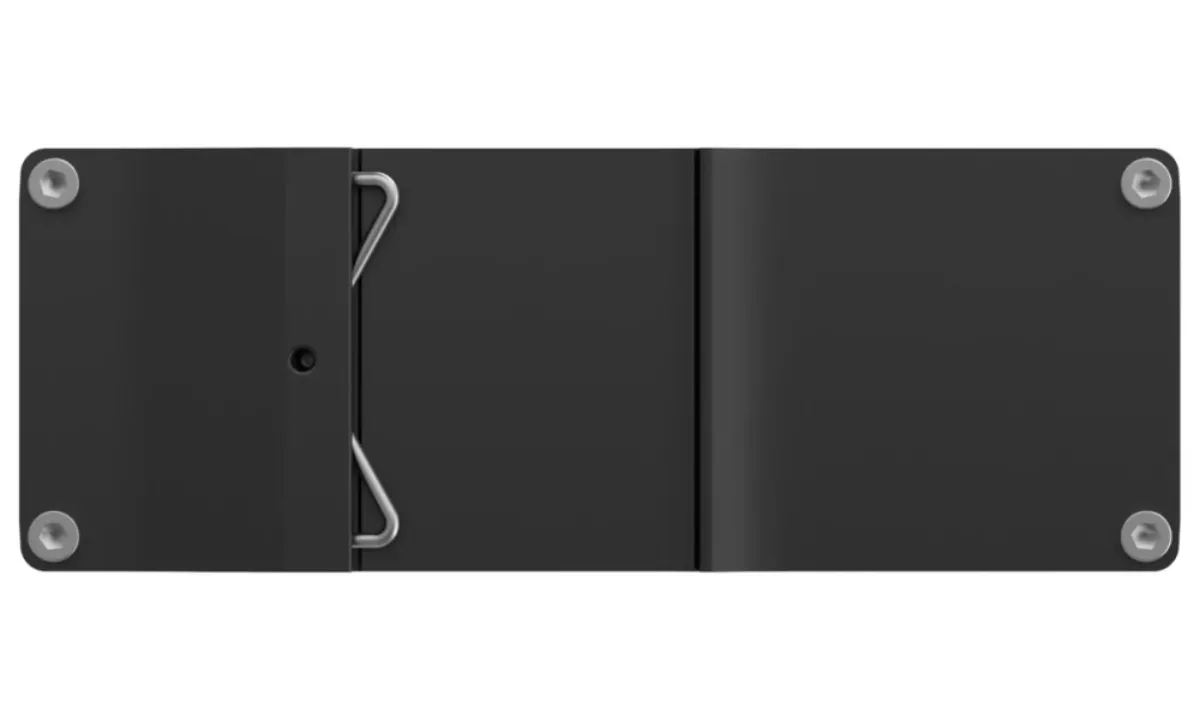

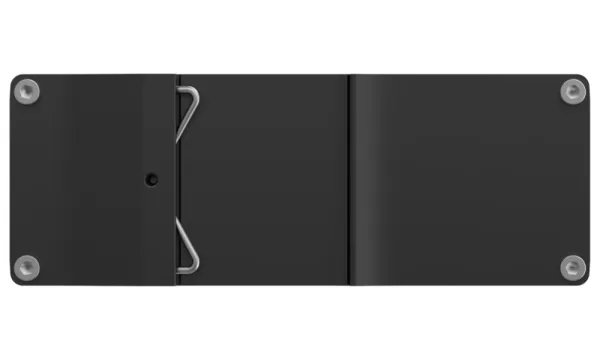

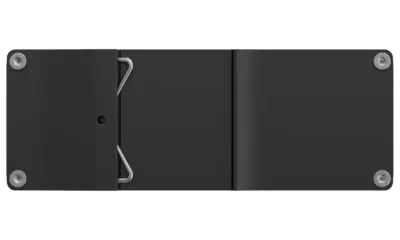

  • Integrated DIN rail holder (no additional accessories required).
  • Protection against overvoltage and reverse polarity.
  • 2-pole industrial power input for flexible use.
  • Low power consumption 0.5W when idle, max 1.5W.
  • Compact aluminum body with a low weight of only 256 g.

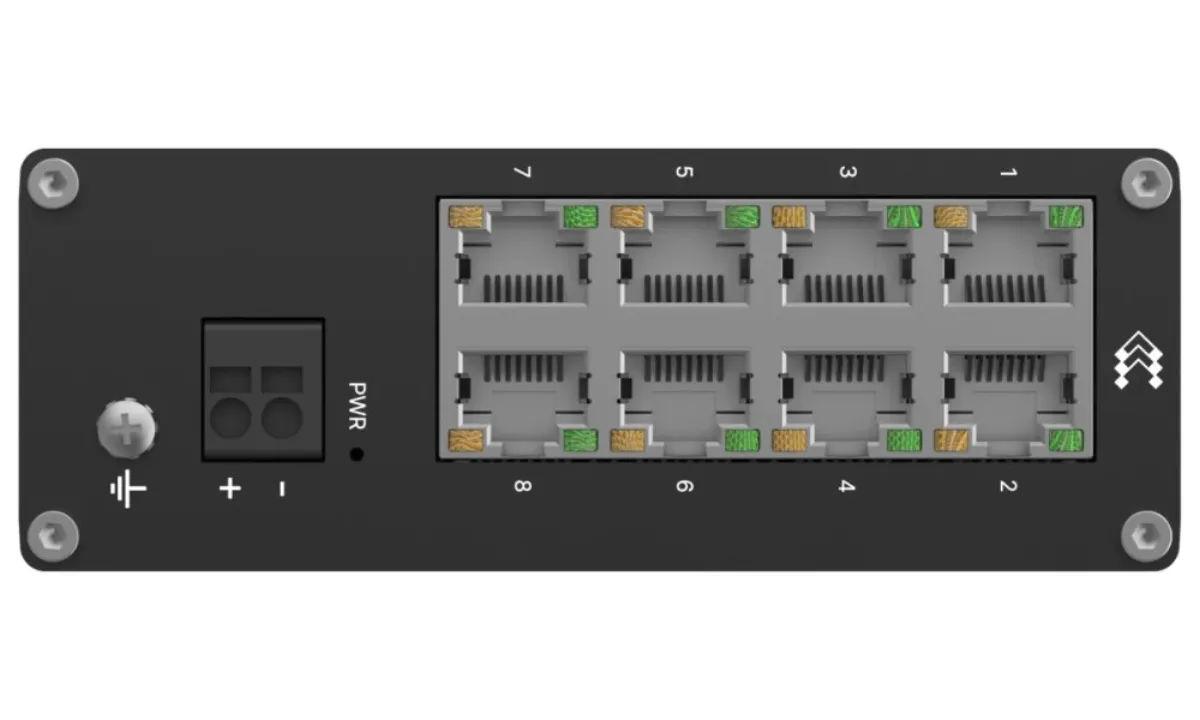

Number of ports: 8x RJ-45 10/100 Mb/s

PoE: no

Switch capacity: 20 Gbps

Power: DC 7-57V (power adapter not included)

Dimensions: 113.1 x 74.6 x 41.2 mm

Properties

NameValue
Colorblack
Input voltage [V]7 - 57 (DC)
Dimension [mm]113,1 × 74,6 × 41,2 mm
Outdoor useNo
Bus capacity (GBps) [Gbps]20
Port speed100 Mb/s
Device power supplyexternal adapter
OSI LayerL2
DesignDIN rail
MicroSD card supportNo
Minimum operating temperature [°C]-40
FanlessYes
Maximum operating temperature [°C]75
ConformityCE, UKCA, EAC, UCRF, RCM, FCC, IC, CB
Degree of coverageIP30
