TP-Link CPE210 - Outdoor CPE device 24GHz 300 Mbit with 9 dBi
TP-Link | CPE210 | 6935364071677
On stock 4 pcs.
Price of goods is 42.54 €.
Weight of goods is 0.907 Kg.
Actual in cart 0 pcs.

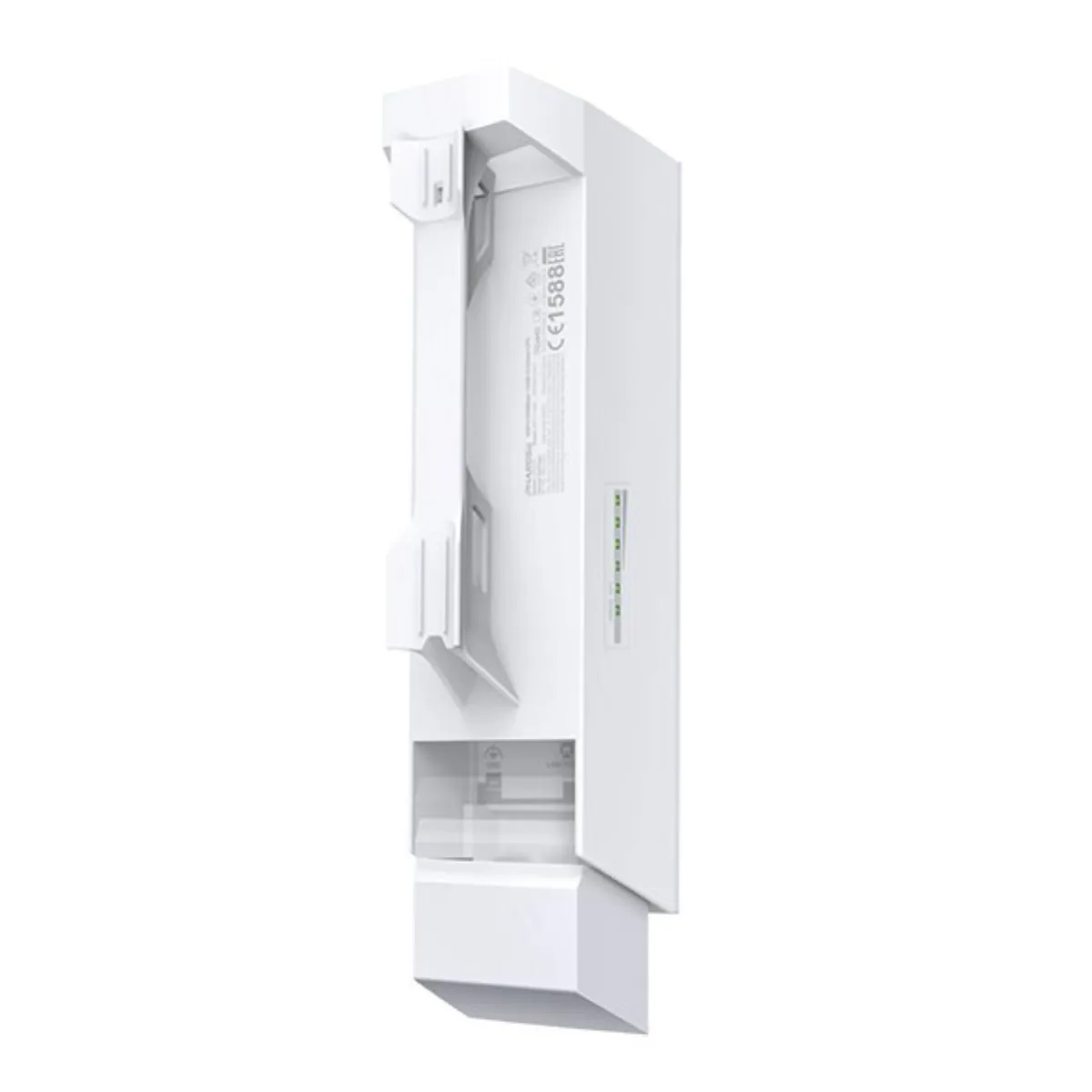

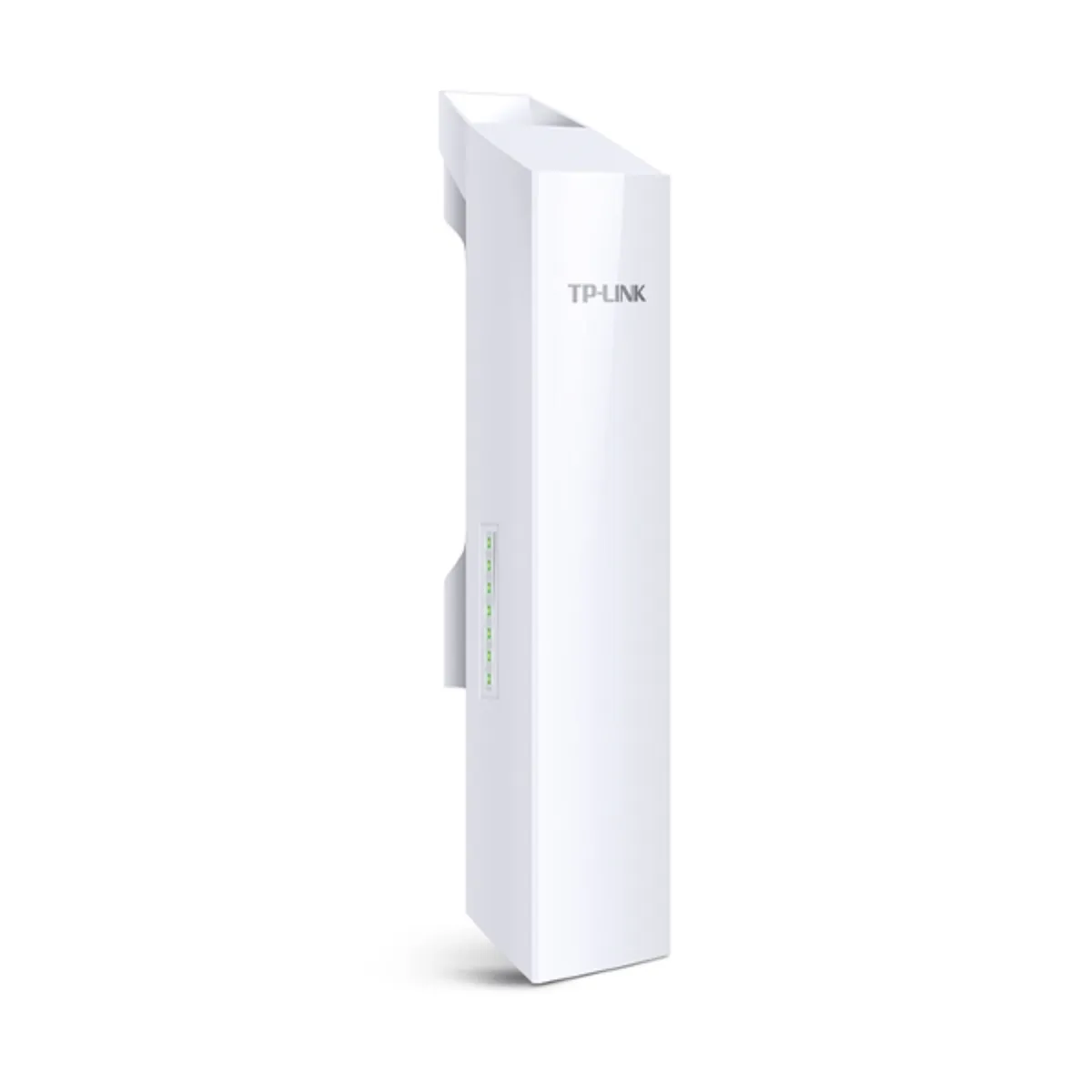

TP-Link CPE210
The outdoor CPE device is designed for an economical outdoor wireless network solution. Its centralized management system makes it ideal for point-to-point, point-to-multipoint and outdoor wireless network coverage.
Professional performance combined with a user-friendly design make the CPE210 an ideal choice for work and home use.
The device is weatherproof, includes 15KV ESD protection and lightning protection (6000V). The package also includes a 24V/1A PoE adapter, mounting straps and a power cable for the adapter.
The passive PoE adapter supports power over Ethernet up to 60 meters and enables remote device reset.
Hardware for business solutions
With Qualcomm Atheros enterprise-grade chips, high-gain antennas and high-quality material used, specially designed housing and PoE power supply, the CPE210 is mainly designed for outdoor use and can work flawlessly in almost any weather, with an operating temperature ranging from -30° C to +70 °C.
Advanced antenna system
Built-in high gain dual polarized antenna with special metal reflection ensures higher gain and lower interference.
TP-LINK MAXtream TDMA technology
Due to the ever-increasing network scale, the mutual interference and collision of wireless networks between CPE devices and base stations will be so great that the actual network throughput will decrease, which will be felt very negatively by the end users. To mitigate these negative effects, the CPE510 uses MAXtream TDMA technology.
Pharos Management - Centralized management system
The CPE210 is also equipped with centralized management software that helps users easily manage all devices in their network from a single computer - Pharos control. Functions such as device discovery, health monitoring, firmware updates and network maintenance can be managed using Pharos control.
PharOS
A user-friendly web-based management system allows professionals to use more specific configurations.
Supported standards: IEEE 802.11b/g/n
Frequency range: 2400 - 2483 GHz
Gain: 9 dBi
Memory
- 64 MB DDR2 RAM
- 8 MB Flash
PoE
- Yes
- passive PoE
Dimensions: 224 x 79 x 60 mm
| Name | Value | |
|---|---|---|
| Dimension [mm] | 224 × 79 × 60 mm | |
| Maximum operating temperature [°C] | 70 | |
| Minimum operating temperature [°C] | -30 | |
| DHCP | Yes | |
| Antenna design | internal | |
| Transmission speed [Mbps] | 300 | |
| Max. output power [dBm] | 27 | |
| Operating mode | AP, Client, WISP | |
| Wi-Fi frequency | 2400 - 2483 MHz | |
| MicroSD card support | No | |
| Encryption | 64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES) | |
| Power regulation | Yes | |
| Standards | 802.11b/g/n | |
| Port speed | 100 Mb/s | |
| Conformity | CE, FCC, RoHS | |
