TP-Link EAP683 UR ceiling AP WiFi 6 1x 25GLan 24 5 GHz AX6000 without PoE adapter Omada SDN
TP-Link | EAP683 LR | 8885020621938
On stock 1 pcs.
Price of goods is 194.85 €.
Weight of goods is 1.29 Kg.
Actual in cart 0 pcs.
TP-Link EAP683 LR

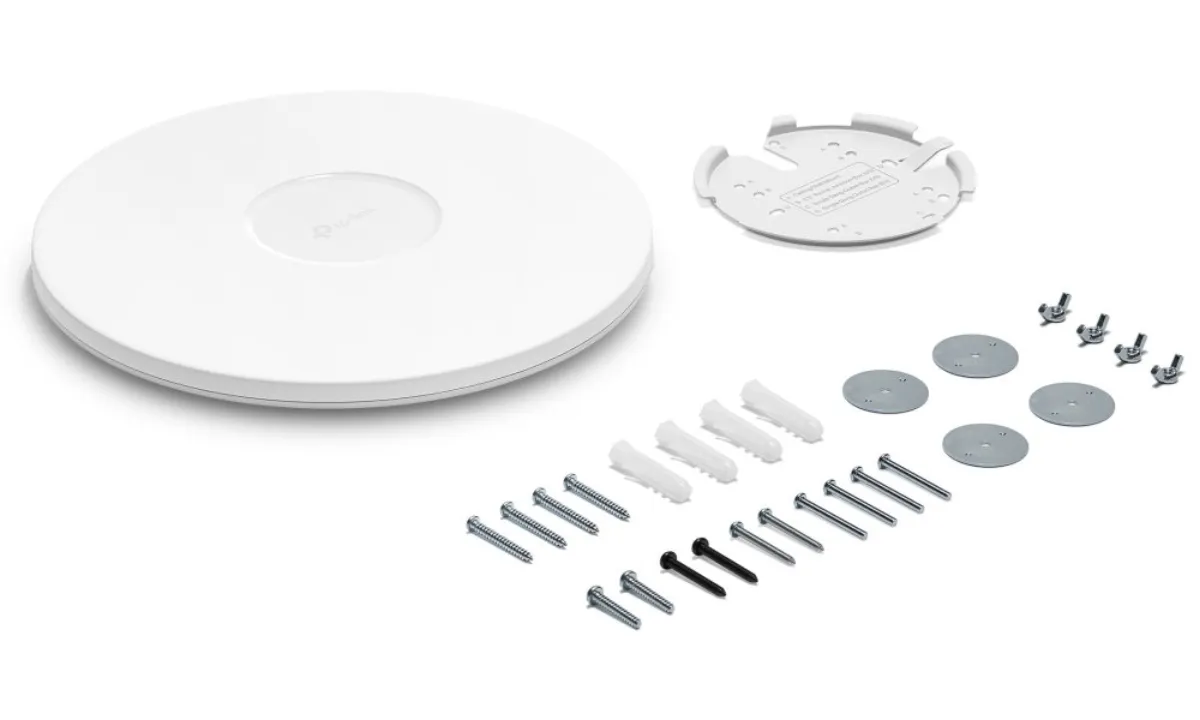

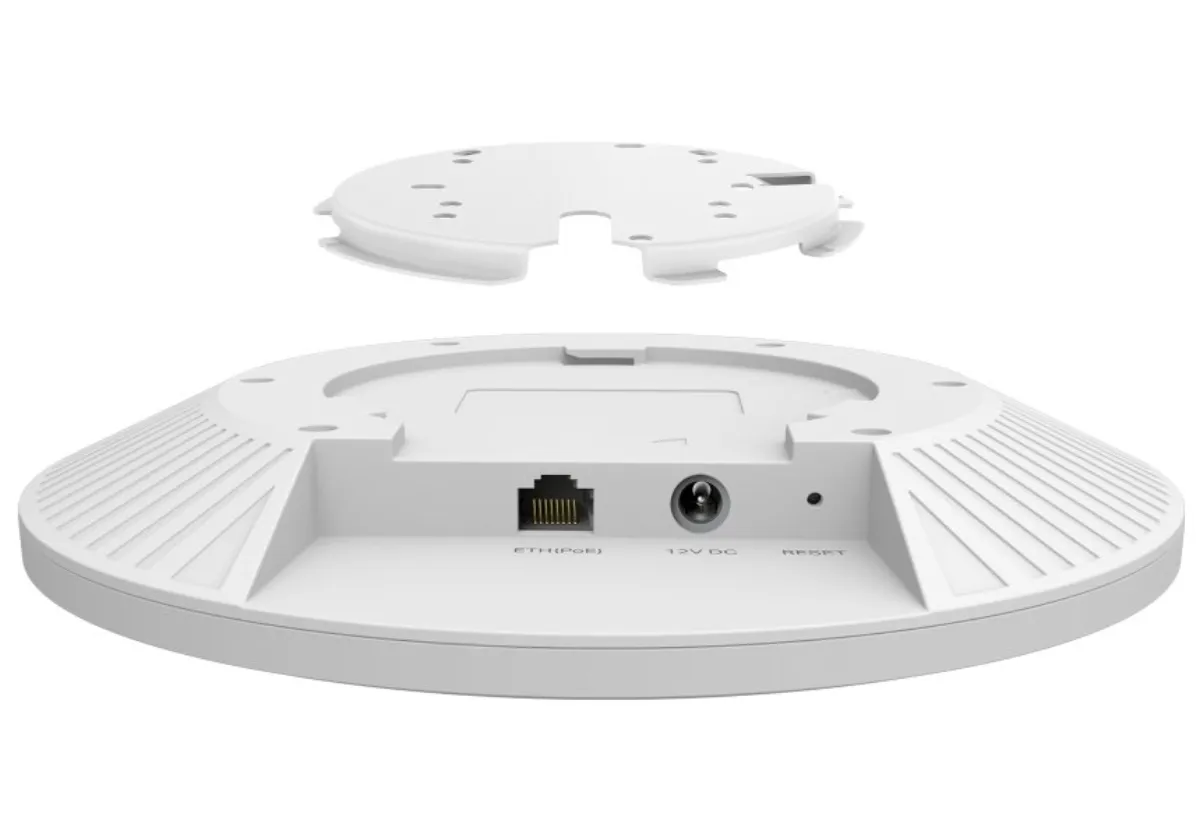

Dual-band ceiling access point with Wi-Fi 6 (802.11ax) support provides, together with MU-MIMO technology, a top dual-band connection with a total throughput of 5952 Mb/s at a speed of 1148 Mb/s in the band 2.4 GHz and 4804 Mb/s in the 5 GHz band. The unit covers an area of up to 185 m2 with a Wi-Fi signal. The access point supports both PoE+ power supply and DC 12 V adapter power supply. The elegant appearance and simple attachment to the wall or ceiling facilitates deployment and increases flexibility.
Neither the power adapter nor the PoE injector are not included in the package.
- Ultra-fast Wi-Fi 6 (AX6000): Speed 1148 Mb/s in the 2.4 GHz band and 4804 Mb/s in the 5 GHz band.
- Highly efficient Wi-Fi 6: Multiple connected devices can enjoy a faster connection.
- Centralized cloud management: The Omada SDN system manages the entire network locally or from the cloud via the Omada web user interface or application.
- Problem-free roaming: Video streams and voice calls are not affected when the user moves between individual access points.
- Omada Mesh: Enables wireless connectivity between access points for greater range and flexible deployment.
- PoE Support: Supports Power over Ethernet (PoE+ 802.3at) for flexible deployment and installation.
- 2.5 Gigabit Ethernet: The access point is equipped with a 2.5Gb/s RJ-45 port to increase throughput.
Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax
Data transfer speed
- 2.4 GHz - 1148 Mbit/s
- 5 GHz - 4804 Mbit/s
Antenna: 4× 4 dBi + 4× 5 dBi integrated antenna
Ports: 1× 2.5 Gbps RJ-45
Frequency band
- 2.4 GHz
- 5 GHz
Security
- WPA-Personal/Enterprise
- WPA2-Personal/Enterprise
- WPA3-Personal/Enterprise
- 802.1X support
PoE support
- yes
- 802.3at
Dimensions: 220 x 220 x 32.5 mm
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 220 × 220 × 32,5 mm | |
| Maximum operating temperature [°C] | 40 | |
| Minimum operating temperature [°C] | 0 | |
| Transmission speed [Mbps] | 4804 (5GHz), 1148 (2,4GHz) | |
| WEP security | No | |
| Modulation | 1024 QAM, OFDMA, OFDM | |
| Max. output power [dBm] | 26 | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax | |
| Antenna design | internal | |
| Indoor use | Yes | |
| Encryption | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Consumption [W] | 20,43 | |
| Gain [dBi] | 4 (2,4GHz), 5 (5GHz) | |
| Conformity | CE, FCC, RoHS | |
| Power supply [V] | 12 (DC) | |
| Standards | 802.11a/b/g/n/ac/ax, 802.1X | |
| PoE support | Yes | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Port speed | 2,5 Gb/s | |
| Design | on the wall | |
