TP-Link MC110CS 100 mbps Converter Eth Optics (single-mode)
TP-Link | MC110CS | 6935364030407
On stock 2 pcs.
Price of goods is 30.87 €.
Weight of goods is 0.526 Kg.
Actual in cart 0 pcs.

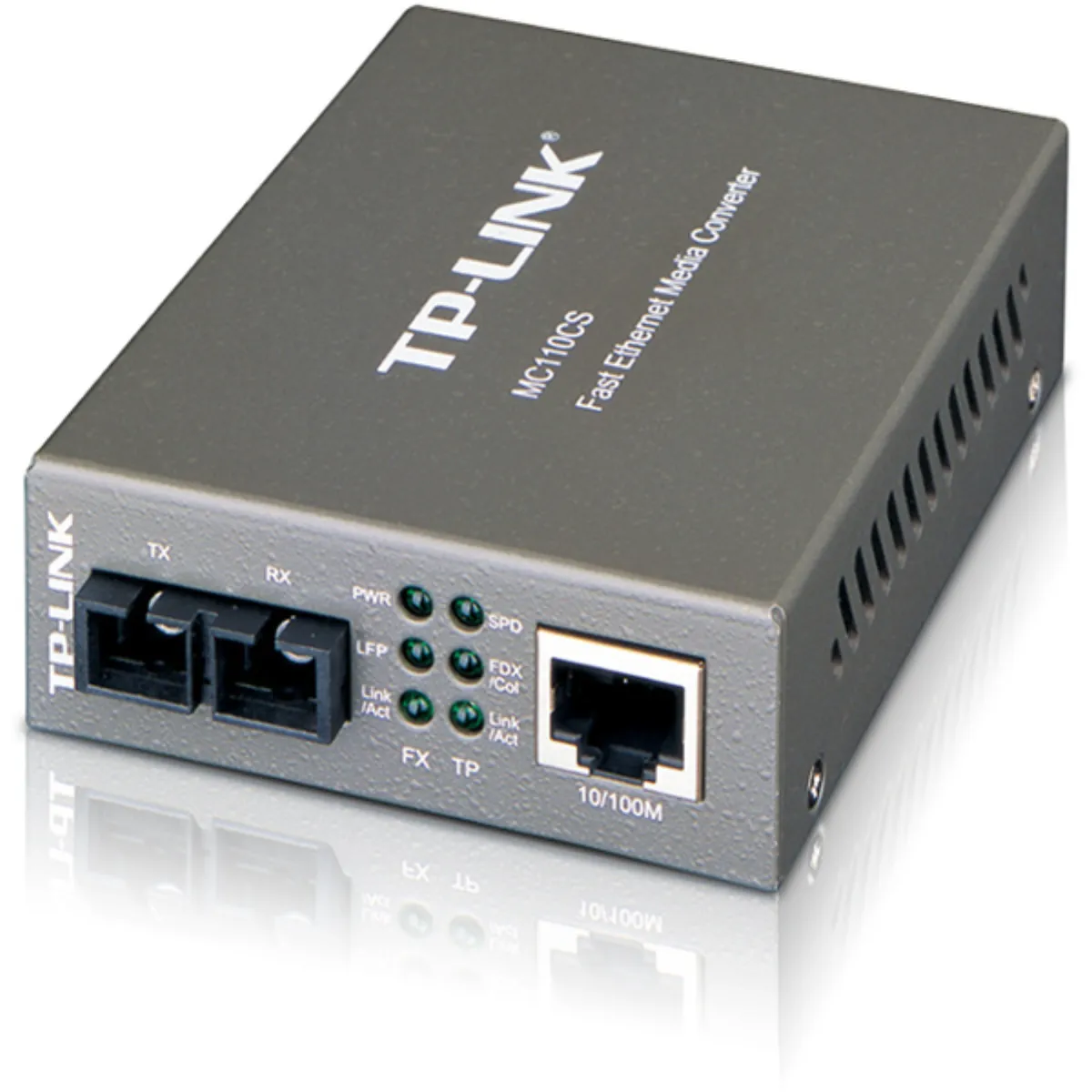

TP-Link MC110CS
Media converter designed to convert media from optical line 100BASE-FX to metallic line 100Base-TX and vice versa. The converter was designed according to the IEEE 802.3u 10/100Base-TX and 100Base-FX standards, and is intended for use with a single-mode optical cable with a SC type connector. Supports Long Wave Laser (LX) specification at maximum packet forwarding rate. It uses a wavelength of 1310 nm for receiving and sending data.
Other features of this module include the ability to be used as a stand-alone device (no chassis required) or with a TP-LINK 19' chassis, MDI/MDI-X auto-detection for the TX port, duplex mode auto-negotiation on the TX port, and status LEDs on the front panel . The MC110CS supports data transmission over a distance of up to 20 km using a single-mode optical cable.
Ports
- 1x 100 Mbps RJ-45
- 1x 100 Mbps SC/UPC
Compliance with standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
Maximum consumption: 1.52 W
Dimensions: 94.5 x 73 x 27 mm
| Name | Value | |
|---|---|---|
| Color | grey | |
| Dimension [mm] | 94,5 × 73 × 27 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 40 | |
| Max. link length [km] | 20 | |
| Connector | SC, RJ45 | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x | |
| LED indication | Yes | |
| Wavelength [nm] | 1310 | |
| Transmission speed [Mbps] | 100 | |
