TP-Link TL-FC111B-20 WDM Media Converter 1x 10 100 Mbps RJ45 1x 100Mbps SC Eth Optics (single-mode)
TP-Link | TL-FC111B-20 | 6935364010997
Price of goods is 15.77 €.
Weight of goods is 0.364 Kg.
Actual in cart 0 pcs.

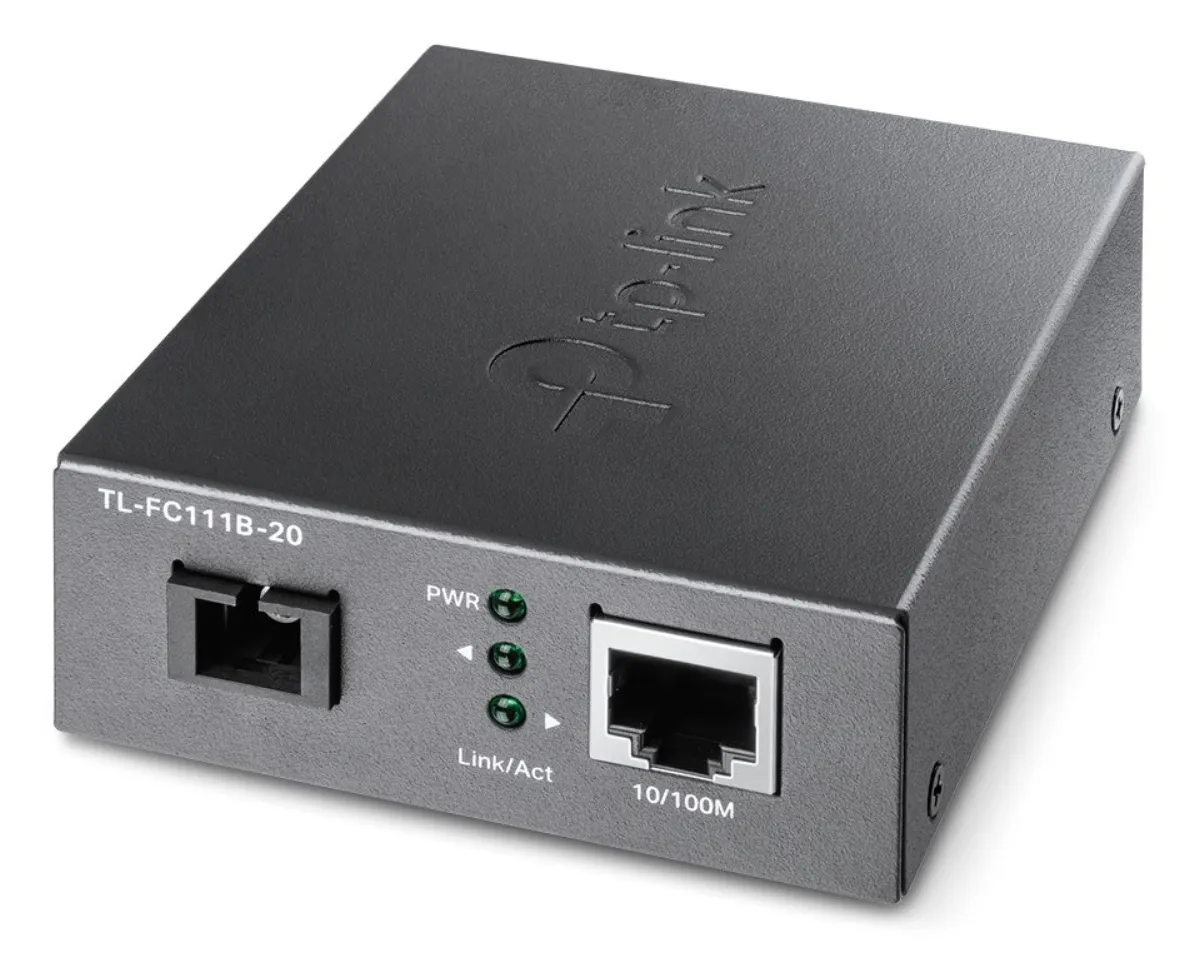

TP-Link TL-FC111B-20
ethernet/optical type media converter using WDM (Wavelength Division Multiplexing) technology, which is equipped with one 10/100 Mbps RJ-45 port and single-mode with SC connector. A TL-FC111A-20 converter is used on the other side of the optical fiber.
Converter metallic network to optical. It is suitable wherever the distance between two points is longer than allowed by a classic metallic network and a galvanic connection cannot be used. Optical fibers are also very resistant to disruptive electromagnetic or atmospheric influences.
Wavelength
- TL-FC111A-20: 1550 nm TX, 1310 nm RX
- TL-FC111B-20: 1310 nm TX, 1550 nm RX
WDM Singlemode Converter - converter with two-way data transmission along one optical fiber. Two-way transmission is achieved by using two wavelengths, one for transmission and one for reception. This eliminates the need to run a separate fiber for each direction of transmission.
Ports
- 1x 10/100 Mbps RJ-45
- 1x 100 Mbps SC
Optical line type: 9/125 µm single-mode
Type of metallic wiring: UTP/STP Cat5 or better
Range: up to 20 km
Compliance with standards
- IEEE 802.3
- IEEE 802.3i
- IEEE 802.3u
Power supply: external adapter 5 V / 0.6 A
Dimensions: 94.5 x 73 x 27 mm
| Name | Value | |
|---|---|---|
| Color | grey | |
| Dimension [mm] | 94,5 × 73 × 27 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 50 | |
| Transmitted signals | TxD and RxD | |
| Max. link length [km] | 20 | |
| Connector | SC, RJ45 | |
| Power supply [V] | 5 | |
| Standards | IEEE 802.3, IEEE 802.3i, IEEE802.3u | |
| Optical fiber specification | 9/125um | |
| LED indication | Yes | |
| Wavelength [nm] | 1310,1550 | |
| Transmission speed [Mbps] | 10/100 | |
