TP-Link TL-SG105PE 5-port PoE switch 4x PoE+
TP-Link | TL-SG105PE | 6935364052744
On stock 1 pcs.
Price of goods is 52.78 €.
Weight of goods is 0.782 Kg.
Actual in cart 0 pcs.

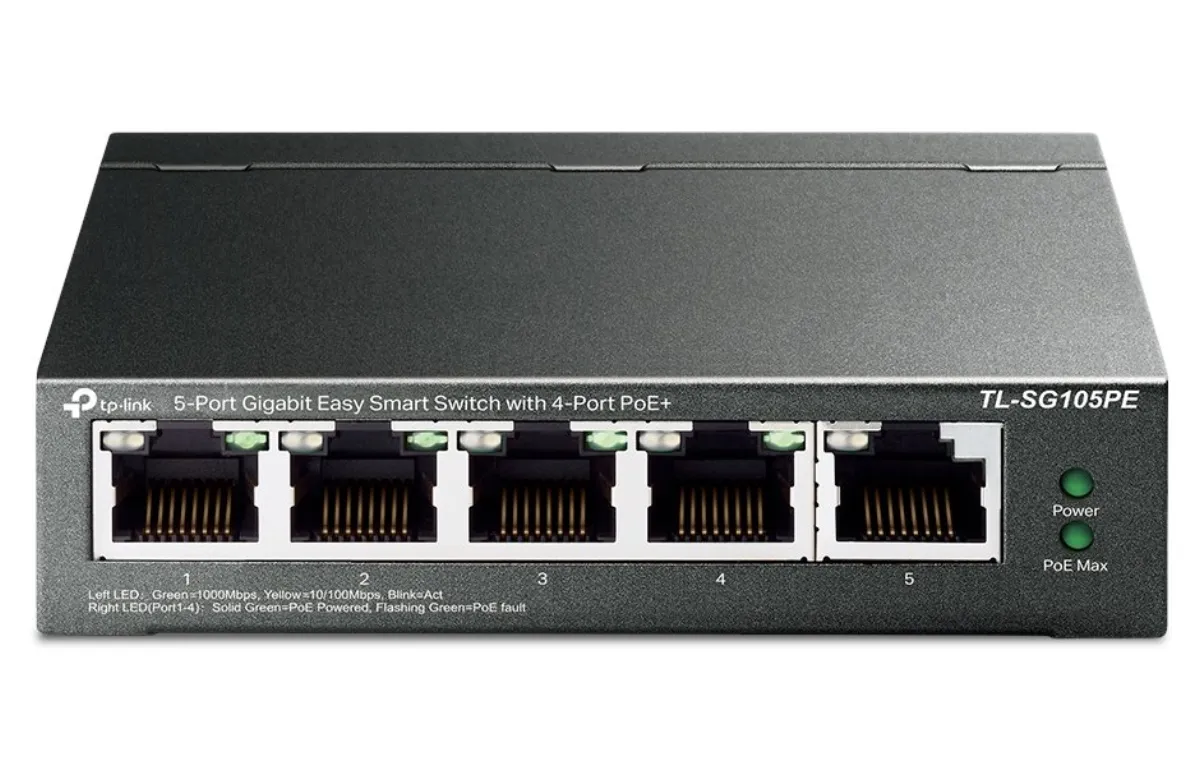

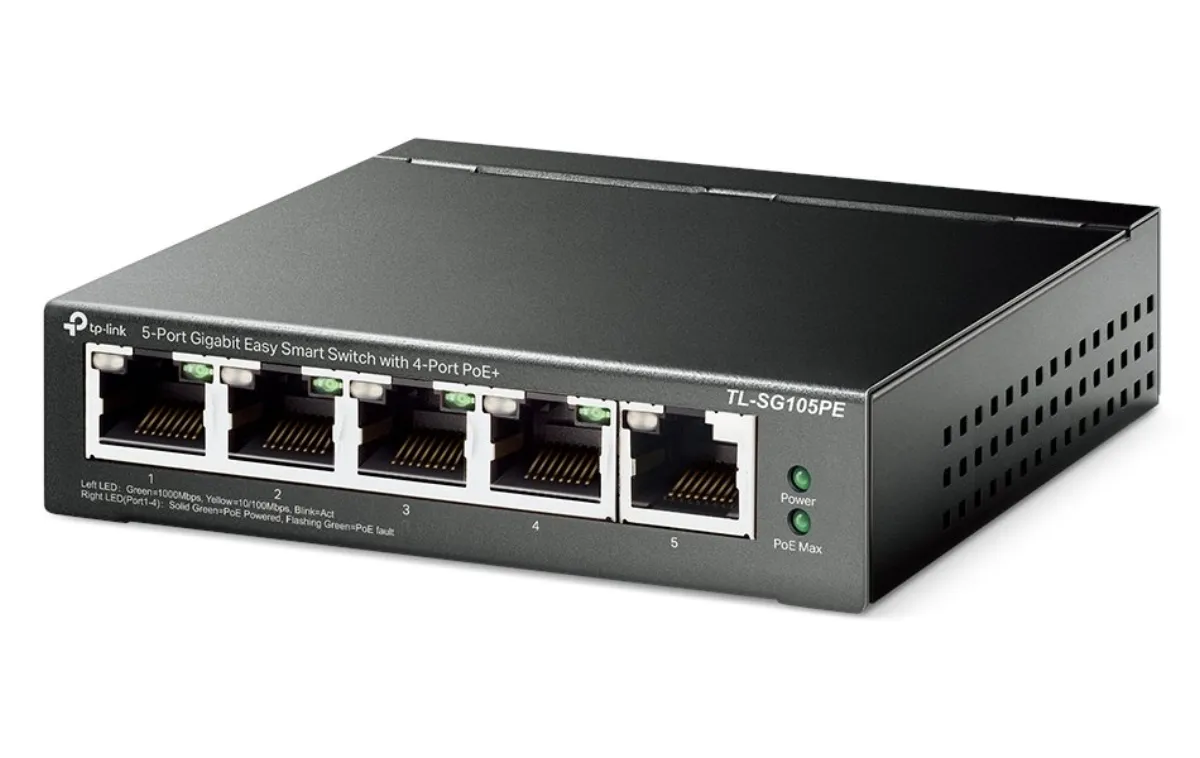

TP-Link TL-SG105PE
A switch offering five GbE RJ-45 ports with support for 4 x PoE+ (802.3 af/at) and a total power output of up to 65 W. Easy to use via web management or with Easy Smart Configuration Utility. Switching capacity reaches up to 10 Gbps and routing speed up to 7.44 Mpps.
- PoE+ power supply (802.3af/at) with a power consumption of up to 30 W per port
- Total power supply up to 65 W
- Support PoE Auto Recovery
- Management via web management or Easy Smart Configuration Utility
- Intelligent power management
- Ideal for smaller camera (surveillance) systems
- IGMP Snooping, QoS and VLAN support
- Metal fanless design and possible wall mounting
Intelligent power management
- If the total load on the switch exceeds 65W, intelligent power management will disconnect power on the lower priority port to ensure enough power for higher priority devices and avoid overloading the switch.
Number of ports: 5 x GbE RJ-45
PoE
- yes
- up to 30 W/port
- total power 65 W
Switch capacity: 10 Gbps
Routing Speed: 7.44 Mpps
Dimensions: 99.8 x 98 x 25 mm
| Name | Value | |
|---|---|---|
| Color | black | |

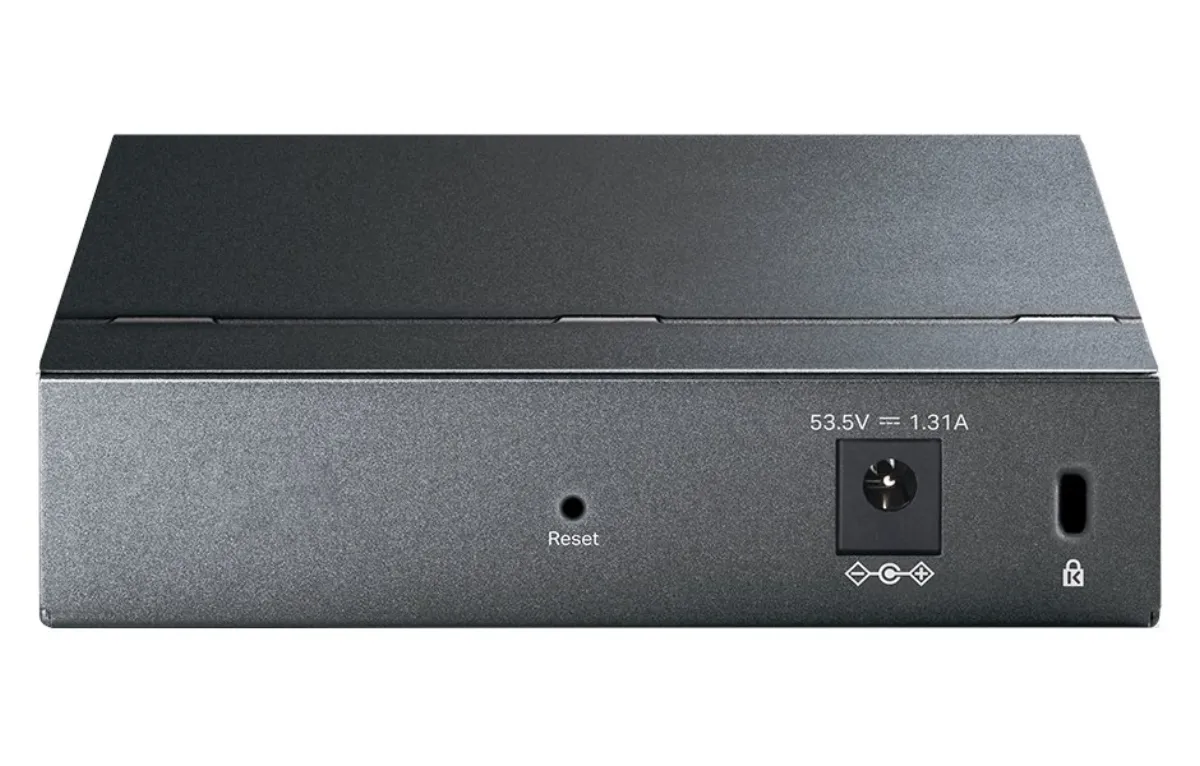

| Input voltage [V] | 53,5 | |
| Dimension [mm] | 99,8 × 98 × 25 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 40 | |
| Maximum input current [A] | 1,31 | |
| Display | No | |
| RS-232 port | No | |
| Device power supply | external adapter | |
| Conformity | CE, FCC, RoHS | |
| OSI Layer | L2 | |
| PoE output | 802.3af/at | |
| Port speed | 1 Gb/s | |
| Bus capacity (GBps) [Gbps] | 10 | |
| Management | Yes | |
| Fanless | Yes | |
| PoE output count | 4 | |
| Design | freestanding | |
