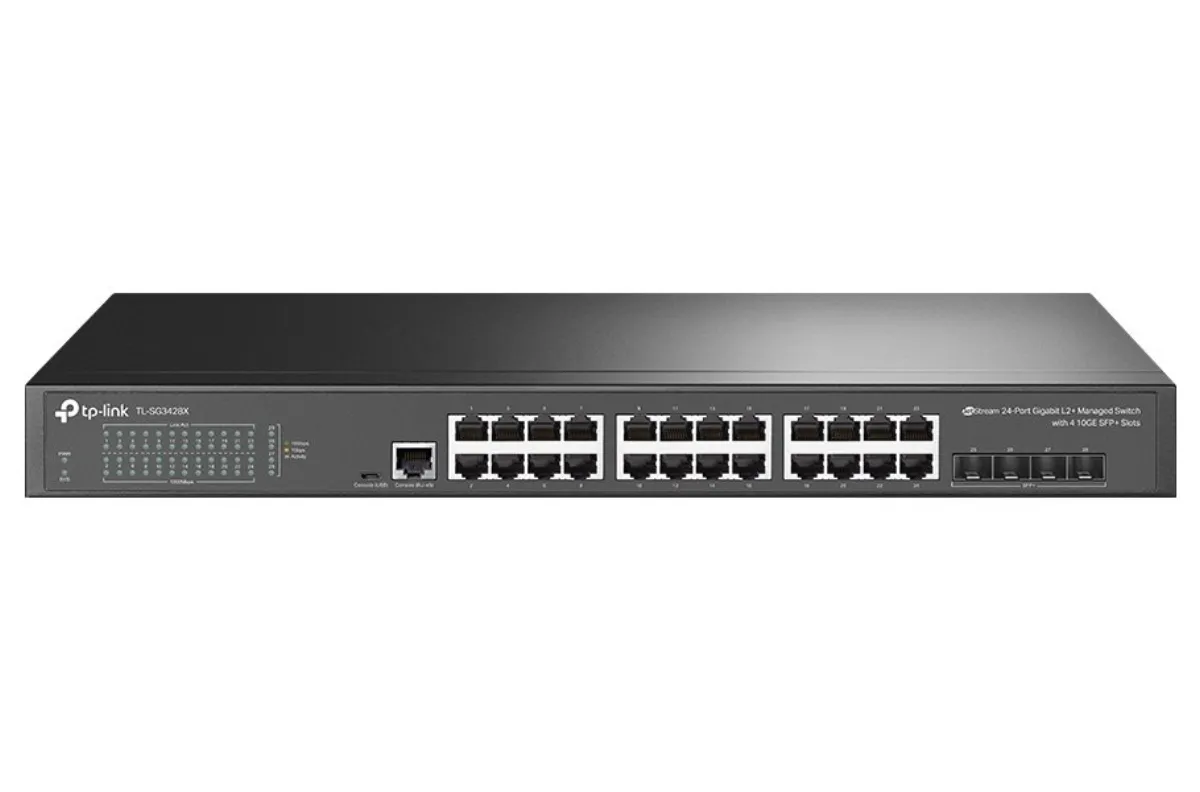

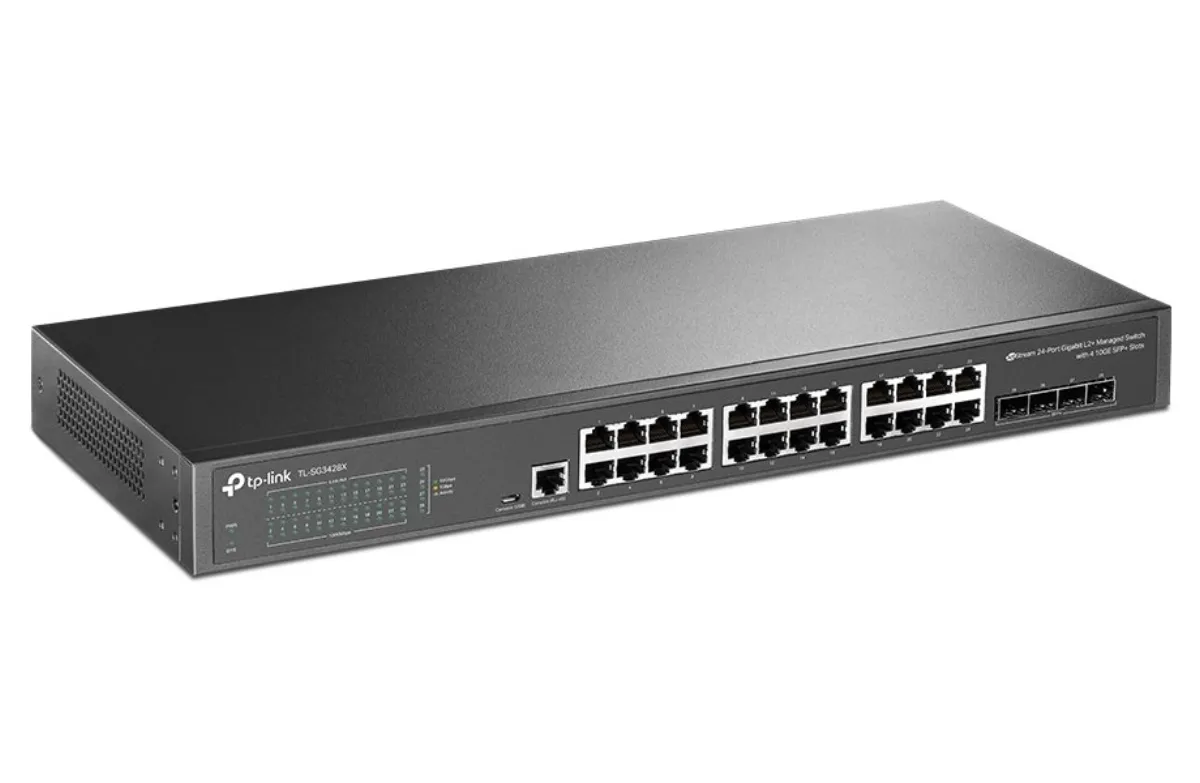

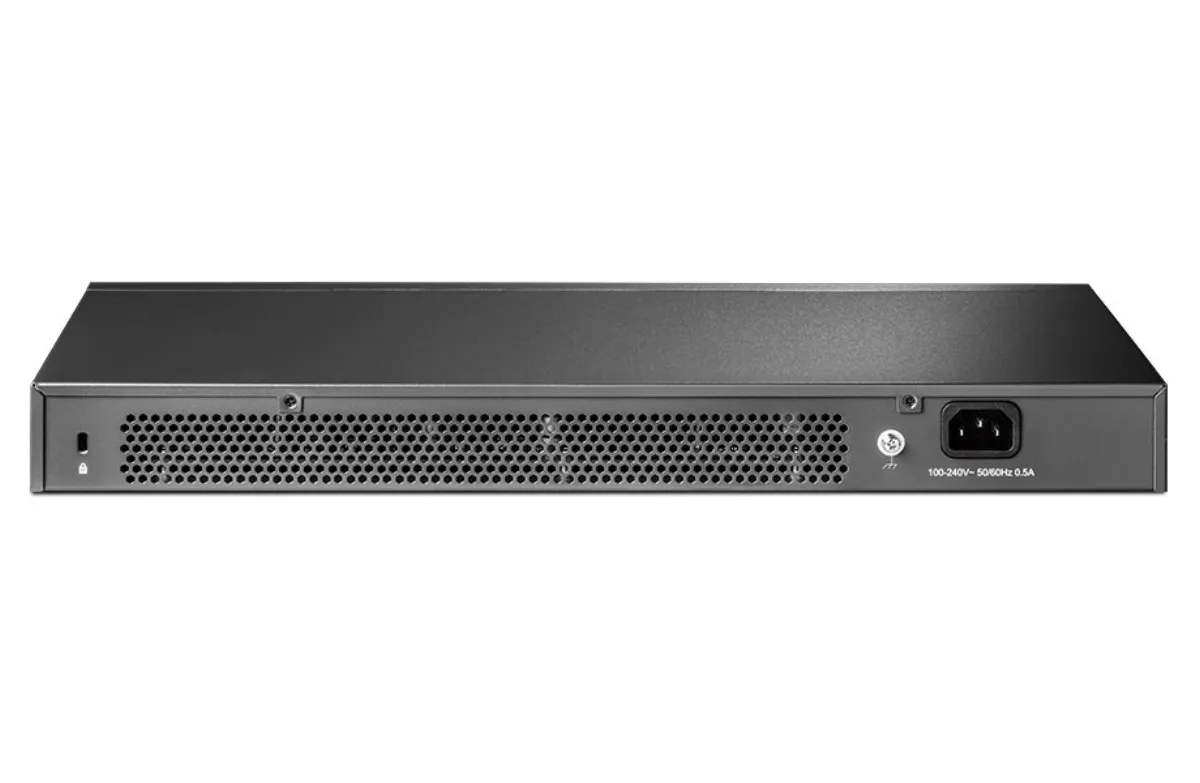

TP-Link TL-SG3428X - JetStream 24-Port Gigabit L2+ Managed Switch 4x 10 Gigabit SFP+ Slots
TP-Link | TL-SG3428X | 6935364010522
On stock 2 pcs.
Price of goods is 297.25 €.
Weight of goods is 2.753 Kg.
Actual in cart 0 pcs.
TP-Link TL-SG3428X
High-speed 24-port L2+ switch with management and four 10G SFP+ slots for uplink. The capacity of the switch is 128 Gbps and the routing speed is up to 95.23 Mpps. Storm Control protects against broadcast, multicast and unknown unicast storms. Network Traffic Management (QoS) offers advanced traffic management capabilities for smoother and faster transfer of your data. An easy-to-use web-based management interface together with SNMP, RMON and Dual Image support speed up setup and configuration without unnecessary downtime.
Integration into Omada SDN
- Zero-Touch Provisioning (ZTP)
- centralized cloud management and intelligent monitoring
- Centralized management: cloud access and Omada application for easy management
Security
- IP-MAC-Port Binding
- ACL
- Port Security
- DoS Defend
- Storm control
- DHCP Snooping
- 802.1X
- Radius Authentication and more
- Optimization of voice and video applications: L2/L3/L4 QoS and IGMP snooping
- Static routing: more efficient use of network resources
Separate administration/management
- Web
- CLI (console port
- Telnet
- SSH)
- SNMP
- RMON and Dual Image offer complete management options
Ports
- 24 x Gigabit RJ-45
- 4 x 10G SFP+ slots
- 1 x RJ-45 console port
- 1 x microUSB console port
Switch capacity: 128 Gbps
Routing Speed: 95.23 Mpps
PoE: no
Max. power consumption: 23.6 W
Dimensions: 440 x 180 x 44 mm
| Name | Value | |
|---|---|---|
| Input voltage [V] | 100 - 240 (AC) | |
| Color | black | |
| Dimension [mm] | 440 × 180 × 44 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 45 | |
| Conformity | CE, FCC, RoHS | |
| Stackability | No | |
| SFP+ count | 4 | |
| Micro USB count | 1 | |
| Port speed | 1 Gb/s + 10 Gb/s | |
| Fanless | Yes | |
| Device power supply | internal resource | |
| Bus capacity (GBps) [Gbps] | 128 | |
| Design | rack 19" | |
| OSI Layer | L3 static (L2+) | |
| RS-232 port | No | |
| IGMP | Yes | |
