TP-Link TL-SM311LM SFP 1Gbps module 550m MM LC MiniGBIC module
TP-Link | TL-SM311LM | 6935364030209
On stock 1 pcs.
Price of goods is 16.95 €.
Weight of goods is 0.118 Kg.
Actual in cart 0 pcs.

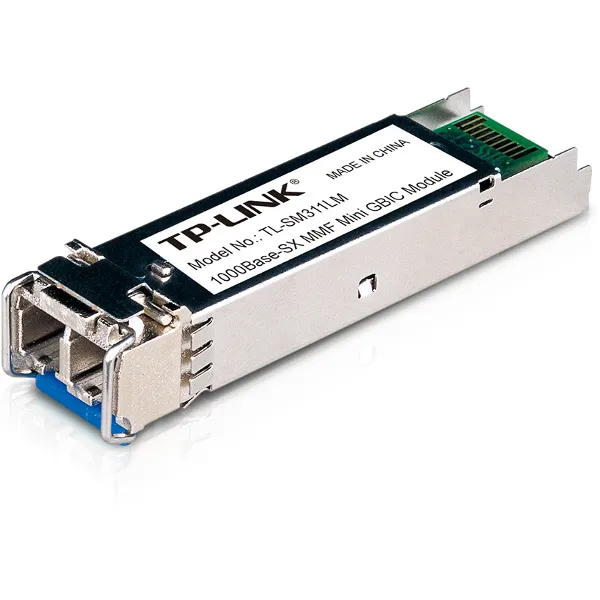

TP-Link TL-SM311LM
The SM311LM optical module can extend the transmission distance up to 550 m and thus meet the LAN range requirements. The module offers one optical port for multimode fiber 50/125 µm or 62.5/125 µm with 2 connectors LC (Duplex). The module uses wavelengths of 850 nm and its power supply is realized through the device.
Intended for use with devices: TL-SG3109/3216/3224, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351.
Format: SFP
Speed: 1.25 Gbps
Type: multimode
Distance: max. 550 m
Tx/Rx: 850 nm
Connector: LC duplex (UPC grinding)
| Name | Value | |
|---|---|---|
| Color | grey | |
| Maximum operating temperature [°C] | 70 | |
| Minimum operating temperature [°C] | 0 | |
| Design | Standard | |
| Connector | 2× LC | |
| SFP module compatibility | TP-LINK | |
| Type of optical fiber | multimode | |
| Optical fiber specification | 50/125um, 62,5/125um | |
| Transmission speed [Mbps] | 1250 | |
| Standards | IEEE 802.3z, CSMA/CD, TCP/IP | |
| Wavelength [nm] | 850 | |
| Range [km] | 550 m | |
| Max. link length [km] | 0,55 | |
| Power supply [V] | 3,3 | |
| Module type | SFP | |
| SFP module speed | 1,25 Gbps | |
| Optical connector type | LC | |
