TP-Link TL-SM311LS SFP 1Gbps module 20km SM LC MiniGBIC module
TP-Link | TL-SM311LS | 6935364030216
On stock 4 pcs.
Price of goods is 16.94 €.
Weight of goods is 0.134 Kg.
Actual in cart 0 pcs.

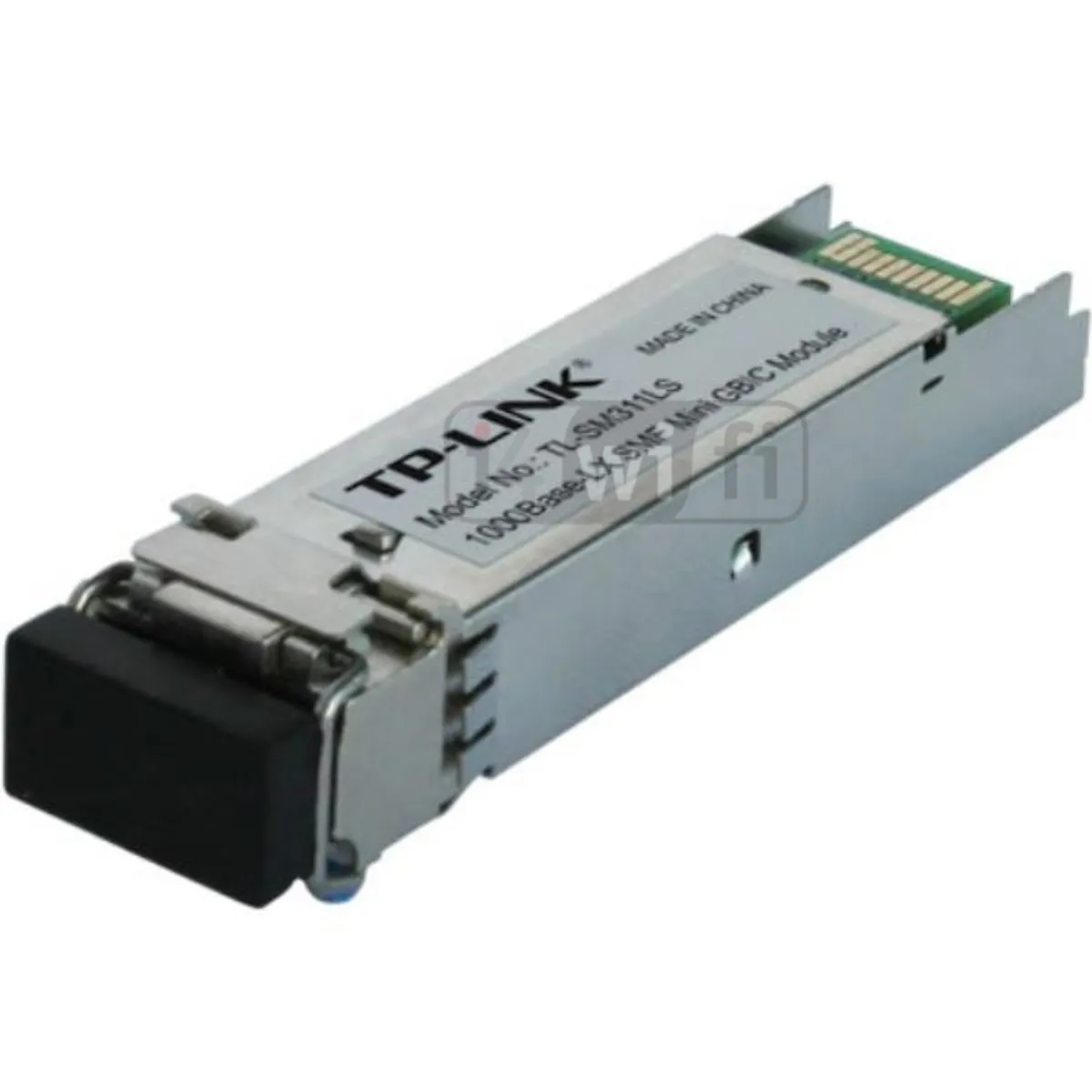

TP-Link TL-SM311LS
The SM311LS optical module can extend the transmission distance up to 20 km and thus meet the LAN range requirements. The module offers one optical port for singlemode fiber 9/125 µm with 2 connectors LC (Duplex). The module uses wavelengths 1310 nm and its power supply is realized through the device.
Intended for use with devices: TL-SG3109/3216/3224, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351.
Format: SFP
Speed: 1 Gbps
Type: single mode
Distance: max. 10 km
Tx/Rx: 1310 nm
Connector: LC duplex (UPC grinding)
| Name | Value | |
|---|---|---|
| Color | grey | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 70 | |
| SFP module compatibility | TP-LINK | |
| Standards | IEEE 802.3z, CSMA/CD, TCP/IP | |
| Max. link length [km] | 10 | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 10 km | |
| Optical connector type | LC | |
| Wavelength [nm] | 1310 | |
| Transmission speed [Mbps] | 1250 | |
| Other | MiniGBIC, Single-Model, Fiber Module | |
| Optical fiber specification | 9/125um | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Power supply [V] | 3,3 | |
| Connector | 2× LC | |
| Design | Standard | |
