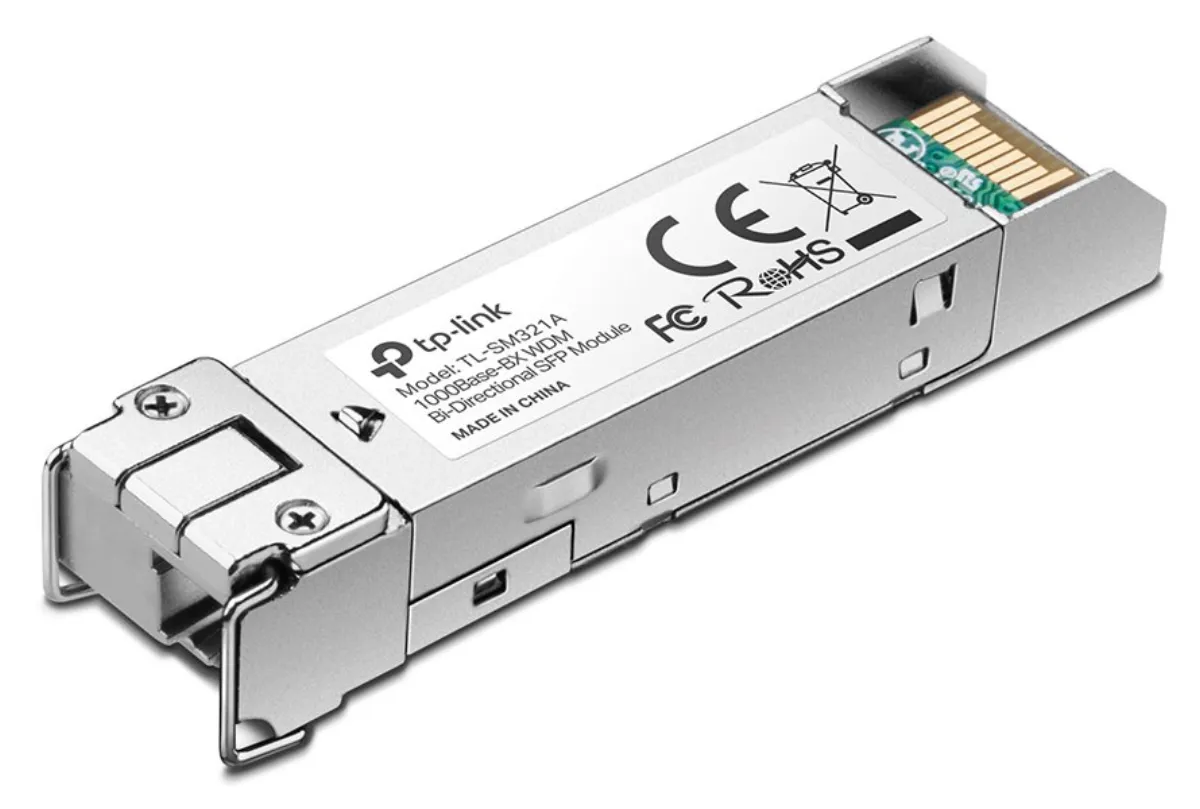

TP-Link TL-SM321A-2 1000Base-BX WDM Bi-Direct SFP 1Gbps 2km SM LC module
TP-Link | TL-SM321A-2 | 6935364072933
On stock 4 pcs.
Price of goods is 13.98 €.
Weight of goods is 0.06 Kg.
Actual in cart 0 pcs.
TP-Link TL-SM321A-2
Save on the number of fibers used and use WDM technology, which enables two-way data transmission over one optical fiber. The module enables communication at a speed of up to 1.25 Gbps at a distance of up to 2 km. In practice, it is thus used for short and medium optical networks and provides a fast and stable gigabit connection for switches, routers, servers, etc.
It also features Digital Diagnostic Monitoring ( DDM) that conforms to the SFF-8472 standard and supports real-time monitoring of the transceiver. The module is designed to be inserted into an SFP slot and is powered directly from the device.
Format: SFP
Speed: 1.25 Gbps
Type: single mode
Distance: max. 2 km
Tx/Rx: 1550/1310 nm (Tx/Rx)
Connector: LC
| Name | Value | |
|---|---|---|
| Color | grey | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 70 | |
| Standards | IEEE 802.3z, TCP/IP | |
| Max. link length [km] | 2 | |
| SFP module speed | 1,25 Gbps | |
| Range [km] | 2 km | |
| Optical connector type | LC | |
| Wavelength [nm] | 1310,1550 | |
| Transmission speed [Mbps] | 1250 | |
| Optical fiber specification | 9/125um | |
| Type of optical fiber | singlemode | |
| Module type | SFP | |
| Power supply [V] | 3,3 | |
| Connector | LC | |
