Ubiquiti AirFiber 60 HD - 60 GHz radio (57-66 GHz) PtP 35 dBi SFP+ port up to 6 Gbps throughput
UBIQUITI | AF60-HD | 810010076113
Out of stock.
Price of goods is 392.52 €.
Weight of goods is 3.774 Kg.
Actual in cart 0 pcs.

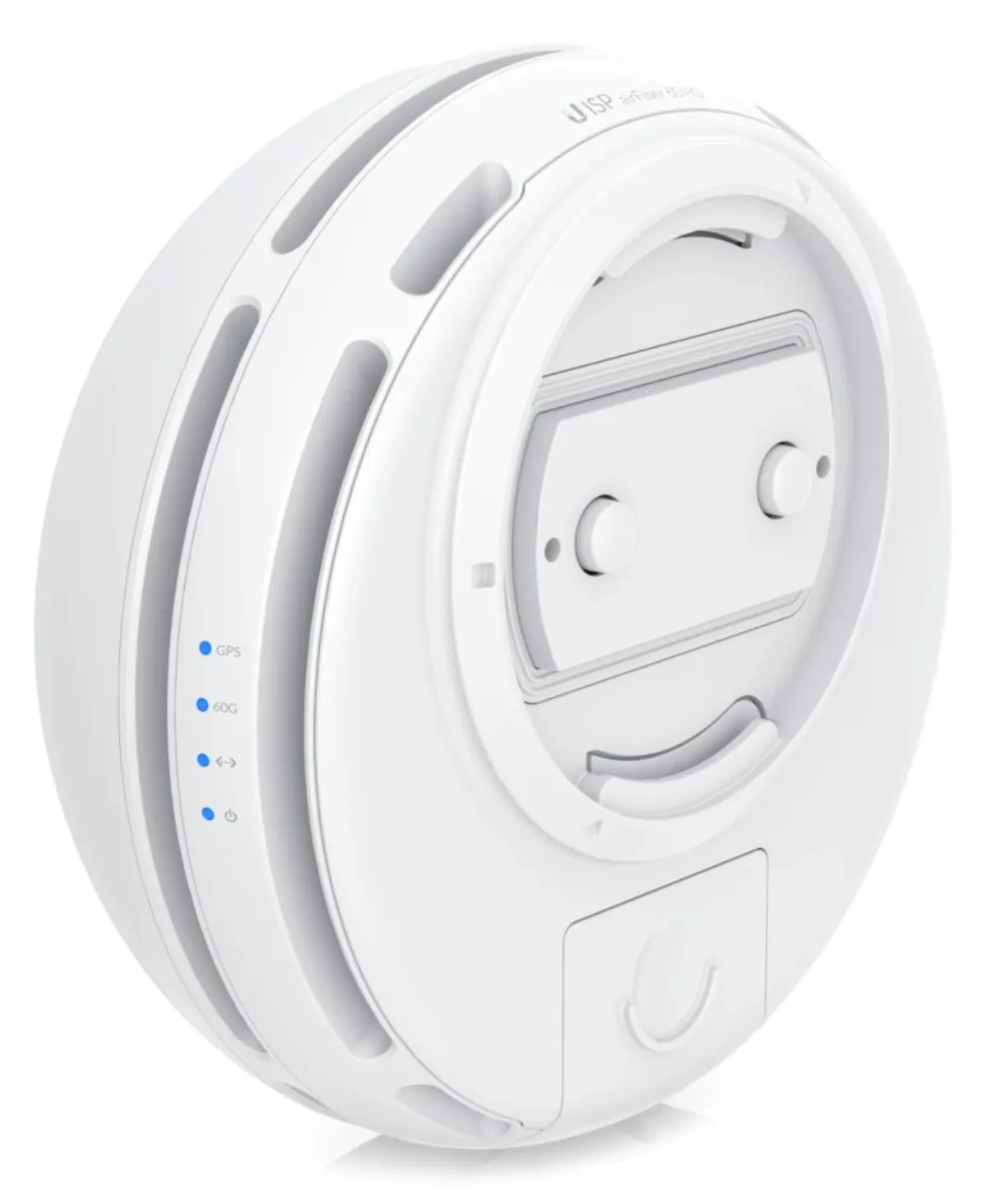

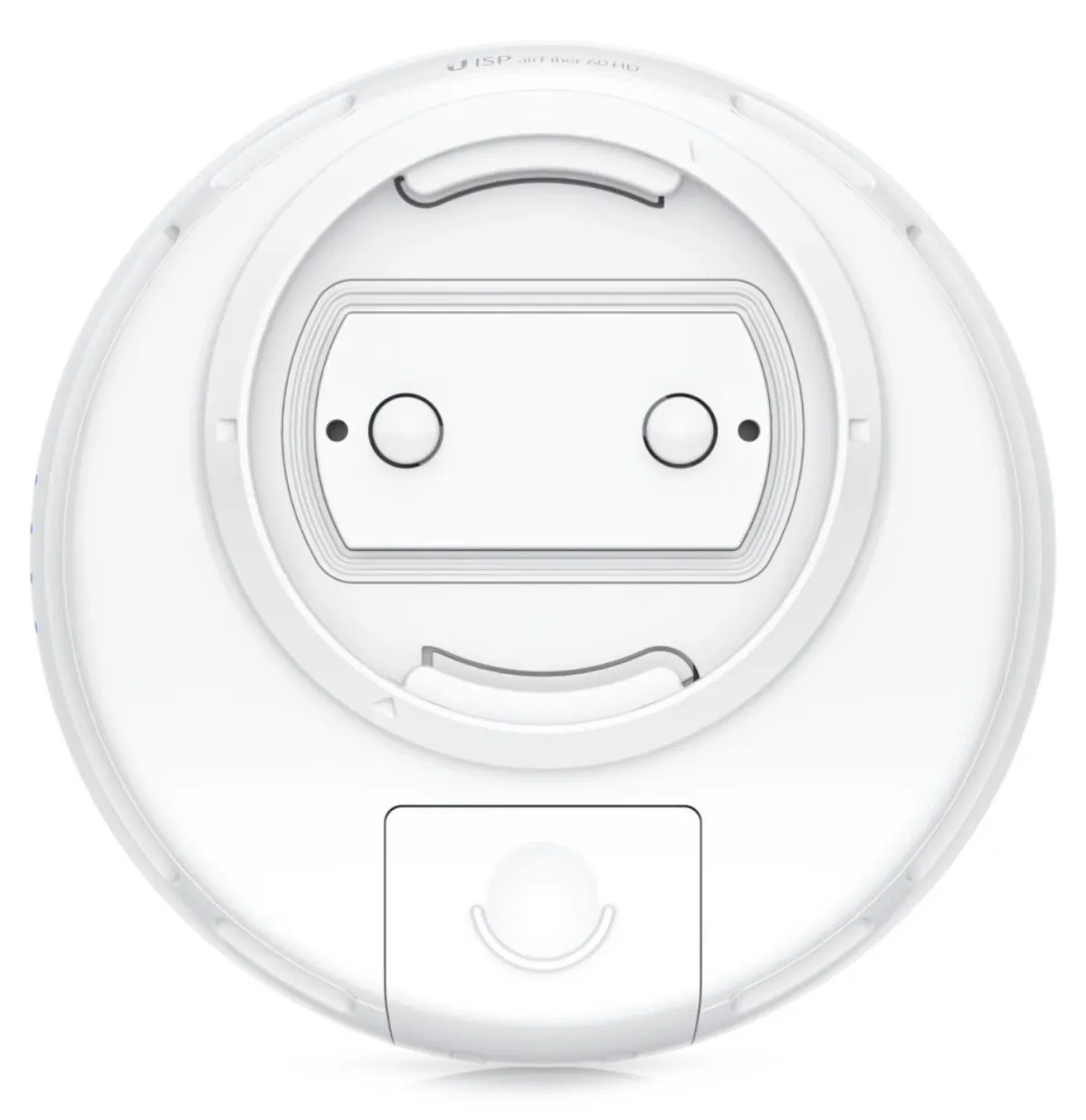

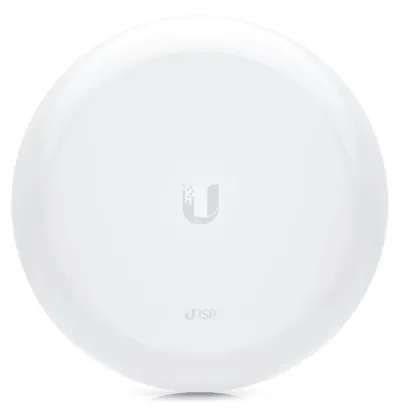

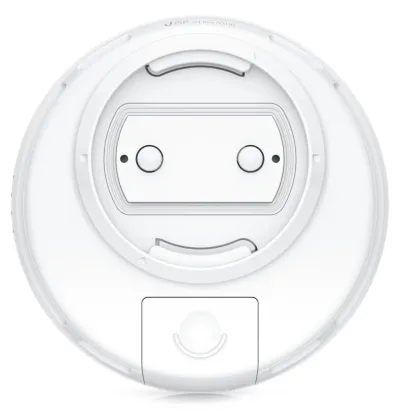

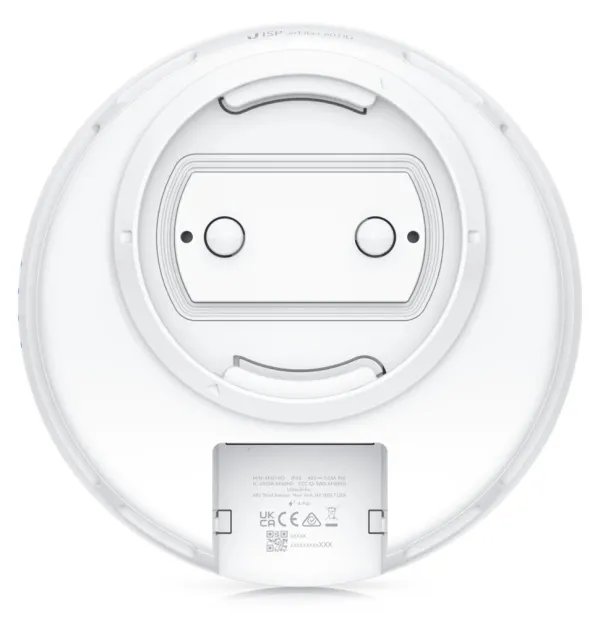

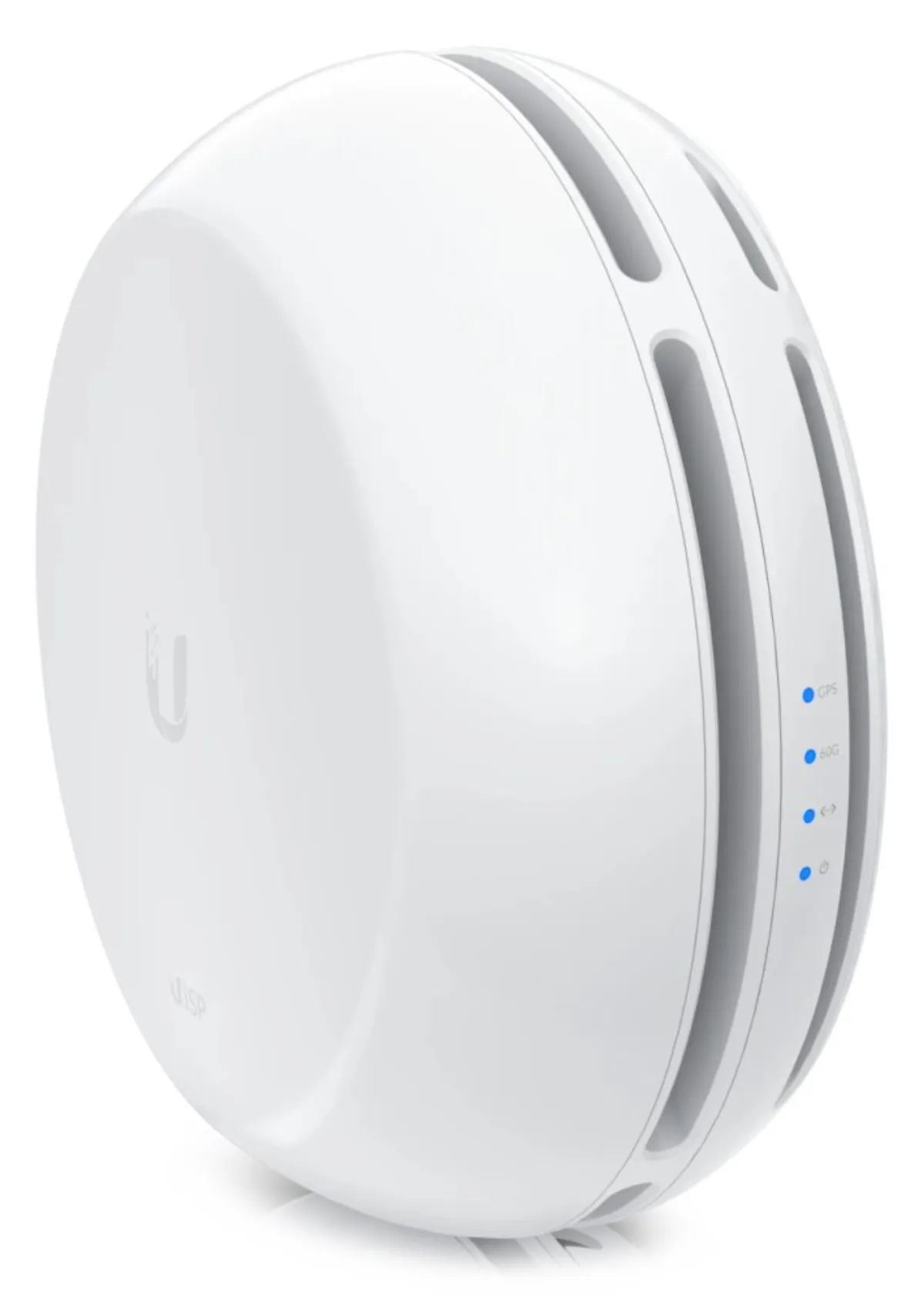

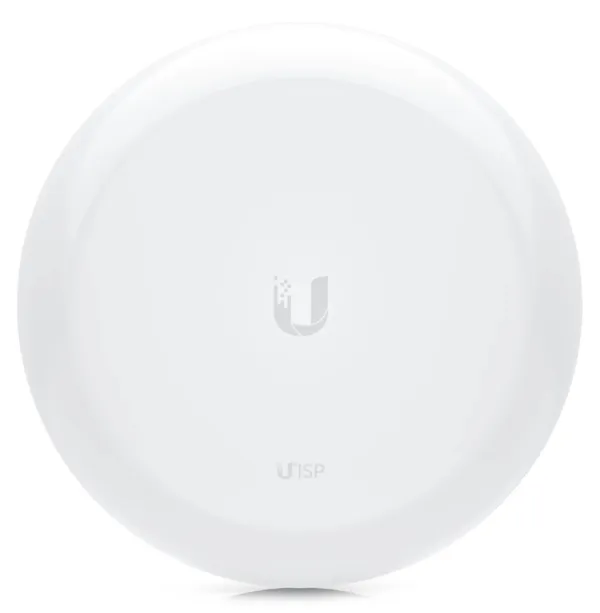

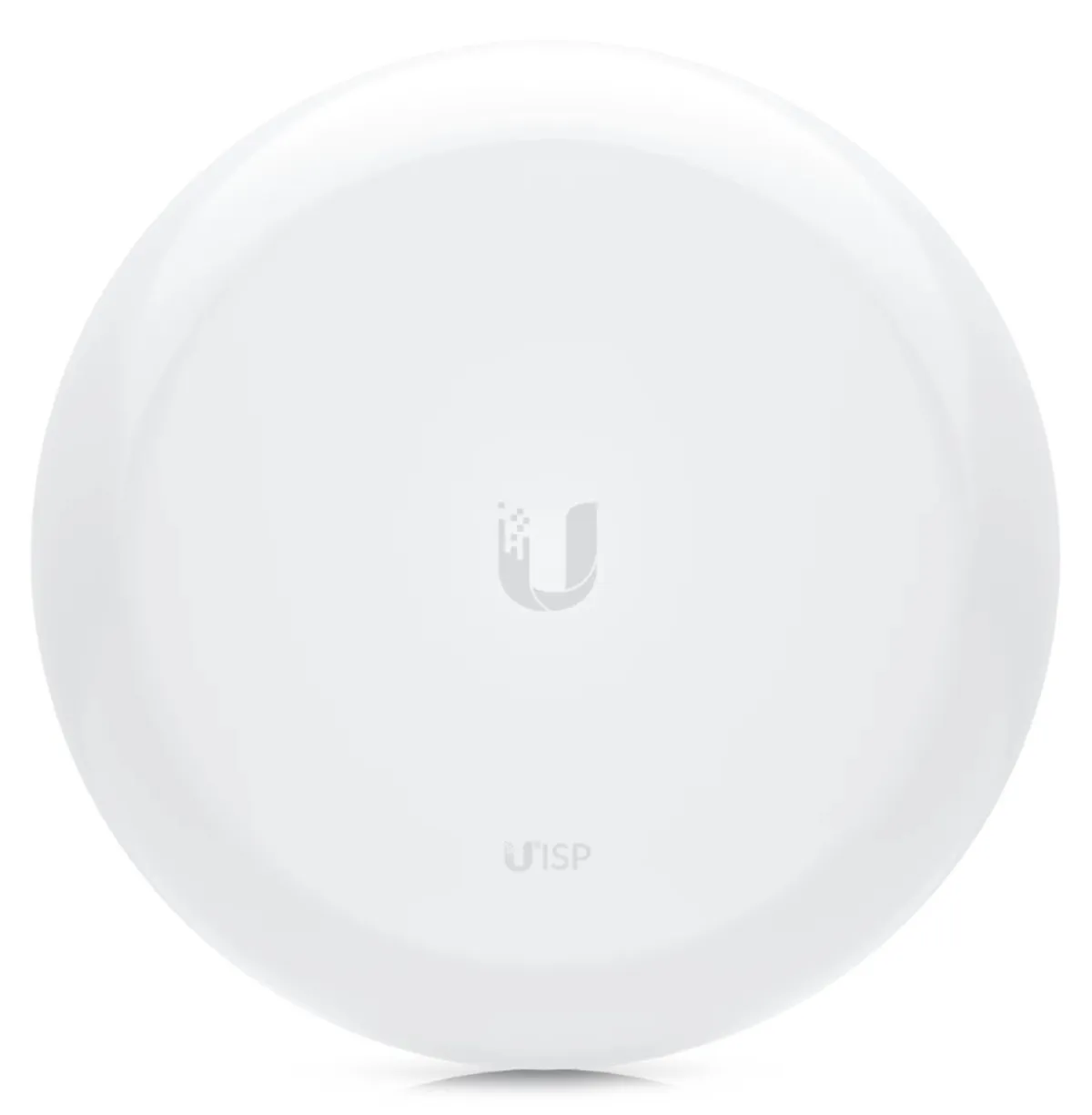

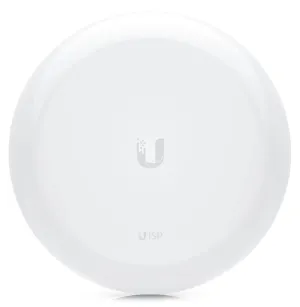

Ubiquiti AirFiber 60 HD
AirFiber 60 HD (AF60-HD) is a powerful multi-gigabit outdoor unit (bridge) for the 60 GHz band. It is suitable for Point-to-Point connections with a range of up to 2 km. The unit enables communication at speeds of up to 3.8 Gbps or 6 Gbps with channel bonding (channel bonding). The unit provides high throughput with low interference and latency in the 60 GHz spectrum. This compact and highly durable device also features an integrated GPS and Bluetooth management system that simplifies setup, configuration and monitoring. This PtP link is ideal for ISPs.
Features and Functions
- Connection range up to 2 km + 3.8 Gbps throughput (6 Gbps when channel bonding is enabled)
- Integrated GPS module + Bluetooth for management
- Simple setup via Bluetooth using the UISP Mobile app
- Terragraph certification
- 1x 10G SFP+ slot, 1x GbE RJ-45
- Quad-Core ARM Cortex A72 (1.6 GHz), 2 GB DDR4 memory
- ISP Design Center support
- Quick unit setup using UISP app (Bluetooth)
- IPX6 weather resistance
Management with UISP Application (formerly UNMS): version 1.4.0-beta.10 or later
Frequency band: 60 GHz (operationally 57-66 GHz
Transmission speed: 3.8 Gbps or 6 Gbps with channel connection

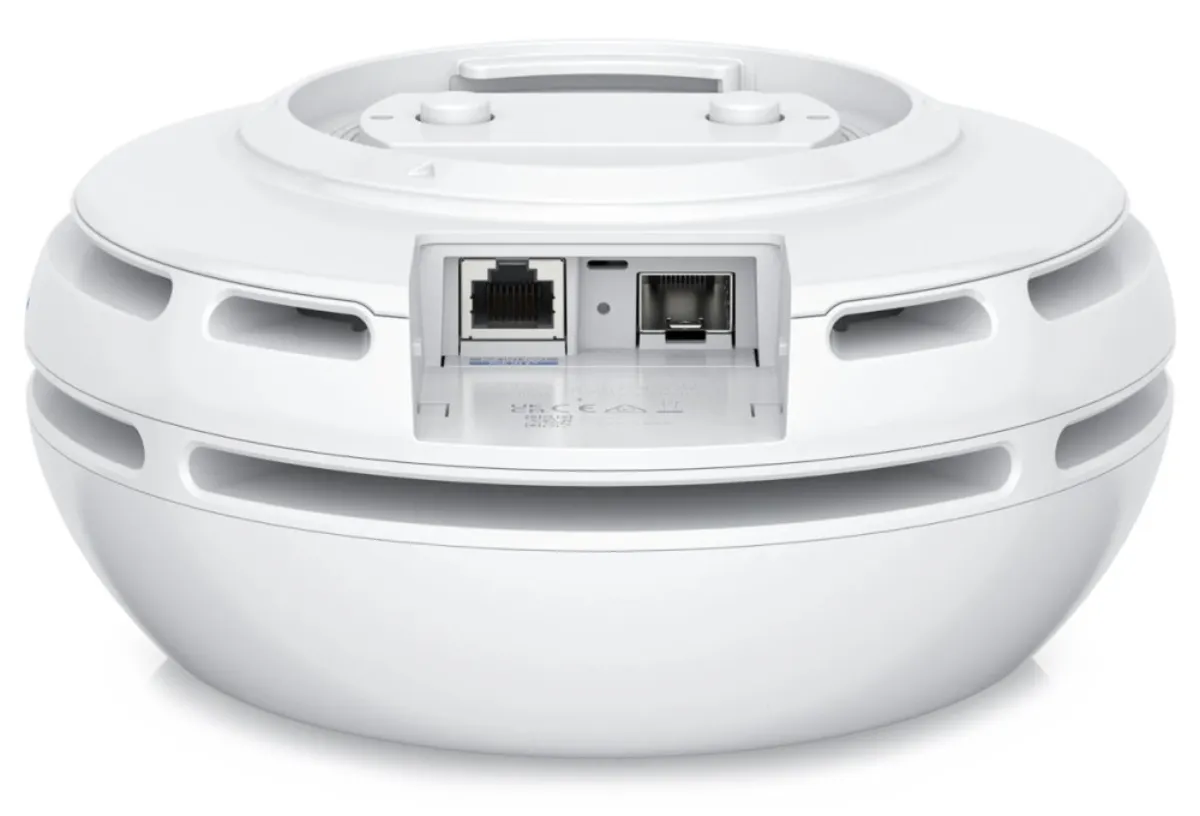

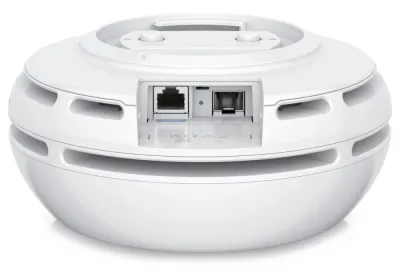

Ports
- 1x GbE RJ-45
- 1x 1/10G SFP+ slot
Antenna gain: 35 dBi
PoE support
- yes
- passive PoE 48 V
Dimensions: 189 x 189 x 89 mm

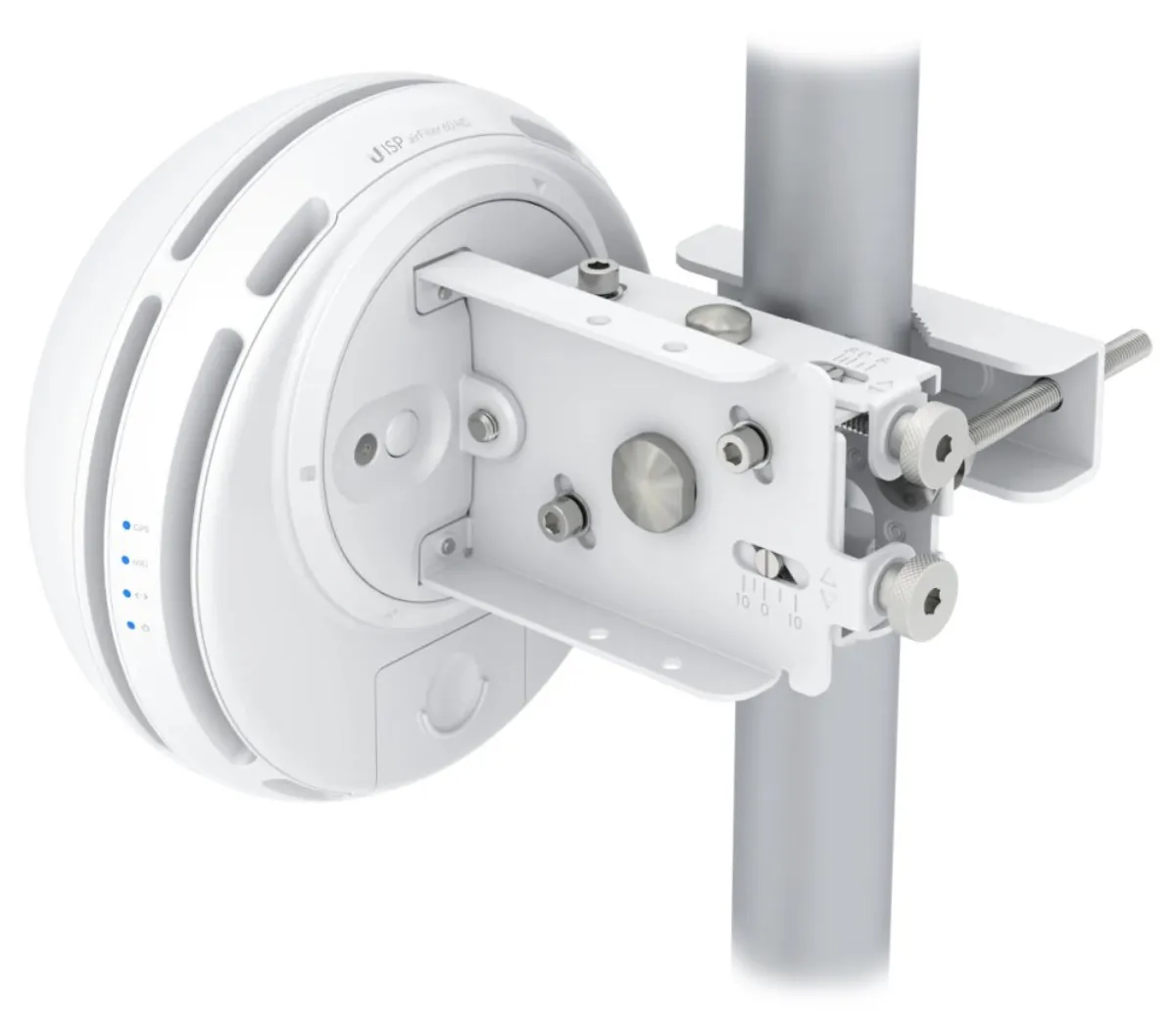

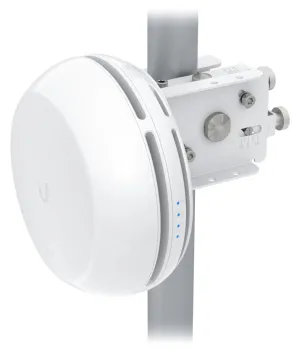

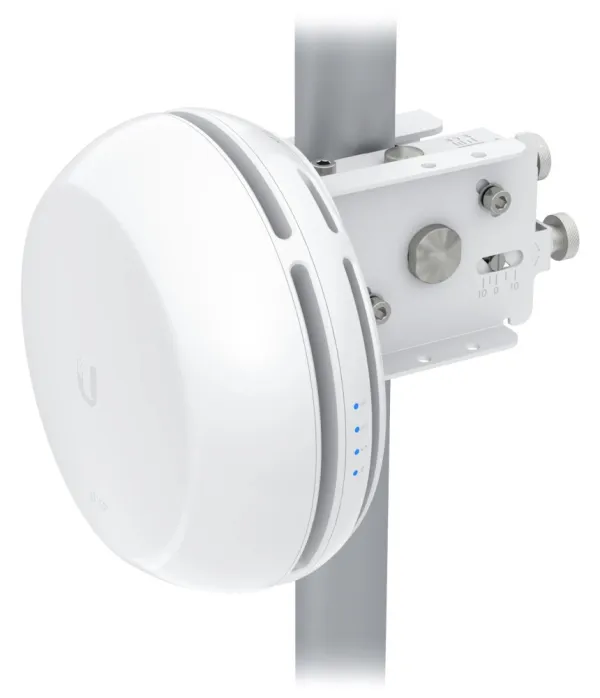

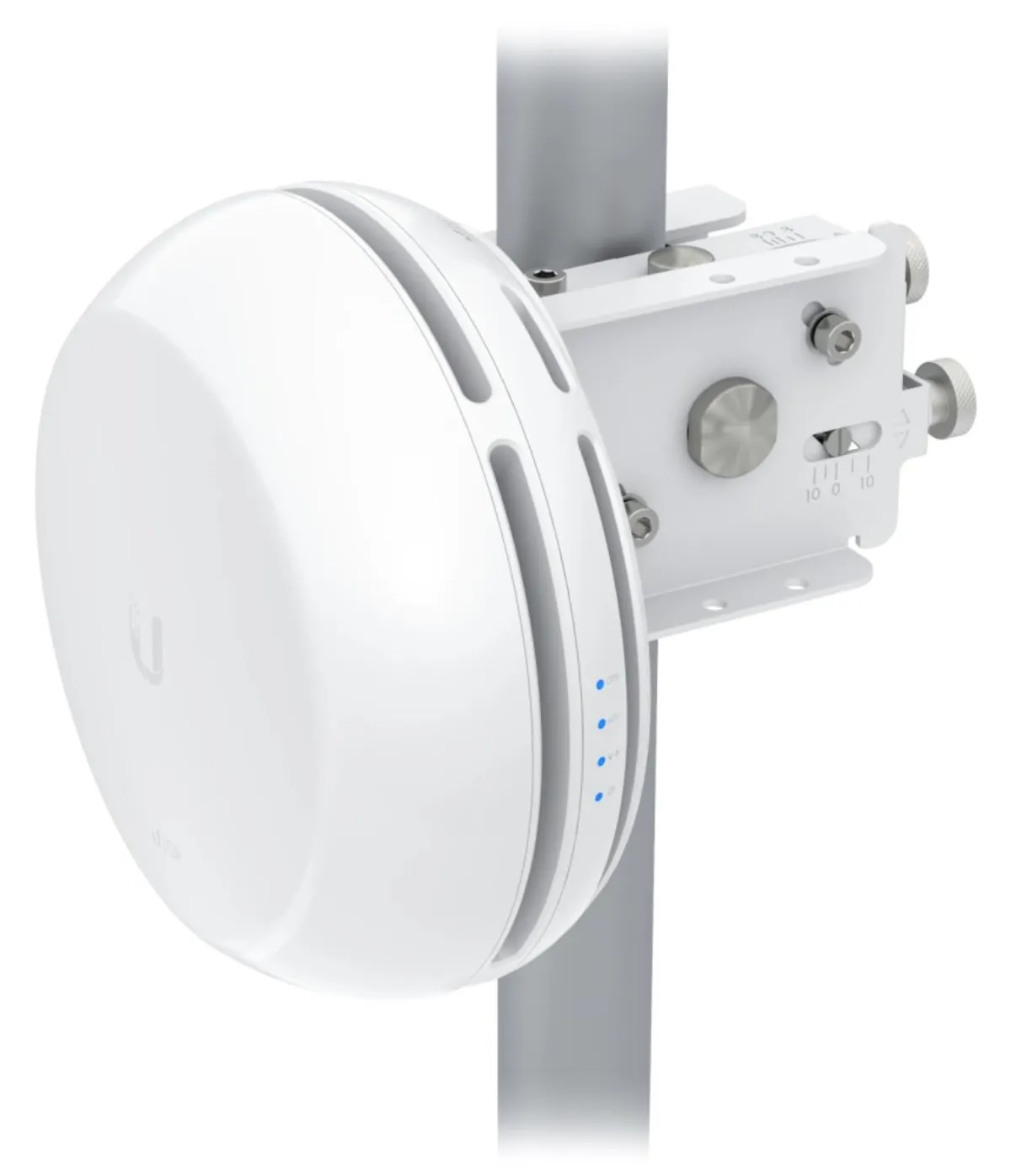

Weight: 1.8 kg (2.95 kg with holder)
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 1,8 | |
| Dimension [mm] | 189 × 189 × 89 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 55 | |
| Conformity | FCC, IC, CE, Terragraph | |
| Transmission speed [Mbps] | 6000 | |
| WPA3 security | No | |
| Interface | LAN, SFP+, Wi-Fi, Bluetooth, GPS | |
| Polarization | Vertical | |
| Power supply [V] | 48 | |
| Operating mode | PtP | |
| Wi-Fi frequency | 60 GHz | |
| On the mast | Yes | |
| Gain [dBi] | 35 | |
| Horizontal beam angle [°] | 3 | |
| Vertical beam angle [°] | 3 | |
| Processor | ARM Cortex A72, Quad-Core, 1.6 GHz | |
| Memory size [MB] | 2000 | |
| Encryption | WPA2-PSK (AES) | |
| Design | on the column | |
| Indoor use | No | |
| Consumption [W] | 29,31 | |
| Degree of coverage | IPX6 | |
| Port speed | 1 Gb/s + 10 Gb/s | |
