Ubiquiti AirFiber 60 LR - 60 GHz radio (57-71GHz) PtP 43 dBi 1.9Gbps throughput
UBIQUITI | AF60-LR | 810010073563
Out of stock.
Price of goods is 332.46 €.
Weight of goods is 10.01 Kg.
Actual in cart 0 pcs.
Ubiquiti AirFiber 60 LR

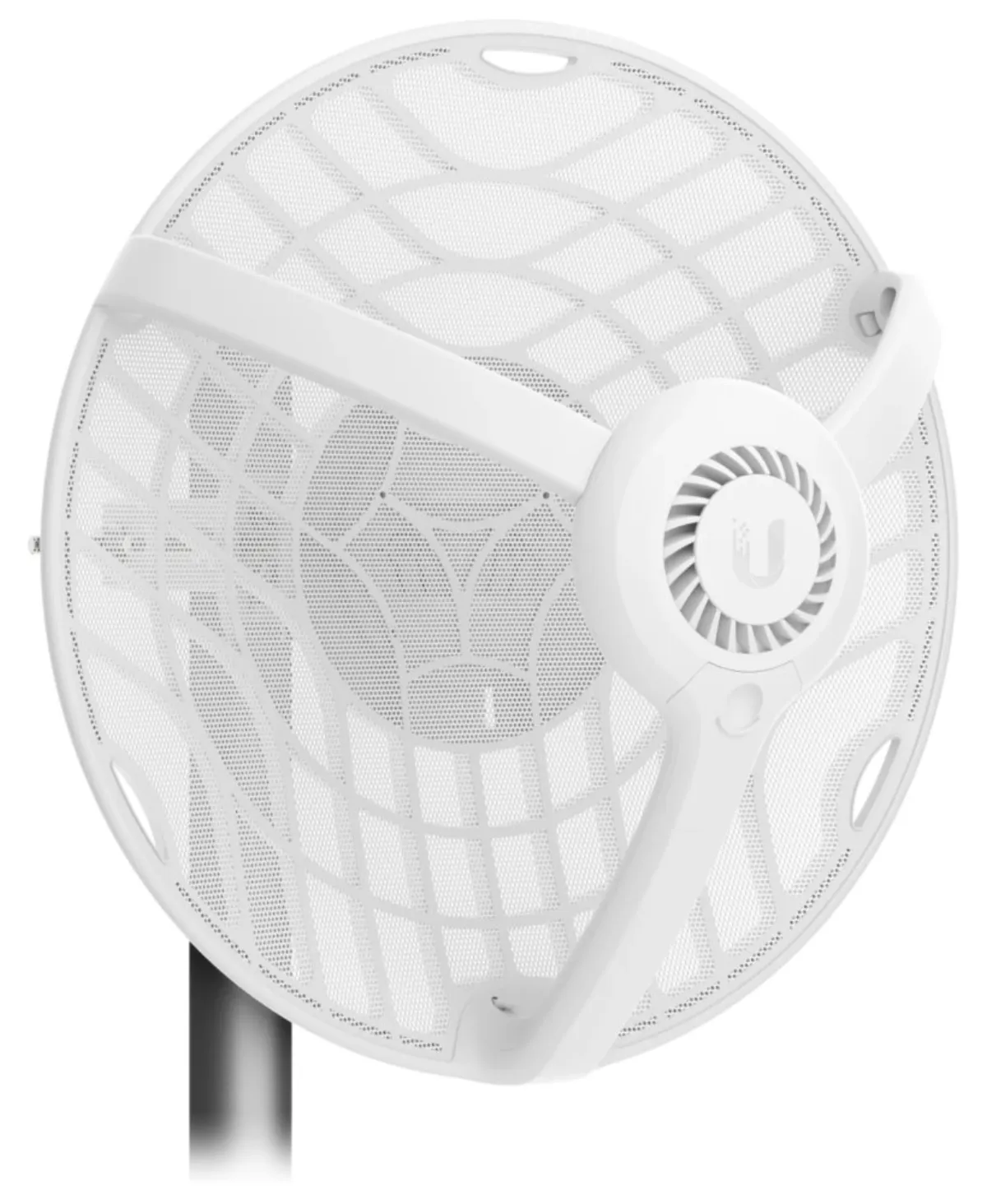

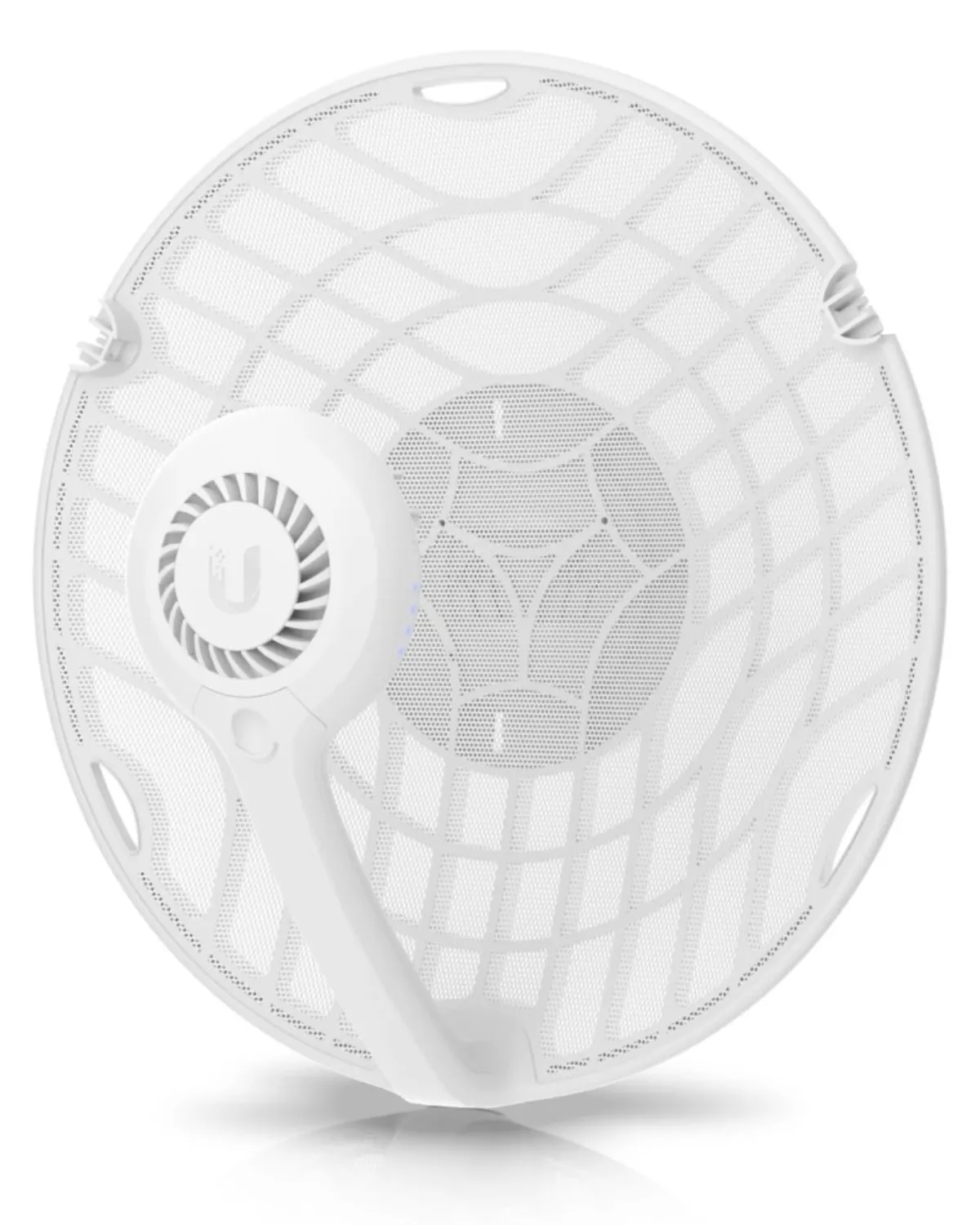

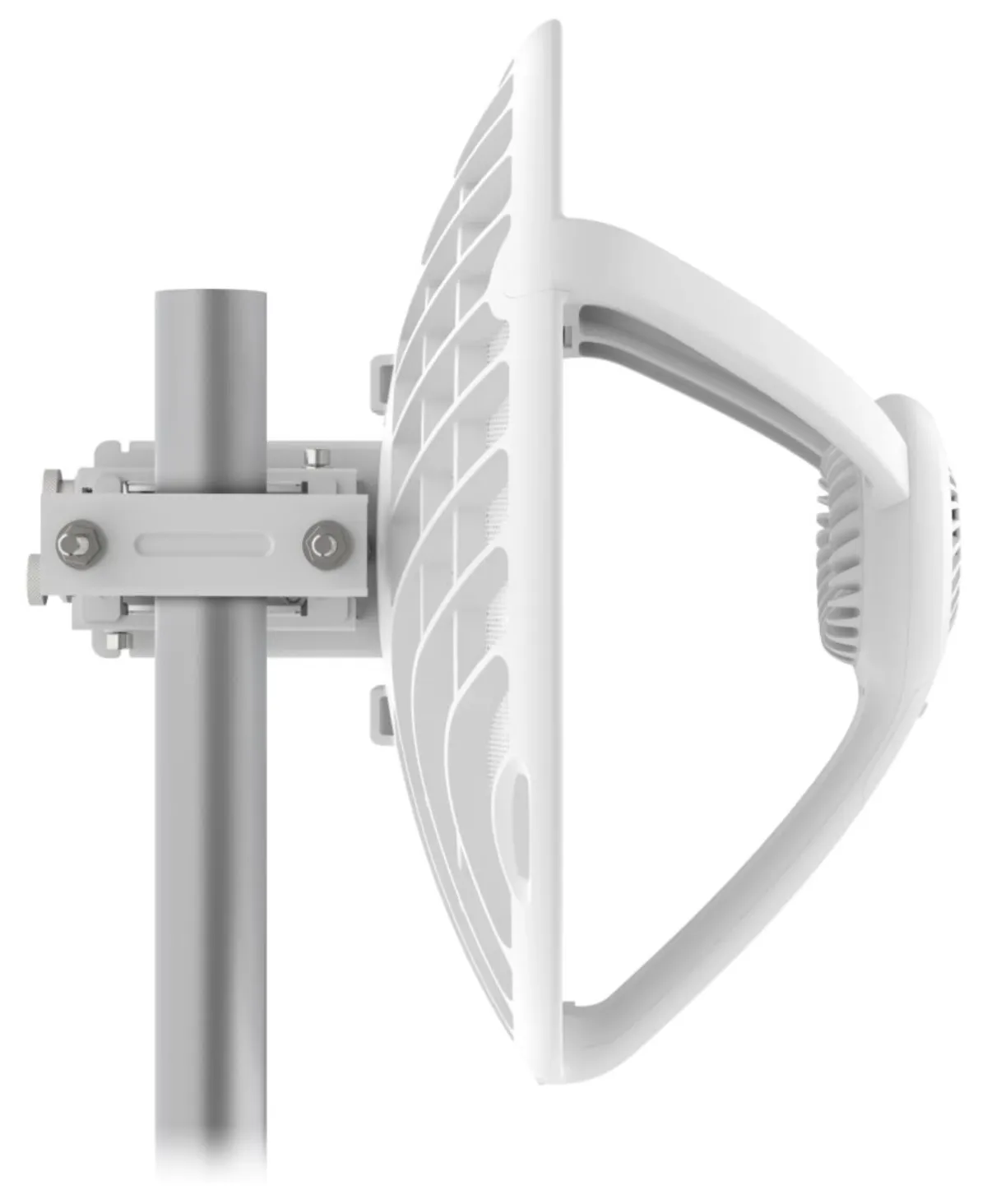

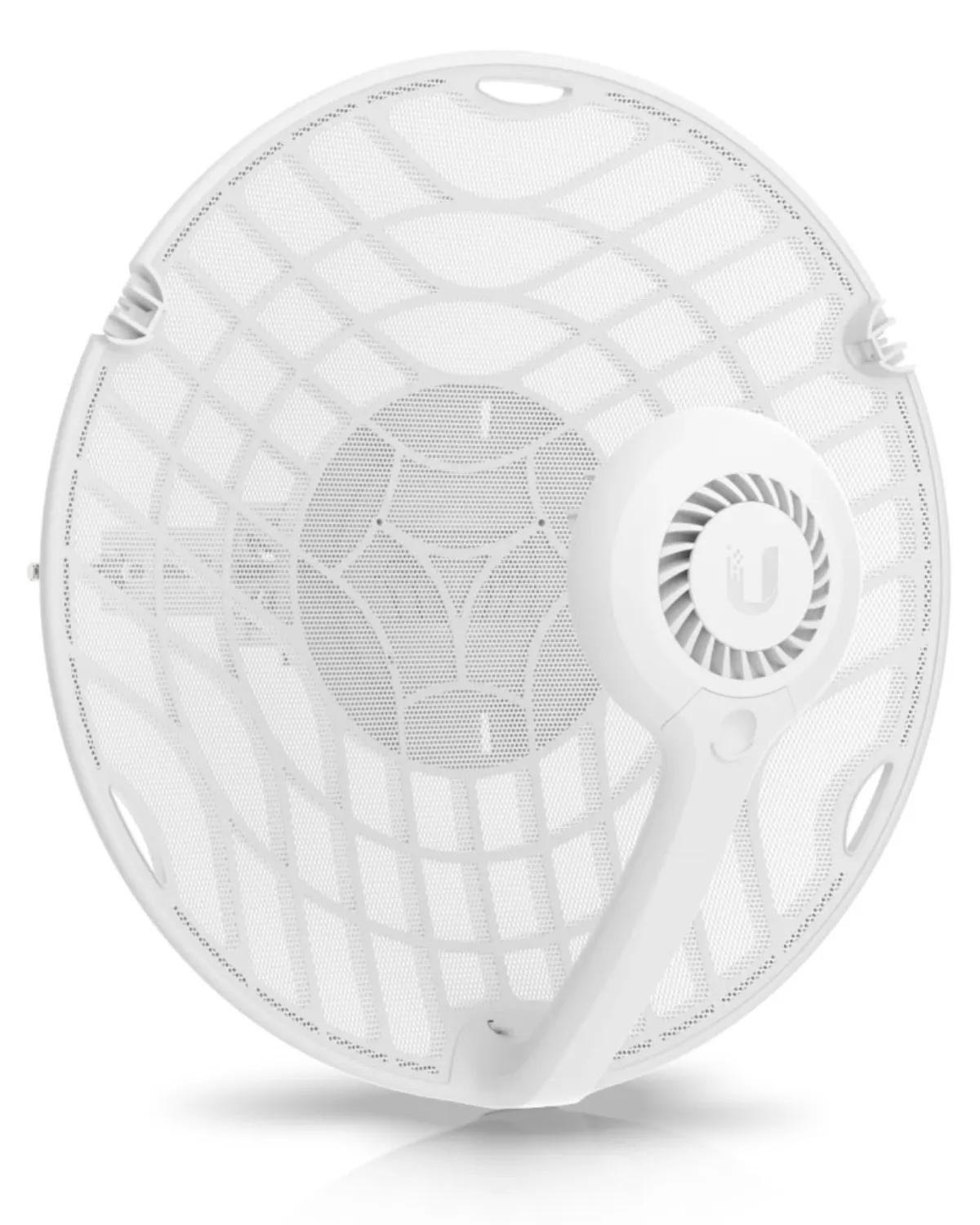

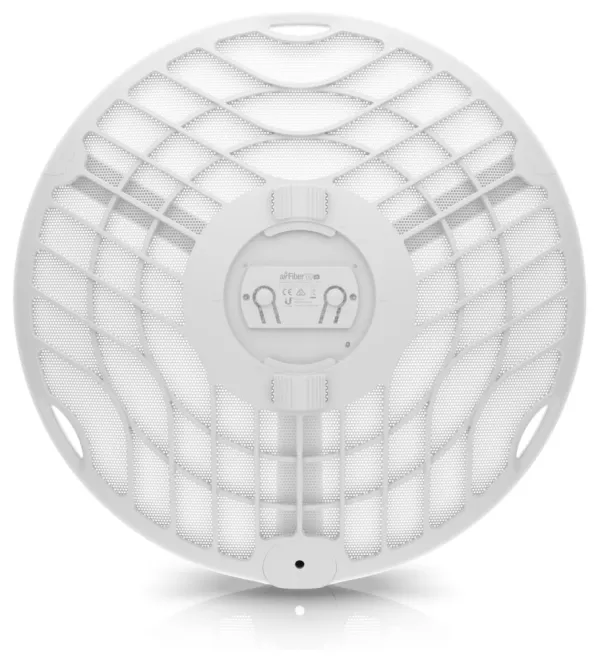

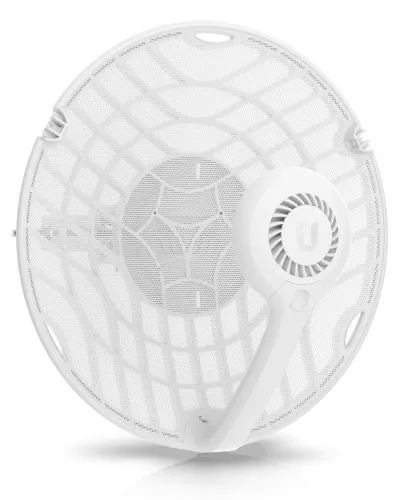

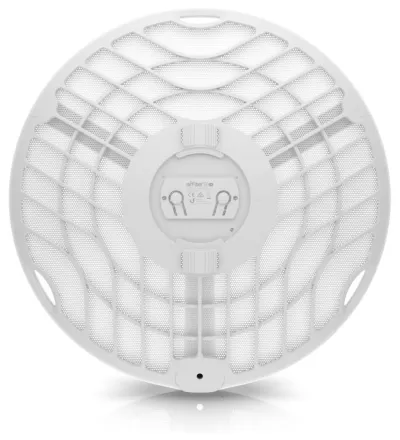

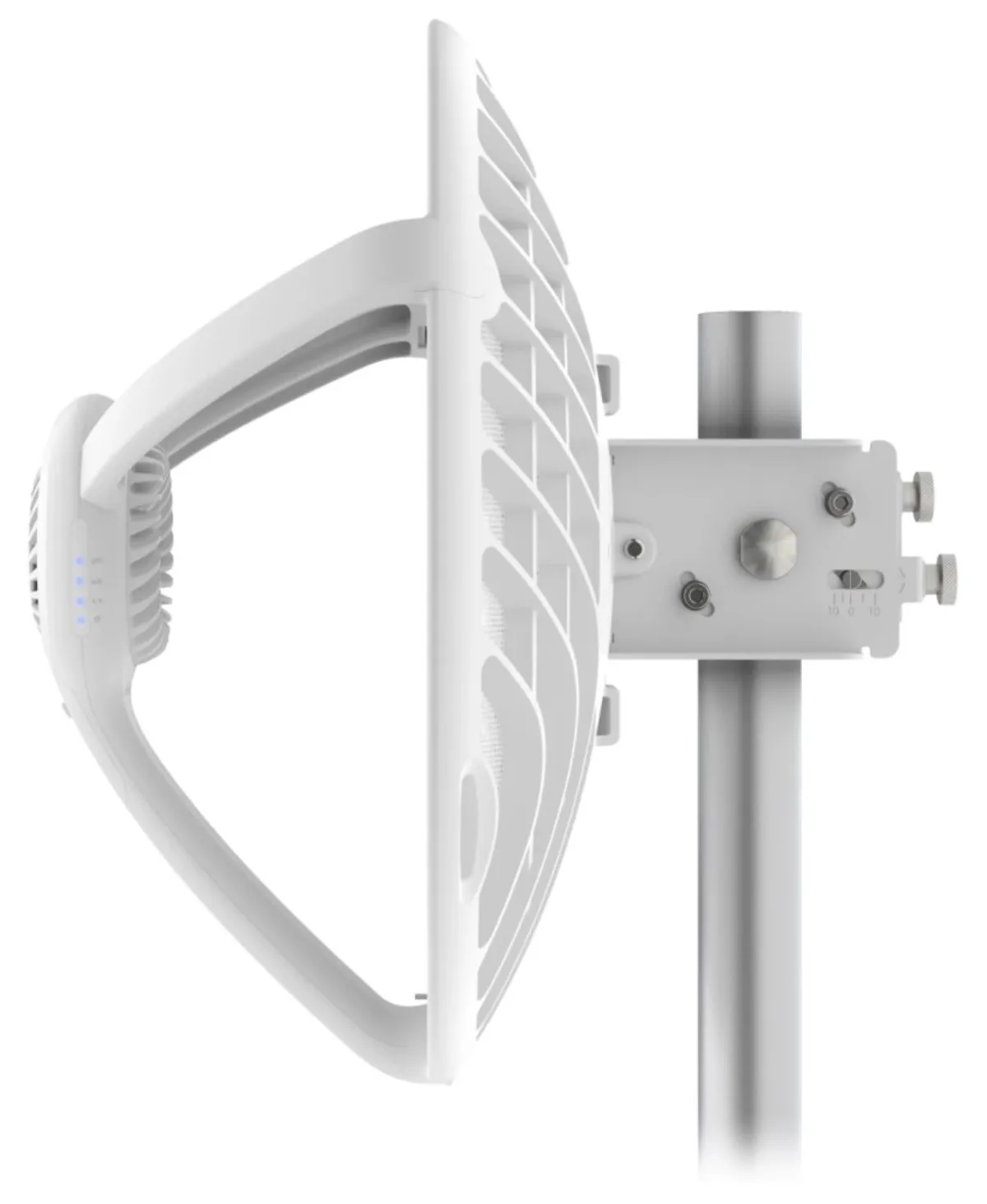

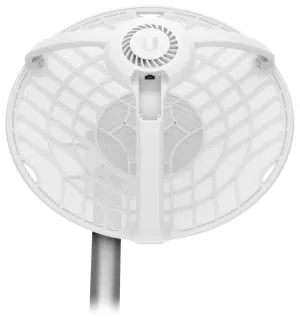

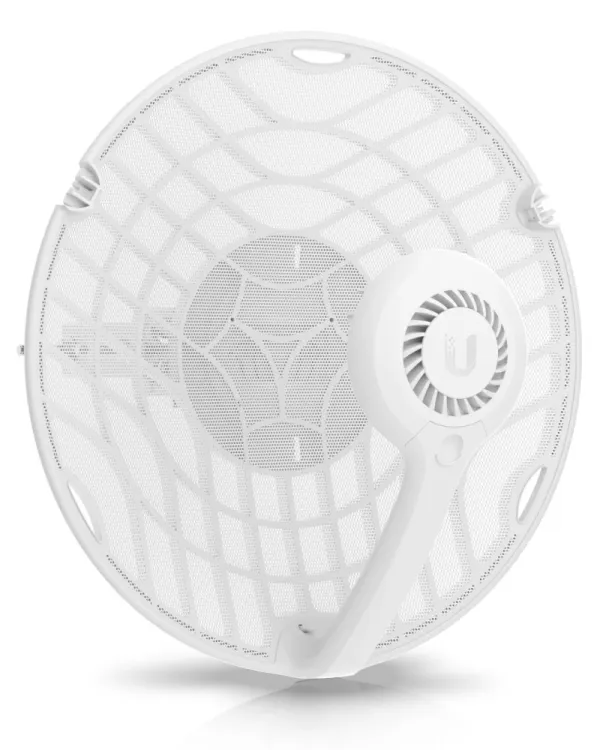

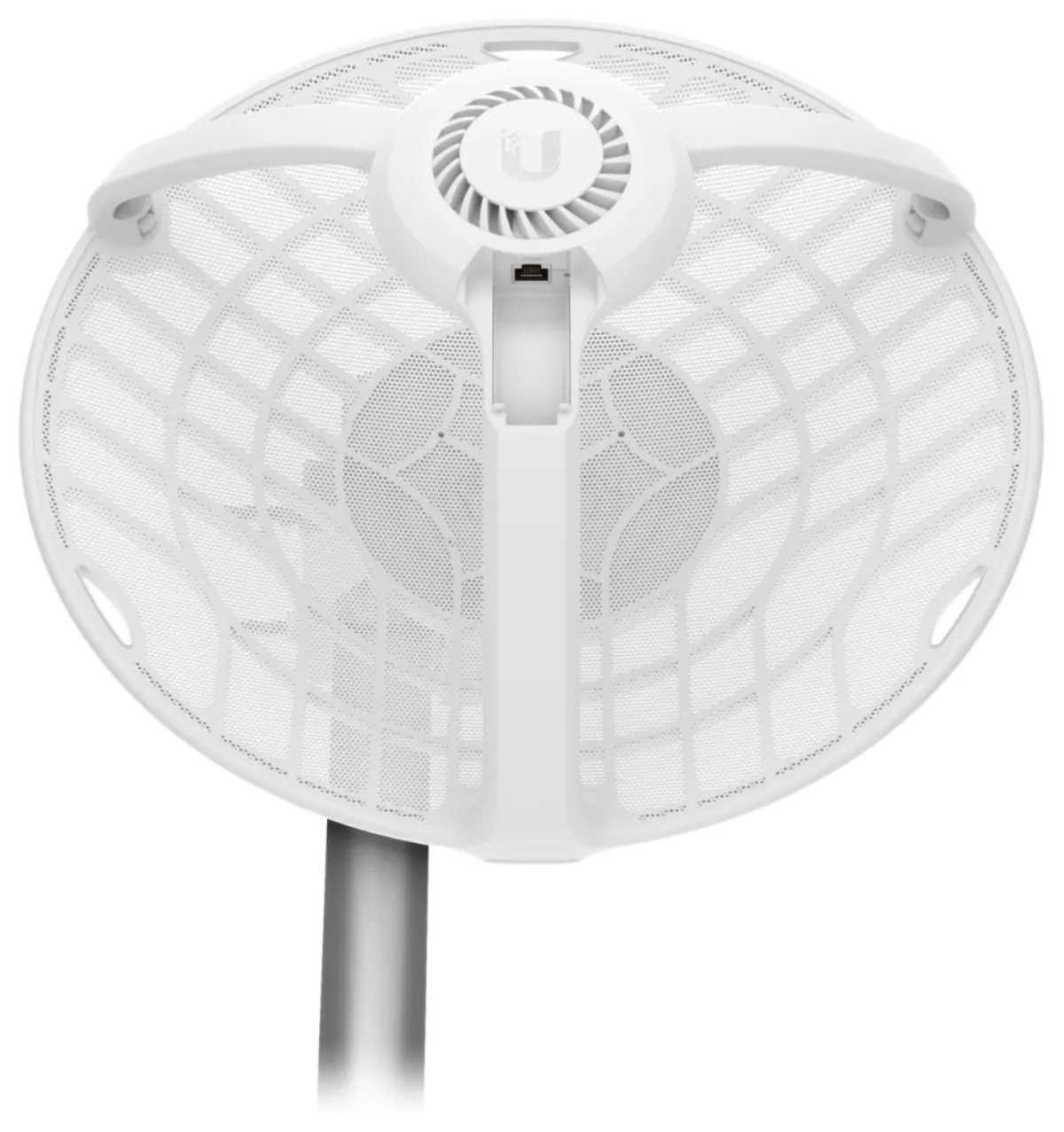

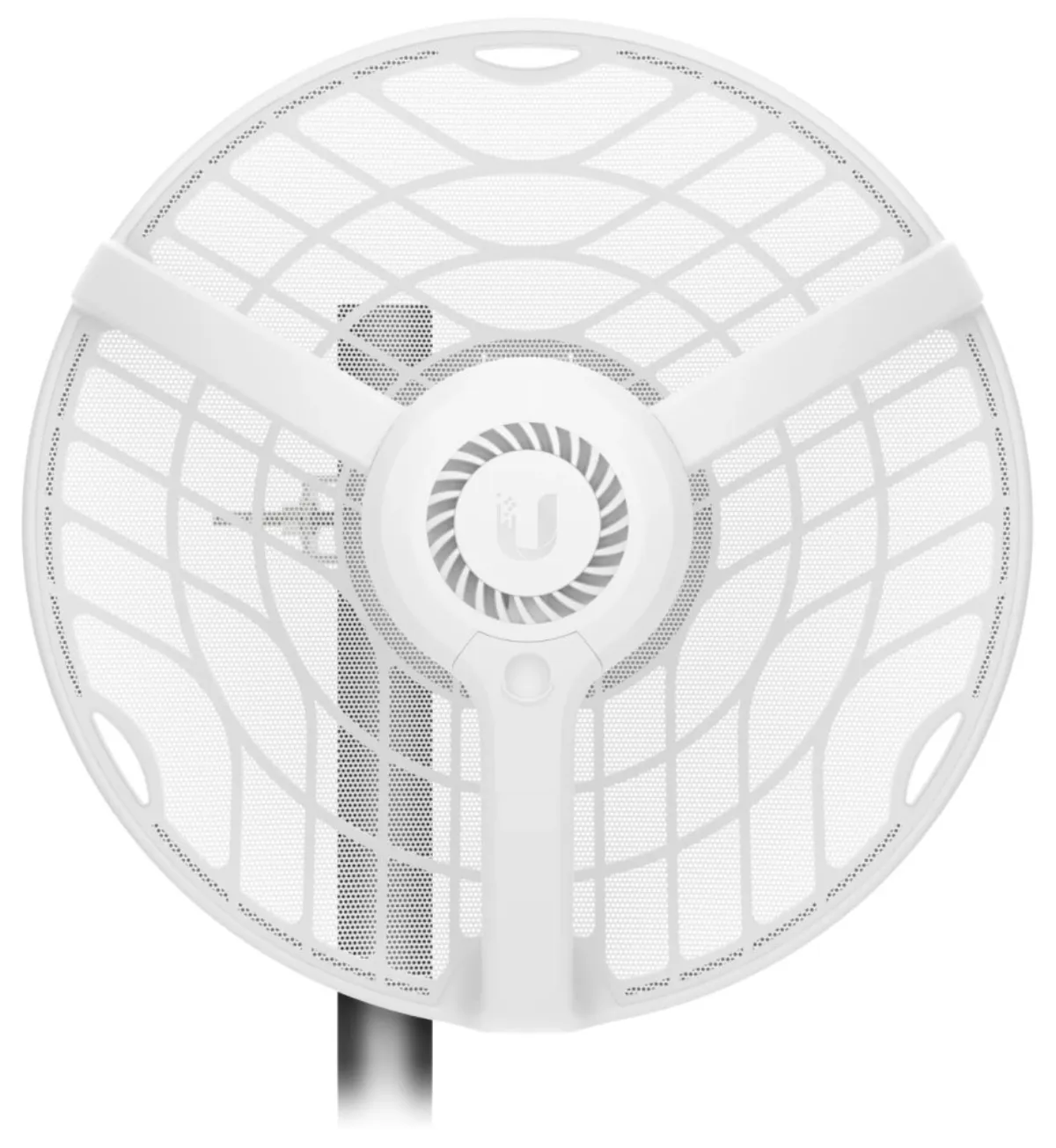

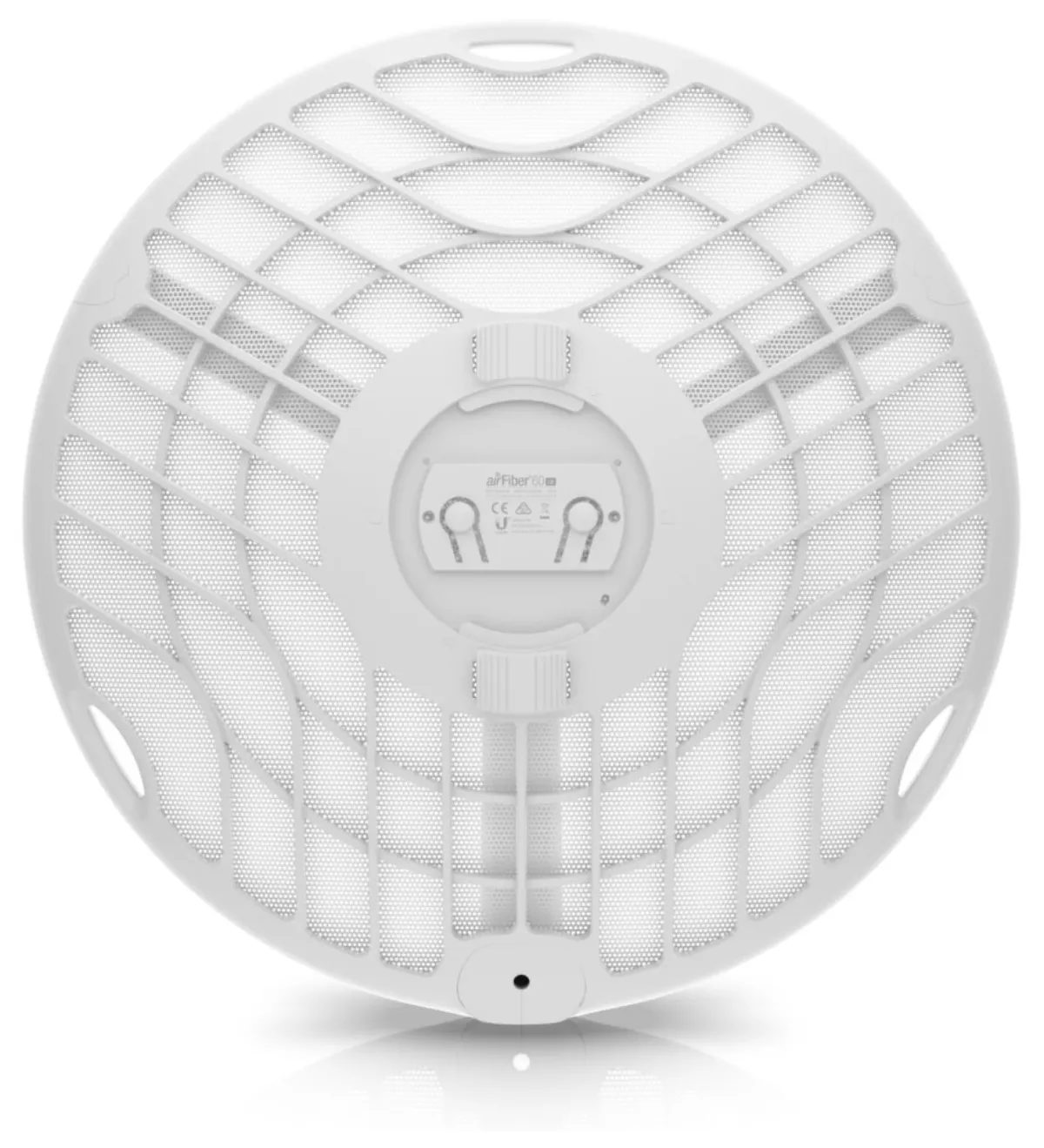

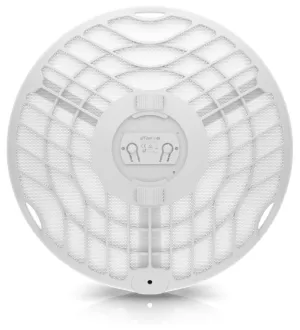

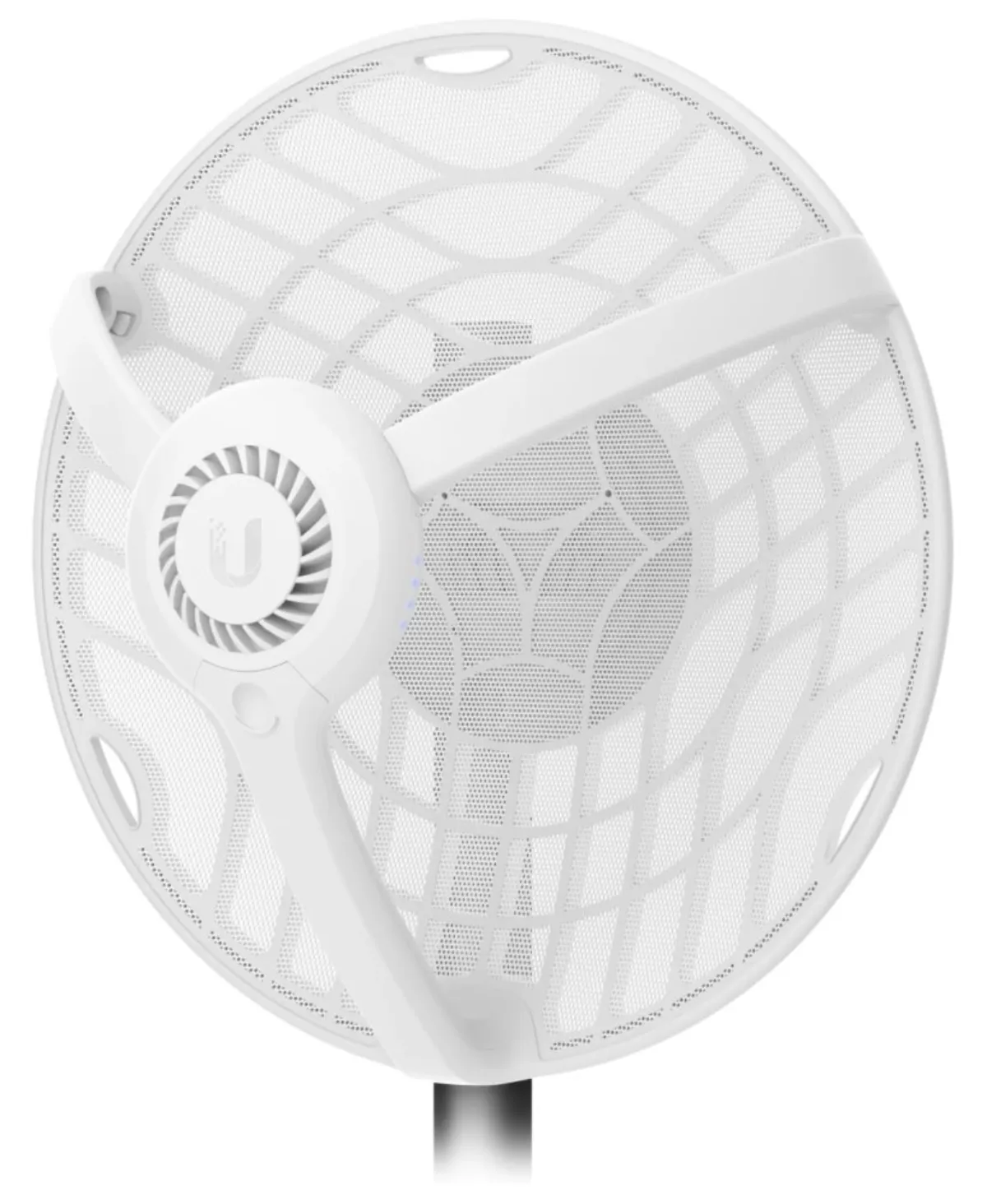

AirFiber 60 Long Range (AF60-LR) is a powerful outdoor unit for the 60 GHz band suitable for Point-to-Point connections. The unit enables communication at speeds up to 1.8 Gbps. The unit consists of a metal holder, a parabolic antenna with a gain of 43 dBi and 3 plastic feet holding the radiator.
The main advantages of the connection are
- The possibility of creating a connection of up to 12 km - WaveTechnology
- Integrated GPS module
- True Duplex
- Full and half bandwidth support
- Quick unit setup using UISP app (Bluetooth)
Frequency band: 60 GHz (operationally 57-71 GHz
Gain: 43 dBi
Transmission speed: 1.8 Gbps
Ports: 1x GbE RJ-45
PoE support
- yes
- passive 48 V
Dimensions: 413 x 413 x 360 mm
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 1,5 | |
| Dimension [mm] | 413 × 413 × 360 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 60 | |
| Conformity | CE, FCC, IC | |
| Transmission speed [Mbps] | 1800 | |
| Interface | LAN, Wi-Fi, Bluetooth | |
| Width [mm] | 413 | |
| Power supply [V] | 48 | |
| Operating mode | PtP | |
| Wi-Fi frequency | 60 GHz | |

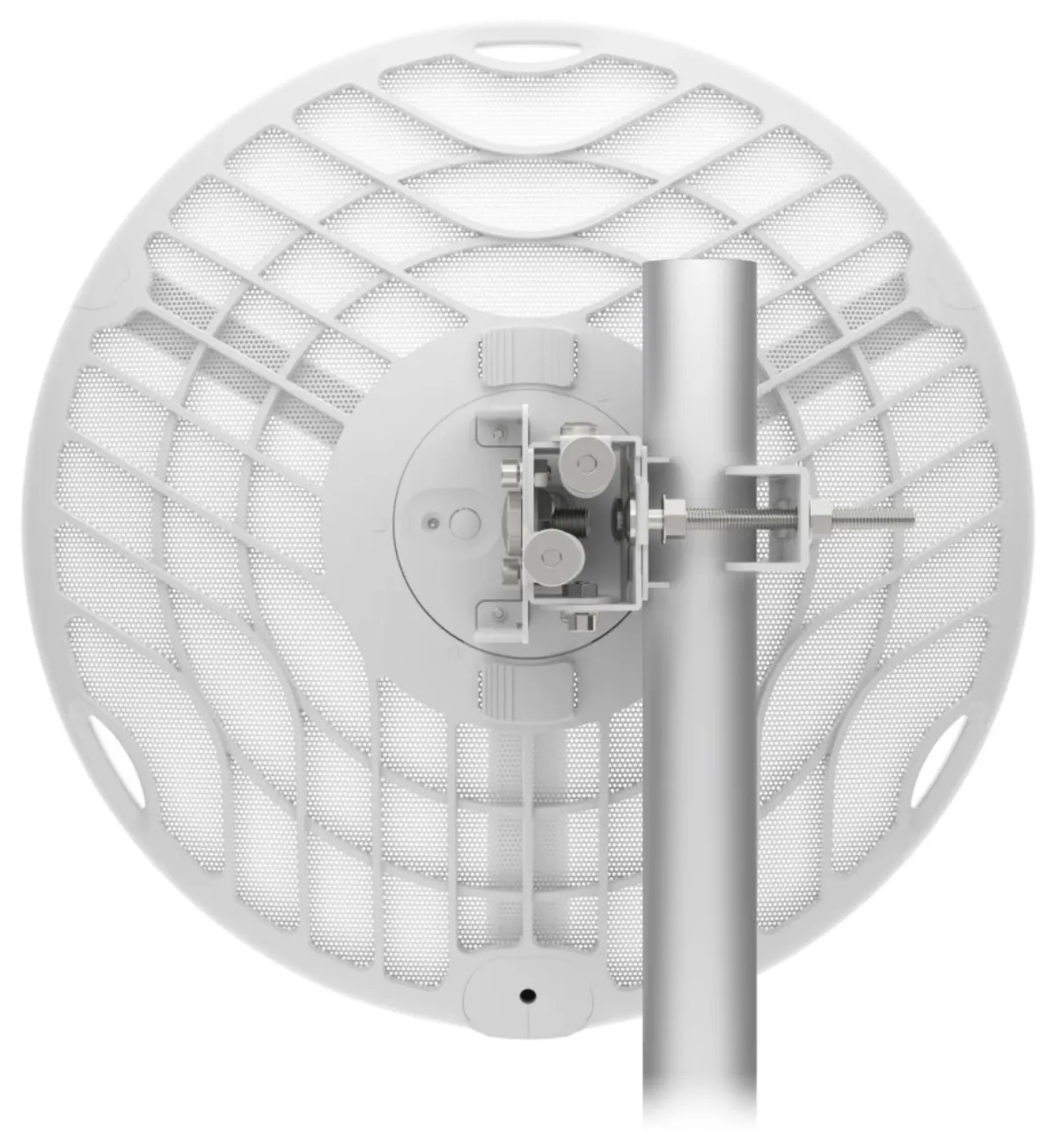

| On the mast | Yes | |
| Gain [dBi] | 38 | |
| Depth [mm] | 360 | |
| Processor | ARM Cortex A7, Quad-Core | |
| Height [mm] | 413 | |
| Encryption | WPA2-PSK (AES) | |
| Design | on the column | |
| WEP security | No | |
| Indoor use | No | |
| Consumption [W] | 18 | |
| PoE support | Yes | |
| Port speed | 1 Gb/s | |
