Ubiquiti LiteBeam 5AC Gen2 - AP client 5GHz antenna 23dBi MIMO2x2 airMAX AC 1x Gbit RJ45 PoE 24V
UBIQUITI | LBE-5AC-Gen2 | 810354026317
On stock 49 pcs.
Price of goods is 60.01 €.
Weight of goods is 1.643 Kg.
Actual in cart 0 pcs.

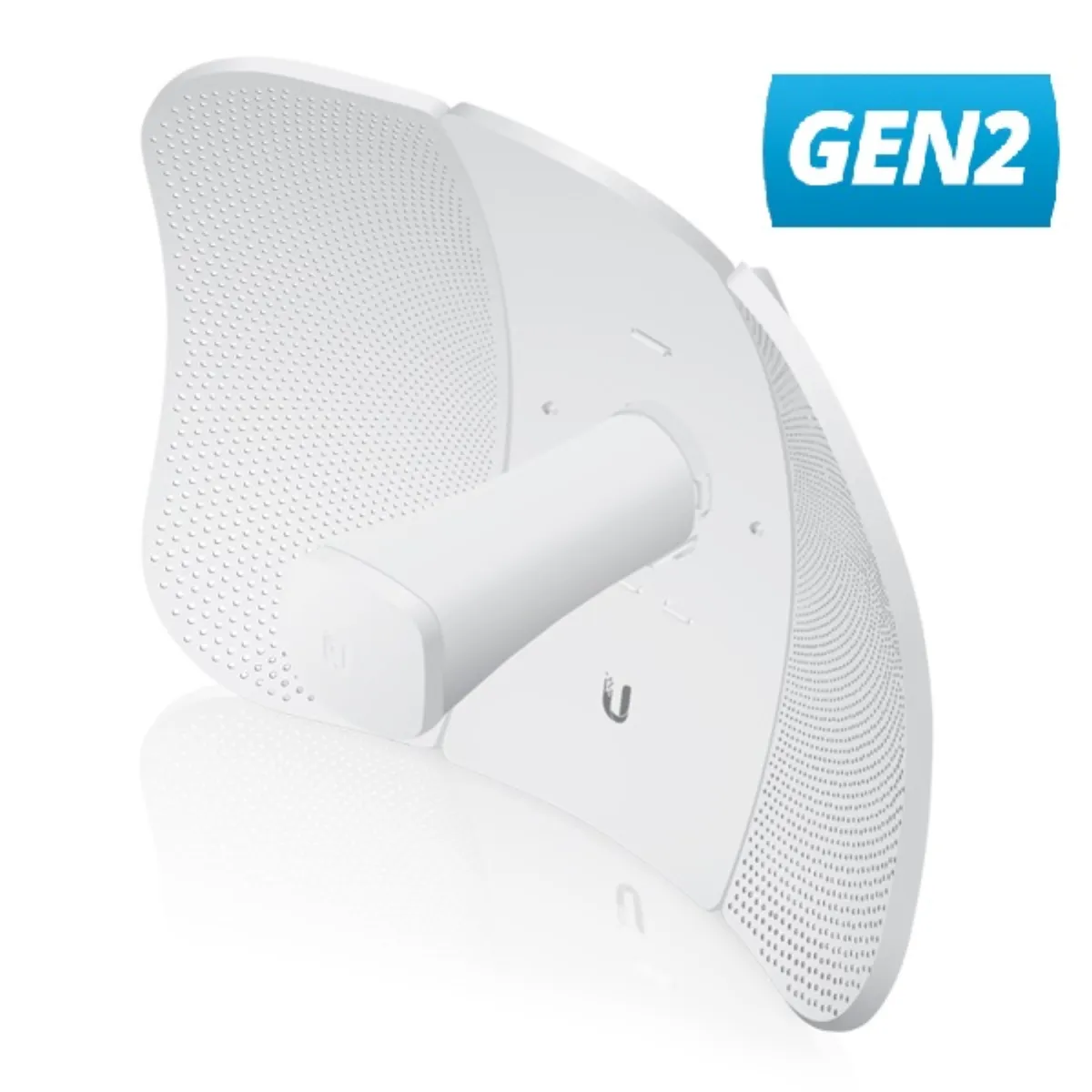

Ubiquiti LiteBeam 5 AC Gen2
LiteBeam (LBE-5AC-23-Gen2) is a complete outdoor unit of the second generation with 23 dBi MIMO 2x2 antennas for the 5 GHz band suitable as a client solution. The unit supports the 802.3ac standard and up to 450 Mbps throughput.
The LiteBeam 5AC-Gen2 is from the second generation of airMAX AC devices that have a dedicated radio for wireless access to the unit and the ability to set it up in the UNMS app for mobile devices. UNMS App ( Android, [iOS](https://itunes.apple. com/us/app/umobile-ubnt/id1183022489)) also helps with the alignment of the connection and will significantly speed up its installation.

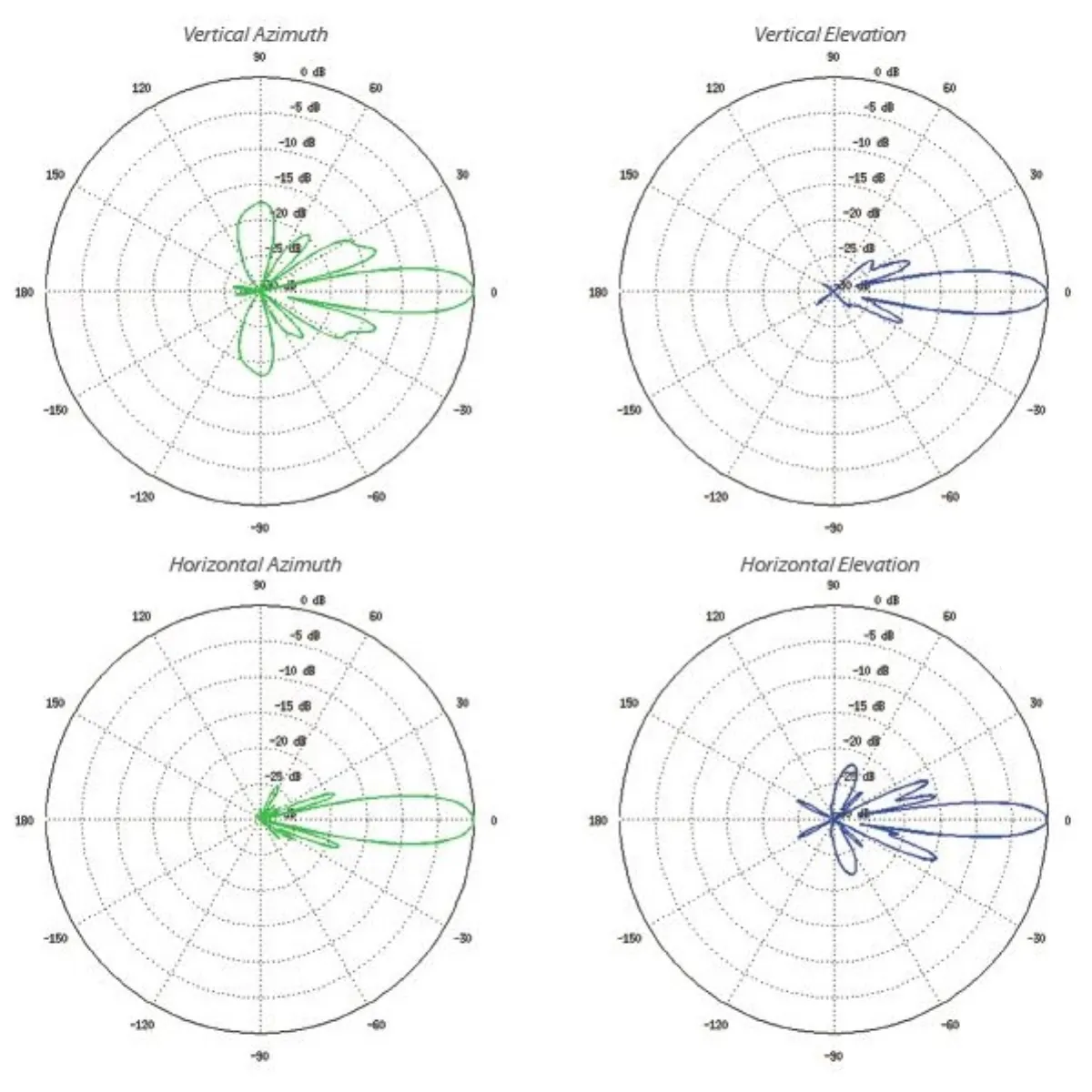

The antenna system consists of two 23dBi antennas with vertical and horizontal polarization. The patented InnerFeed technology integrates the entire radio part directly into the radiator, which is covered with highly resistant UV-stabilized plastic. The LiteBeam 5AC-Gen2 has newly improved surge protection and a modified holder for more accurate joint targeting.
Great price/performance ratio and easy installation LiteBeam units predestinate for massive deployment in wireless networks.
Despite the parabolic antenna, you will find the unit in a practical compact package.

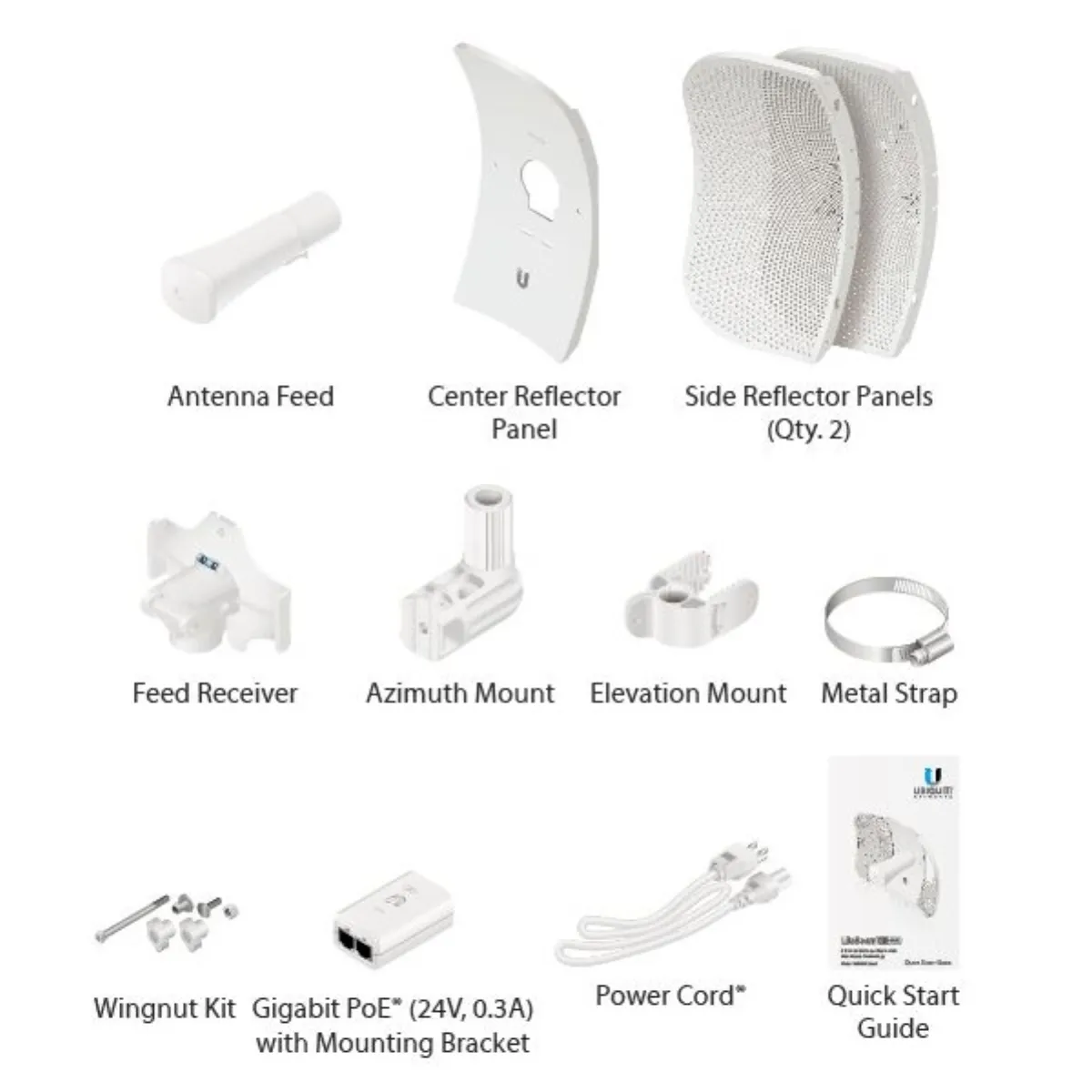

The package contains a gigabit POE injector 24V/0.3A.
Frequency range: 2412-2462 MHz / 5150-5875 MHz
Gain: 23 dBi
Memory: 64 MB
PoE
- yes
- passive PoE
Dimensions: 358 x 271.95 x 272.5 mm
| Name | Value | |
|---|---|---|
| Interface | LAN, Wi-Fi | |
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Weight, brutto [kg] | 0,98 | |
| Color | white | |
| Dimension [mm] | 358 × 271,95 × 272,5 mm | |
| Maximum operating temperature [°C] | 70 | |
| Port speed | 1 Gb/s | |
| Minimum operating temperature [°C] | -40 | |
| Design | on the column | |
| Conformity | CE, FCC, IC | |
| Wi-fi | Yes | |
| Chipset | Atheros | |
| Consumption [W] | 7 | |
| Height [mm] | 272 | |
| Width [mm] | 358 | |
| Transmission speed [Mbps] | 450 | |
| Max. output power [dBm] | 25 | |
| Memory size [MB] | 64 | |
| Modulation | OFDM, QAM | |
| Default IP | 192.168.1.20 | |
| Encryption | WPA-AES, WPA2-AES | |
| Wi-Fi standard | airMAX AC | |
| Sensitivity [dBm] | -96 | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Repeater mode | No | |
| The default name | UBNT | |
| WPA2 security | Yes | |
| Indoor use | No | |
| Operating mode | AP, Client | |
| Processor | Atheros MIPS 74Kc | |
| Gain [dBi] | 23 | |
| Polarization | horizontal and vertical | |
