Ubiquiti NanoBeam 5AC Gen2 - AP client 5GHz antenna 19dBi MIMO2x2 airMAX AC 2x Gbit RJ45 PoE 24V

UBIQUITI | NBE-5AC-Gen2 | 810354026348

Out of stock.

Price of goods is 96.7 €.

Weight of goods is 1.114 Kg.

Actual in cart 0 pcs.

Product was added to your cart.

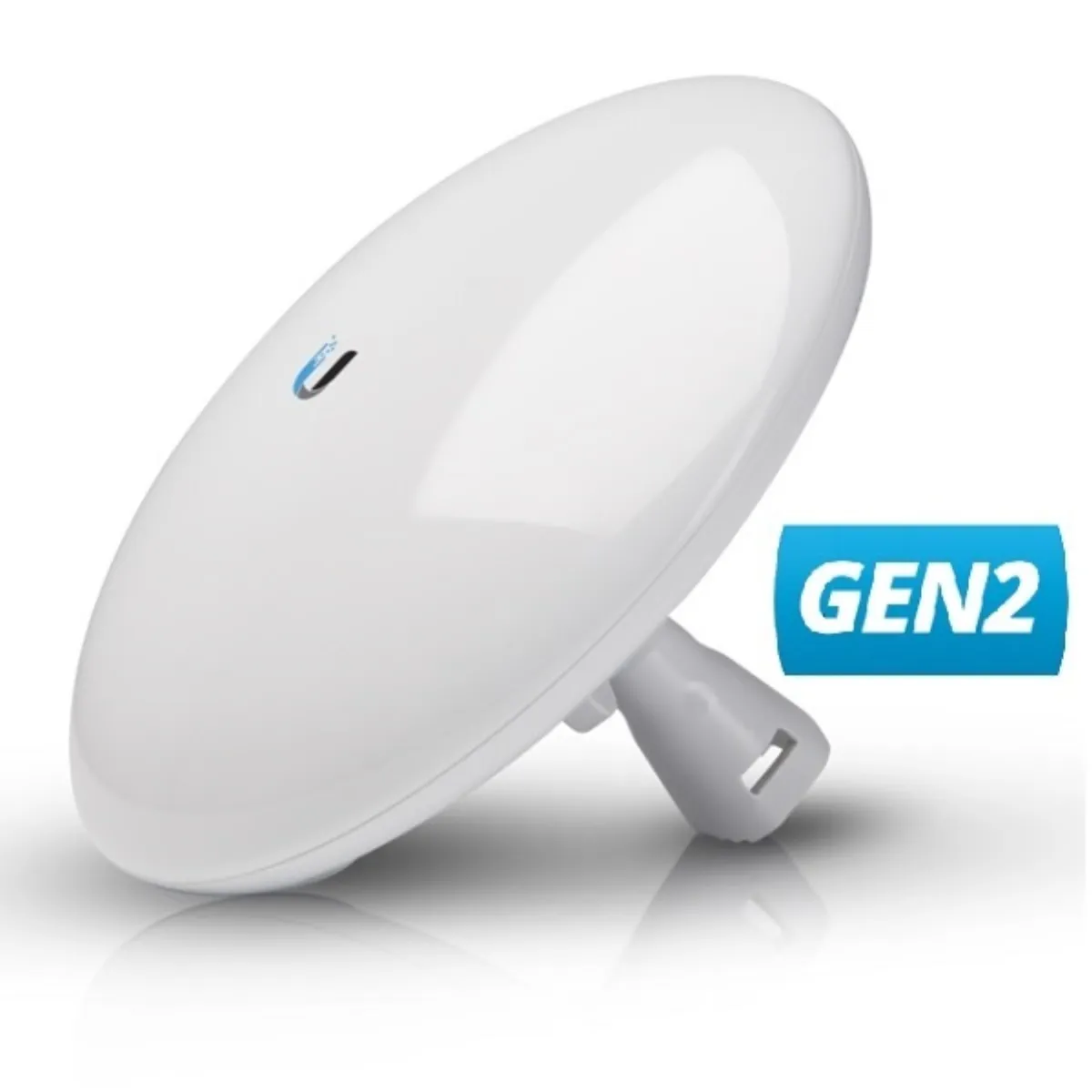

Ubiquiti NanoBeam 5 AC Gen2

The NanoBeam (NBE-5AC-Gen2) is a second generation complete outdoor unit with 19 dBi MIMO 2x2 antennas for the 5 GHz band suitable as a client unit. NanoBeam supports the 802.11ac standard, thanks to which it achieves a throughput of 450+ Mbps.

The NanoBeam 5AC-Gen2 is from the second generation of airMAX AC devices that have a dedicated radio for wireless access to the unit and the ability to set it up in the UNMS mobile app. The UNMS application also helps with the orientation of the connection and will significantly speed up its installation.

The compact NanoBeam unit provides maximum performance in minimal dimensions while maintaining a low price. The antenna system consists of two 19 dBi antennas (MIMO) with linear horizontal and vertical polarization.

The NanoBeam 5AC-Gen2 has improved surge protection that protects the device against electrostatic discharge.

For high transfer rates, the unit uses the 802.11ac standard and AirMAX (TDMA) technology to achieve low latencies.

Web administration is very simple and clear. You can set e.g.:

  • AP, client or WDS mode
  • traffic shaping
  • QoS
  • transparent bridge or routing between WAN and LAN, without NAT or with NAT
  • signal strength, which should correspond to a specific signaling LED
  • output power up to 25 dBm

The NanoBeam AC Gen2 has two Gigabit Ethernet RJ45 ports. The second port can be used to power another device (must use a more powerful PoE injector 24V/1A) that supports PoE 24V.

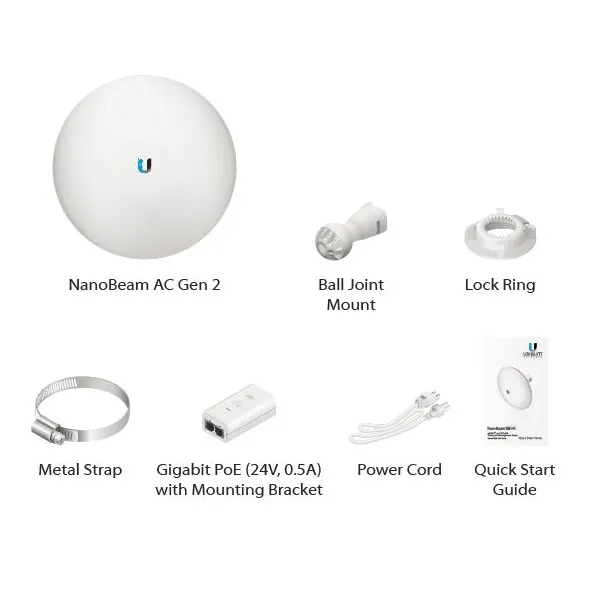

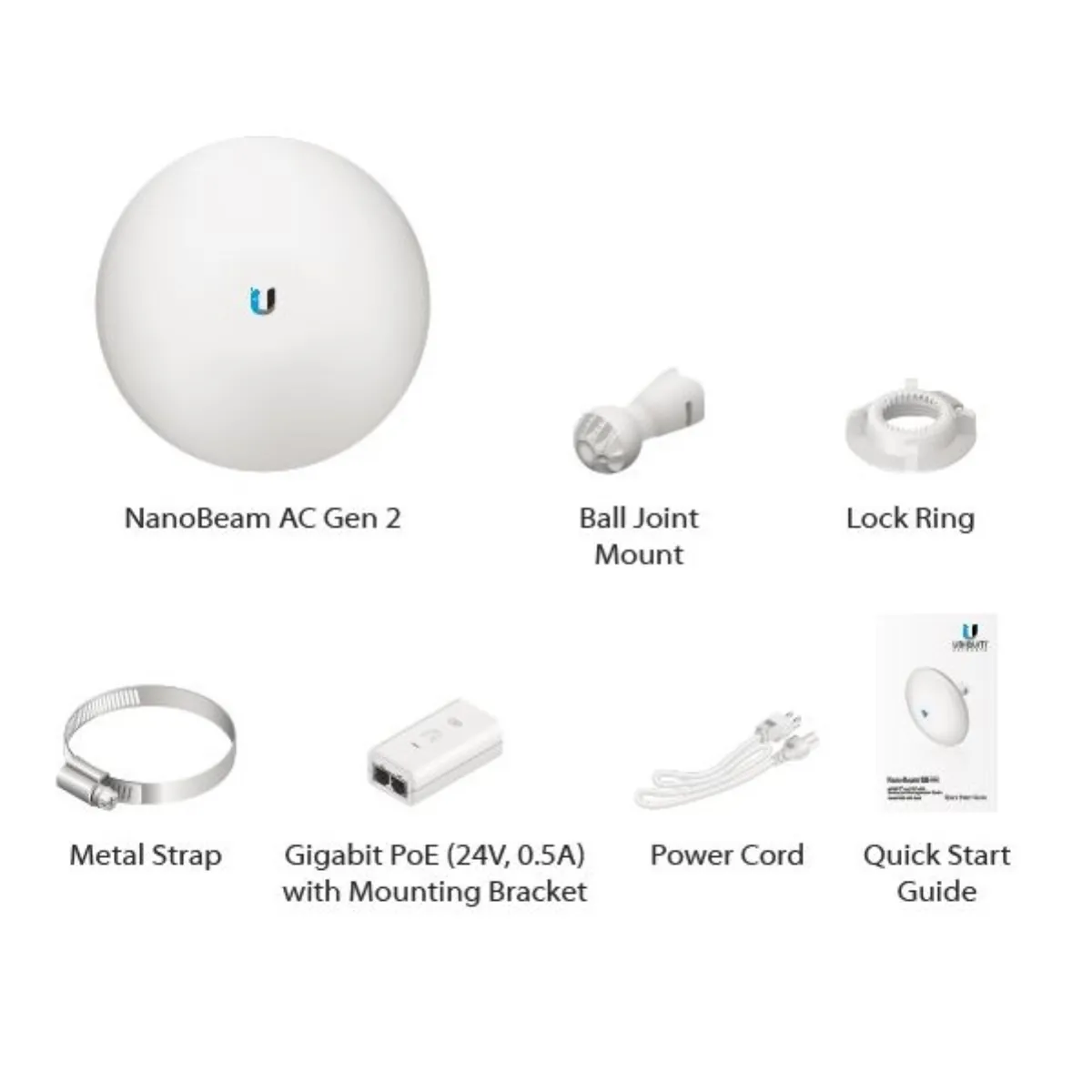

The package includes a 24 V/0.5 A Gbit power PoE injector.

Transmission speed: up to 450 Mb/s

Connector: 2x RJ-45

Power supply

  • 24 V
  • 0.5 A Gigabit (passive PoE)

Gain: 19 dBi

Frequency

  • 2412 - 2472 MHz
  • 5150 - 5875 MHz

Dimensions: 189 x 189 x 125 mm

Weight: 530 g

Properties

NameValue
Colorwhite
Weight, brutto [kg]0,53
Dimension [mm]189 × 189 × 125 mm
Minimum operating temperature [°C]-40
Maximum operating temperature [°C]80
Wi-Fi standardairMAX AC
ProcessorAtheros MIPS 74Kc, 720 MHz
Indoor useNo
Default IP192.168.1.20
ChipsetAtheros
ModulationOFDM, QAM
Width [mm]189
Operating modeAP, Client
Depth [mm]125
ConformityCE, FCC, IC
Power supply [V]24
Memory size [MB]128
WEP securityNo
NAND [MB]8
EncryptionWPA2-AES
Polarizationhorizontal and vertical
Wi-Fi frequency5150 - 5875 MHz
Max. output power [dBm]25
The default nameUBNT
WPA2 securityYes
Client modeYes
Transmission speed [Mbps]450
Gain [dBi]19
Port speed1 Gb/s
IPv6 supportyes, transparent (BRIDGE mode)
Designon the column
RJ-45/RJ-11 count2
Weight, brutto [g]530
