Ubiquiti NanoBeam M5 16 - AP client 5GHz antenna 16dBi MIMO2x2 airMAX 1x RJ45 PoE 24V
UBIQUITI | NBE-M5-16 | 810354022449
On stock 49 pcs.
Price of goods is 60.43 €.
Weight of goods is 0.758 Kg.
Actual in cart 0 pcs.
Ubiquiti NanoBeam M5 16 dBi
NanoBeam (NBE-M5-16) is a powerful complete outdoor unit including 16 dBi MIMO 2x2 antenna for 5 GHz band suitable for Point-to-Point and Point-to-Multipoint connections. The unit enables communication at up to 150 Mbps.

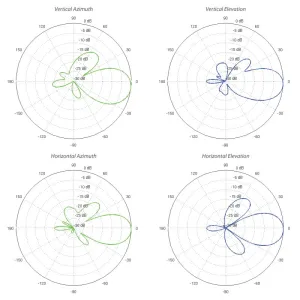

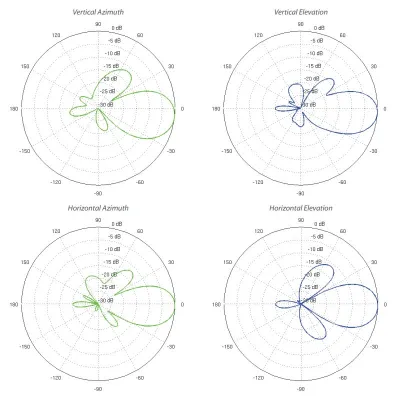

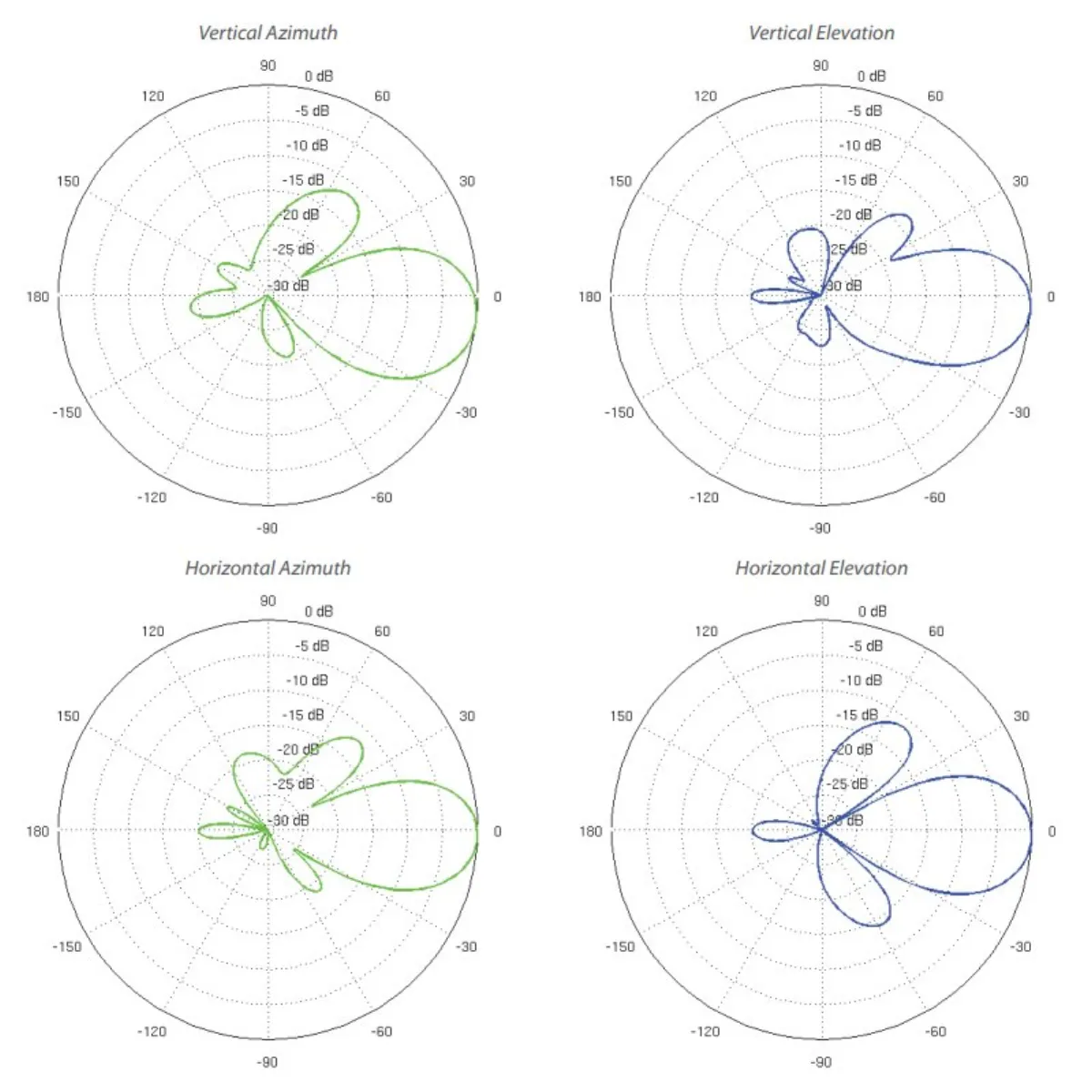

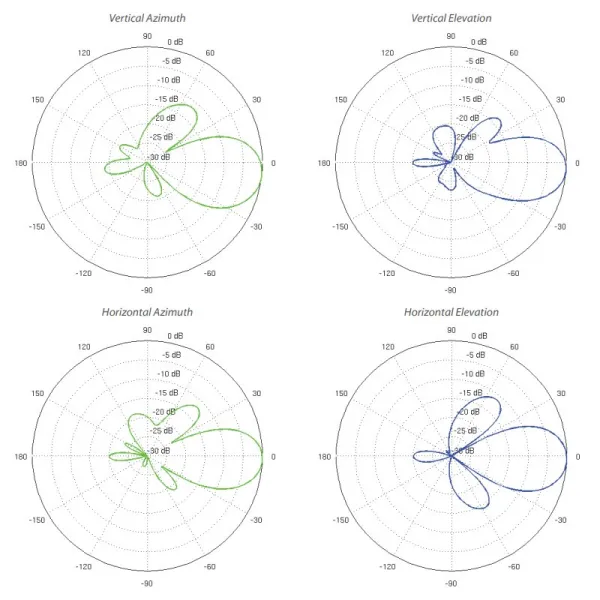

The antenna system consists of two 16 dBi antennas with horizontal and vertical polarization. For high transfer rates, the unit uses the 802.11a/n standard and AirMAX (TDMA) technology to achieve low latencies.
Web administration is very simple and clear. You can set e.g.:
- AP, client or WDS mode
- traffic shaping
- QoS
- transparent bridge or routing between WAN and LAN, without NAT or with NAT
- signal strength, which should correspond to a specific signaling LED
- output power up to 26 dBm
In bridge and WDS mode, the device transparently supports IPv6 transmissions.

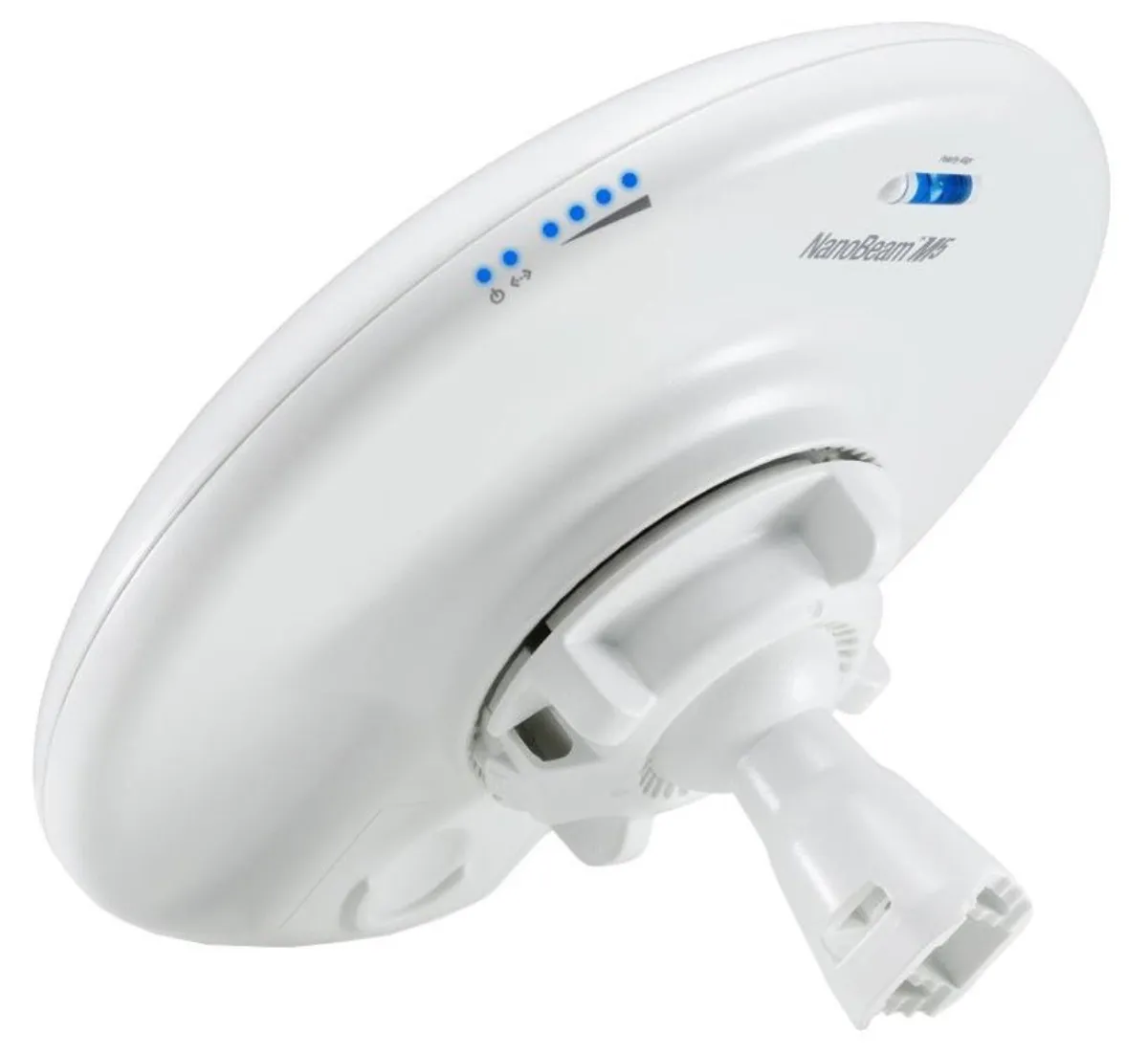

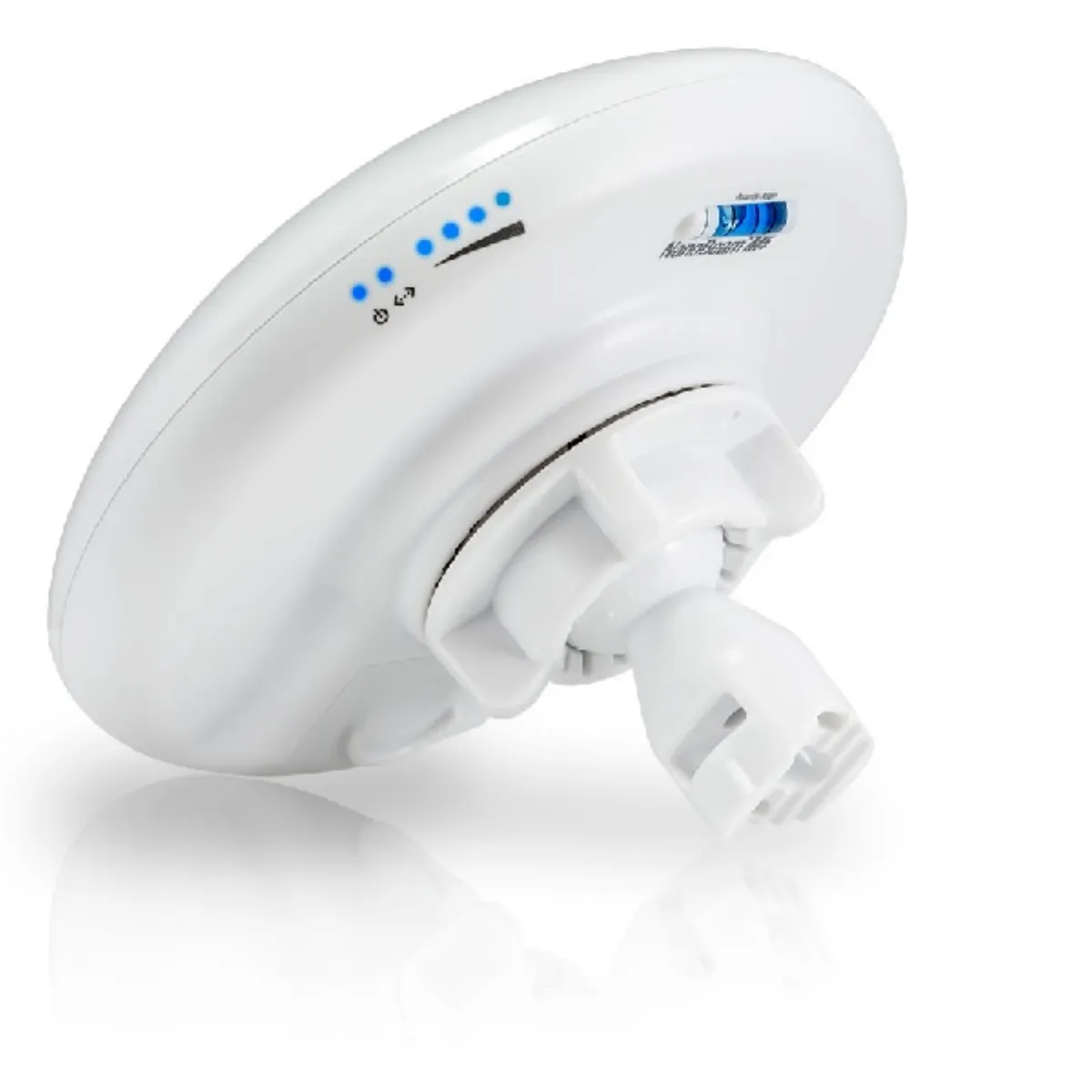

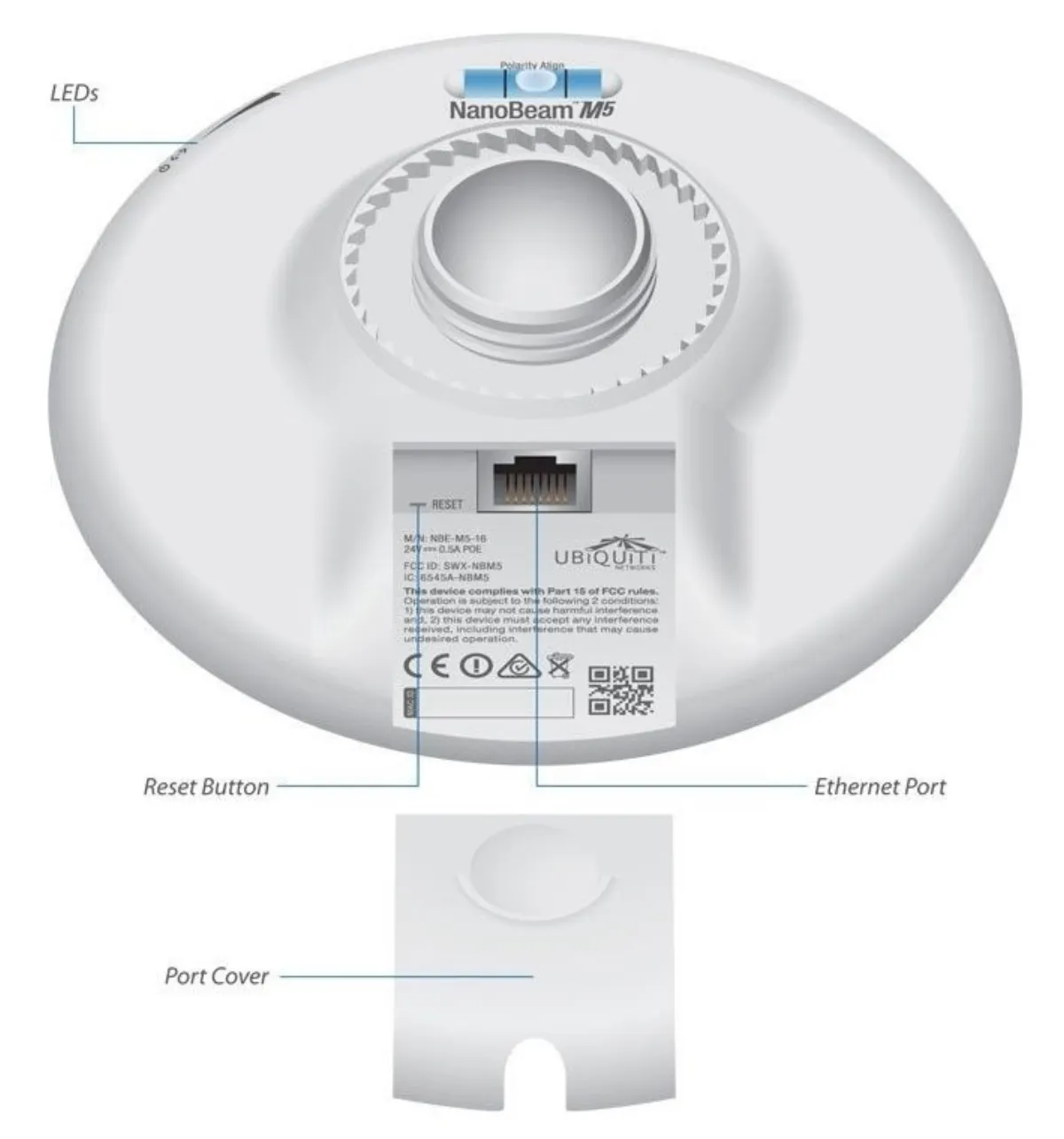

The advantage of NanoBeam is the spirit level and the innovative hinged holder, thanks to which it is possible to rotate the antenna to the desired position and aim precisely.

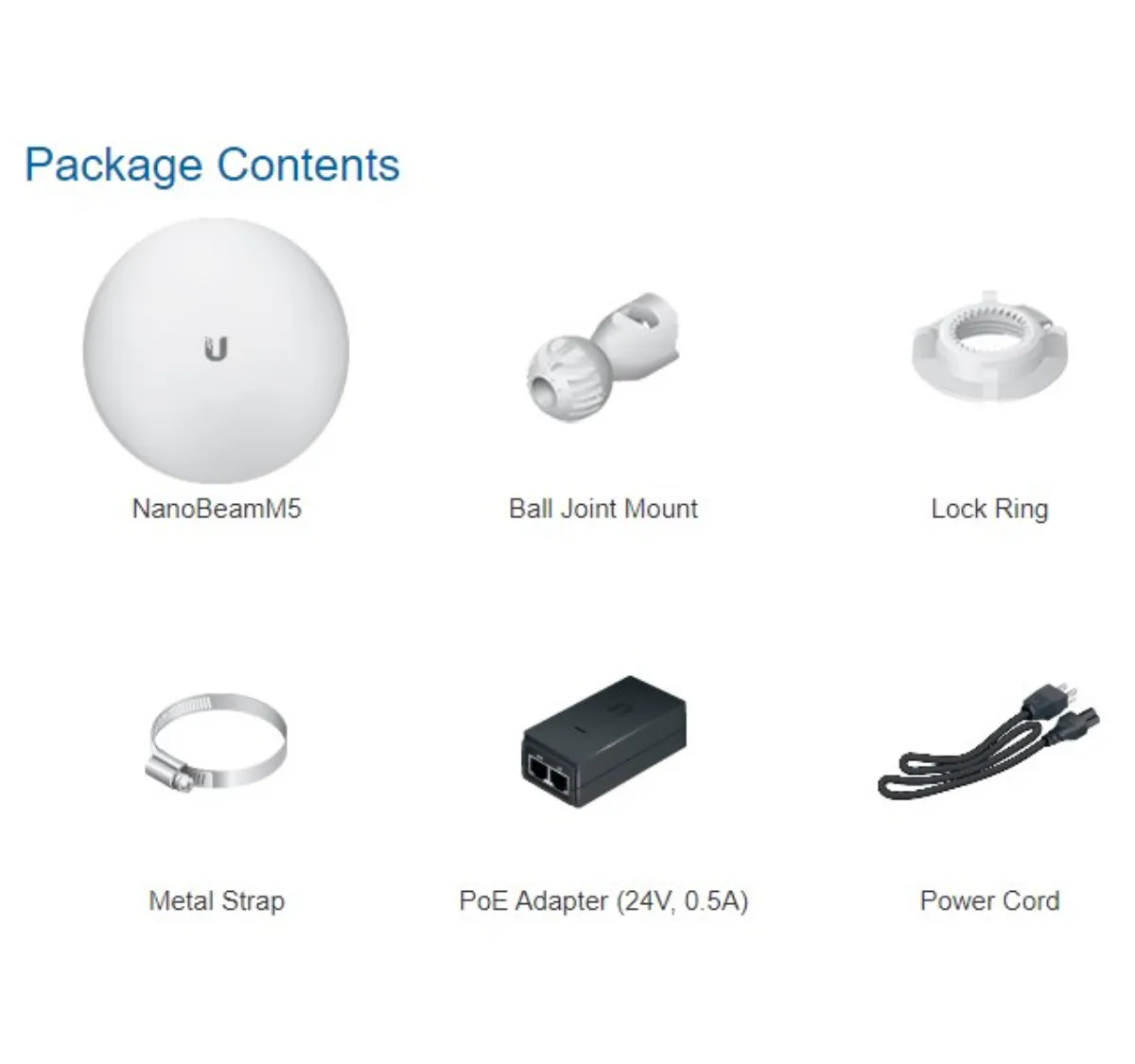

A 24 V PoE power adapter is included in the package.
Wi-Fi standard: IEEE 802.11a/n
CPU frequency: 560 MH
Number of cores: 1
RAM memory: 64 M

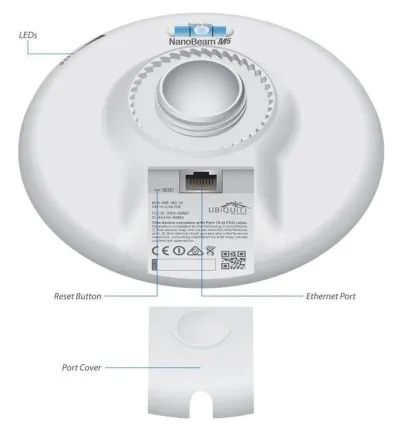

Ports: 1 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna: 16 dBi
Dimensions: 140 x 140 x 54 mm
Weight: 320 g
| Name | Value | |
|---|---|---|
| Color | white | |
| Weight, brutto [kg] | 0,32 | |
| Dimension [mm] | 140 × 140 × 54 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 70 | |
| Wi-Fi standard | 802.11a/n | |
| Default password | UBNT | |
| WPA security | No | |
| Processor | Atheros MIPS 74Kc, 560 MHz | |
| Interface | LAN, Wi-Fi | |
| Default IP | 192.168.1.20 | |
| Height [mm] | 140 | |
| Standards | 802.11a/n | |
| Chipset | Atheros | |
| Modulation | OFDM, QAM | |
| Width [mm] | 140 | |
| Operating mode | AP, Client, WDS | |
| Depth [mm] | 54 | |
| DHCP | Yes | |
| Conformity | CE, FCC, IC | |
| Memory size [MB] | 64 | |
| NAND [MB] | 8 | |
| Polarization | horizontal and vertical | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Sensitivity [dBm] | -94 | |
| Max. output power [dBm] | 26 | |
| The default name | UBNT | |
| Client mode | Yes | |
| Output to ext. the antenna | No | |
| Transmission speed [Mbps] | 150 | |
| Gain [dBi] | 16 | |
| Port speed | 100 Mb/s | |
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Design | on the column | |
