Ubiquiti NanoStation 5AC - AP client 5GHz antenna 16dBi MIMO2x2 airMAX AC 2x Gbit RJ45 PoE 24V PoE 802.3af
UBIQUITI | NS-5AC | 8592457162834
Price of goods is 115.82 €.
Weight of goods is 0.4 Kg.
Actual in cart 0 pcs.

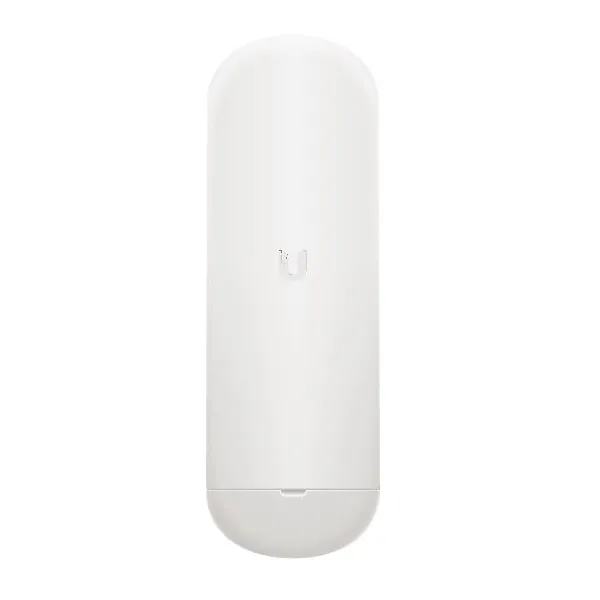

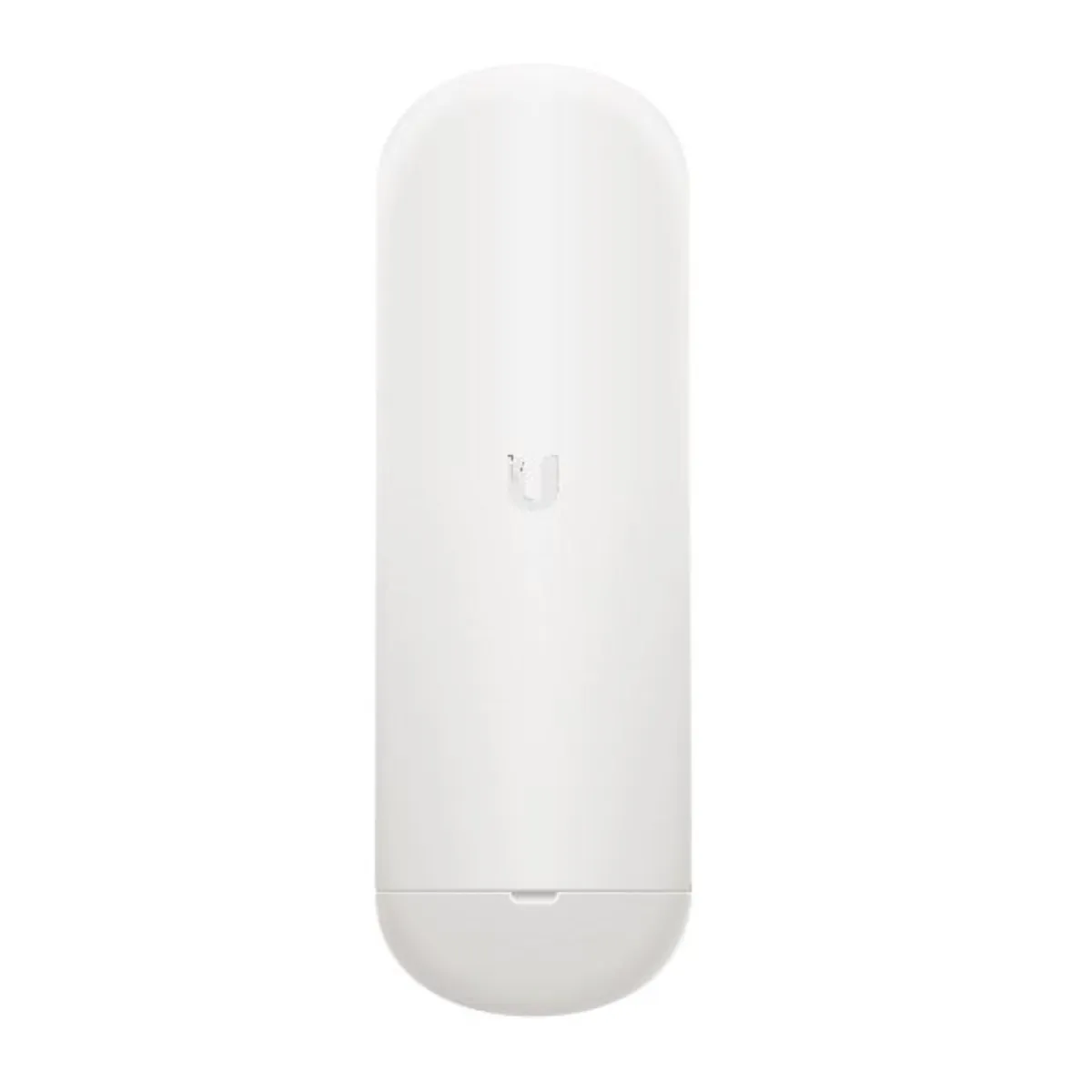

Ubiquiti NanoStation 5 AC
The popular NanoStation AC outdoor unit in a new design and with 802.11ac support, thanks to which it achieves a throughput of 450+ Mbps. Ideal for client units or Point-to-Point connections.

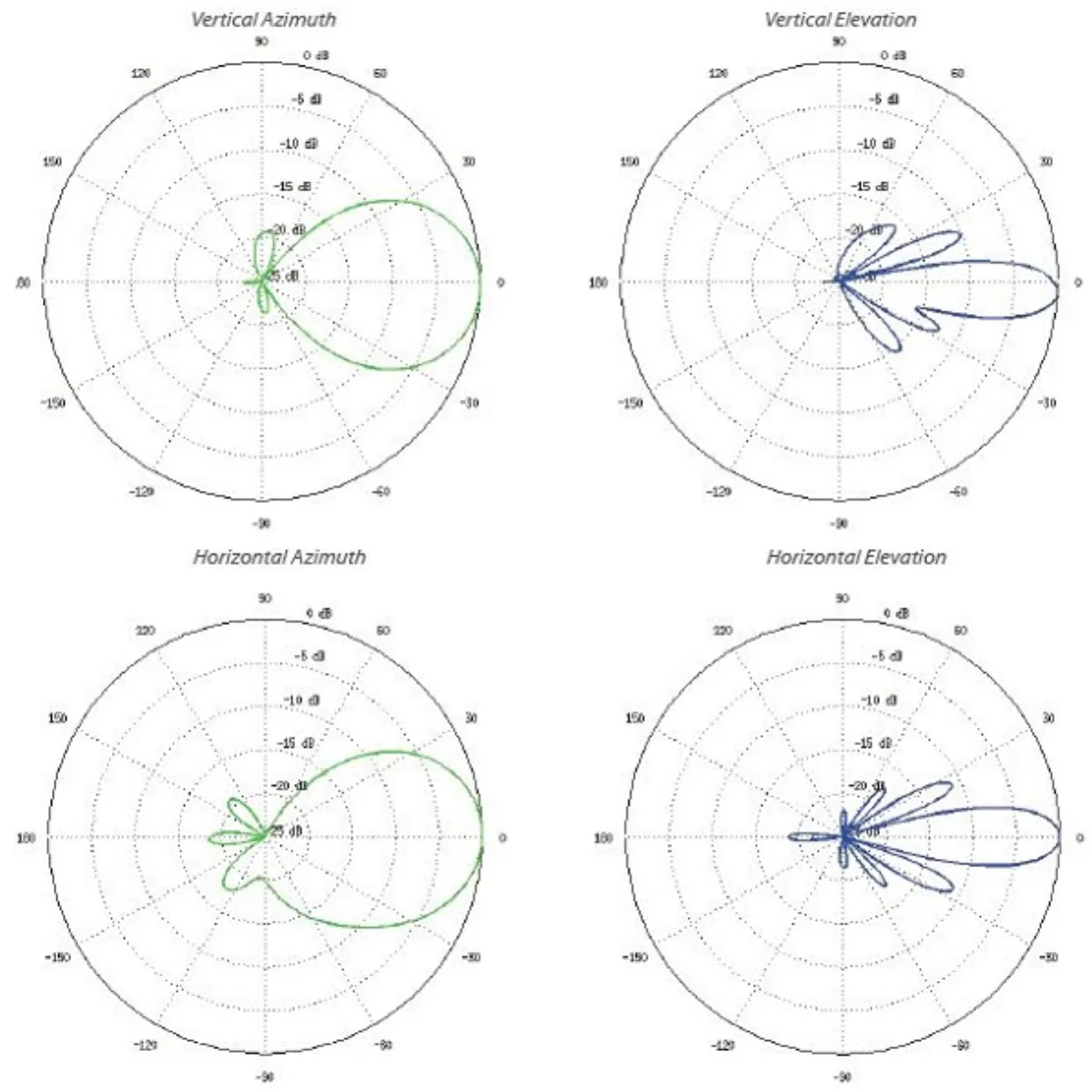

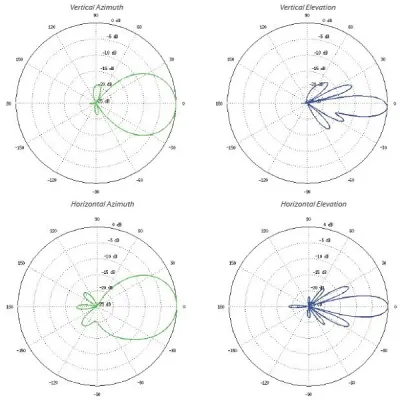

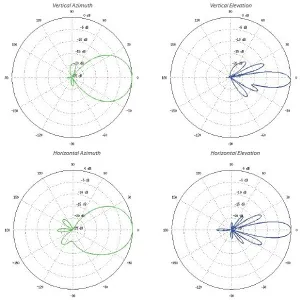

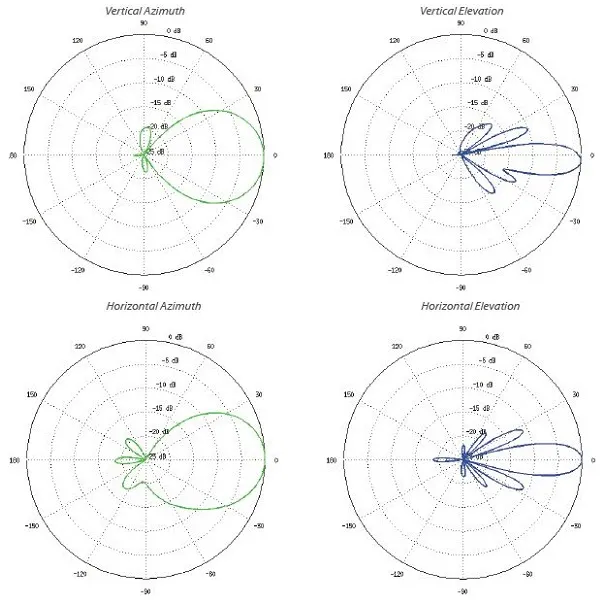

NanoStation AC is outdoor and has integrated 16dBi (5GHz) with horizontal and vertical polarization (MIMO2x2). For high transmission rates, the unit uses 256QAM modulation and the AirMAX TDMA protocol to achieve low latencies.
NanoStation AC is from the second generation of airMAX AC devices that support wireless access to the unit and the ability to set it up in the UNMS app for mobile devices. The UNMS application also helps with the orientation of the connection and will significantly speed up its installation.
The airOS 8 web interface is intuitive and displays a real-time constellation diagram and SNR progress. The unit supports AP/client modes in Point-to-MultiBod or Point-to-Point networks and router or bridge modes.
NanoStation AC, like every device in the airMAX AC series, has a dedicated radio for continuous spectral analysis of the 5 GHz band

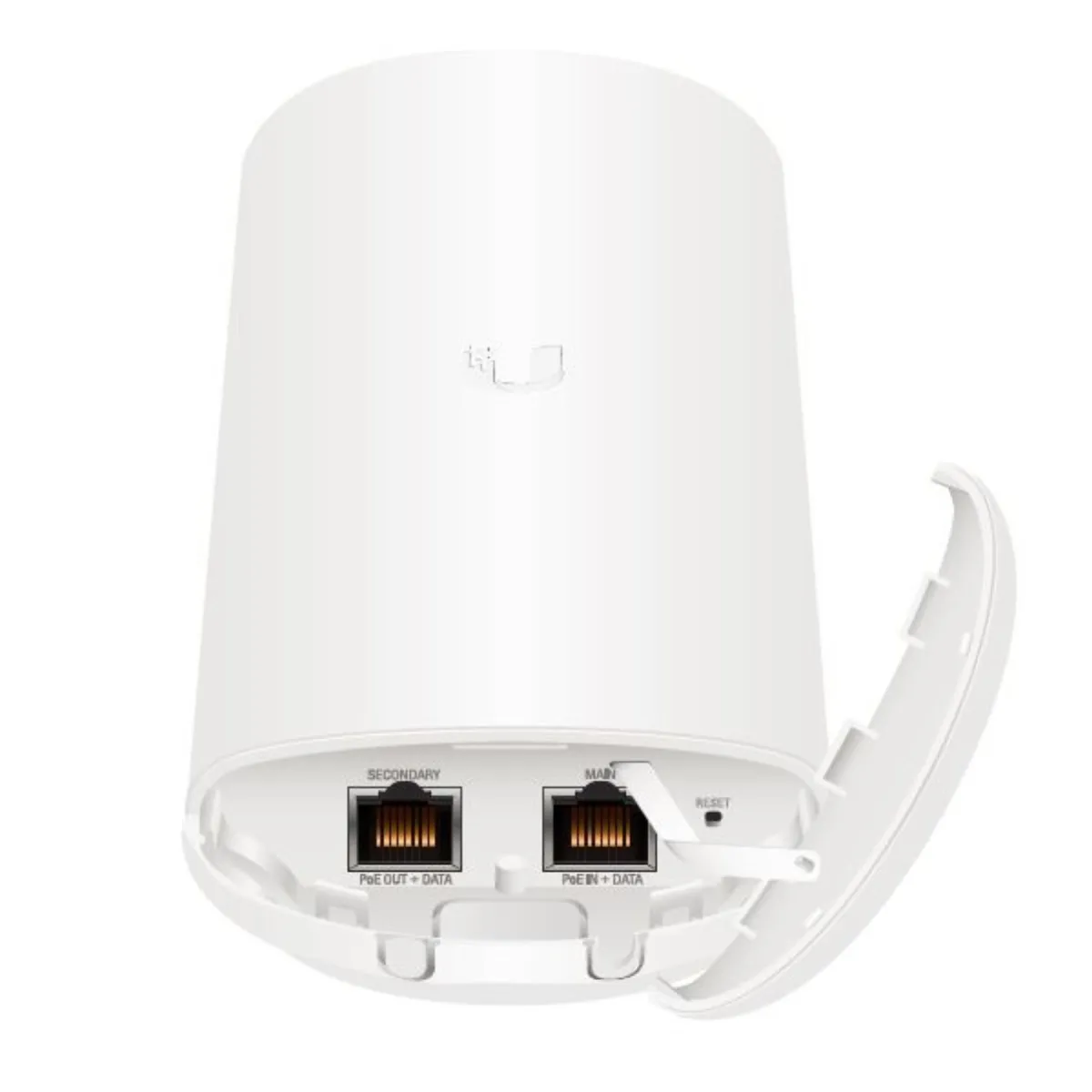

Another advantage is support of PoE Out on the second ethernet port for direct powering of another device, for example a UniFi Video G3\ camera. The PoE Out output voltage corresponds to the selected PoE power supply at the input. This feature can also be disabled in software.
NanoStation AC has improved surge protection that protects the device against electrostatic discharge.
NanoStation AC supports passive PoE power supply 24V and active PoE power supply 802.3af alternate A.

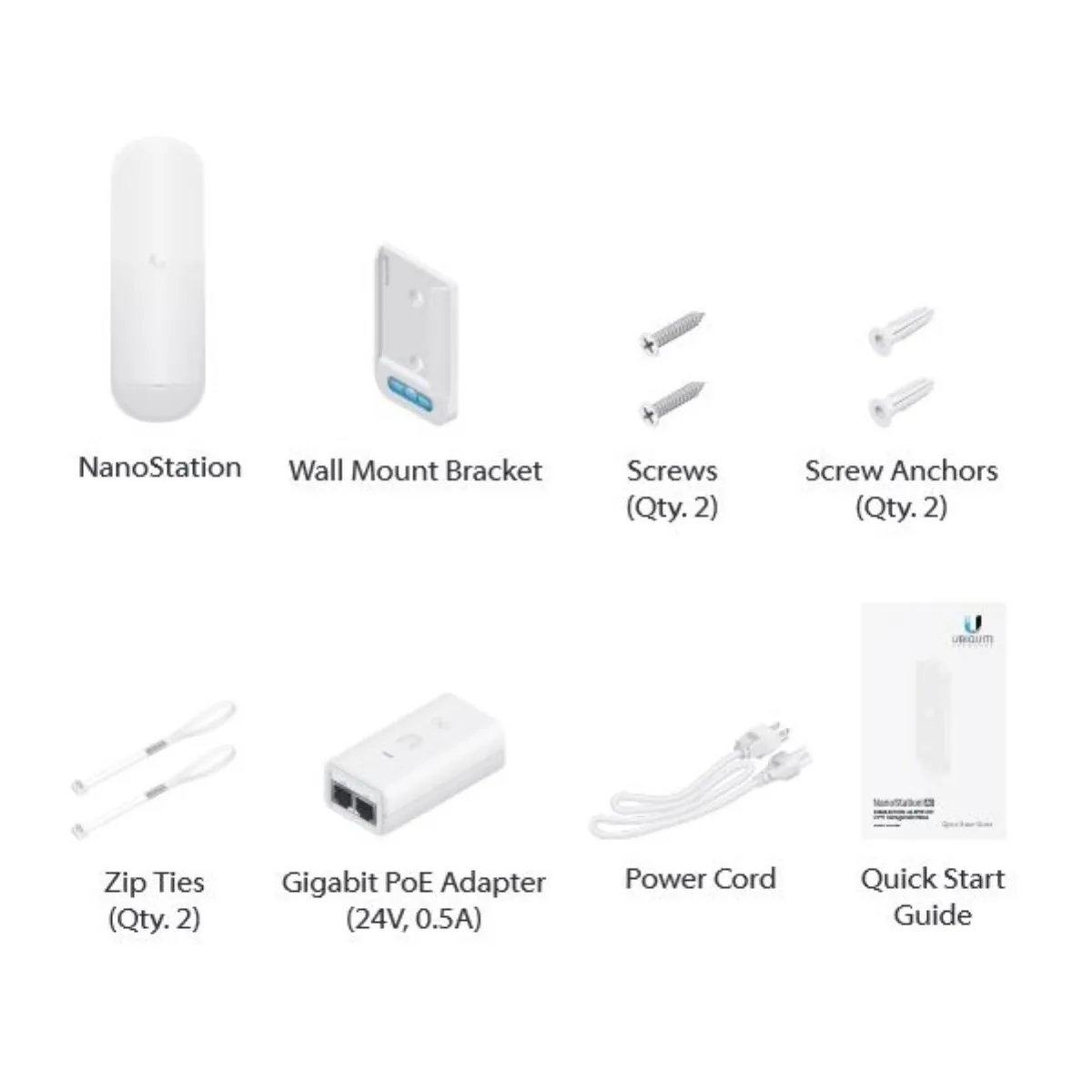

The package includes a 24V/0.5A Gbit power PoE injector
CPU frequency: 560 MHz
RAM memory: 64 MB DDR
Ports: 2 x RJ-45
PoE support: yes
Frequency band: 5150 - 5875 MHz
Antenna: 13 dBi internal
Dimensions: 257 x 84 x 30 mm
Weight: 233g
| Name | Value | |
|---|---|---|
| IPv6 support | yes, transparent (BRIDGE mode) | |
| Weight, brutto [kg] | 0,233 | |
| Color | white | |
| Dimension [mm] | 257 × 84 × 30 mm | |
| Maximum operating temperature [°C] | 70 | |
| Port speed | 1 Gb/s | |
| Design | on the column | |
| Conformity | CE, FCC, IC | |
| Wi-fi | Yes | |
| Consumption [W] | 8,5 | |
| Depth [mm] | 30 | |
| Height [mm] | 257 | |
| Width [mm] | 84 | |
| Transmission speed [Mbps] | 450 | |
| Max. output power [dBm] | 25 | |
| Memory size [MB] | 64 | |
| Modulation | BPSK, QPSK, 16QAM, 64QAM, 256QAM | |
| Default IP | 192.168.1.20 | |
| Encryption | WPA2-AES | |
| Power supply [V] | 24 | |
| Wi-Fi standard | airMAX AC | |
| Wi-Fi frequency | 5150 - 5875 MHz | |
| Default password | UBNT | |
| The default name | UBNT | |
| WPA security | No | |
| Indoor use | Yes | |
| Operating mode | AP, Client | |
| Processor | Atheros MIPS 74Kc, 560 MHz | |
| Gain [dBi] | 16 | |
| Polarization | horizontal and vertical | |
